FAST 301014 XFI 2.0 Engine Management Kit Ford Coyote 5.0L

The FAST 301014 XFI 2.0 Crate/Transplant Engine Management Kit is specifically engineered for 2011 and newer Ford Coyote 5.0L engines, providing a complete plug-and-play solution for converting fuel injected crate or transplant engines to aftermarket EFI. This comprehensive kit is precision-tailored to match the Ford Coyote platform and includes a FAST XFI 2.0 ECU with NTK wide-band O2 sensor, XIM Ignition Module, and all necessary plug-and-play wiring harnesses with clearly labeled connections.

Complete Kit Includes:

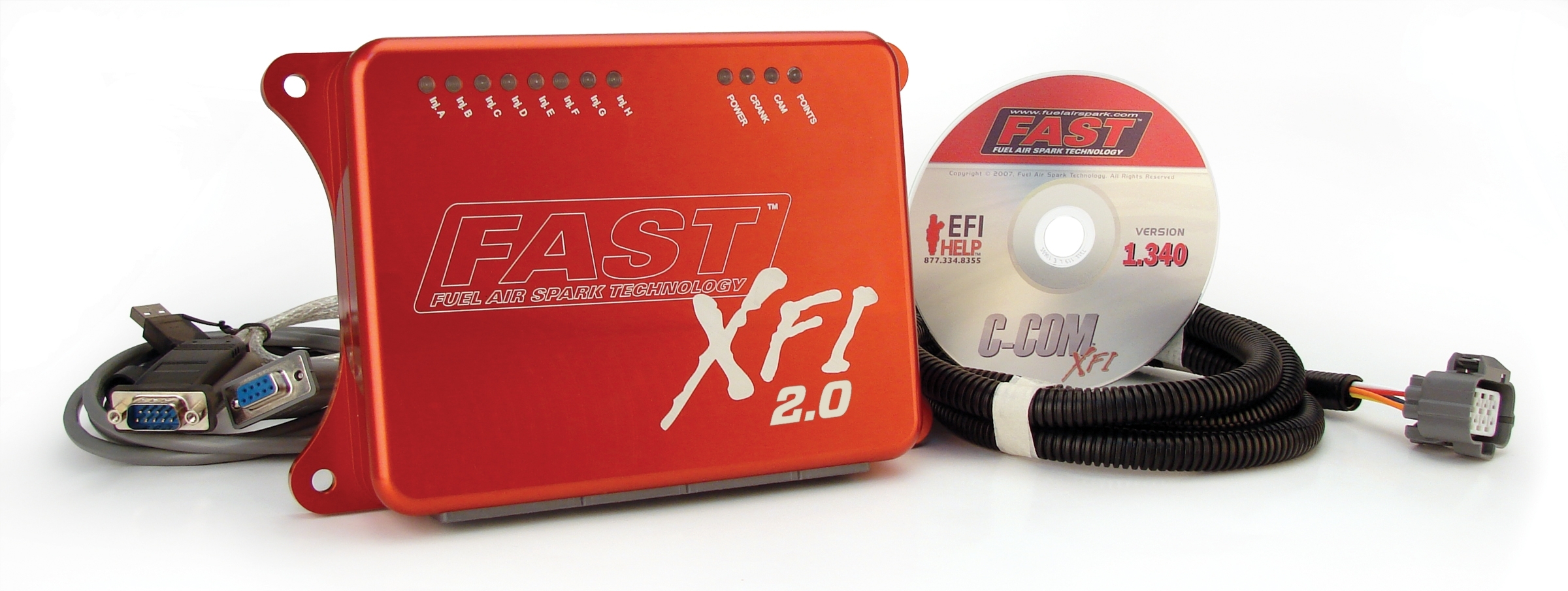

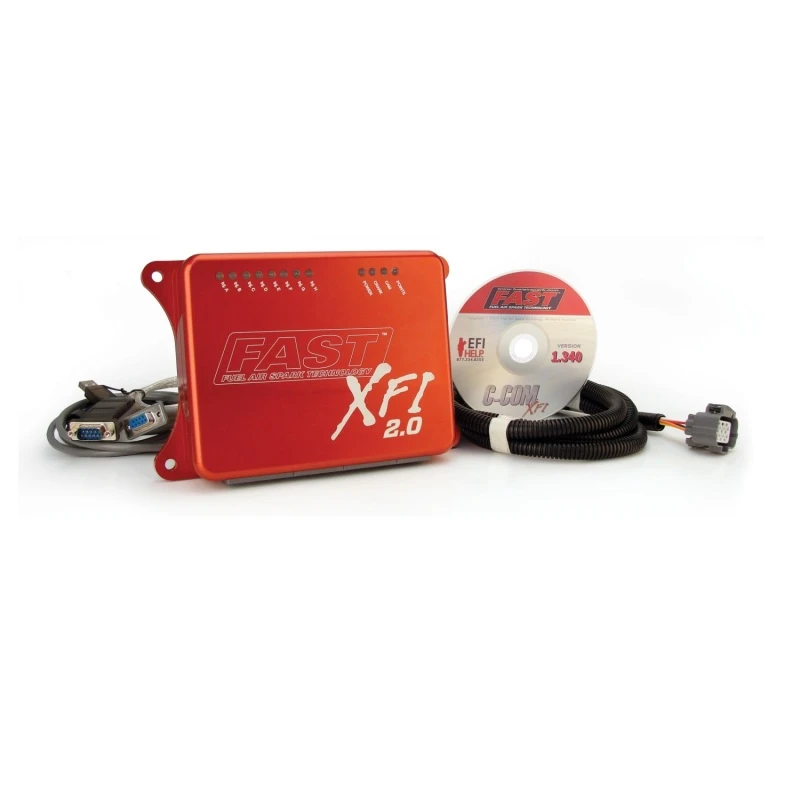

• XFI 2.0 ECU with integrated NTK wide-band O2 sensor
• XIM Ignition Controller for coil-per-cylinder control
• Cable-driven Big Mouth LT 92mm throttle body (replaces stock electronic throttle body)
• All necessary wiring harnesses and connection cables
• Air temperature sensor and chrome XFI emblem

Advanced XFI 2.0 Technology:

• Latest flash microprocessor technology processes, analyzes and adjusts four times faster than previous EFI systems
• Revolutionary Self Learning Auto Tuning VE Table provides automated fuel mapping
• Qwik Tune Technology allows ECU programming without a laptop and supports up to four preprogrammed EFI maps selectable with an in-car switch
• Field-flashable C-Com Windows software enables downloads of updates without removing the ECU
• Surface mount circuit board and billet ECU enclosure for superior durability

Advanced forced induction controls include two fully programmable sequential rev limiters, time-based boost controller, and progressive power adder controls for both wet or dry applications with separate tables for solenoid and fuel control. Additional features include on-board diagnostics, EZ Test indicator lights, five bar MAP sensing, and controls for power adders and torque converters.

Important Note: Requires COMP Phaser Lock Kit (Part# 5492) for proper installation. Suitable PC required for tuning software use.
