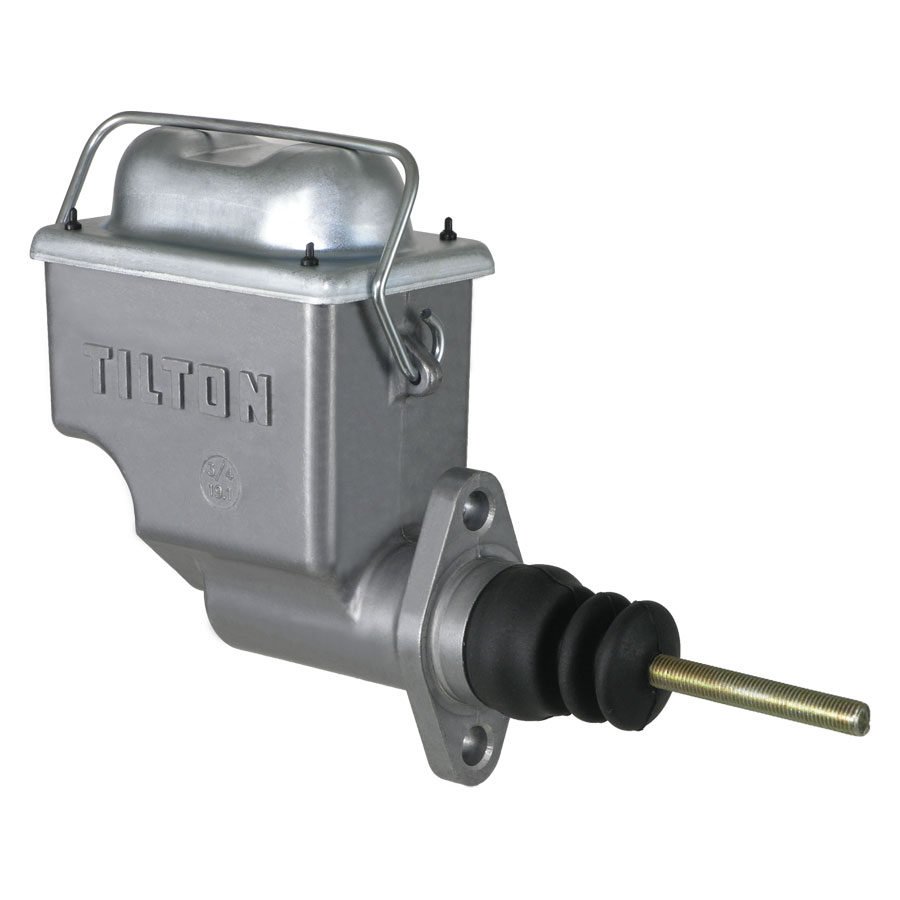

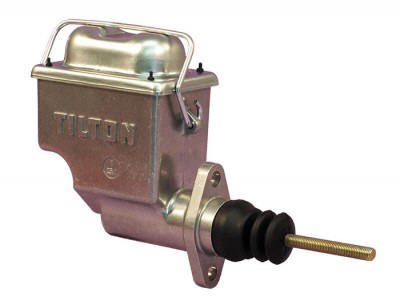

Tilton Engineering 73-875 7/8" Bore Master Cylinder with Integral Reservoir

Manufacturer

Picture for manufacturer Tilton Engineering

Part Number

73-875
13 reviews
Sale Price

$81.48

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Tilton Engineering 73-875 is a high-performance brake master cylinder from the 73-Series lineup, designed for racing applications that require large brake fluid capacity in a compact, leak-proof package. Featuring a 7/8 inch (22.23mm) bore diameter and 1.1 inch stroke, this master cylinder provides excellent fluid displacement for a wide variety of brake system configurations.

Key Features:

  • 7/8 inch (22.23mm) bore diameter with 1.1 inch stroke for optimal fluid displacement
  • Integral 10 oz sealed reservoir eliminates the need for remote fluid tanks
  • High-pressure die-cast aluminum construction with machined-look finish
  • Unique design allows temporary inversion without fluid loss
  • Completely sealed fluid chamber protects brake fluid from outside contaminants while allowing fluid level changes
  • Standard 2-1/4 inch flange mount pattern fits most pedal assemblies and firewalls
  • 1/8 inch NPT outlet port for standard brake fittings
  • Compatible with DOT 3, DOT 4, and DOT 5.1 brake fluids
  • Fits Tilton 600-Series pedal assemblies and balance bars

This affordable master cylinder solution delivers professional-grade performance for budget-conscious racers. The expanding bellows design in the integral reservoir keeps environmental elements away from brake fluid, ensuring consistent braking performance. Not designed for use with ABS systems.

Products specifications

Bowl Design

Single

Brake Booster Included

No

Master Cylinder Bore Size

0.875 in.

Master Cylinder Cap Included

Yes

Master Cylinder Finish

Natural

Master Cylinder Material

Die-cast aluminum

Master Cylinder Stroke

1.100 in.

Mounting Brackets Included

No

Mounting Flange Center to Center Distance (in)

2.25 in.

Mounting Hole Quantity

2 holes

Pushrod Included

Yes

Quantity

Sold individually.

Reservoir Finish

Natural

Reservoir Material

Aluminum
