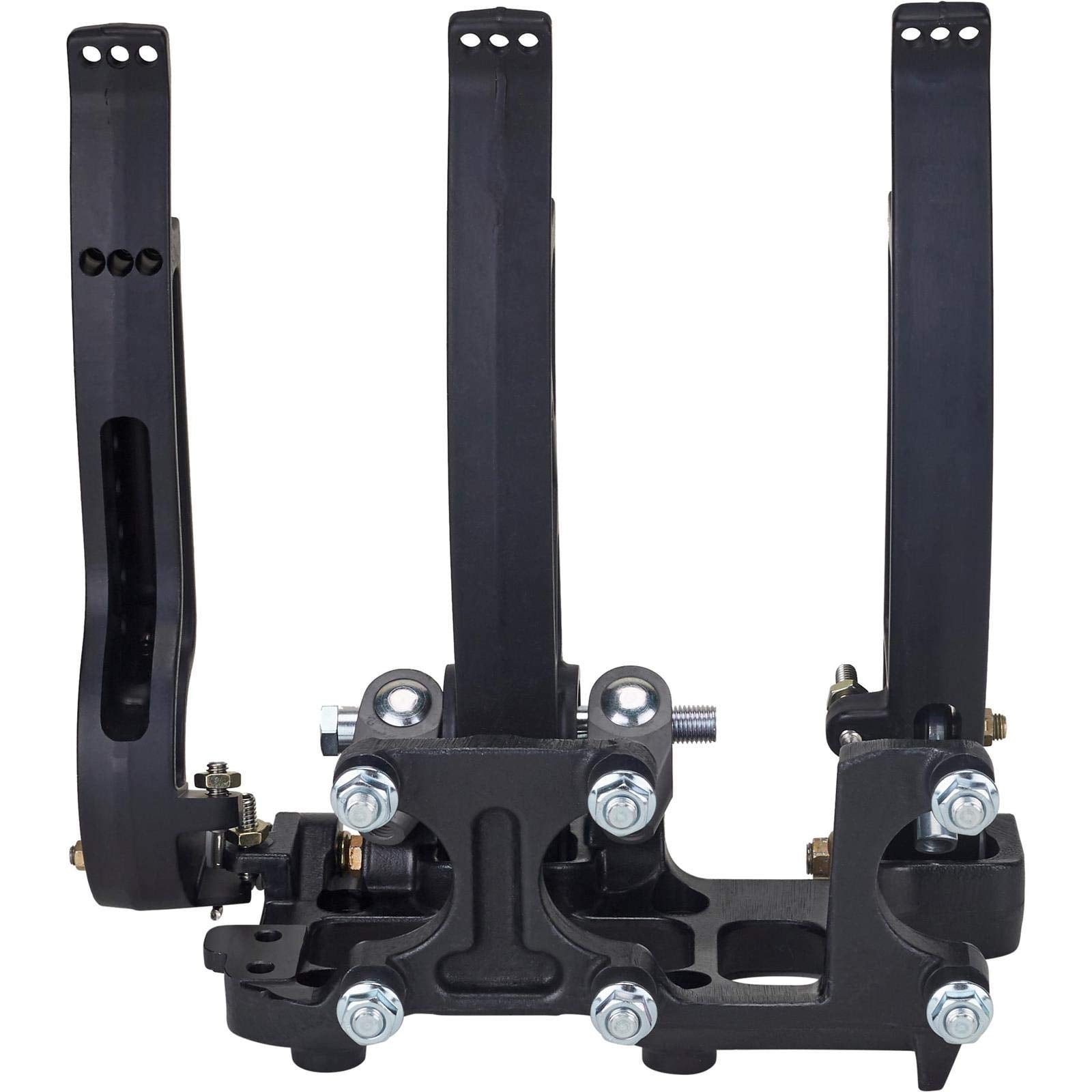

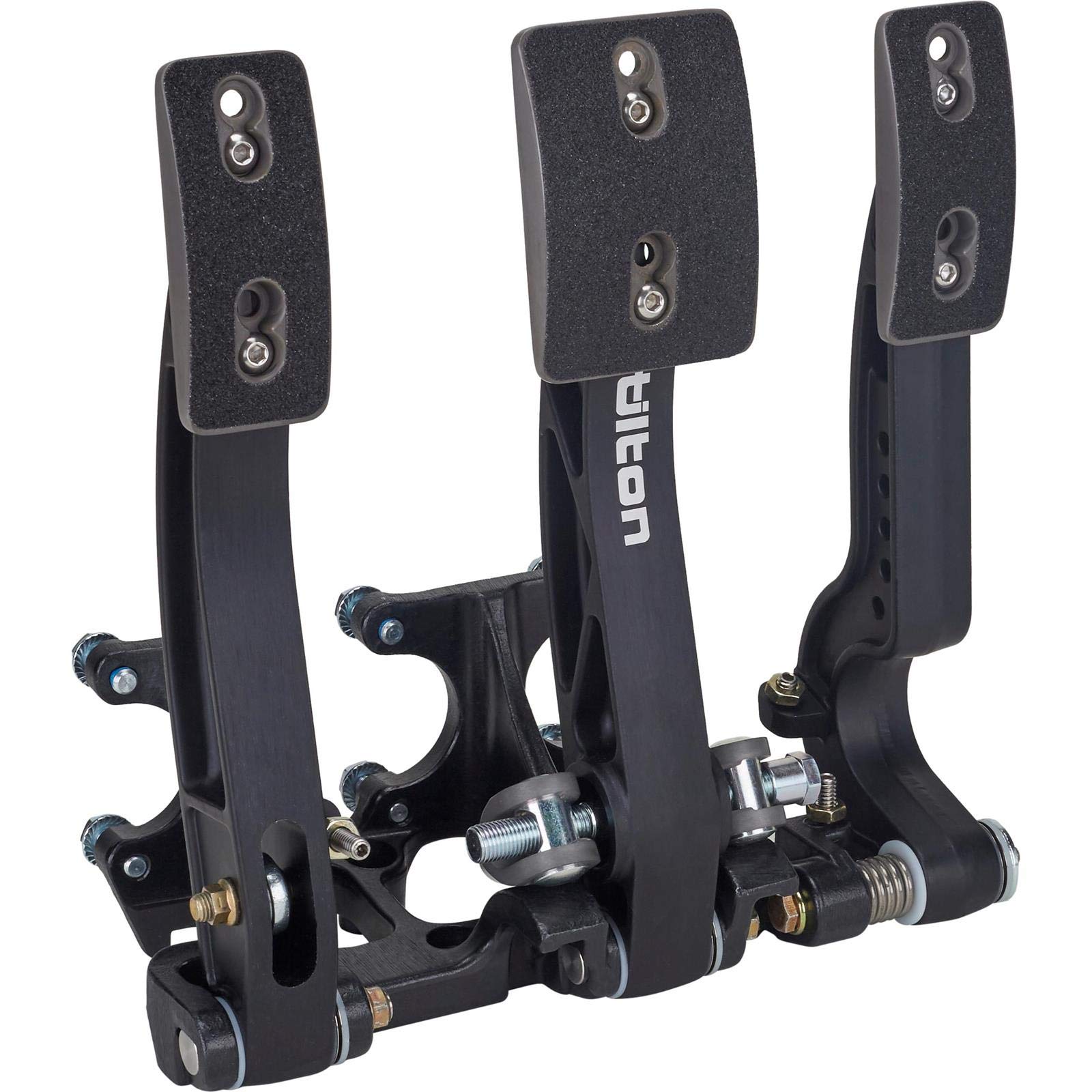

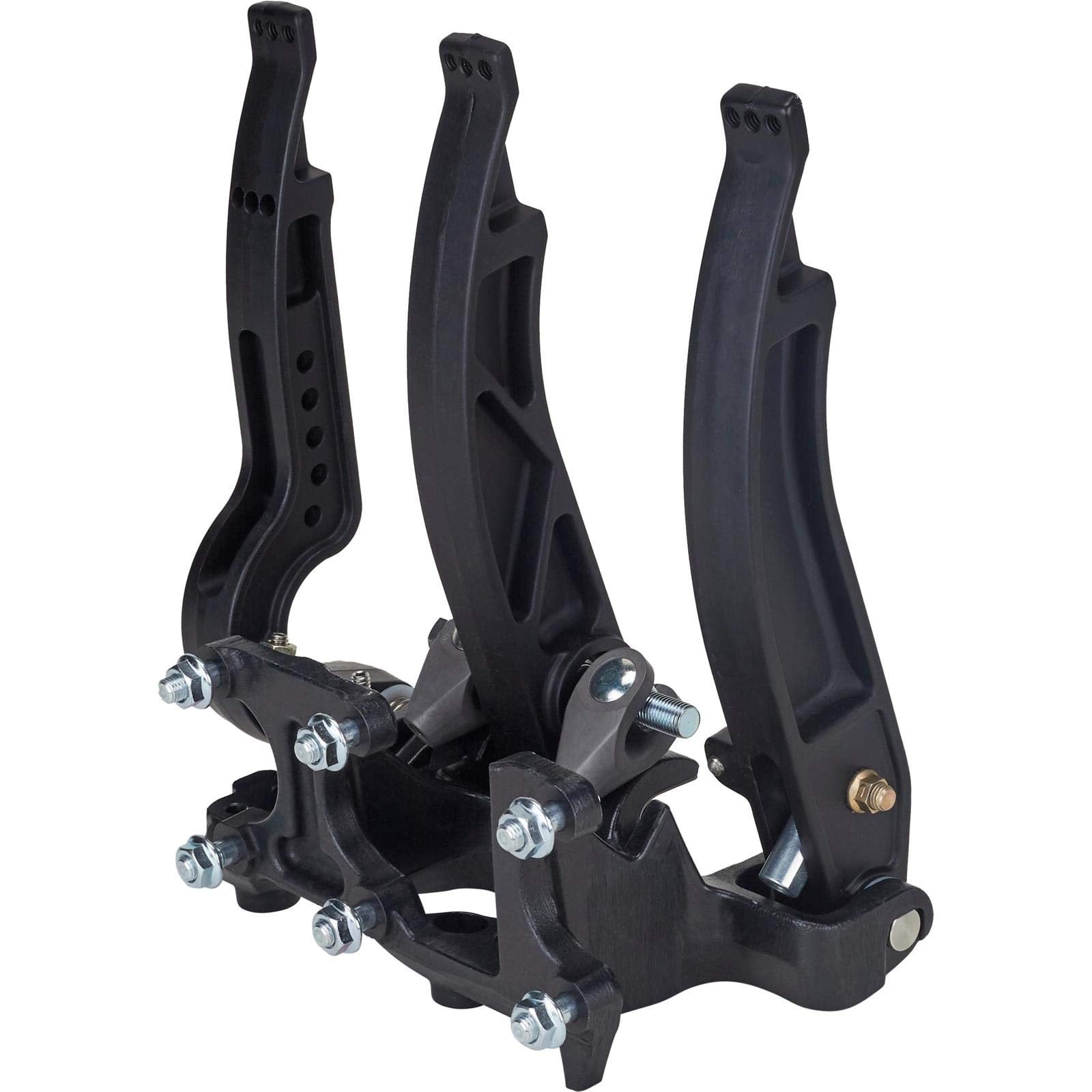

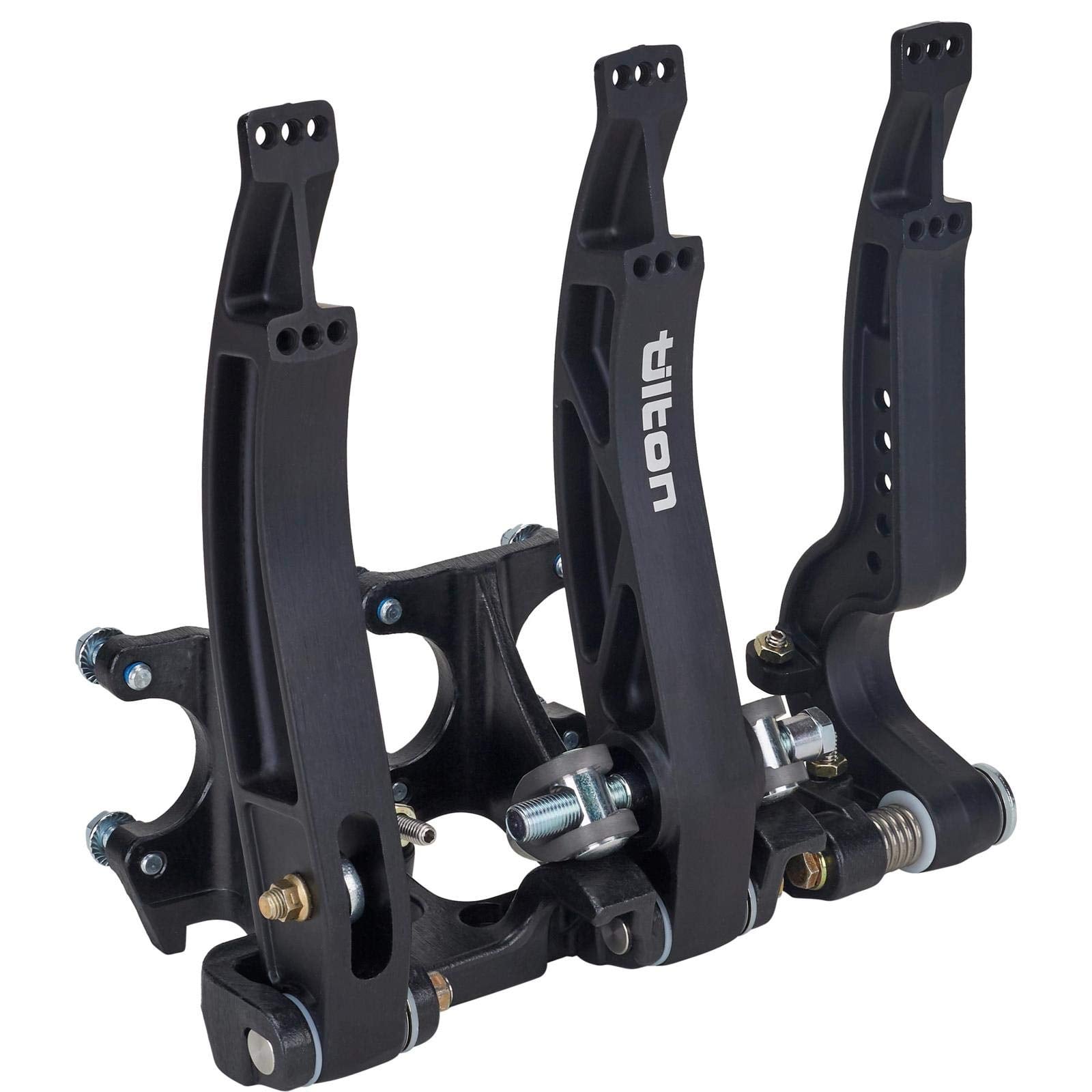

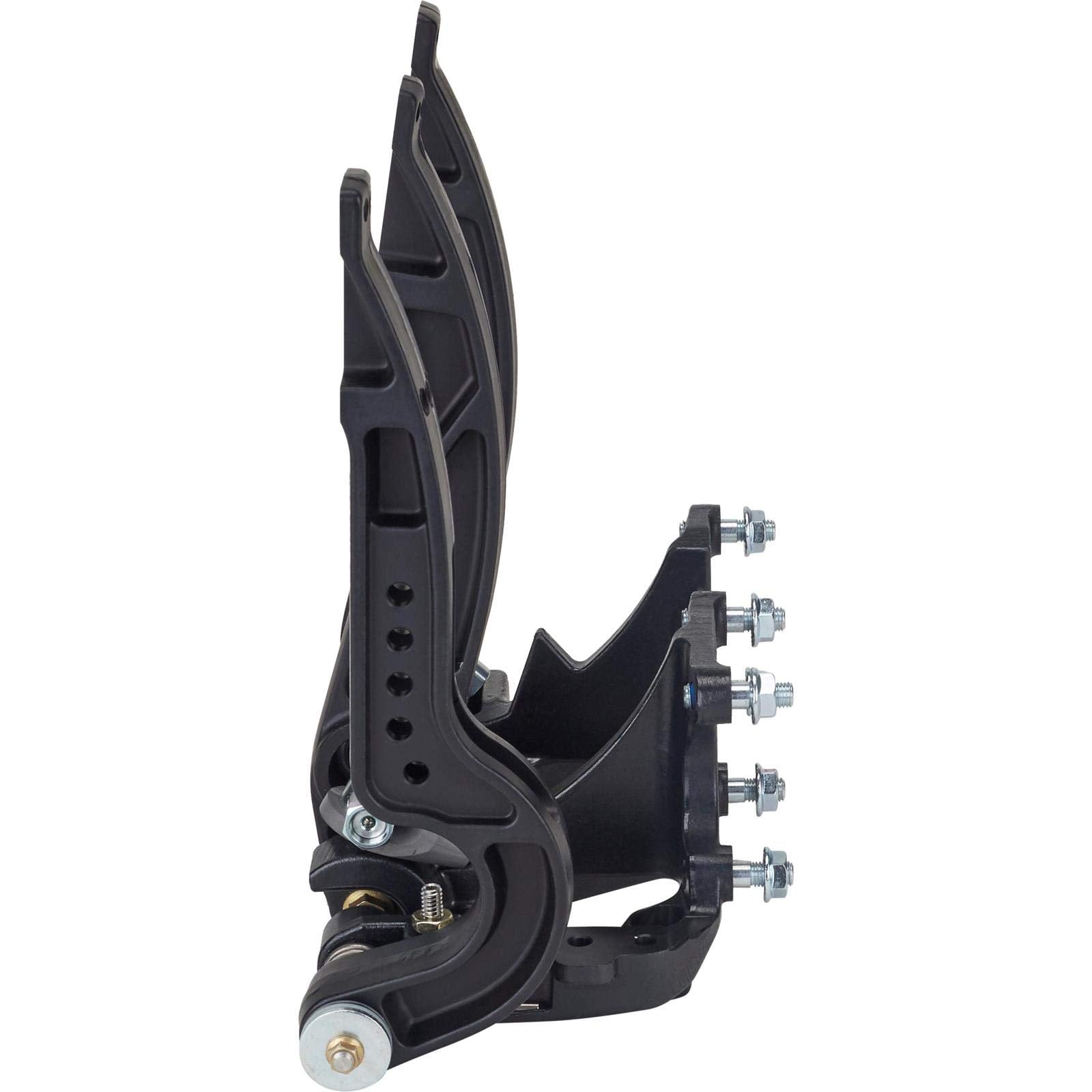

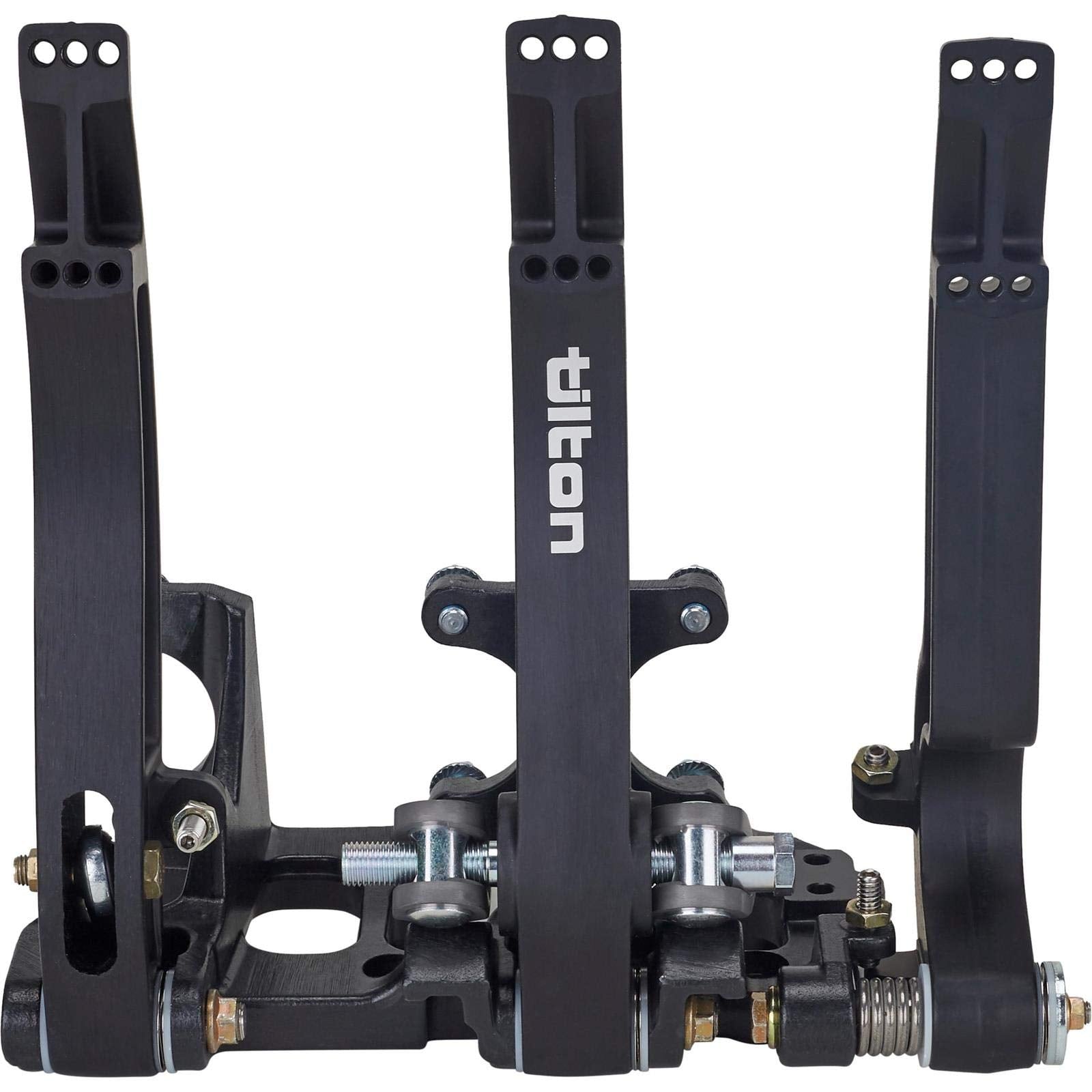

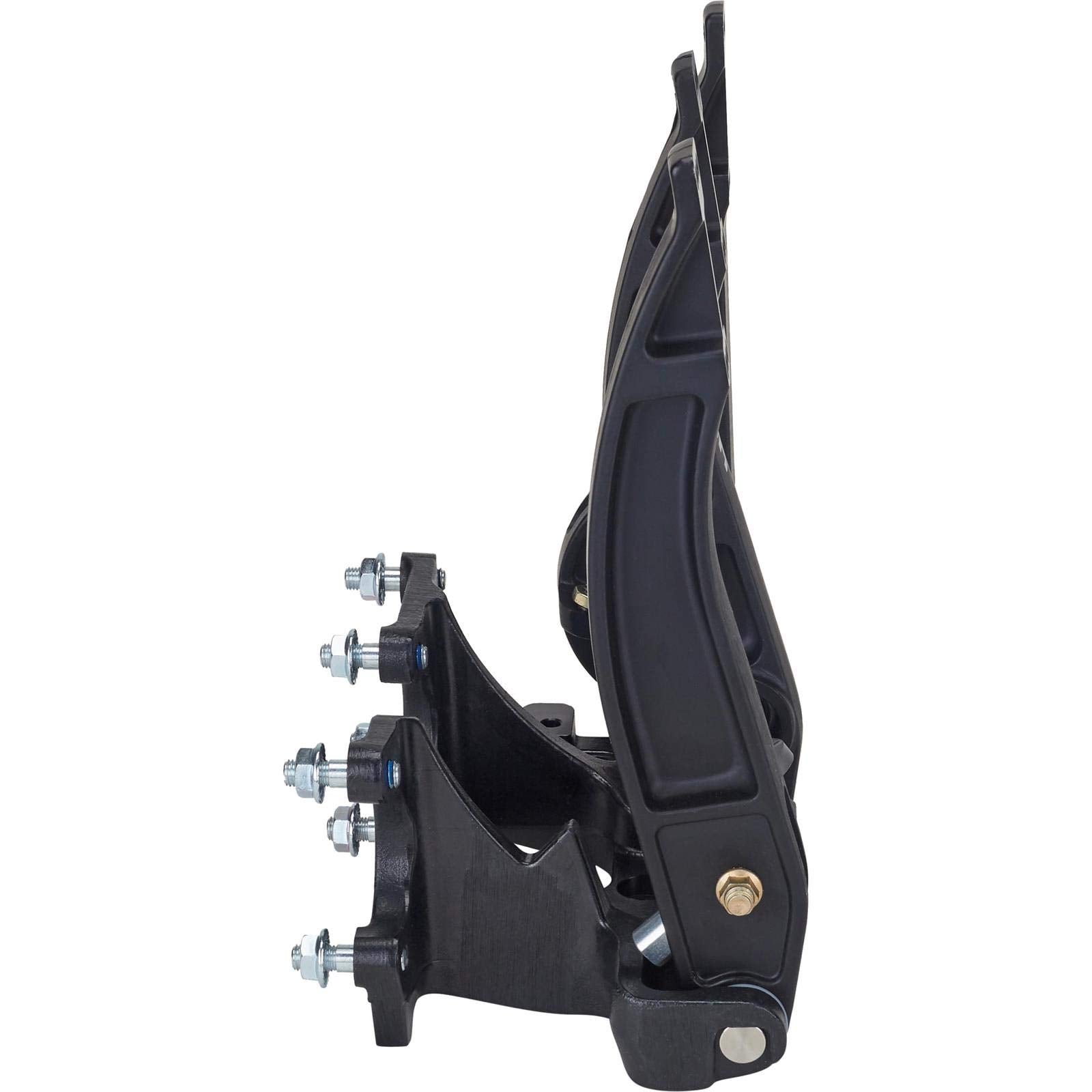

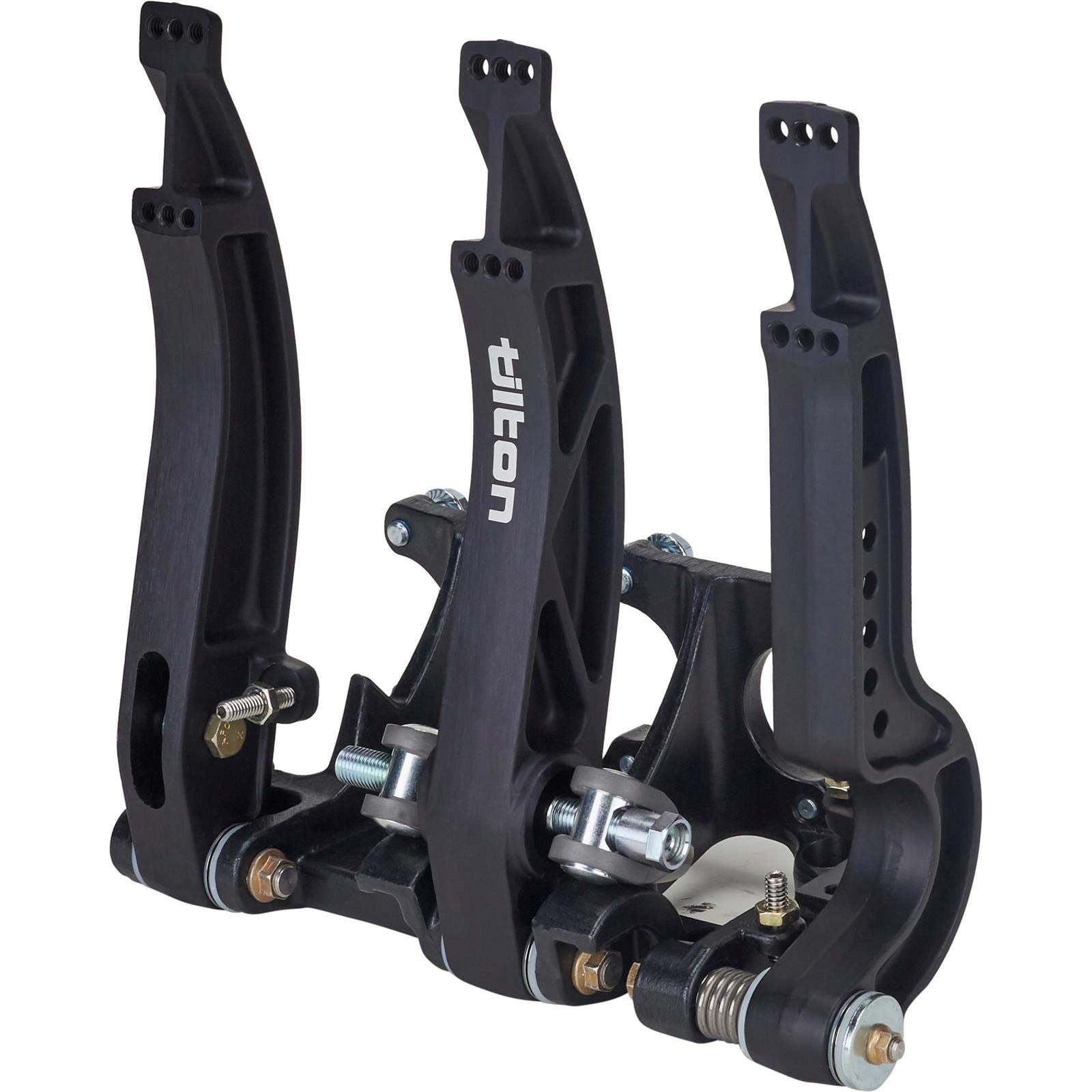

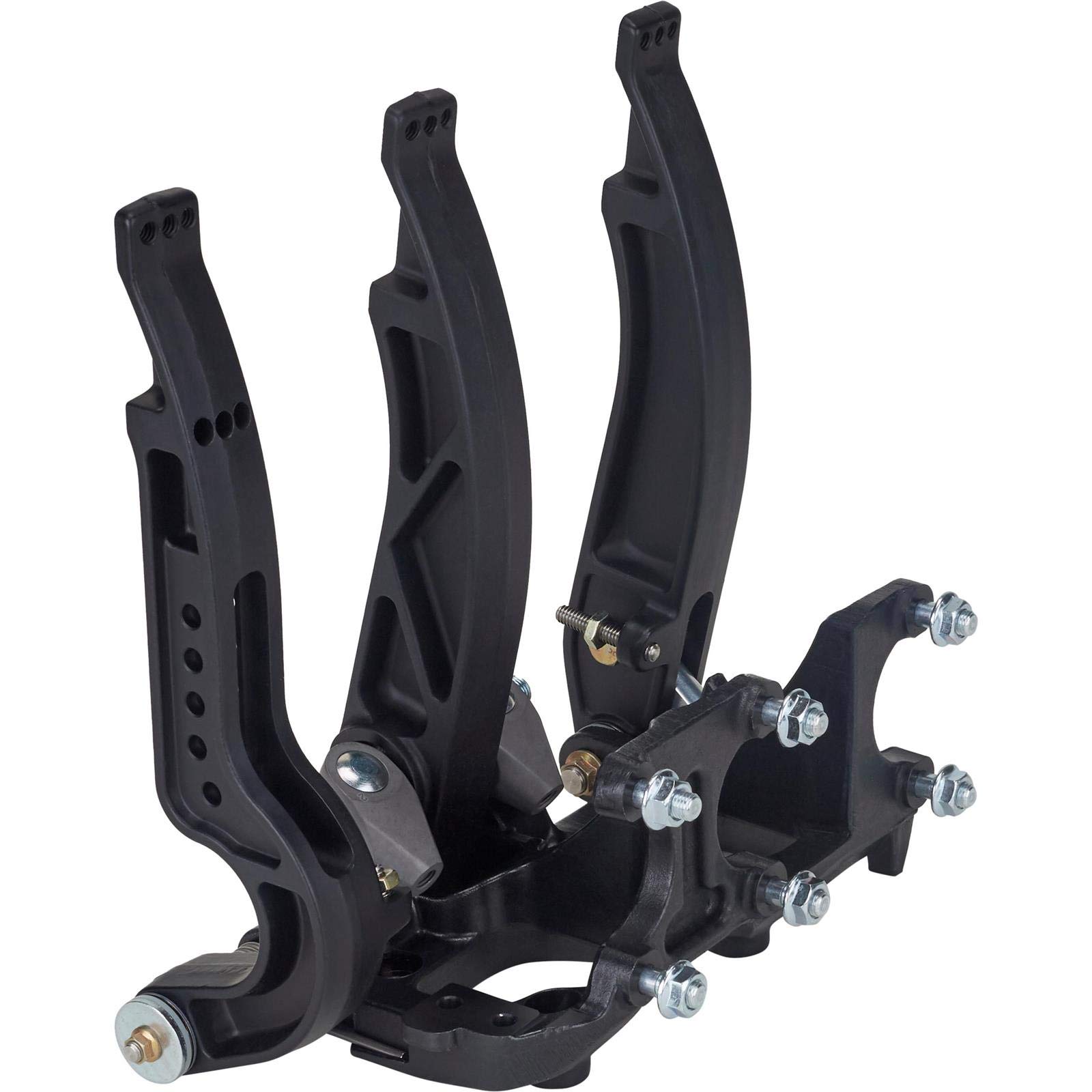

Tilton Engineering 72-603 600-Series Floor Mount 3-Pedal Assembly

The Tilton Engineering 72-603 is a high-performance 600-Series floor mount pedal assembly designed for racing and performance applications. This three-pedal system includes throttle, brake, and clutch pedals, featuring traditional fixed-mount master cylinder and balance bar technology for excellent performance at competitive prices.

Key Features:

• Forged aluminum pedals with adjustable foot pads (vertical and horizontal) and anti-slip surfaces
• Adjustable pedal ratios: 5.29:1, 5.44:1, 5.61:1, or 5.75:1 for tuning brake pedal feel without changing master cylinder bore size
• Large diameter 7/16"-20 balance bar for maximum rigidity and minimal flex
• Lightweight aluminum frame optimized for strength, stiffness, and weight using FEA software
• Guide ramps to reduce balance bar tipping, improving brake repeatability and reducing friction
• Oil-impregnated bronze bushings at pedal pivots to decrease stiction
• PTFE-coated aluminum clevises for increased durability and reduced friction
• Adjustable clutch pedal stop prevents clutch over-stroking
• Heavy duty throttle return spring included (standard since May 2023)

This pedal assembly is designed for use with Tilton 73, 74, 75, or 76-Series fixed-mount master cylinders (sold separately). The forward-swinging floor mount design provides excellent pedal feel and response, making it ideal for road racing, drifting, drag racing, and off-road performance applications. Assembly measures 10.64 inches long.
