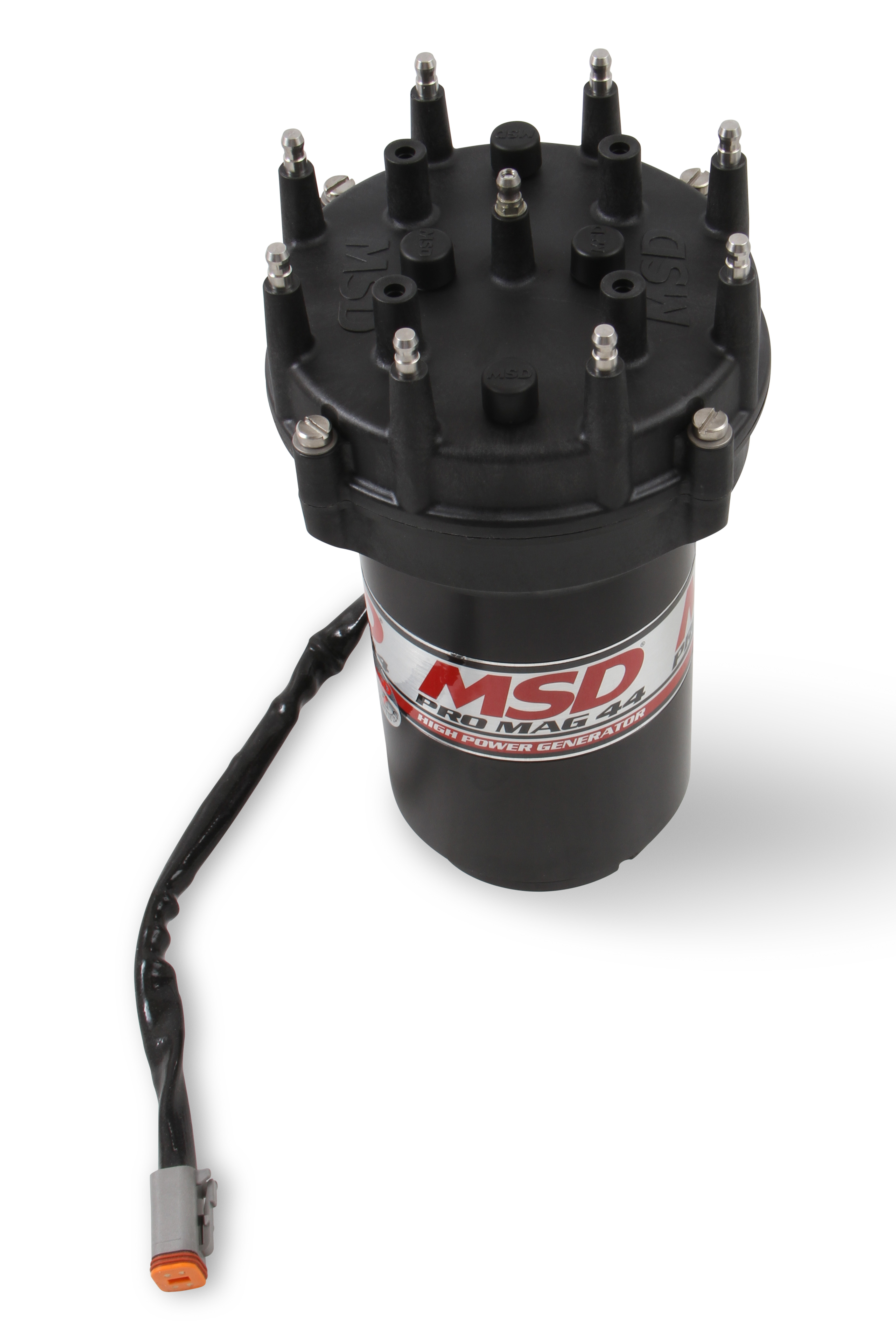

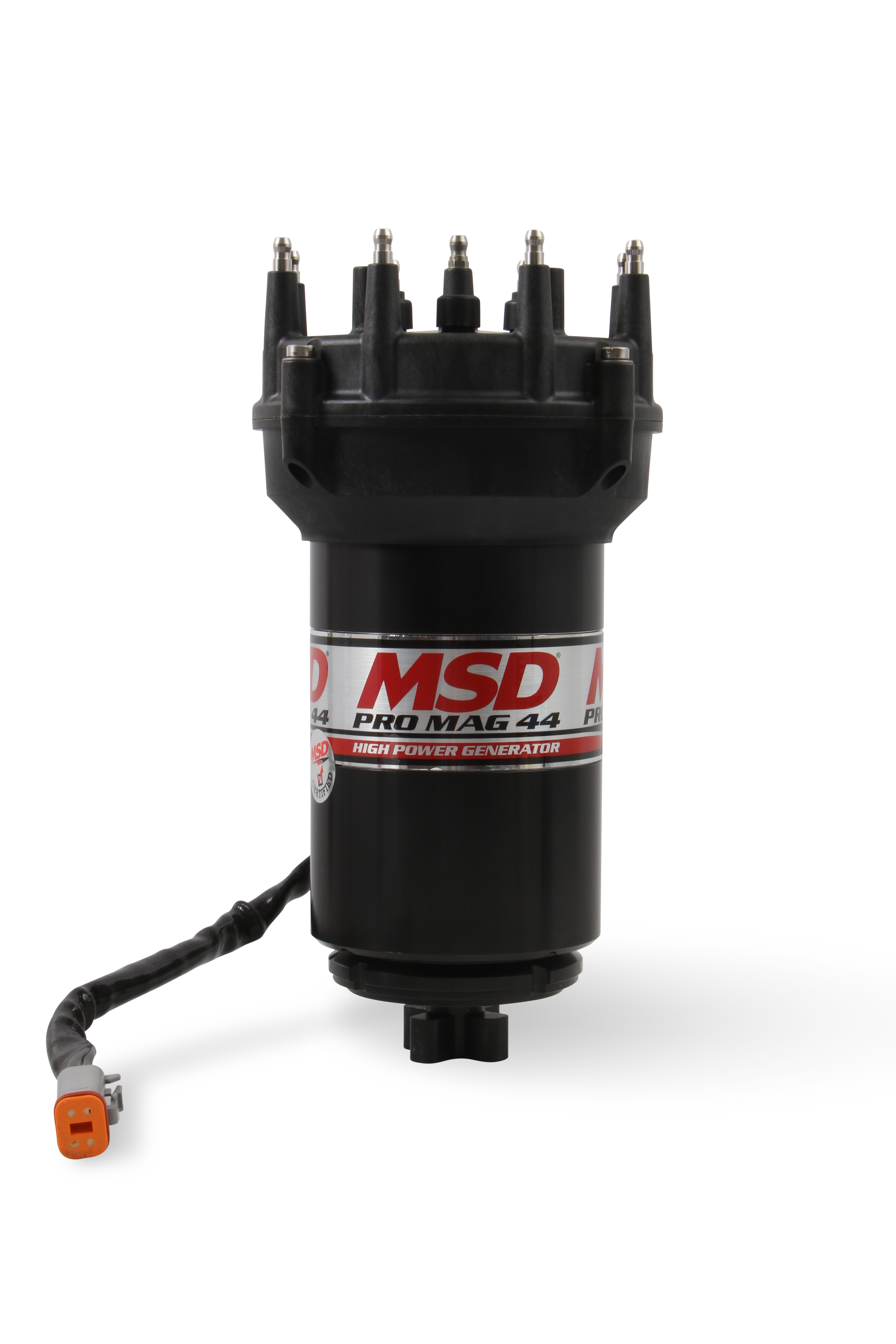

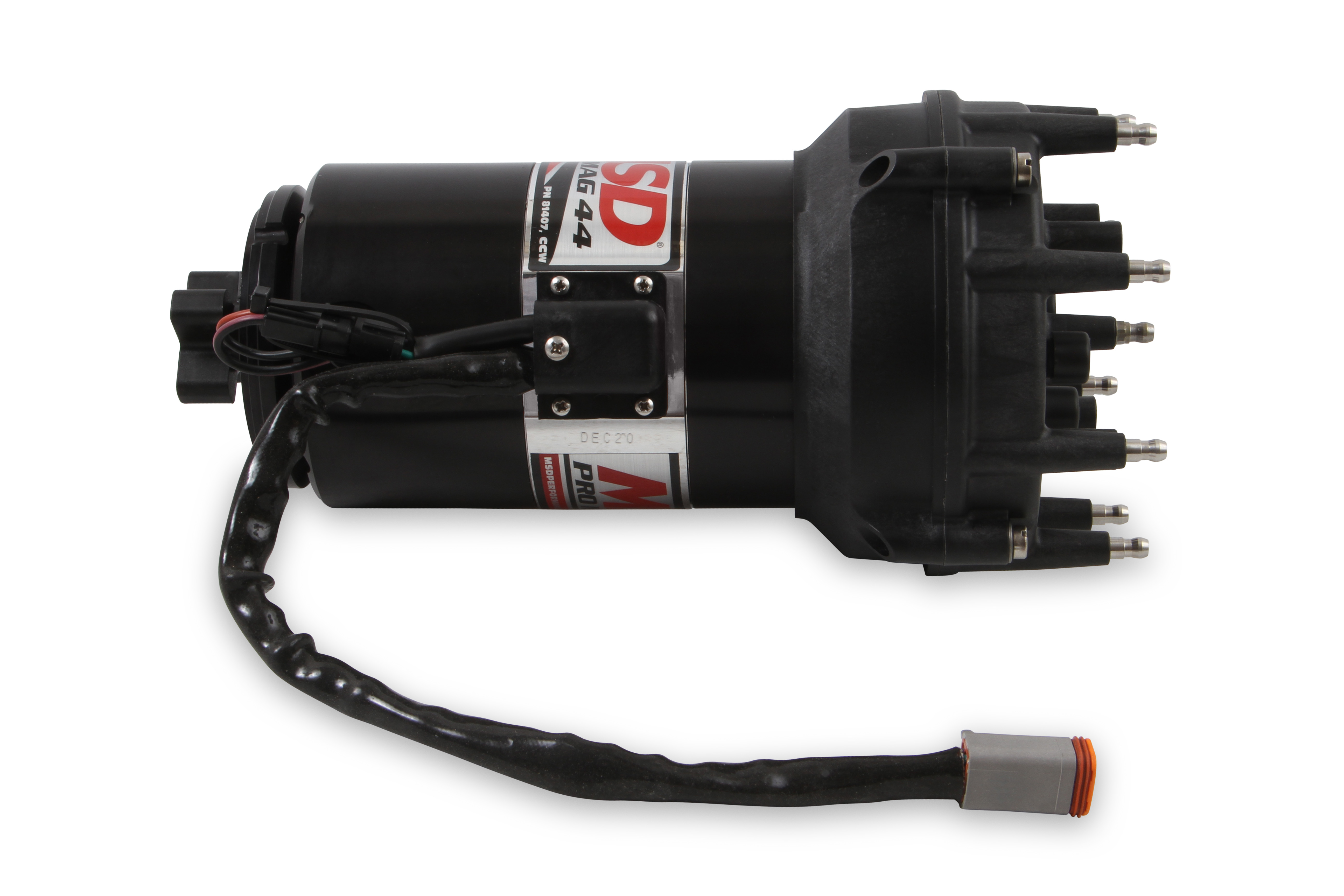

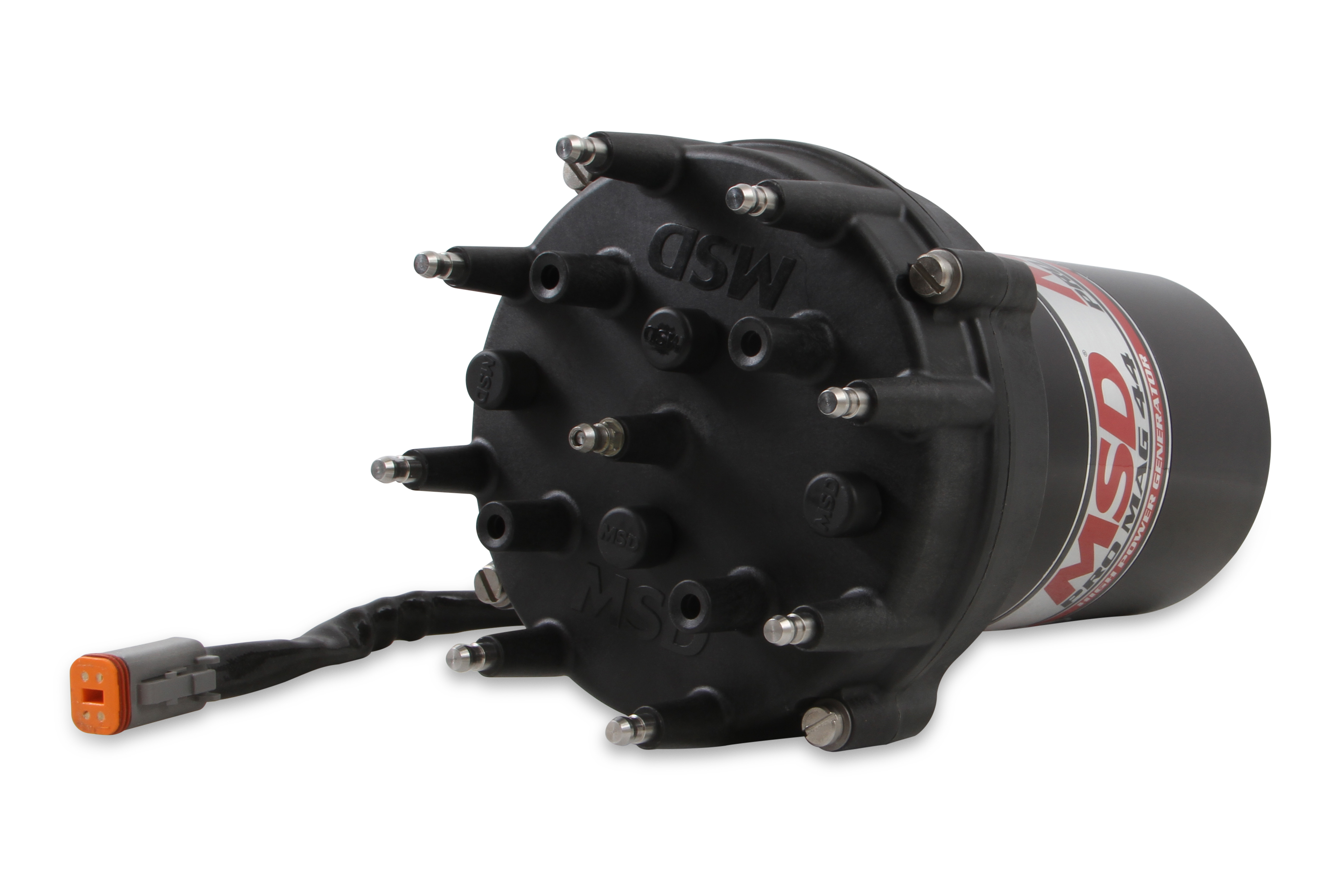

The MSD 81407 Pro Mag 44 Amp Generator is MSD's flagship racing magneto, engineered for maximum ignition energy in the most demanding motorsport applications. This counterclockwise (CCW) rotation unit comes finished in black and includes a 5-inch diameter Pro Cap, cross drive, rotor, wire retainer, and band clamp mounting hardware.
At the heart of the Pro Mag 44 is a proprietary combination of rare earth magnets and precision windings capable of delivering an extraordinary 44 amps of primary current — the highest output available in a racing magneto. A magnetic pickup mounted in the lower base of the generator accurately triggers eight precision paddles on the reluctor, providing a reliable signal with no adjustment or replacement ever required. The internal assembly spins on a 0.500-inch shaft supported by sealed ball bearings for extended service life.
When the pickup fires, the signal travels to the Electronic Points Box (sold separately), which controls spark duration and directs energy to the coil. Each coil winding contains over a pound of hand-wound copper wire for maximum accuracy. Voltage is then stepped up and distributed through the Pro Cap directly to the correct spark plugs, delivering a focused burst of energy at the cylinder.
Key Specifications:
- Primary Current: 44 Amps
- Spark Energy: 800 millijoules (at the gap)
- Secondary Voltage: 50,000 Volts
- Secondary Current: 1.2 Amps
- Spark Duration: 26 degrees crankshaft rotation
- RPM Rating: Rated through 12,000 RPM
- Rotation: Counterclockwise (CCW)

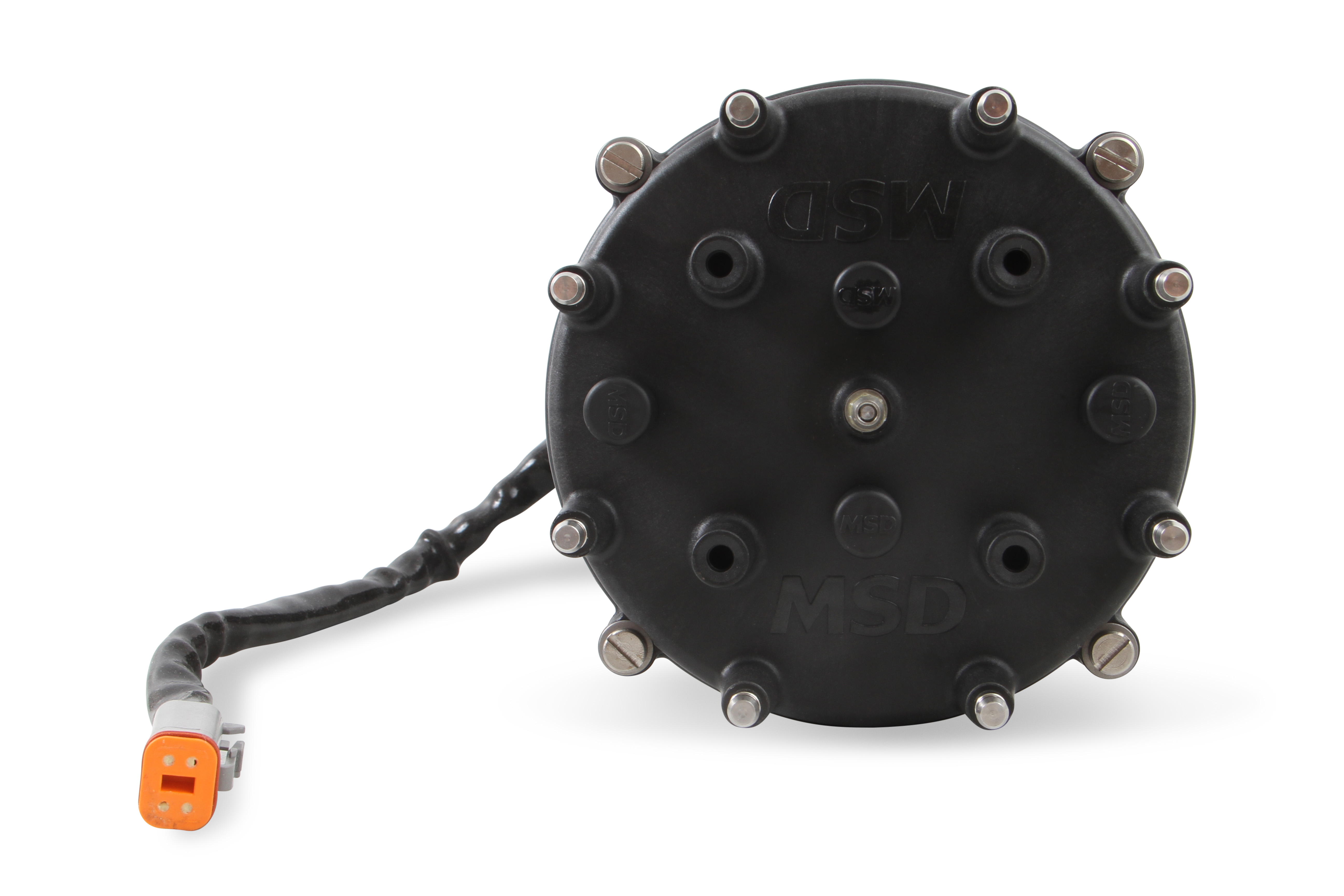

- Cap Style: Pro Cap — 5-inch diameter, HEI-style terminal

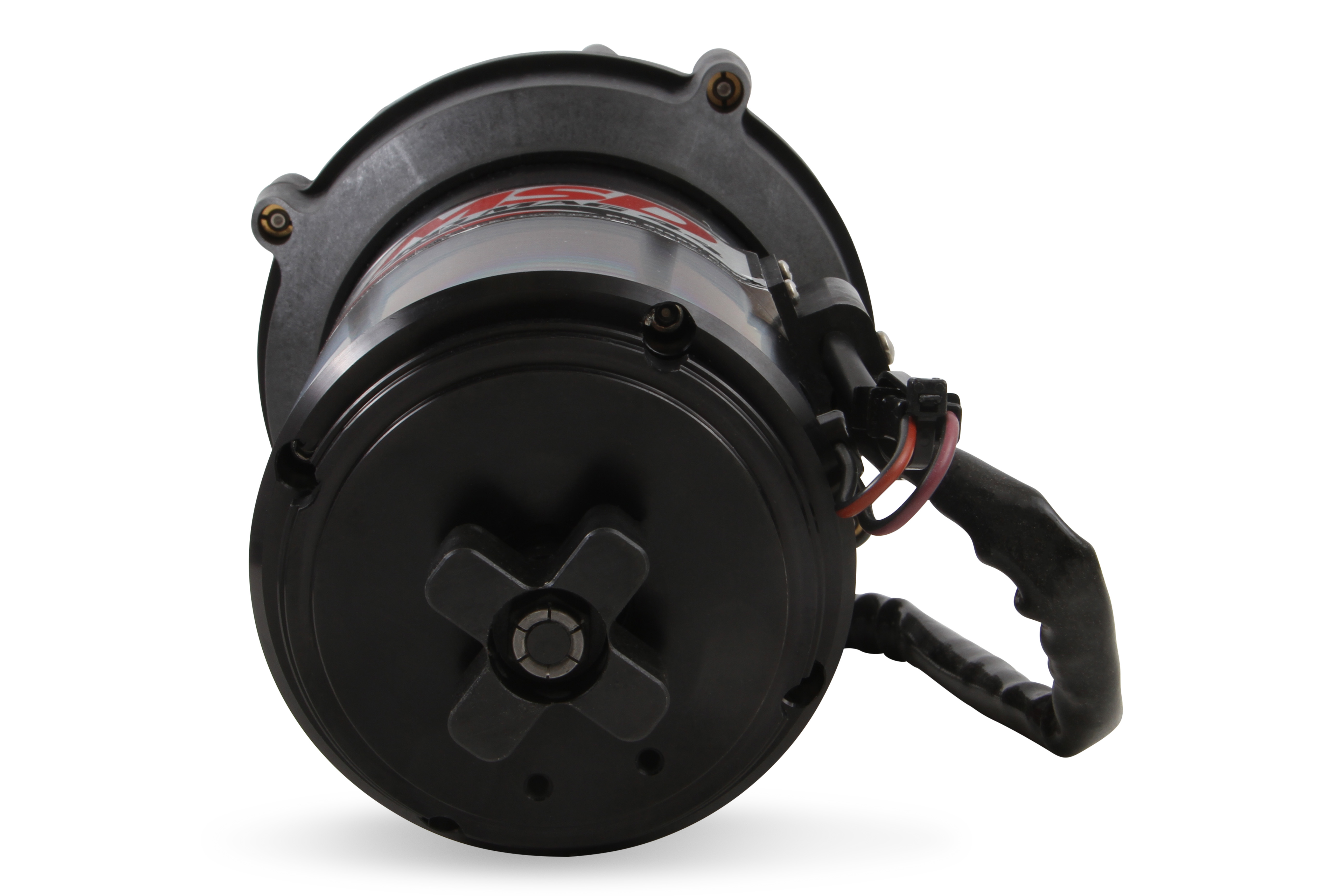

- Drive Type: Cross drive
- Shaft Diameter: 0.500 inch
- Housing Color: Black aluminum
- Mounting: Band clamp
What's Included:
- Pro Mag 44 generator (CCW)
- Pro Cap (5-inch diameter)
- Rotor
- Wire retainer
- Band clamp
The Pro Mag 44 system is designed for expandability. Optional accessories such as a crank trigger can be added for ultimate ignition timing precision, while a Timing Retard Control or rev limiter can be incorporated for improved consistency and safety. Note: Electronic Points Box, coil/transformer, and drive kit are sold separately. Minimum generator speed of 200–250 RPM (at the crank) is required for starting.
Racing Use Only. This part is legal for sale and use on uncontrolled (non-emissions-controlled) vehicles or vehicles used solely for closed-course competition. Not legal for street use or emissions-controlled vehicles.
