MSD 81307 Pro Mag 44 Amp Magneto Generator CW Rotation Black Pro Cap Band Clamp

Manufacturer

Part Number

81307
Black Friday Price

$2,968.95

In Stock (8)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

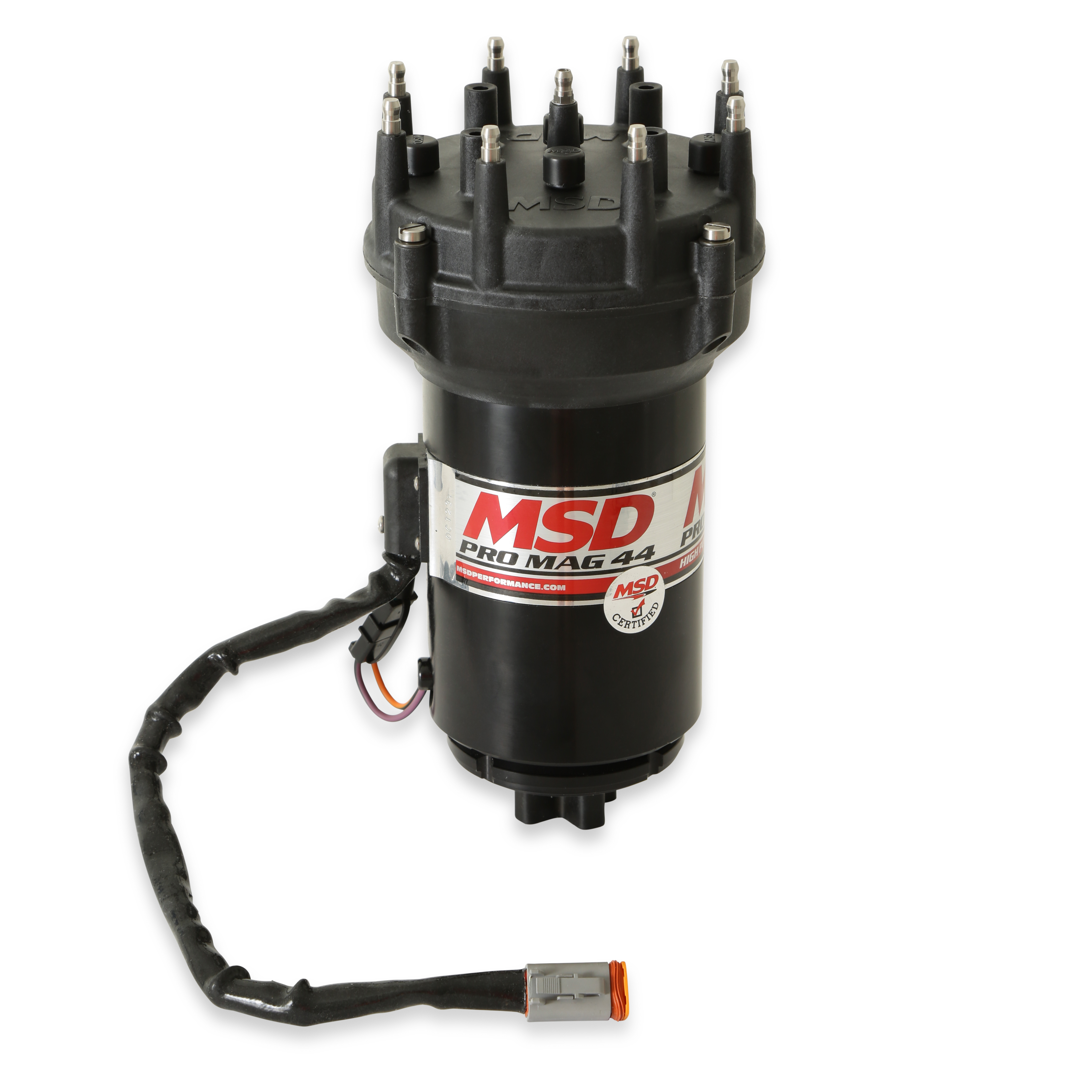

The MSD 81307 Pro-Mag 44 is MSD's flagship racing magneto generator, delivering an extraordinary 44 amps of primary current — making it the top choice for top fuel dragster and funny car teams demanding maximum ignition performance. This unit features clockwise (CW) rotation, a black finish, and comes equipped with MSD's large-diameter Pro Cap (5" diameter), rotor, wire retainer, and a band clamp mounting system.

The Pro-Mag 44 achieves its exceptional output through a proprietary combination of rare earth magnets and precision windings. A magnetic pickup mounted in the lower base of the generator accurately triggers eight precision paddles on the reluctor, providing far more accurate and reliable triggering than conventional points — with no adjustment or replacement ever required.

Each coil winding contains over a pound of hand-wound copper wire for maximum energy transfer. The assembly rides on a 0.500-inch shaft with sealed ball bearings for long service life under extreme racing conditions. When triggered, the signal is routed through the Electronic Points Box, which controls spark duration and directs high voltage to the coil, then precisely distributed through the cap to the correct spark plugs.

Key Features:

  • 44 amps of primary current — the highest output in the Pro-Mag lineup
  • Clockwise (CW) rotation for compatibility with common racing drive setups
  • Proprietary rare earth magnet and winding combination for maximum energy output
  • Magnetic pickup triggers eight precision reluctor paddles — no points, no adjustments
  • 0.500" shaft with sealed ball bearings for durability under race conditions

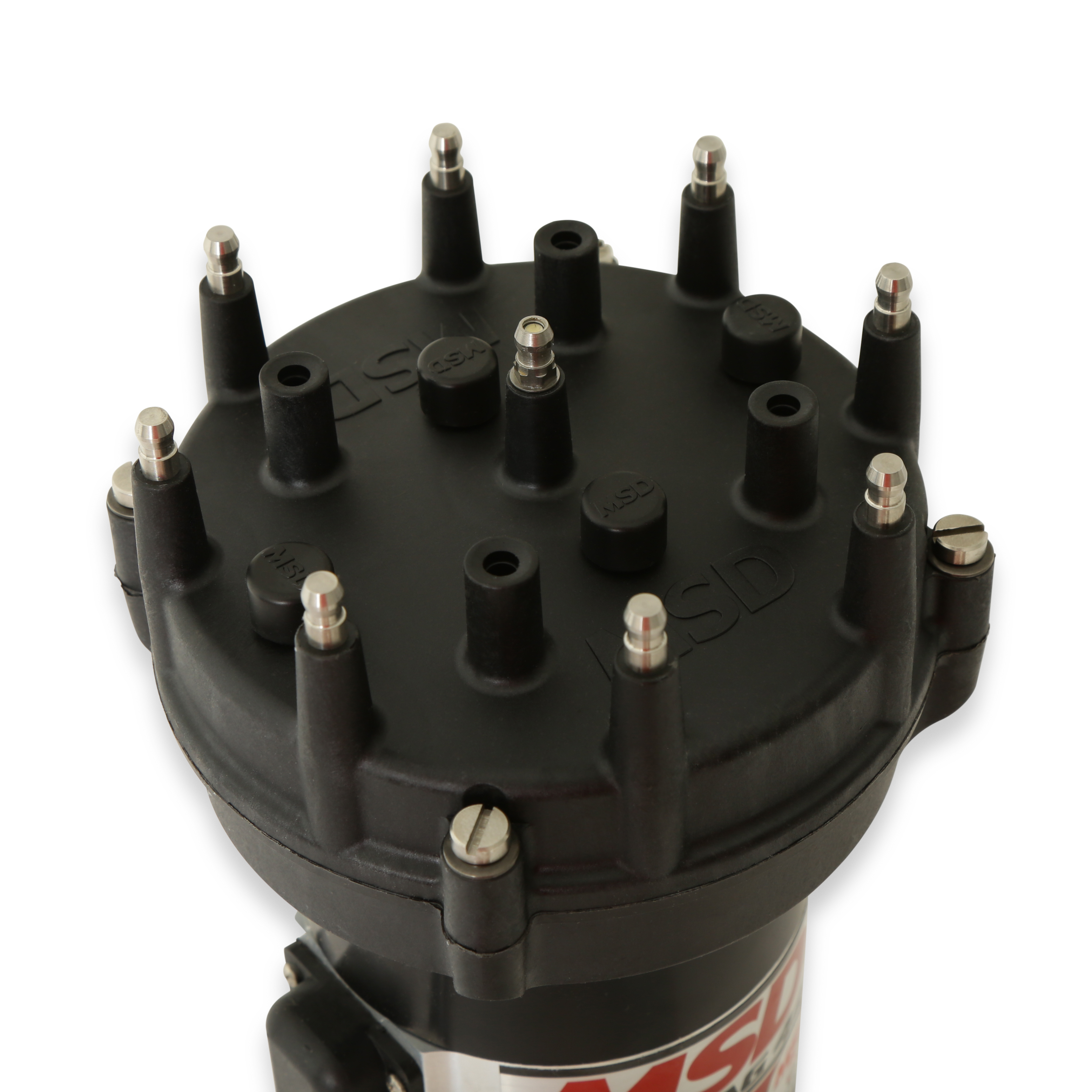

  • Pro Cap (5" diameter) increases terminal spacing to reduce spark scatter and ozone buildup inside the cap
  • Hand-wound coil with over one pound of copper wire per winding
  • Band clamp mounting design for secure installation
  • Black finish with cross drive configuration
  • Includes rotor and wire retainer

Racing Use Only. The MSD Pro-Mag 44 is designed exclusively for competition use on non-emissions-controlled, non-street-registered racing vehicles. Requires a compatible MSD Electronic Points Box (sold separately).

Products specifications

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Spark Energy

800 mJ per spark

Primary Current

44 Amp

RPM

12000
