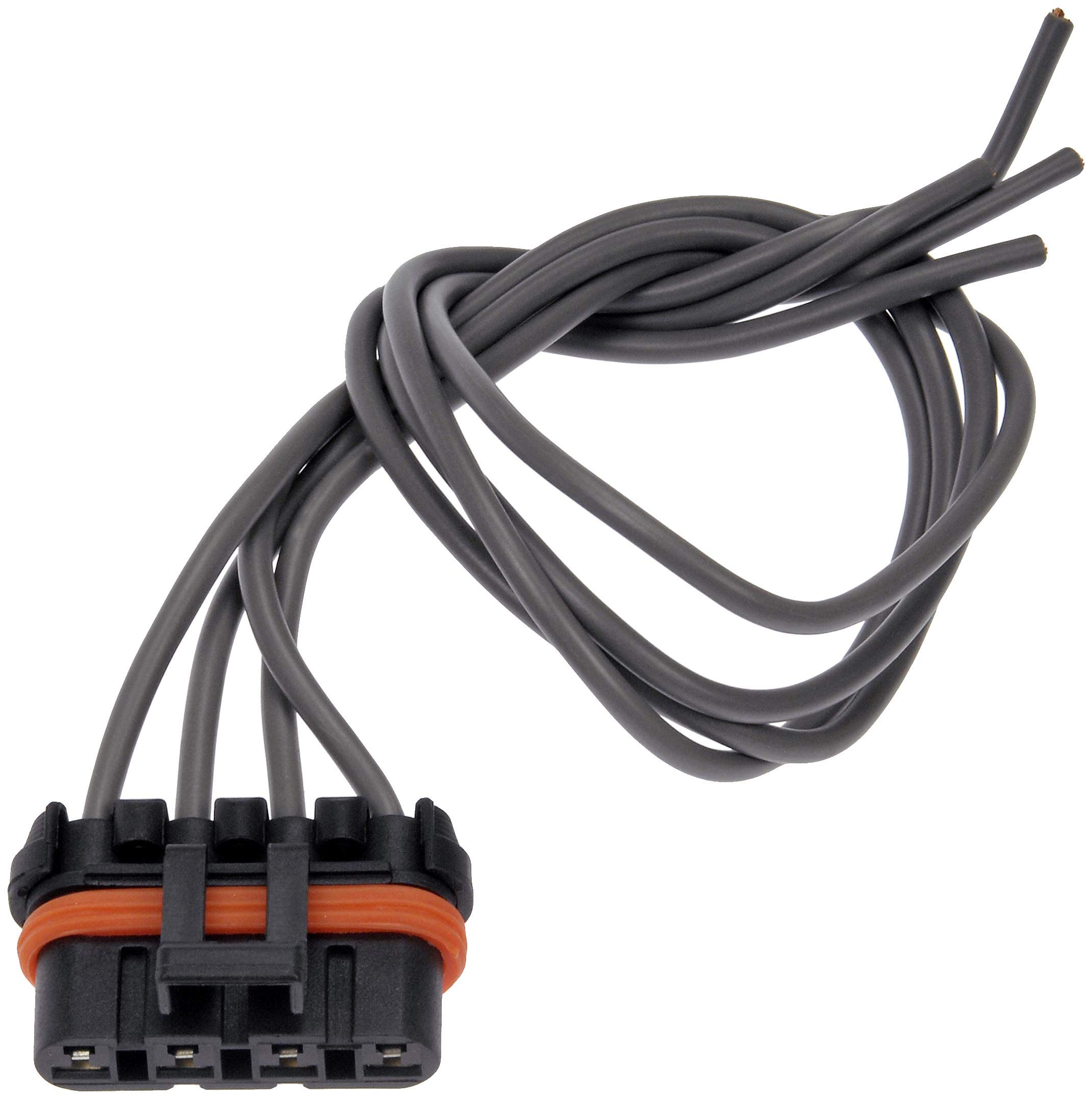

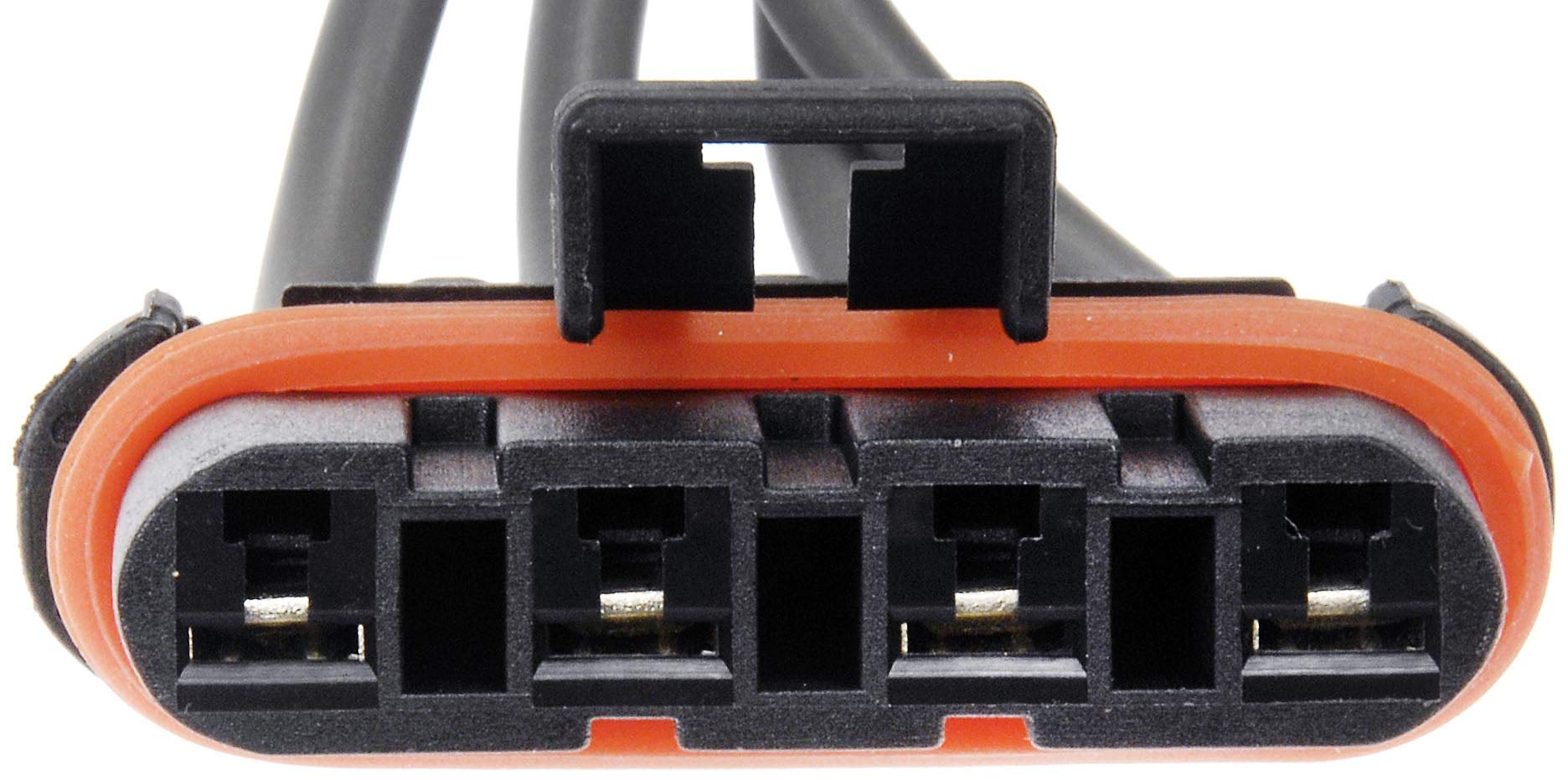

Dorman 645-509 Blower Motor Resistor Harness Connector - 4-Wire

(2005-2010 Jeep Grand Cherokee; 2006-2010 Jeep Commander; 1994-2004 Chevrolet S10; 1995-2005 Chevrolet Blazer; 1995 Chevrolet LLV + 3 more models)

Part of: Dorman Blower Motor Resistor Harness Connector

Other options in this family: Dorman 973-307 Dorman 973304 Dorman 645-561 Dorman 645-739 Dorman 645-707

Manufacturer

Picture for manufacturer Dorman

Part Number

645-509
12 reviews
Sale Price

$26.74

In Stock (6)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Dorman 645-509 Blower Motor Resistor Harness is designed to replace worn, corroded, or damaged blower motor resistor connectors in your vehicle's HVAC system. This 4-wire pigtail harness provides a direct repair solution without requiring replacement of the entire wiring system.

Key Features:

  • 4-wire design for proper blower motor speed control
  • Durable construction resists heat and corrosion from HVAC operation
  • Direct plug-in connection to blower motor resistor
  • Restores reliable operation of heating and air conditioning fan speeds
  • Quality-tested connector terminals for secure electrical contact
  • Cost-effective alternative to dealership parts

Blower motor resistor connectors are subjected to high heat and electrical load, making them prone to melting, corrosion, and connection failure over time. This replacement harness eliminates intermittent blower operation, fixes non-working fan speeds, and restores full climate control functionality. The pigtail design allows you to splice into existing wiring for a permanent repair.

Products specifications

Fits

2005-2010 Jeep Grand Cherokee; 2006-2010 Jeep Commander; 1994-2004 Chevrolet S10; 1995-2005 Chevrolet Blazer; 1995 Chevrolet LLV; 1994-2004 GMC Sonoma; 1995-2001 GMC Jimmy; 1996-2001 Oldsmobile Bravada

Feature - Benefit 1

Simply plugs into the blower motor resistor for ease of installation

Feature - Benefit 2

Uniquely available in a kit (where applicable) that includes the blower motor resistor, an essential component of most repairs

Feature - Benefit 3

Includes butt connectors

Feature - Benefit 4

Includes weather seal (where applicable)

Terminal Type

Blade

Package Contents

4-Wire Harness

Wire Quantity

4

Wire Gauge Measurement

16

Overall Length (in)

15.75 in

Terminal Gender

Female

Terminal Material

Phosphor Bronze (Tin Plate)
