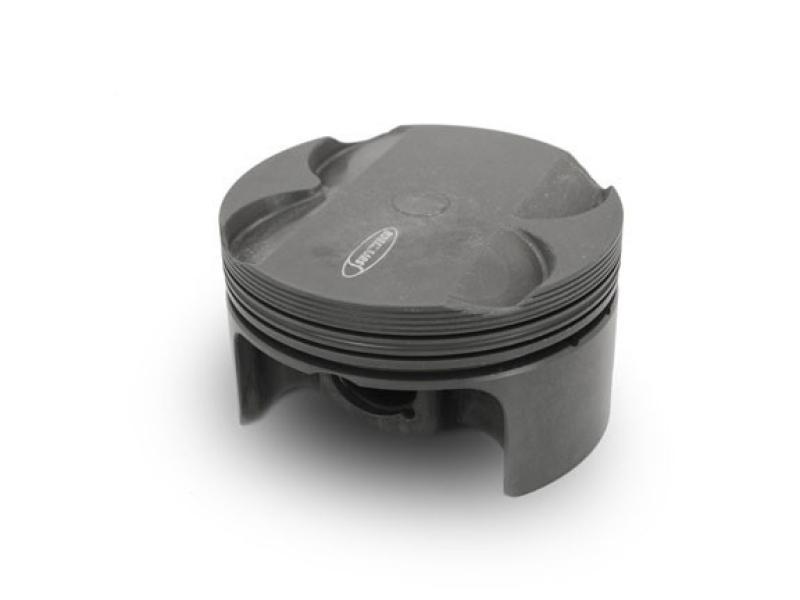

Supertech Performance P4-H86-P8 Forged Piston 86mm Bore 13.5:1 CR +8cc Dome 4032 Alloy

(1988-2000 Honda Civic; 1997-2001 Honda CR-V; 1988-1991 Honda CRX; 1993-1997 Honda Civic del Sol; 1990-2001 Acura Integra)

Manufacturer

Part Number

P4-H86-P8
Black Friday Price

$613.30

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Supertech Performance P4-H86-P8 is a high-performance forged piston engineered for Honda B20/B16 head applications. Featuring an 86mm bore (+2mm oversize), a 1.181-inch (30mm) compression height, a +8cc dome, and a 13.5:1 compression ratio, this piston is designed for naturally aspirated and nitrous builds demanding maximum compression and precision.

Key Specifications:

  • Bore: 86.00mm (+2mm oversize)
  • Compression Height: 1.181 in (30mm)
  • Compression Ratio: 13.5:1
  • Dome/Dish Volume: +8cc dome
  • Head CCs: 42.7cc
  • Stroke: 3.504 in
  • Rod Length: 5.394 in
  • Pin Diameter: 21mm (0.827 in)
  • Skirt Style: Slipper design
  • Material: Enhanced 4032 aluminum alloy (with additional Cu, Ni & Mg)
  • Weight: 322g per piston
  • Matching Ring Set: R86-GNH8600
  • Application: All Motor / Nitrous

Construction & Engineering:

  • Forged via a 2- or 3-step process, producing a fine structural grain aligned to stress paths for maximum tensile strength
  • Designed using CAD and Finite Element Analysis (FEA) for optimized strength, balance, and thermal performance
  • Multiple heat treatments ensure evenly distributed hardness throughout the piston body
  • Precision CNC machined ring grooves for flatness and dimensional accuracy
  • Contact reduction grooves standard on all pistons
  • Pin bores are honed and reamed for precise wrist pin fit
  • Cold extruded chrome-moly steel wrist pins secured with wire clip locks
  • Phosphate dry lubricant coating on skirts to reduce friction, prevent micro-welding, and enhance lubrication

The enhanced 4032 alloy formula — with added copper, nickel, and magnesium — delivers low thermal expansion, excellent wear resistance, and superior thermal conductivity. This alloy has been proven to withstand up to 42 psi of boost on alcohol without issue, making it a trusted choice for both high-compression street builds and all-out race engines.

Compression ratios are calculated using a 0.030-inch head gasket and 0.010-inch deck unless otherwise noted. Sold per individual piston — order quantity to match your engine's cylinder count.

Products specifications

Fits

1988-2000 Honda Civic; 1997-2001 Honda CR-V; 1988-1991 Honda CRX; 1993-1997 Honda Civic del Sol; 1990-2001 Acura Integra

Bore

86.00mm

Comp Height

1.181" (30mm)

Comp Ratio

13.5:1

Dome/Dish Vol

8cc

Gram Weight

322g

Head CCs

42.7

Oversized

2mm +

Pin Dia

21mm (.827")

Skirt

Slipper
