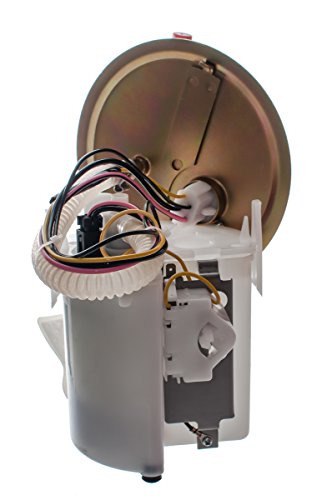

Autobest F1451a Fuel Pump Module Assembly

(2005-2007 Ford Escape; 2005-2006 Mazda Tribute; 2005-2007 Mercury Mariner)

Manufacturer

Part Number

F1451A
Black Friday Price

$110.33

$119.86 Save 8%

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Autobest F1451A is a complete fuel pump module assembly designed to deliver reliable fuel system performance. This assembly integrates all critical components needed for proper fuel delivery and level sensing in a single, drop-in replacement unit.

Complete Module Assembly Includes:

  • Fuel Reservoir: Fuel-resistant molded housing that maintains a reserve supply of gasoline, ensuring consistent fuel availability during all driving conditions including acceleration, cornering, and low fuel levels
  • Electric Fuel Pump: High-pressure electric pump that delivers fuel from the tank to the engine with the proper flow rate and pressure specifications
  • Fuel Strainer: External filter that removes contaminants before fuel enters the module, protecting the pump and fuel system components (some applications include an additional internal non-serviceable strainer)
  • Fuel Level Sender Unit: Precision sender that works with the float arm to provide accurate fuel gauge readings to the instrument cluster
  • Float Assembly: Measures fuel level in the tank and transmits data to the sender unit for gauge display
  • Expansion Spring: Temperature-compensating spring that maintains proper reservoir positioning at the bottom of the fuel tank across varying operating conditions

This integrated design simplifies installation and ensures all components are properly matched for optimal fuel system operation. The module assembly eliminates the need to source individual components separately.

Products specifications

Fits

2005-2007 Ford Escape; 2005-2006 Mazda Tribute; 2005-2007 Mercury Mariner

Outlet Size

3/8

Inlet Type

Strainer

Outlet Type

Quick Connect

Pump Type

Turbine

Warranty

LIMITED LIFETIME WARRANTY

Grade Type

Performance

Housing Material

POM

Connector Shape

Round

Resistance Ohms Empty

15

Resistance Ohms Full

160

Installation Warnings

No

Terminal Gender

MALE

Connector Gender

Male

Connector Quantity

1

Mounting Hardware Included

No

Gasket Or Seal Included

Yes

Voltage

12V

Outlet Quantity

1

Wire Harness Included

No

In Tank or External

In Tank

Regulator Included

No

Fuel Sending Unit Included

Yes

Terminal Type

Pin

Terminal Quantity

4

Fuel Tank Pressure Sensor Included

No

Strainer Included

Yes

Fuel Filter Included

No

Features

Only top grade components make up each Autobest fuel pump. All pumps are vigorously tested at all intervals of the manufacturing process, so you are assured that the quality is built in.

Inlet Size

0.433

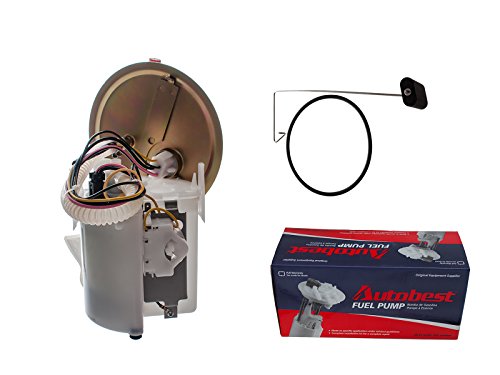

Package Contents

Pump & Module

Negative Ground

No

Internal Or External Strainer

External and Internal

Gasket Or Seal Material

NBR

Average Current Draw(A)

9

Country of Orign

China

Life Cycle Status Code

Available to Order

Maximum Pump Pressure (PSI)

100

Minimum Pump Pressure (PSI)

80

Package Height (in)

7.28

Package Length (in)

11.02

Package Width (in)

9.06

Product Height (in)

5.51

Short Description

Fuel Pump Module Assembly

Weight (lbs)

2.21

Prop 65

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov

UPC

00072845114518

Average Flow Rating(GPH)

42

Product Length (in)

15.75

Product Width (in)

14.17
