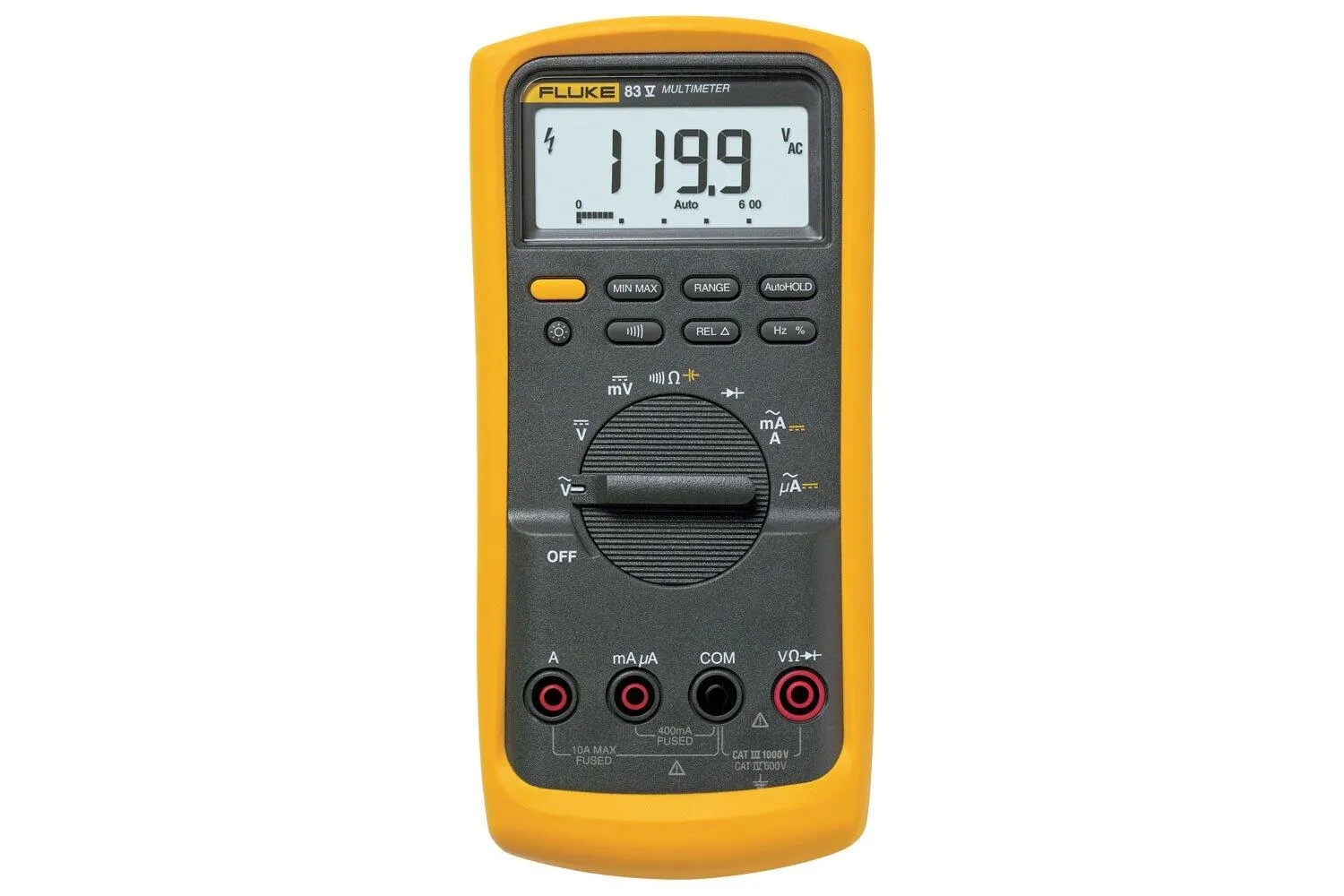

Fluke 2075004 83-5 Digital Industrial Multimeter CAT III/CAT IV

The Fluke 83-5 Digital Industrial Multimeter is a professional-grade testing instrument designed for industrial electrical and electronic troubleshooting. This versatile multimeter measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, conductance, and includes diode testing capabilities, making it an essential tool for technicians and electricians.

Key Measurement Capabilities:

• AC/DC Voltage: 600mV to 1000V ranges with 0.1% DC and 0.5% AC accuracy
• AC/DC Current: 600μA to 10A with 0.4% DC and 1.2% AC accuracy
• Resistance: 600Ω to 50MΩ with 0.4% accuracy
• Capacitance: 10nF to 9999μF with 1% accuracy
• Frequency: 199.99Hz to 199.99kHz with 0.005% accuracy

Professional Features:

• 3-3/4 digit display with two-level bright white backlight for enhanced visibility in low-light conditions
• Analog bargraph for monitoring fast-changing or unstable signals
• Auto and manual ranging modes for maximum measurement flexibility
• Touch Hold function captures stable readings and filters out noisy signals
• Relative mode removes test lead interference from low-ohm measurements
• Input alert provides audible warning to prevent incorrect use of input jacks
• Optional magnetic hanger for hands-free operation

Safety and Durability:

• CAT III/CAT IV safety rating for use in demanding industrial environments
• UL, CSA, CE, C-Tick, and VDE approved
• Operating temperature range: -20°C to 55°C
• Removable holster with integrated test lead and probe storage
• Access door allows battery changes without breaking calibration seal

Power and Battery Life:

• 9V battery (NEDA 1604/6F22/006P) provides up to 400 hours of operation
• Selectable sleep mode extends battery life during intermittent use

Included Accessories: Test leads, alligator clips, protective holster, 9V battery, 87V temperature probe, and information packet. Backed by Fluke's lifetime limited warranty.
