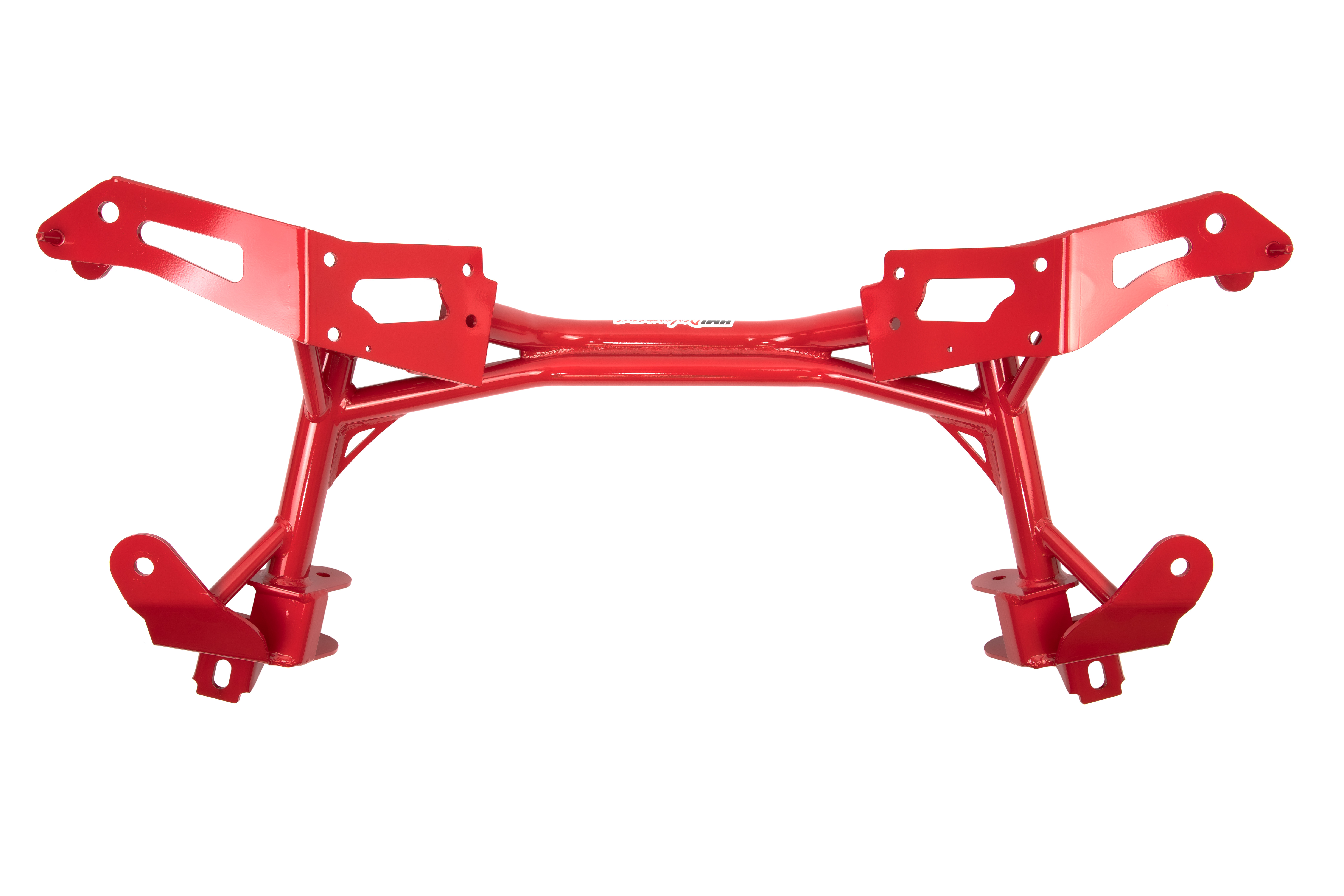

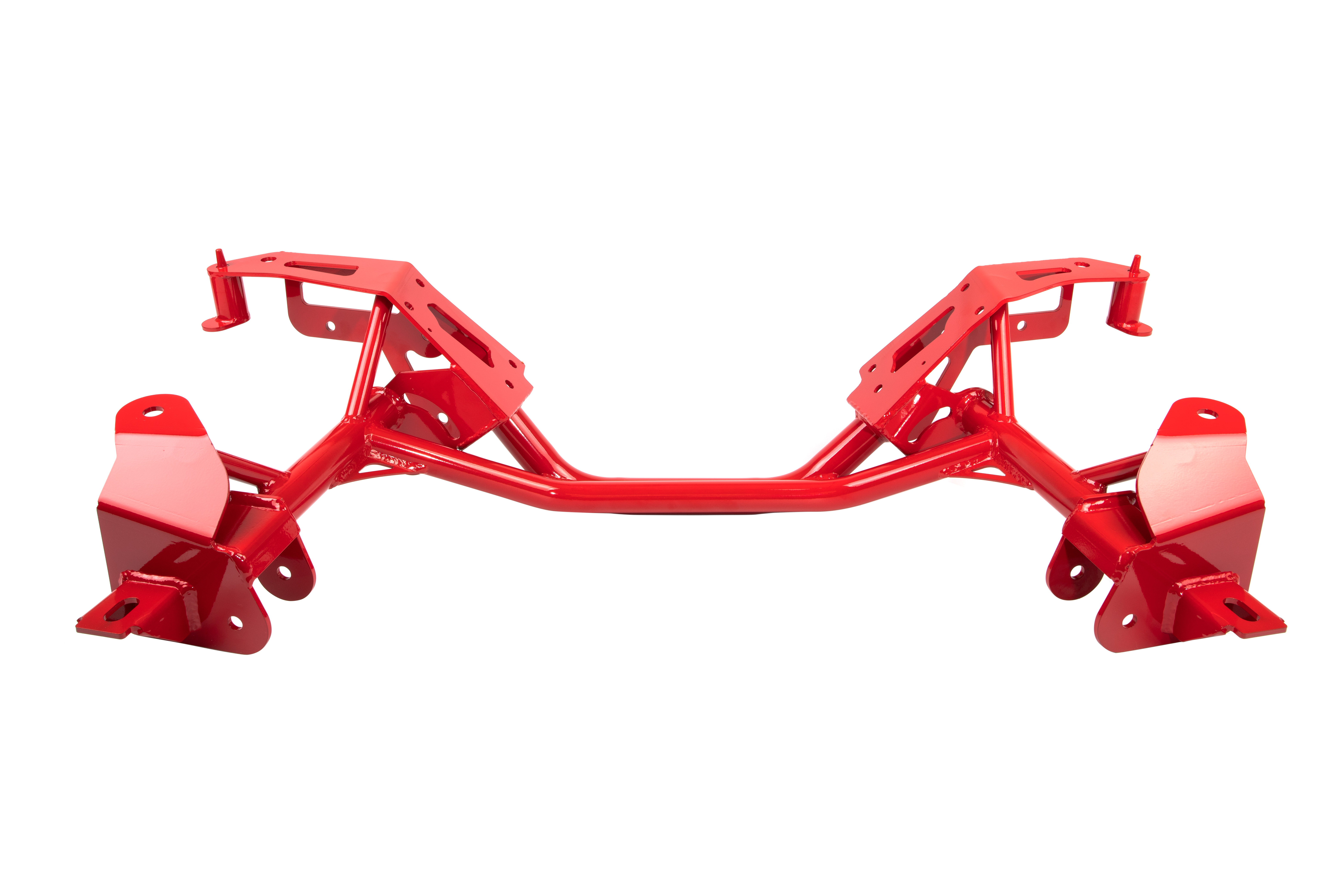

UMI Performance 2407-R Tubular Road Race K-Member Subframe

(1982-1992 Chevrolet Camaro; 1982-1992 Pontiac Firebird)

Manufacturer

Part Number

2407-R
Black Friday Price

$758.64

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The UMI Performance 2407-R is a direct bolt-in replacement road race K-member designed to reduce front-end weight by 20 pounds while providing superior strength and durability. This modular tubular subframe features industry-leading dual tube construction with additional reinforcement tubes and gussets in critical stress areas, making it ideal for road racing and autocross applications.

Key Features:

  • Removes 20 lbs from front end compared to factory K-member

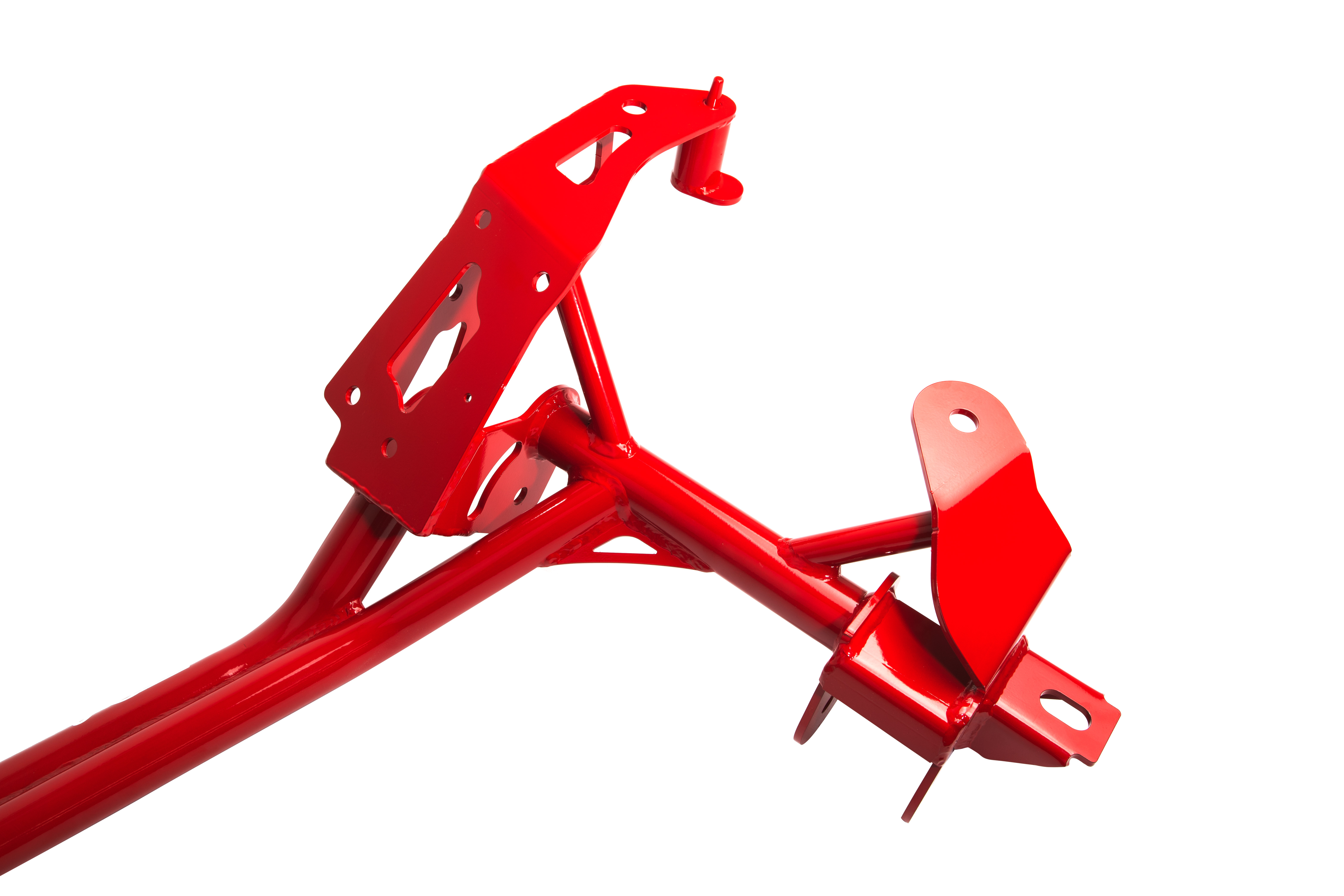

  • Industry-leading dual tube construction using 1-1/2" diameter DOM tubing
  • Four additional reinforcement tubes plus two gussets in critical areas
  • Fabricated from CNC machined 3/16" thick mild steel engine and suspension mounts
  • MIG and TIG welded for clean appearance and superior strength
  • Modular design allows conversion to coil-overs or LS engine mounts
  • Compatible with factory, UMI, or other aftermarket A-arms
  • Works with factory or aftermarket springs and struts
  • CNC machined lightening holes reduce weight without sacrificing strength
  • Tubular design provides increased clearance for aftermarket exhaust systems

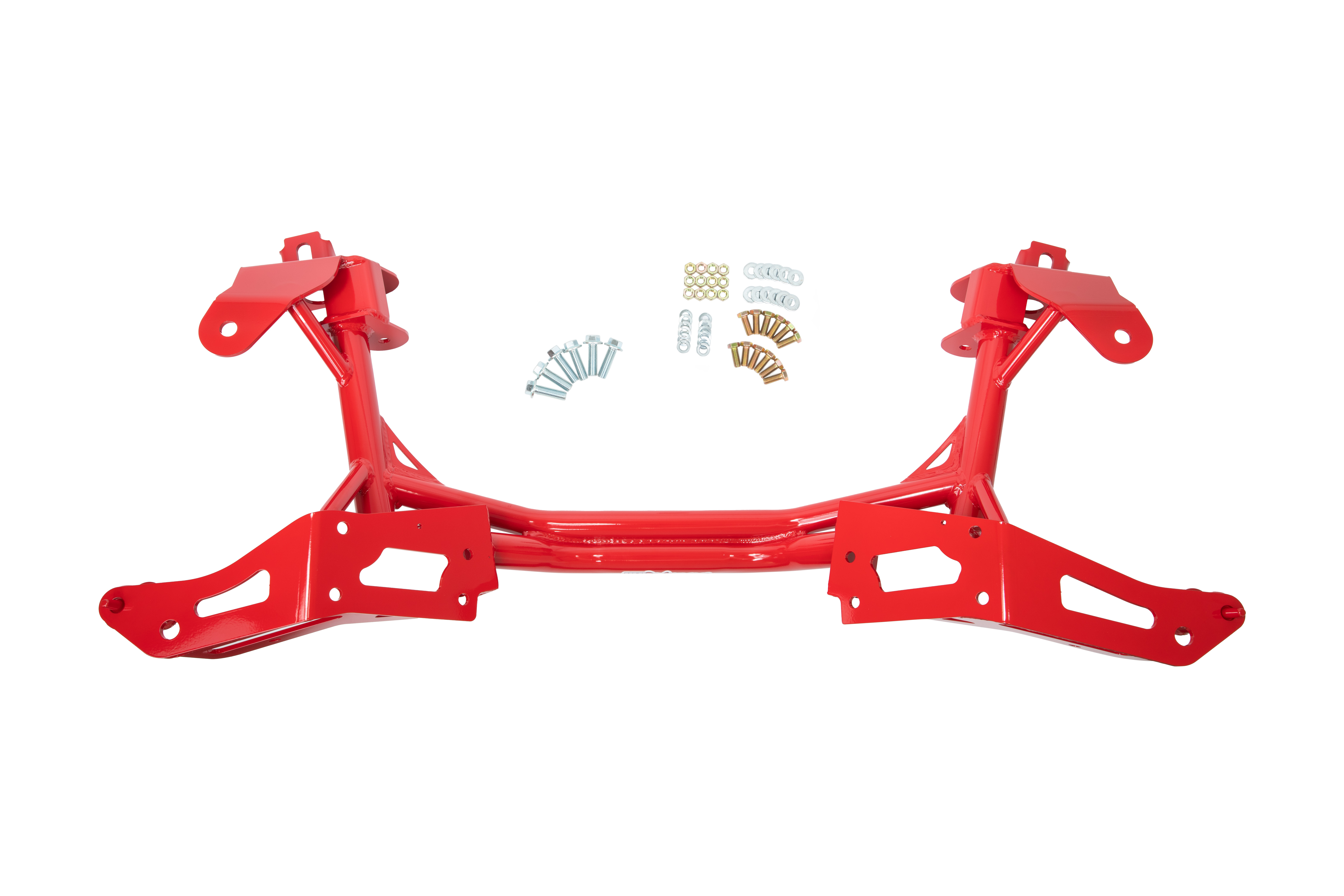

  • Includes six Grade 10.9 flanged mounting bolts for secure installation
  • Available in durable red or black powder coat finish
  • Manufactured in Philipsburg, Pennsylvania, USA

The jig-built construction ensures precise fitment and hassle-free installation. Factory clamshell and engine mounts bolt directly to precision-machined mounting pads, while both factory and aftermarket suspension components are secured by strong boxed mounting points. The modular design allows you to retain stock spring pockets or remove them for coil-over conversion.

Note: LSX engine compatibility requires motor mount adapters (UMI part #2409, sold separately). LS engine installations require A/C relocation when using this tubular K-member.

Products specifications

Fits

1982-1992 Chevrolet Camaro; 1982-1992 Pontiac Firebird
