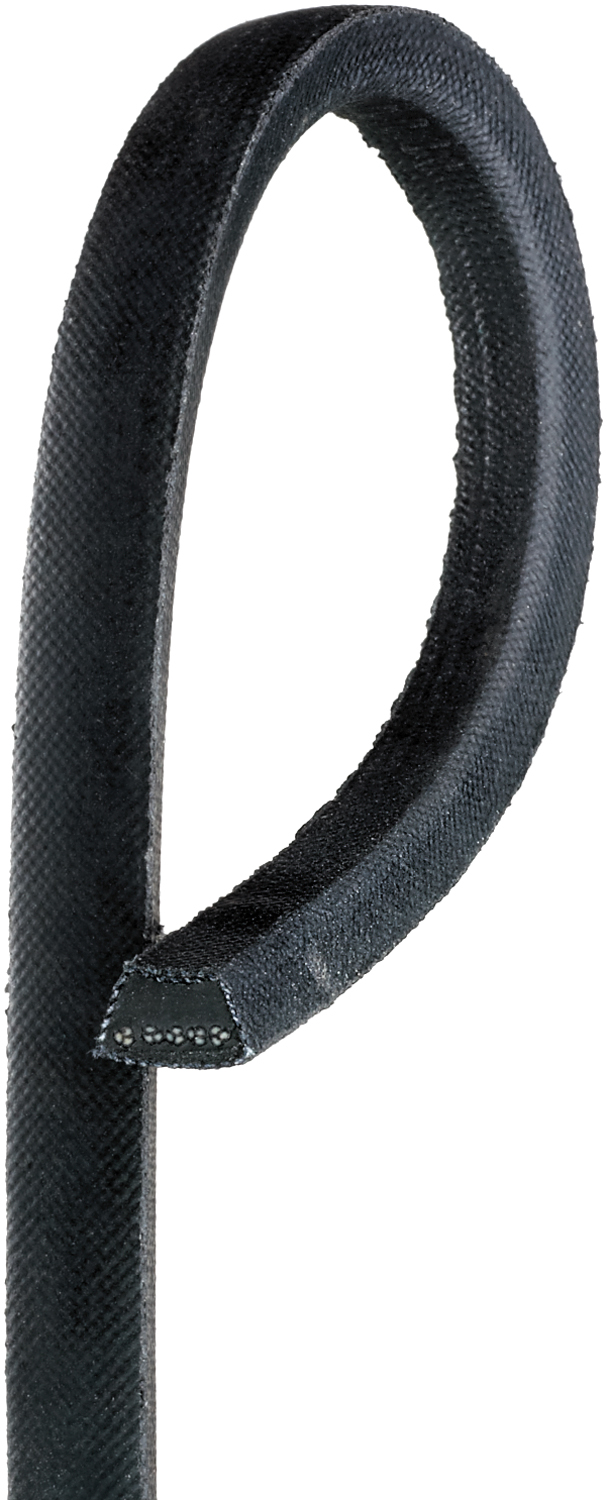

Gates 2346 Truflex FHP V-Belt 4L Cross Section 34.6 Inch

The Gates 2346 Truflex V-Belt (also known as 4L346) is a fractional horsepower (FHP) light-duty V-belt designed for industrial applications requiring reliable power transmission. This 4L cross-section belt features an effective length of 34.24 inches and an outside circumference of 34.6 inches, making it ideal for compact drives on motors, pumps, power tools, and domestic appliances.

Key Features:

• Flex-bonded cords strongly forged to the belt body for equal load distribution, resistance to fatigue and shock loads, and absorption of bending stress without cord deterioration
• Proprietary Flex-Weave cover provides extended protection to the belt core from oil, contaminants, and heat for longer service life
• Superior length stability for minimal take-up requirements
• Optimized curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life
• Meets RMA oil and heat-resistant standards and static conductivity requirements
• Smooth, quiet operation suitable for FHP motors and applications using backside idlers

Specifications:

• Cross Section: 4L
• Effective Length: 34.24 inches
• Outside Circumference: 34.6 inches
• Top Width: 1/2 inch (0.56 inches)
• Thickness: 0.28 inches
• Gates Product ID: 84002346

This belt replaces OEM part numbers including ACDelco 4L346, Case H423431, Toyota 9091602002, Homelite 661161, and many others. Perfect for replacement or performance upgrade applications in automotive auxiliary systems, industrial equipment, lawn and garden machinery, and other light-duty power transmission needs.
