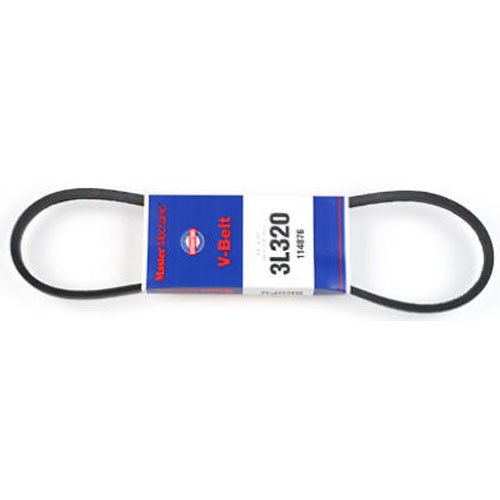

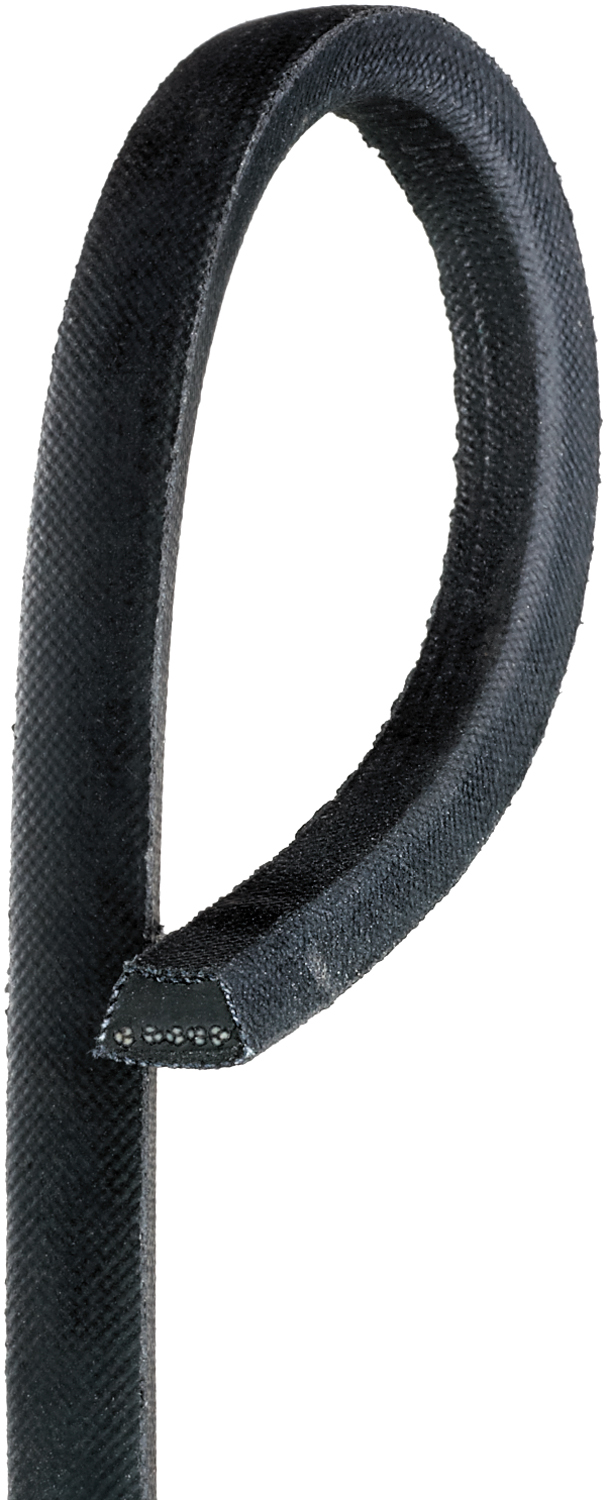

Gates 1320 Truflex V-Belt 3L Section 3/8" x 32"

The Gates 1320 Truflex V-Belt (industry designation 3L320) is a fractional horsepower belt engineered for superior performance in light-duty industrial applications. This 3L section belt features a 3/8-inch top width, 32-inch outside circumference length, and 31.68-inch effective belt length, making it ideal for fractional horsepower motors, small-diameter sheave applications, and drives with backside idlers.

Key Features:

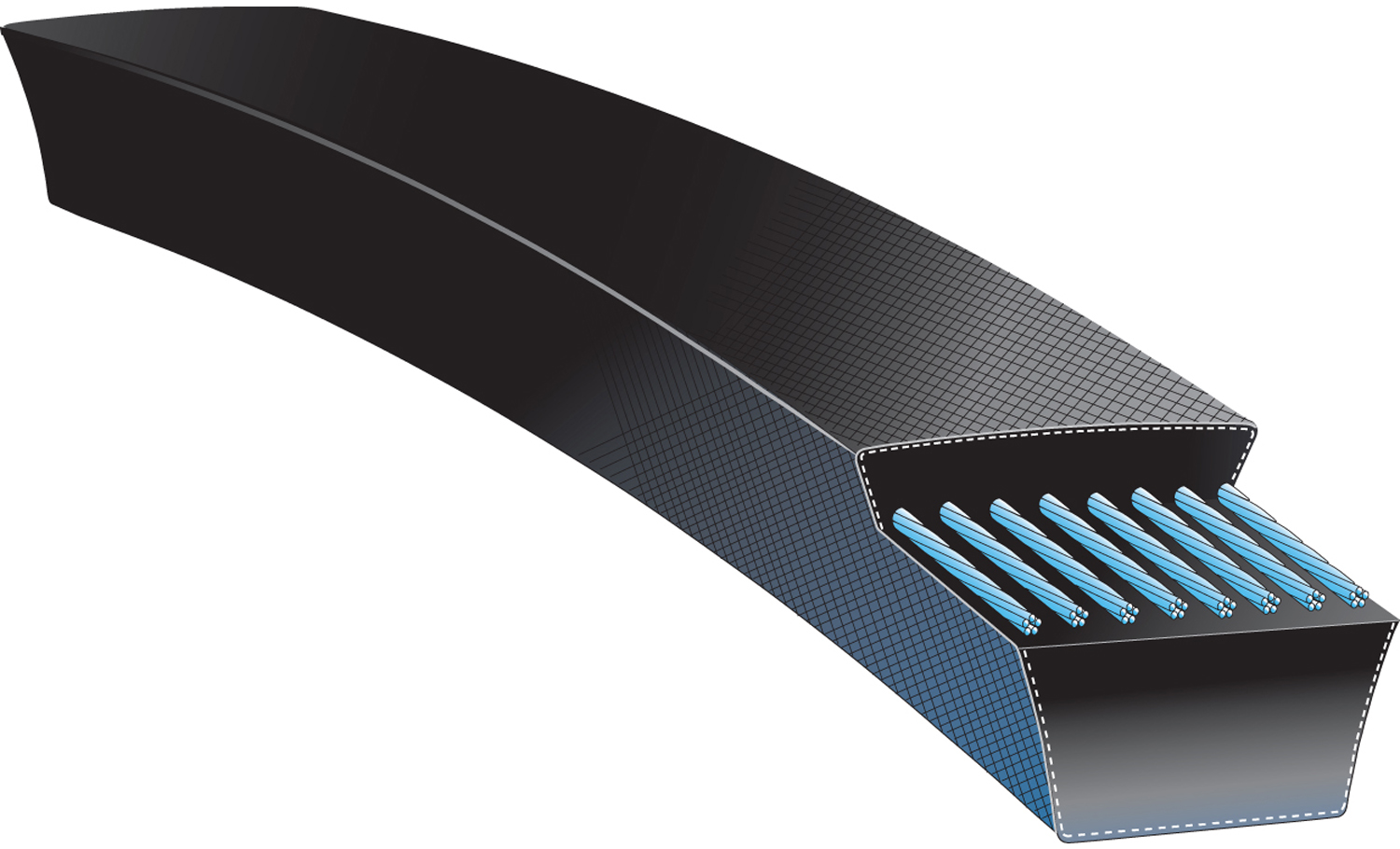

• Flex-bonded cords strongly secured to the belt body for equal load distribution and absorption of bending stress without cord deterioration
• Flex-Weave oil and heat resistant cover provides extended protection from oil, dirt, and heat in tough environments
• Gates Curves provide proper cord support and full contact with sheave grooves for uniform loading, uniform wear, and increased belt life
• Superior length stability for minimal take-up requirements
• Thin profile with lower cord positioning designed for small-diameter sheaves and improved backside idler performance
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements
• REACH and RoHS 2 compliant

Perfect for auxiliary automotive applications including electric windows, windshield wipers, and central locking systems, as well as drive pumps, power tools, domestic appliances, HVAC equipment, lawn mowers, and cultivators. The Truflex belt delivers reliable, quiet operation with the flexibility, durability, and contaminant resistance demanded by fractional horsepower applications.
