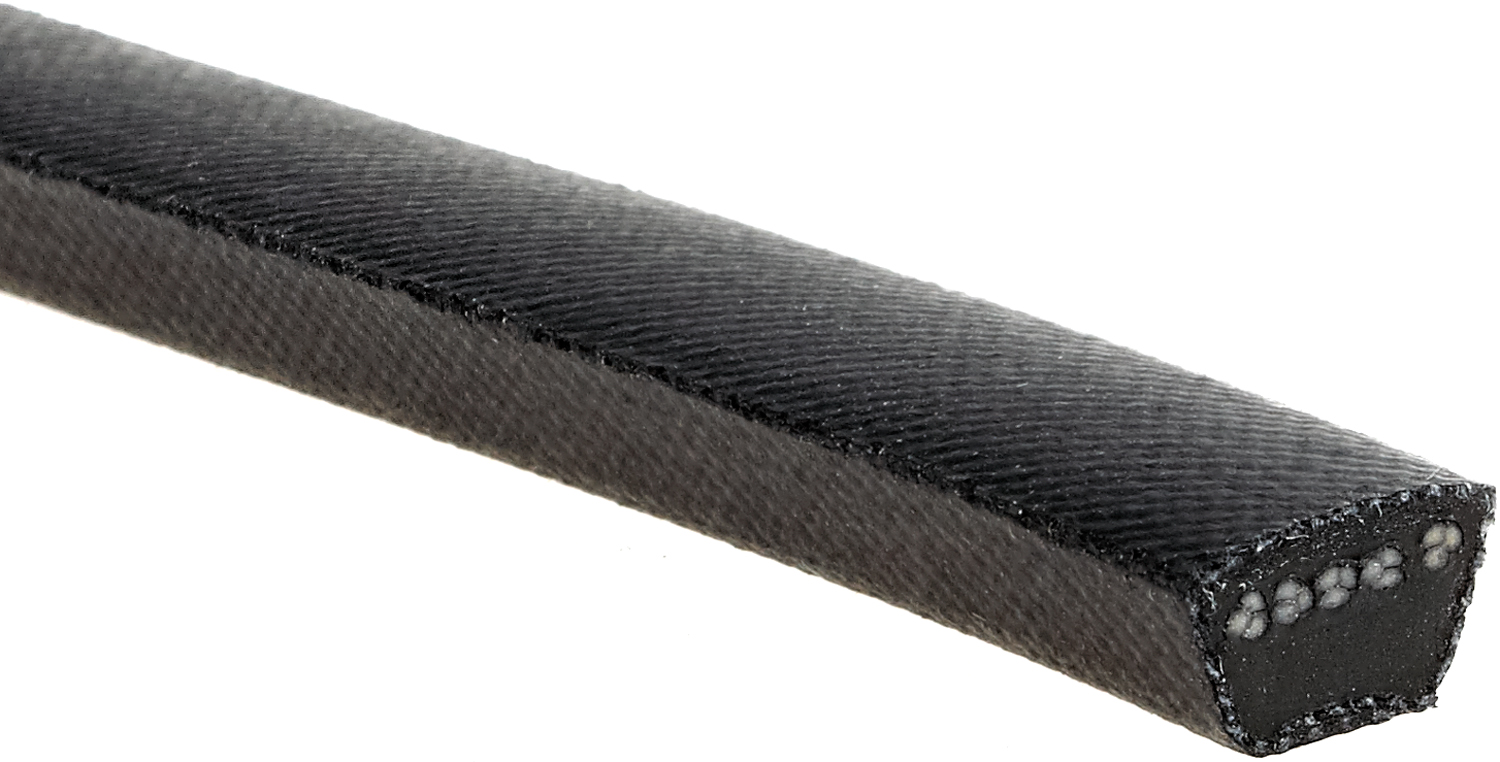

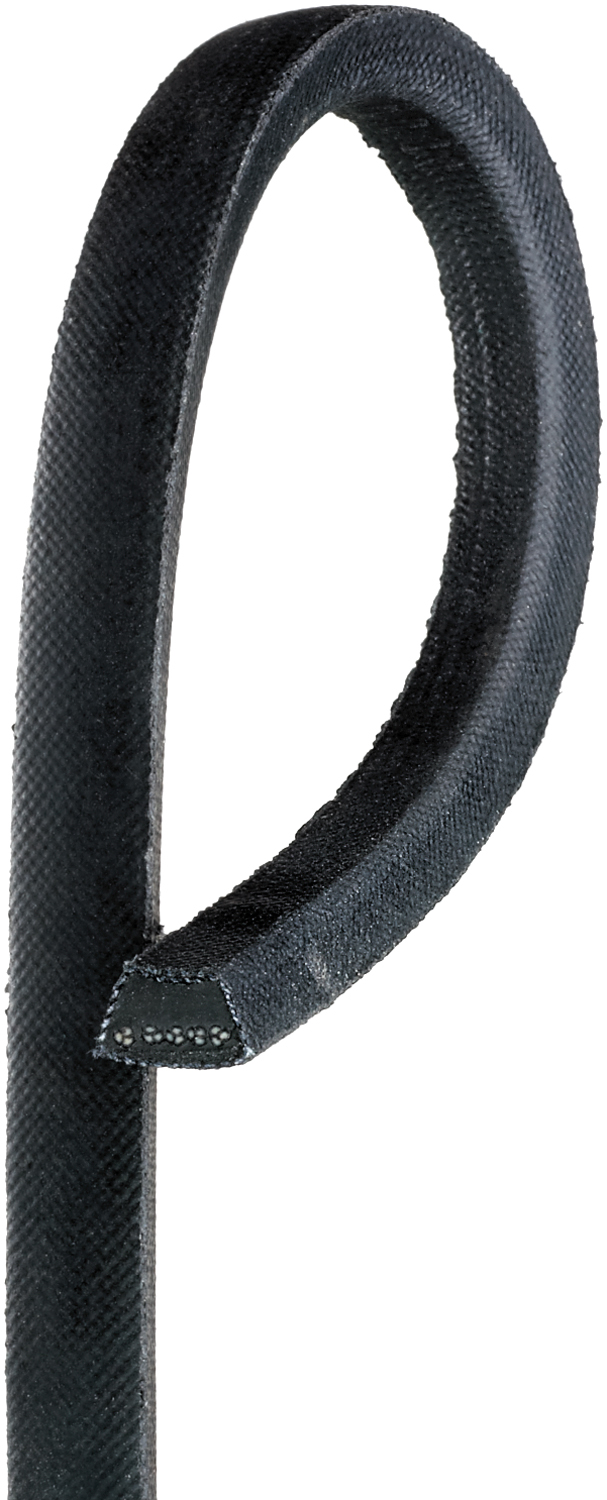

Gates 2630 Truflex V-Belt 1/2" x 63" FHP Light Duty 4L630

The Gates 2630 Truflex V-Belt is a fractional horsepower (FHP) light-duty belt designed for reliable performance in lawn and garden equipment, HVAC systems, household appliances, and industrial applications. This 4L section belt measures 1/2 inch top width by 63 inches outside length, providing superior length stability with minimal take-up requirements.

Key Features:

• Flex-bonded cords strongly secured to the belt body for equal load distribution and absorption of bending stress without cord deterioration
• Proprietary Flex-Weave oil and heat-resistant cover protects the belt core from contaminants, dirt, and extreme temperatures
• Gates Curves provide proper cord support and full contact with sheave-groove for uniform loading, uniform wear, and extended belt life
• Thin profile designed for small-diameter sheaves with lower cord positioning to improve performance on light-duty drives and backside idler applications
• Smooth, quiet operation with minimal vibration
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements
• REACH and RoHS 2 compliant

Common Applications: Lawn mowers, powered cultivators, air conditioning drives, electric household appliances, shop equipment, power tools, drive pumps, and miscellaneous fractional horsepower motor applications.

Cross References: 4L630, 6863, A61, MS392424L630, NSN 3030-00-528-3806
