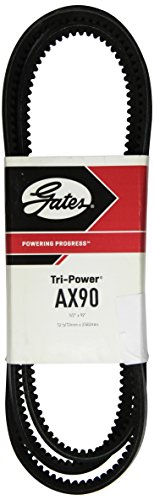

Gates AX90 Tri-Power V-Belt 1/2" x 92" Heavy Duty Notched Belt

The Gates AX90 Tri-Power Belt is built for superior performance on heavy duty classical cross-section drives. This power transmission V-belt features a combination of flex and load carrying capacity, and is made of EPDM (ethylene propylene diene monomer) rubber for resistance to weathering, oils, water, and some solvents.

Key Features:

• Belt length of 92 inches with 1/2" width and 5/16" height in AX section

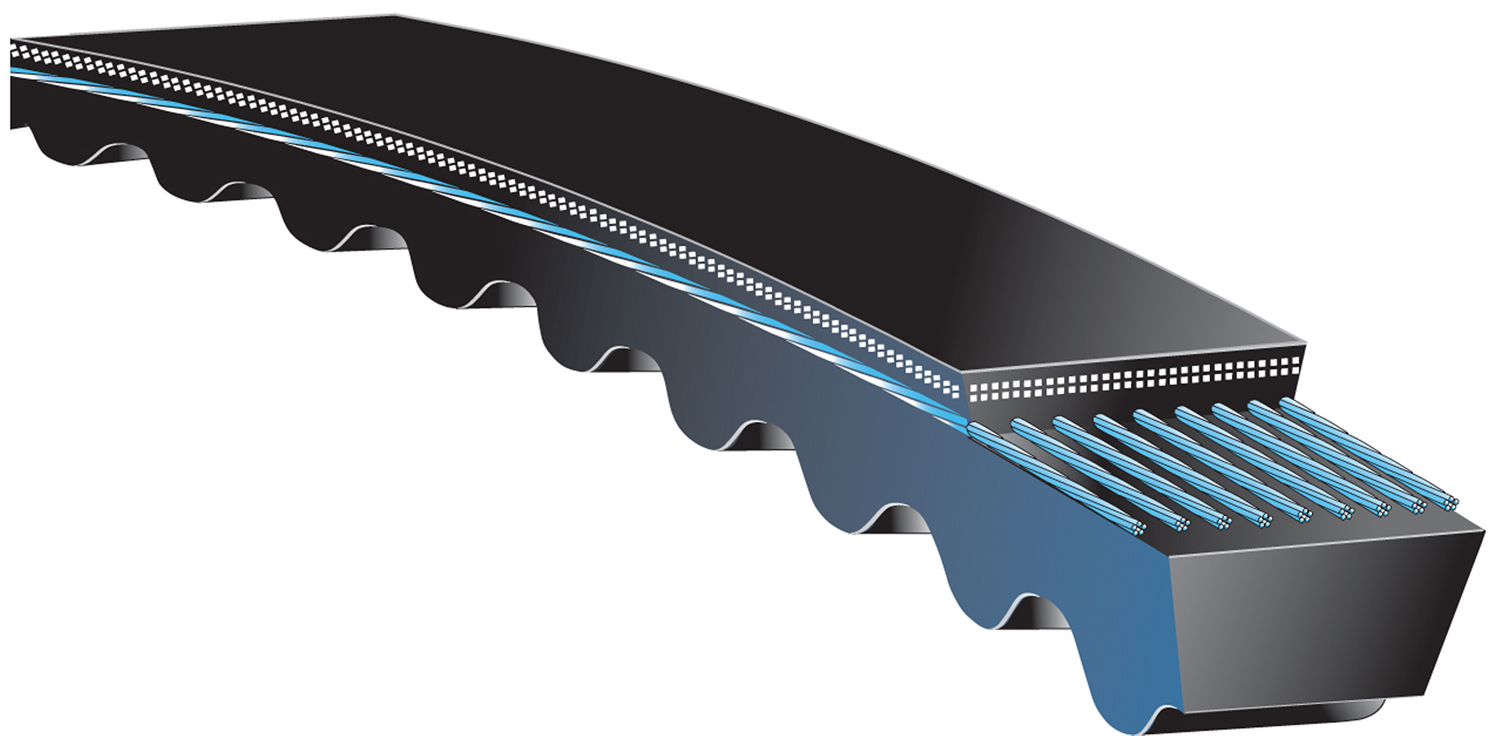

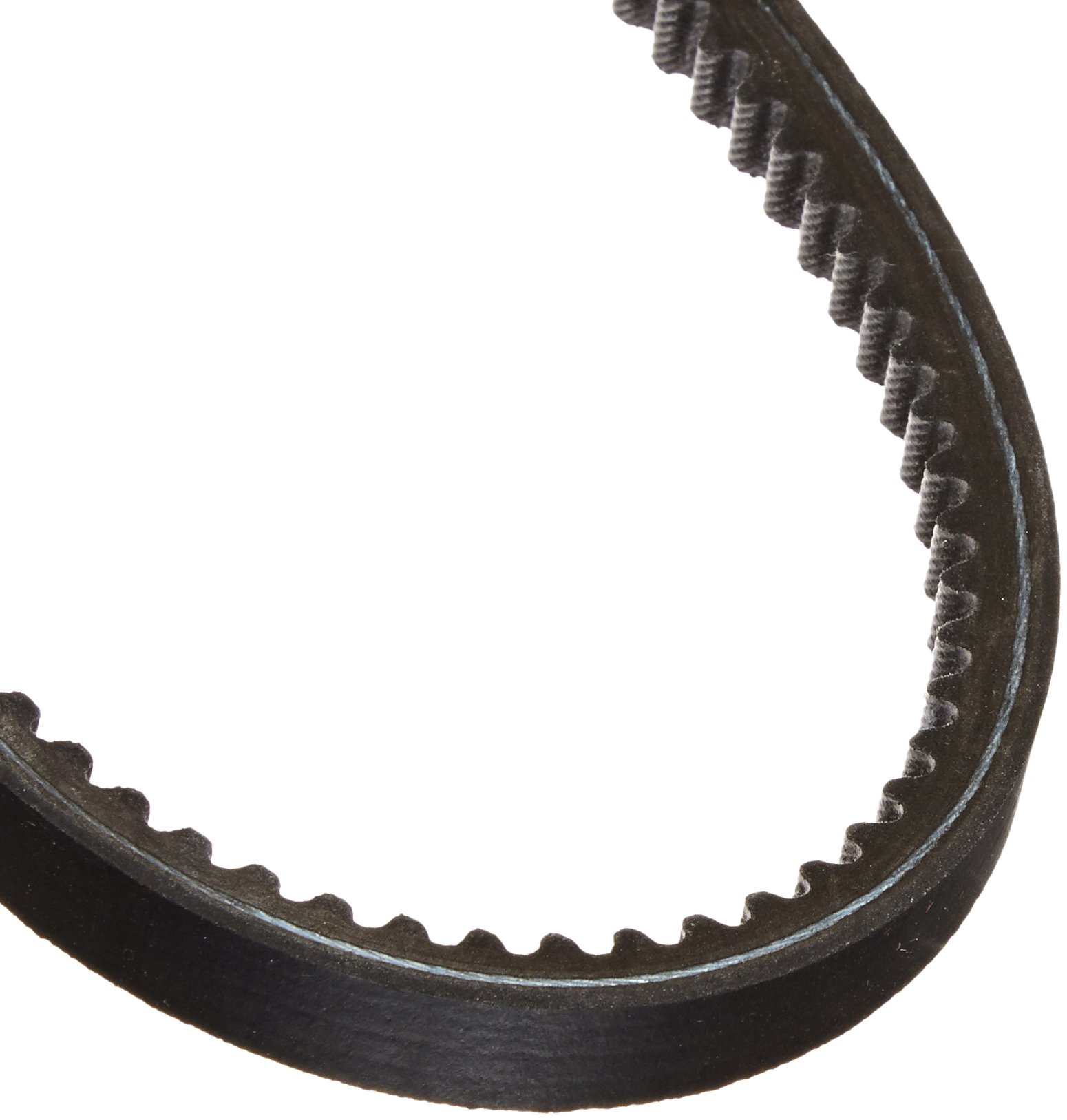

• Raw edge construction and special notch design makes this belt especially suited for drives requiring small diameter pulleys and back idlers
• Machined belt edge provides even sheave groove contact resulting in less slip and wear
• Flex-bonded cords are strongly bonded to the body of the belt for equal load distribution and reducing bending stress without deterioration
• Working temperature range of -60 to +250 degrees F protects the belt from cracking
• 15% capacity increase over wrapped belts
• Meets RMA oil and heat resistance standards and static conductivity requirements

The patented ethylene EPDM compound construction allows the belt to resist cracking and handle extreme temperatures. Suitable for all industrial applications, particularly where small or sub-minimal sheave diameters are required. Tri-Power belts are part of Gates' V80 matching system, which guarantees that all belts of the same type and size will be more precisely matched than industry standards require, resulting in even load distribution on multi-belt drives and better wear.
