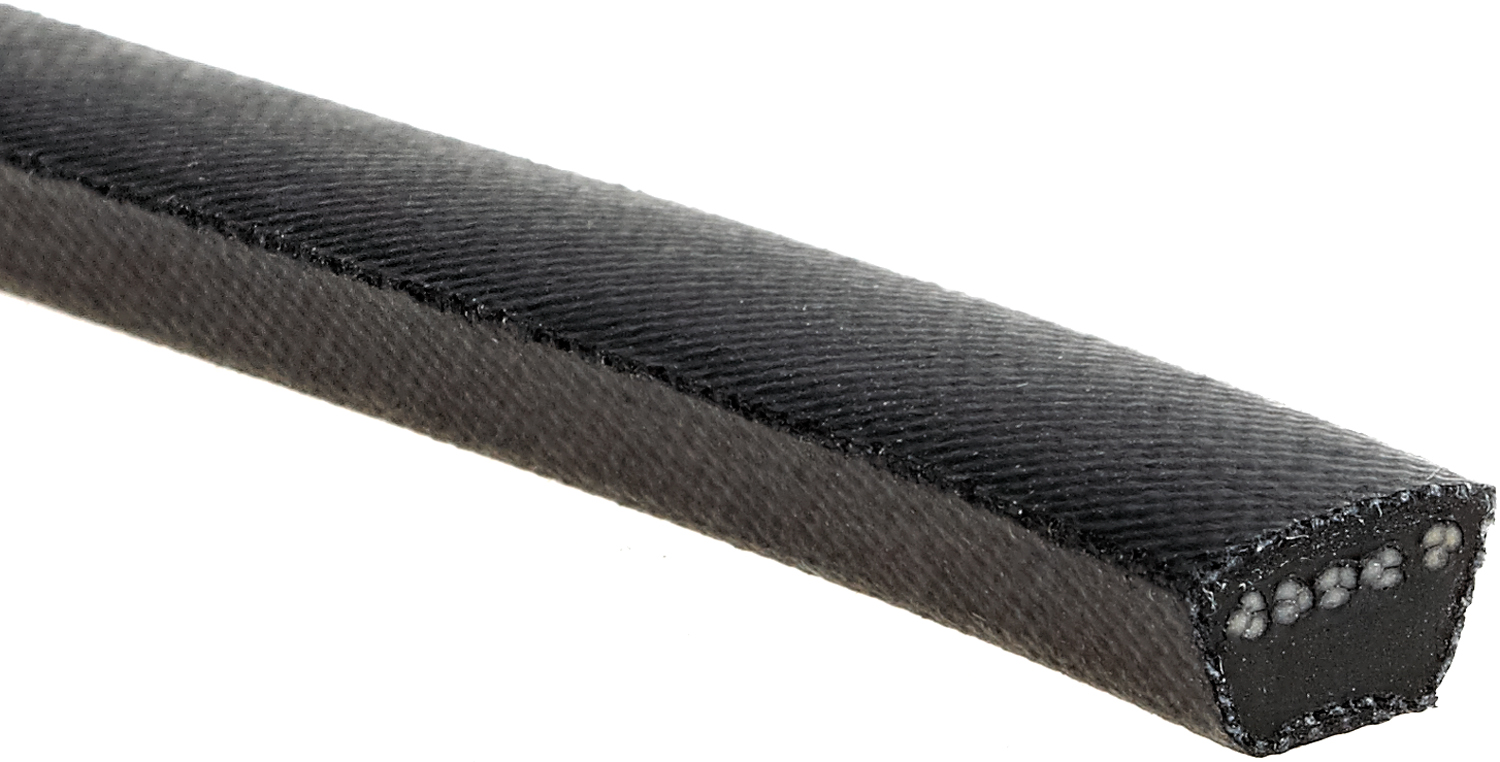

Gates 1340 Truflex V-Belt Accessory Drive Belt - 3L Section 34 Inch Length 3/8 Inch Width

The Gates 1340 Truflex V-Belt (also known as 3L340) is a light-duty fractional horsepower (FHP) belt designed for reliable performance in industrial, automotive, and appliance applications. With a 34-inch outside circumference and 3/8-inch top width, this 3L section belt delivers superior flexibility and durability for demanding light-duty power transmission needs.

Key Features:

• Flex-Bonded Polyester Cords: Strongly secured to the belt body for equal load distribution and absorption of bending stress without cord deterioration
• Flex-Weave Cover: Oil and heat-resistant EPDM construction protects the belt core from harsh environments including oil, dirt, and heat exposure
• Gates Curves Design: Provides proper cord support and full contact with sheave grooves for uniform loading, reduced wear, and extended belt life
• Superior Length Stability: Engineered for minimal take-up requirements with consistent performance over time
• Thin Profile Construction: Designed specifically for small-diameter sheaves with lower cord positioning to improve performance in backside idler applications

Specifications:

• Gates Part Number: 1340 (Product ID: 84001340)
• Industry Standard: 3L340
• Effective Length: 33.68 inches
• Outside Circumference: 34 inches
• Top Width: 3/8 inch (0.38")
• Thickness: 7/32 inch (0.22")
• Section: 3L
• Minimum Pulley Diameter: 2.546 inches
• Material: EPDM rubber with flex-bonded polyester reinforcement

Applications: Perfect for fractional horsepower motors, lawn and garden equipment, heating and air conditioning drives, light-duty appliances, auxiliary automotive applications (electric windows, windshield wipers, central locking systems), drive pumps, power tools, and domestic appliances. Ideal for shop and miscellaneous light-duty power transmission applications.

Compliance: Meets ARPM/RMA IP-3-2 oil and heat-resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.
