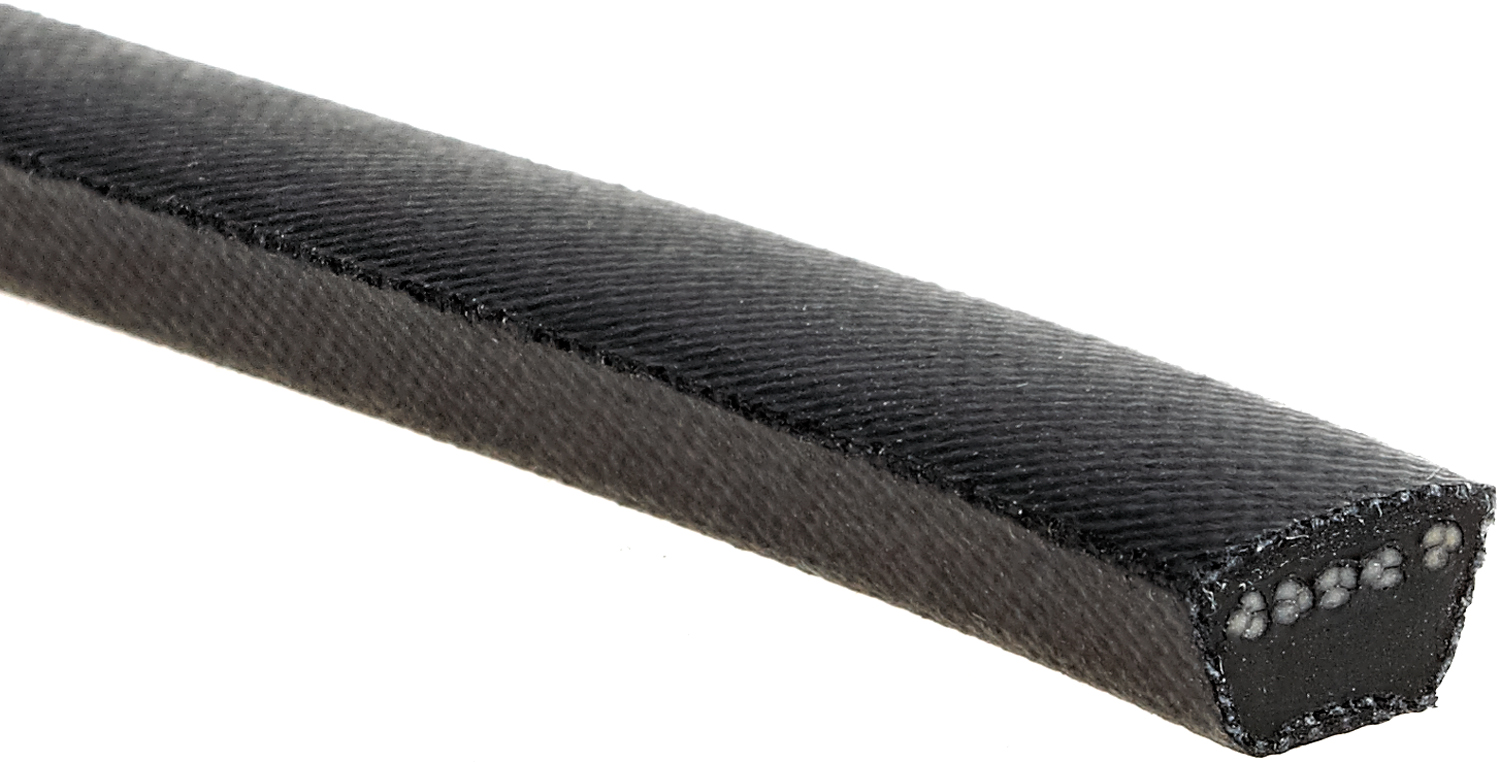

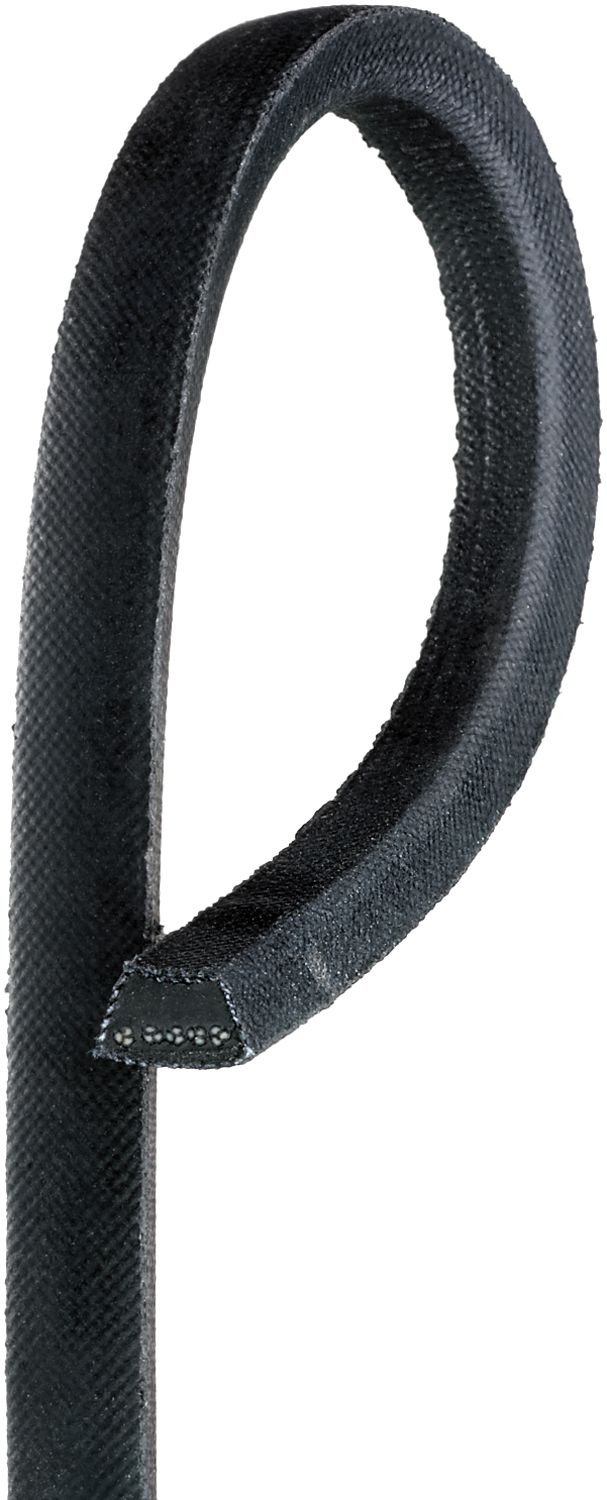

Gates 2480 Truflex V-Belt 4L480 1/2" x 48" FHP Low Horsepower

The Gates 2480 Truflex V-Belt (also known as 4L480) is a premium fractional horsepower belt designed for light-duty industrial applications. This belt features a 48-inch outside circumference length with a 1/2-inch top width and 0.31-inch nominal thickness, making it ideal for small-diameter sheaves and backside idler applications.

Key Features:

• Superior length stability for minimal take-up requirements

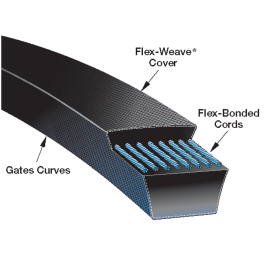

• Flex-bonded cords strongly secured to the belt body for equal load distribution and absorption of bending stress without cord deterioration
• Gates Curves design provides proper cord support and full sheave-groove contact for uniform loading, uniform wear, and increased belt life
• Flex-Weave oil and heat resistant cover protects the belt core from oil, dirt, and heat in tough environments
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements
• Thin profile design optimized for small-diameter sheaves and lower cord positioning for improved performance

Applications: Perfect for fractional horsepower motors, lawn and garden equipment, heating and air conditioning drives, light-duty appliances, power tools, shop machinery, drive pumps, and domestic appliance applications. Also suitable for auxiliary automotive applications including electric windows, windshield wipers, and central locking systems.

Cross References: John Deere LG48480, ACDelco 4L480, Goodyear 4L480, NAPA 4L480
