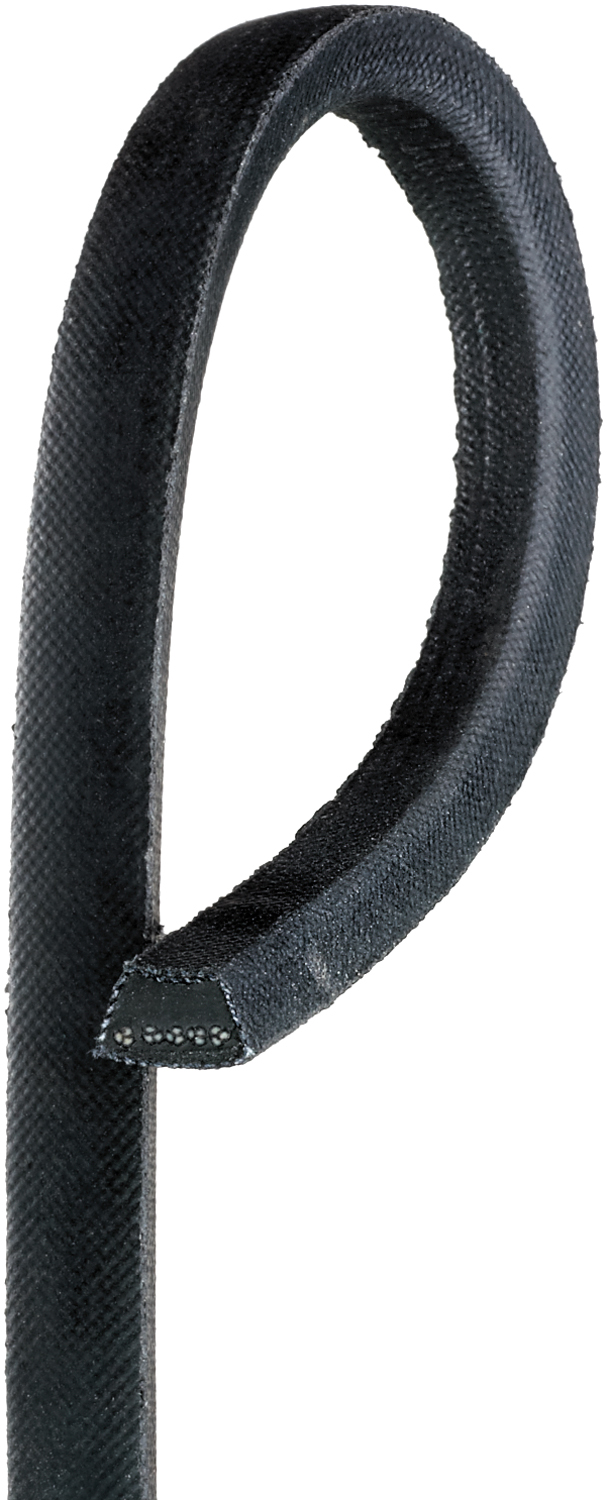

Gates 3520 Truflex FHP Light Duty V-Belt 52 Inch

The Gates 3520 Truflex V-Belt is engineered with superior length stability for minimal take-up requirements, making it perfect for all industrial and light-duty applications, including fractional horsepower (FHP) motors and applications using backside idlers. This belt measures 52 inches in length with a 21/32 inch top width, and is also known by the cross-reference number 5L520.

Key Features:

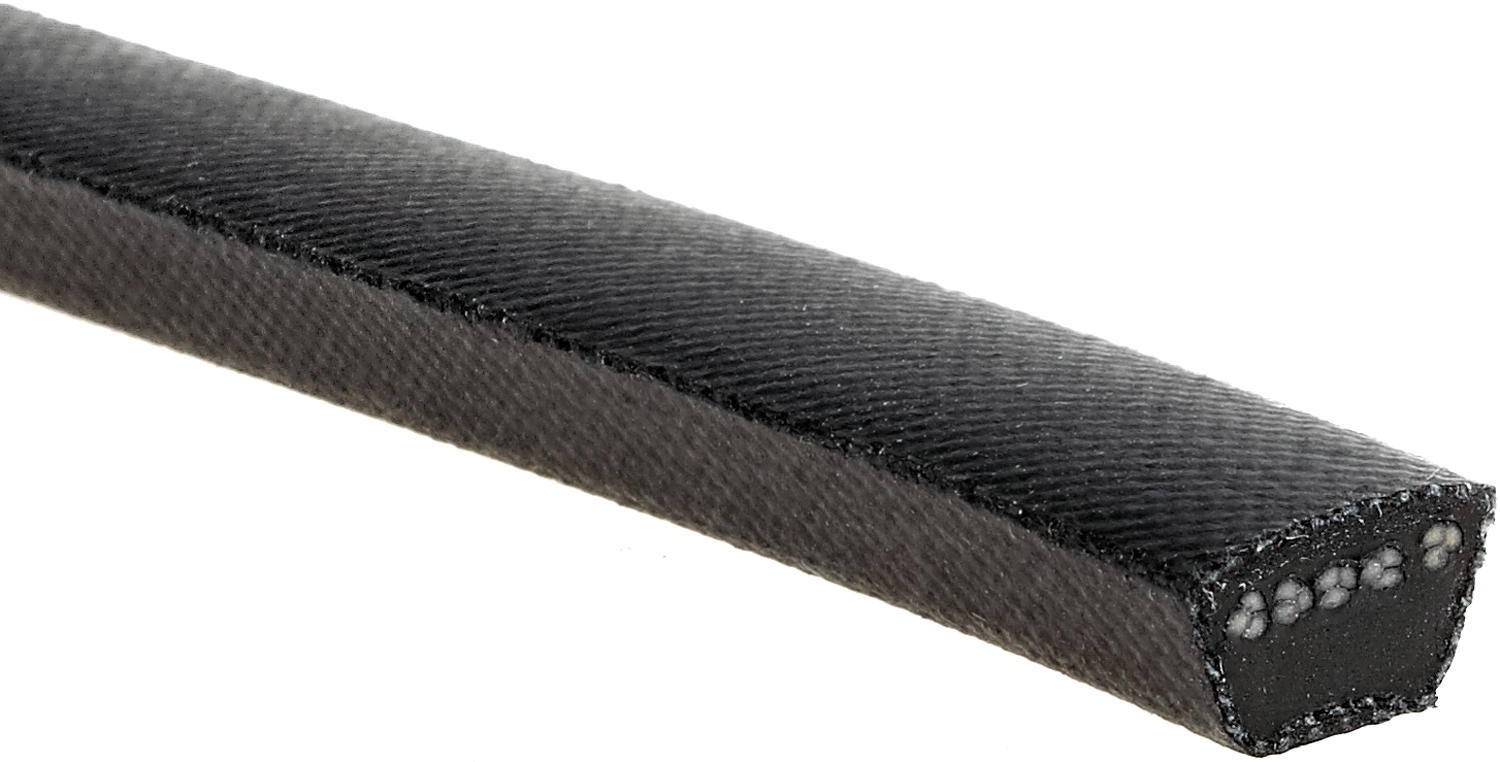

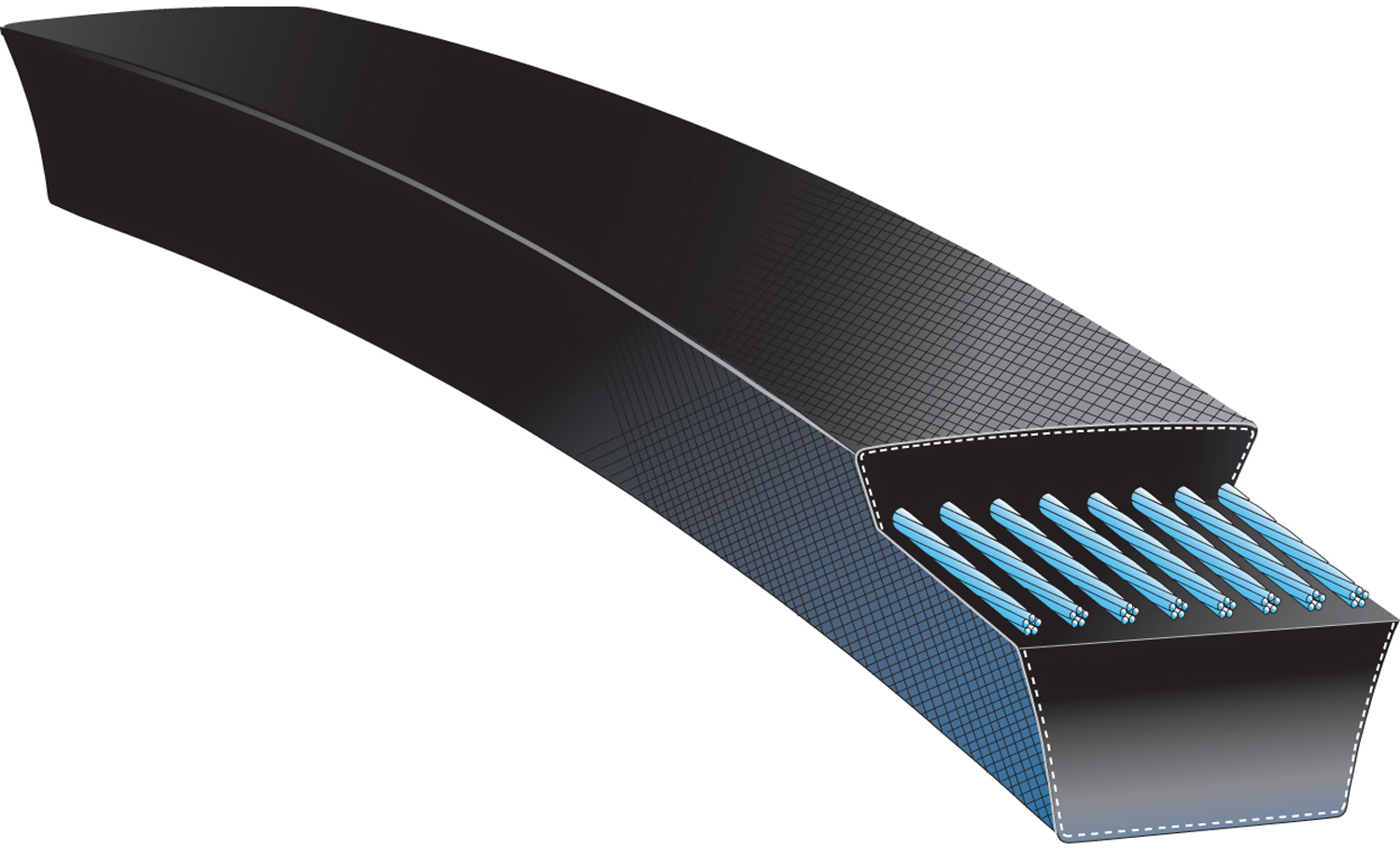

• Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads, and the absorption of bending stress without cord deterioration
• Flex-Weave oil and heat resistant cover protects the belt core from the toughest environments
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements
• REACH and RoHS 2 compliant
• Features superior length stability for minimal take-up requirements

Ideal Applications:

• Powered cultivators, lawn mowers, electric household appliances, and HVAC equipment
• Auxiliary automotive applications like electric windows, windshield wipers, and central locking systems, drive pumps, power tools, and domestic appliance applications
• Small diameter drives and back idler applications

This Gates Truflex belt delivers the superior performance, reliability, and quality demanded by fractional horsepower motors and light-duty applications. Note: Do not use on applications where FHP medium horsepower V-belts are recommended.
