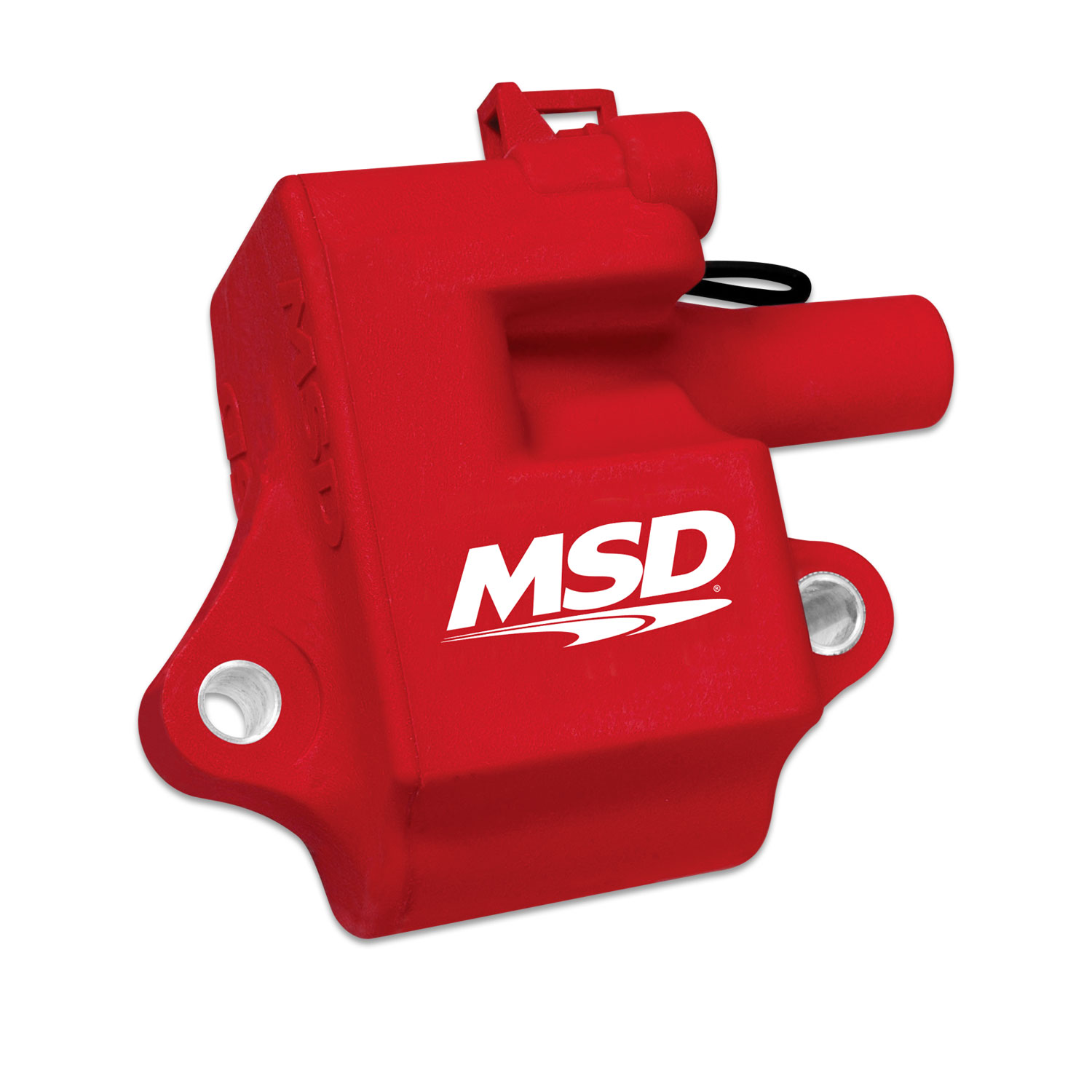

MSD 8285 Pro Power Series Direct Ignition Coil GM LS1/LS6 Red

The MSD 8285 Pro Power Series Direct Ignition Coil is a high-performance, drop-in replacement coil engineered specifically for GM Gen-III LS1 and LS6 engines. Designed as a direct OEM replacement, it plugs directly into the factory connectors without any modification, while delivering significantly greater spark energy than the stock coil.

MSD's Multiple Spark Discharge (MSC) technology fires multiple sparks at idle RPM, ensuring a more complete combustion of the air/fuel mixture. The result is improved throttle response, a smoother idle, quicker starts, and stronger high-RPM performance — making this coil an ideal upgrade for both street performance and track use.

Key Features:

• Direct plug-in replacement for stock Gen-III GM LS1/LS6 coils — no modifications required
• Multiple spark discharge at idle RPM for improved combustion efficiency
• Up to 3x the current output of stock coils
• Maximum output voltage: 40,000V
• Primary resistance: 0.730 ohms
• Secondary resistance: 3.7K ohms
• Inductance: 3.6 mH
• Peak current: 124 mA
• Spark duration: 1,110 µS
• Epoxy-filled square coil pack construction for durability
• Female/socket spark plug wire connection
• Connector and plug wire located on the same side
• Bold red housing for easy visual identification
• Sold individually
• CARB-compliant — legal for sale and use on emissions-controlled vehicles in all 50 states

Note: This coil includes an additional 2-pin connector that must be plugged in for the coil to operate. This connector supports optional ignition/timing control. There are multiple LS coil housing styles — verify your application before ordering.
