Manley 28598 Big Block Chevy 598 CID Rotating Assembly 4.500 Stroke Flat Top Pistons

Manufacturer

Part Number

28598
Black Friday Price

$3,327.91

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 28598 is a complete Big Block Chevy 598 CID rotating assembly engineered for high-performance and racing applications. Designed for 10.200" tall-deck blocks, this kit delivers a 4.500" stroke paired with 4.600" bore forged pistons to achieve 598 cubic inches of displacement at a low-compression 10.0:1 ratio — making it an ideal foundation for power-adder and forced-induction builds.

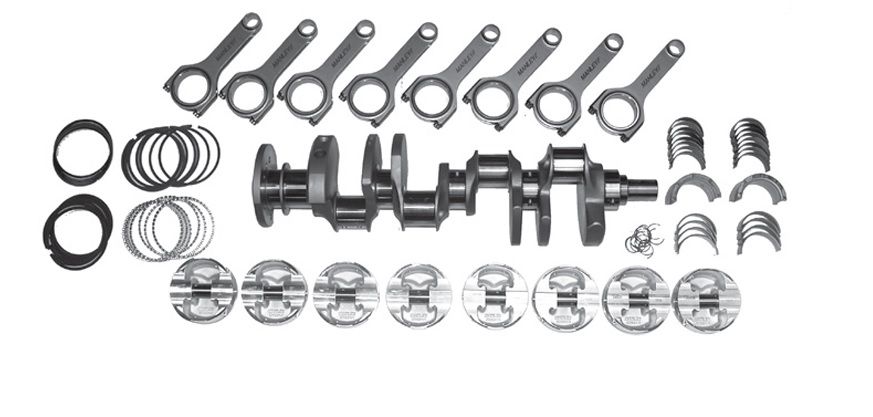

Kit Includes:

  • Crankshaft: Manley 4340 non-twist lightweight forged steel crankshaft — 4.500" stroke; heat treated, stress relieved, shot peened, nitrided, and 100% Magnafluxed
  • Connecting Rods: Manley 4340 forged steel H-Beam rods — 6.700" length with 7/16" ARP 2000 cap screws (rated to 1,500 hp); heat treated, stress relieved, shot peened, nitrided, and 100% Magnafluxed
  • Pistons: Manley 2618 forged aluminum Platinum Series flat top pistons — 4.600" bore, 1.245" compression height, -3cc dome volume
  • Wrist Pins: Manley premium chromoly wrist pins
  • Performance ring set
  • Premium rod and main bearings

Key Specifications:

  • Displacement: 598 CID
  • Stroke: 4.500"
  • Bore: 4.600"
  • Rod Length: 6.700"
  • Compression Height: 1.245"
  • Piston Volume: -3cc Flat Top
  • Compression Ratio: ~10.0:1 (with 118cc chamber)
  • Deck Height Required: 10.200" Tall Deck
  • Rear Seal: 2-Piece

Every component in the Manley 28598 rotating assembly undergoes rigorous heat treatment, stress relief, shot peening, nitriding, and Magnaflux inspection to ensure maximum strength and reliability. This kit is precision internally balanced by Manley, providing a ready-to-install foundation for your big block Chevy stroker build.

Products specifications

Make

Chevrolet

Piston Head Type

Flat

Engine Type

ICE

Engine

Big Block

Piston Volume

-3.00

Engine Stroke

4.500

Rod Bolt Material

ARP 8740

Product Type

Engine Crankshaft Rotating Assembly

Rod Bearing Type

Clevite Series

Displacement

598

Title

Manley Rotaing Assembly, BBC 598 4.500 STROKE/4.600/-3cc

Connecting Rod Length

6.700

Piston Bore Diameter

4.600

Connecting Rod Part Number

14072

Crankshaft Part Number

190220

Engine Block

Tall Deck Blocks With Center Counterweights

Piston Part Number

698080

Piston Ring Part Number

46458
