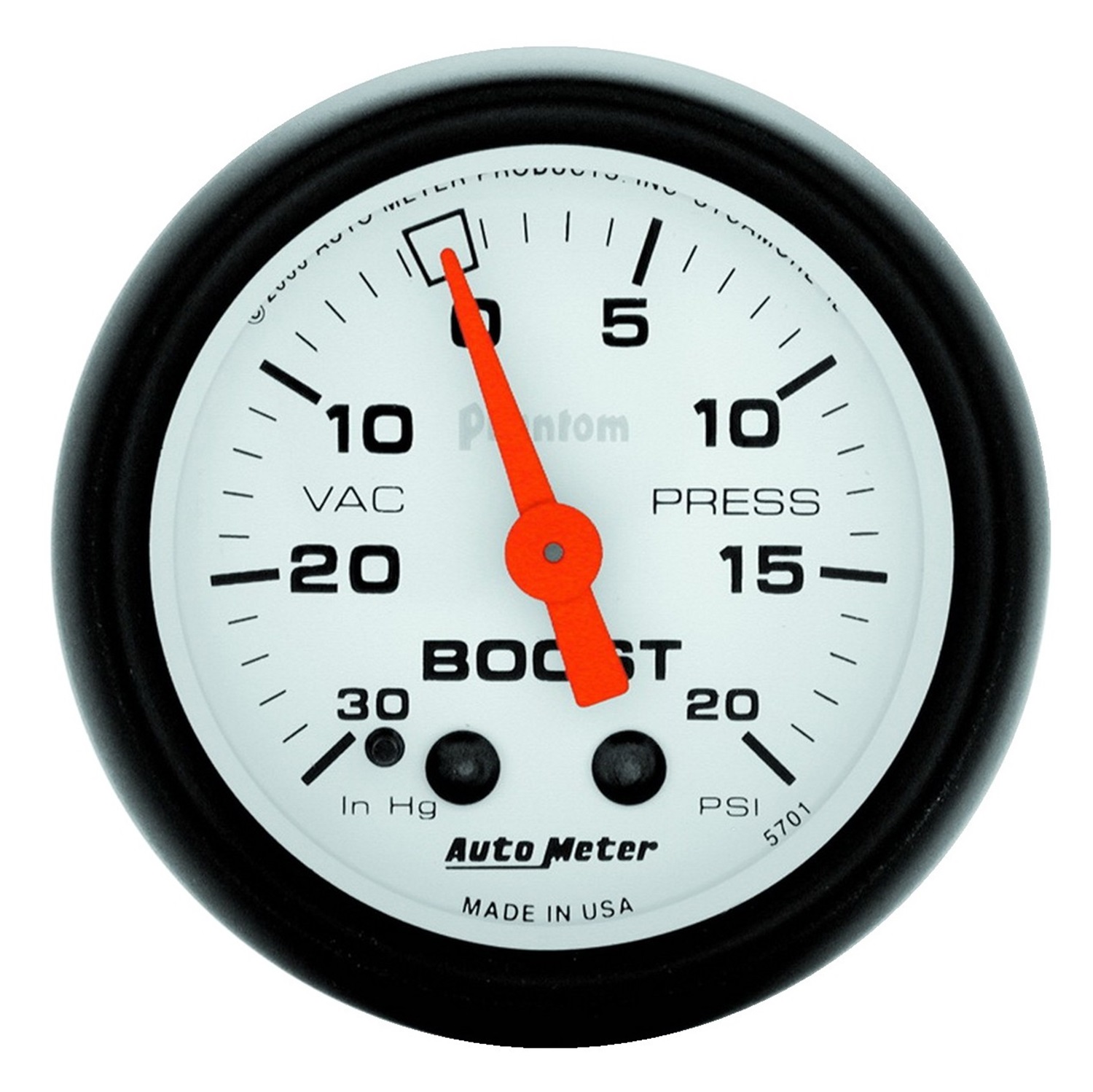

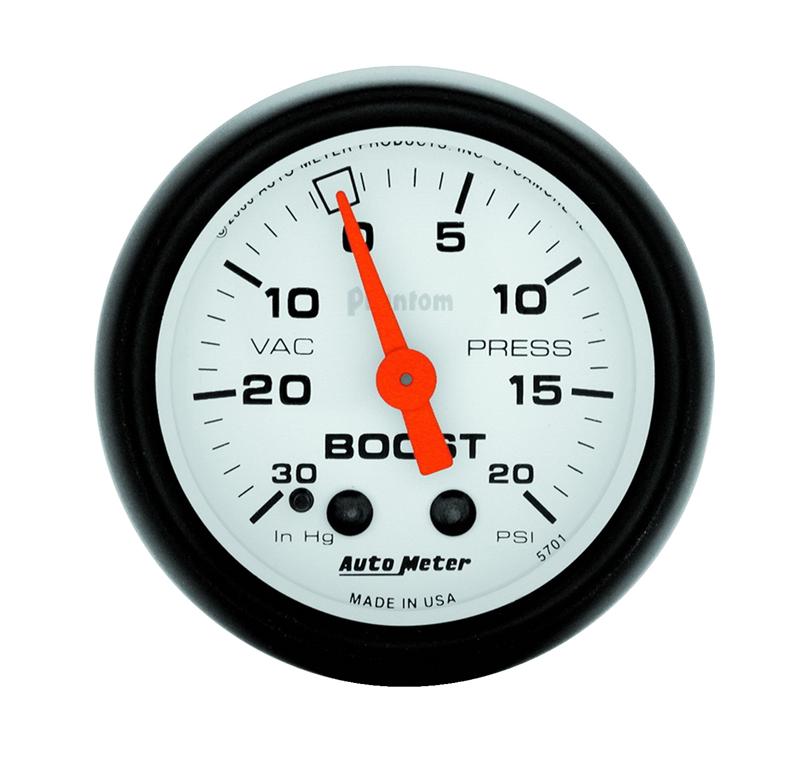

AutoMeter 5701 Phantom 2-1/16" Mechanical Boost/Vacuum Gauge 30inHg-20PSI

Manufacturer

Part Number

5701
Sale Price

$101.08

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The AutoMeter Phantom series mechanical boost/vacuum gauge combines race-proven accuracy with straightforward installation. This 2-1/16 inch gauge uses a high-precision bourdon tube meter movement to deliver reliable readings from 30 inches of mercury vacuum to 20 PSI boost pressure, making it ideal for monitoring forced induction and engine vacuum conditions.

Key Features:

  • Mechanical bourdon tube movement provides exceptional accuracy and durability without requiring electrical power
  • 2-1/16 inch diameter fits standard gauge pods and dash openings
  • Measures from 30 inHg vacuum to 20 PSI boost pressure
  • White dial with fluorescent red pointer for excellent visibility
  • Black Super Bezel with flat, clear lens
  • Traditional incandescent perimeter lighting with white illumination
  • Simple 1/8 inch NPT pressure connection requires no electrical hookup for operation

Complete Installation Kit Includes:

  • 1/8 inch nylon pressure line
  • T-fitting and vacuum fitting
  • Compression fittings for secure connections
  • Bulb and socket assembly with red and green bulb covers
  • Mounting hardware and detailed installation instructions

The mechanical design makes this gauge compatible with any street or race vehicle, providing trusted performance even in harsh environments. The Phantom series styling features a black bezel with white dial that coordinates with other AutoMeter Phantom gauges for a cohesive dashboard appearance.

Products specifications

Bezel Color

Black

Gauge Type

Boost/Vacuum

Size

2.3125 in.

Hole size

0.0625 in.

Bezel Style

Super Bezel

Lighting Color

White Incandescent

Lighting Type

Incandescent

Gauge Size

2.0625 in.

Boost

20 PSI

Hole size

52.4mm

Gauge Size

52.4mm

Pointer Color

Fluorescent Red

Face Color

White

Vacuum

0-30 in. Hg

Outer Bezel Diameter

2.250 in.

Lens

Flat Clear

Movement Type

Mechanical

Prop 65

Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.

Boost

0 to 30 PSI
