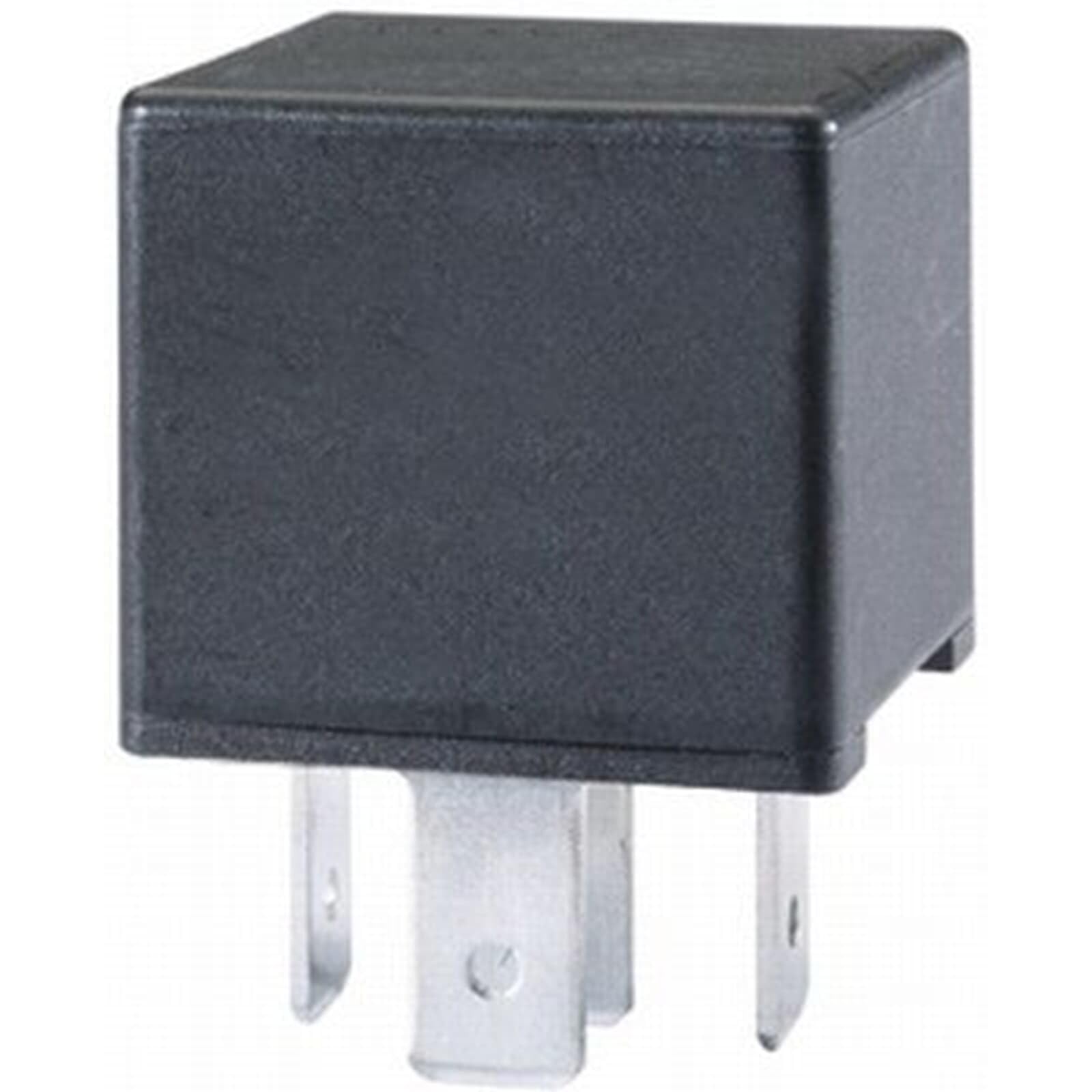

Hella 007903027 Relay 24V 10/20A SPDT with Diode

Manufacturer

Part Number

007903027
Black Friday Price

$8.10

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Hella 007903027 is a 24-volt SPDT (Single Pole Double Throw) micro plug relay rated at 10/20 amps, featuring an integrated flyback diode for coil spike suppression. Designed for heavy-duty automotive, commercial vehicle, and marine electrical systems, this relay provides reliable circuit switching in demanding environments.

Key Features:

  • Coil Voltage: 24V DC — suited for heavy-duty trucks, buses, and commercial equipment
  • Contact Rating: 10A (normally closed) / 20A (normally open)
  • Switch Type: SPDT (Single Pole Double Throw) — supports both normally open and normally closed circuit configurations
  • Integrated Diode (DIO): Built-in flyback/suppression diode protects sensitive electronics from voltage spikes when the coil is de-energized
  • Micro Plug-In Design: Compact form factor for easy installation in standard relay sockets and fuse/relay boxes
  • Hella Quality: Engineered to OEM standards for long service life and consistent performance

The integrated suppression diode makes this relay especially well-suited for use in systems with ECUs, PLCs, or other sensitive electronics where inductive load spikes could cause damage or interference. Compatible with standard 5-pin micro relay sockets.

Products specifications

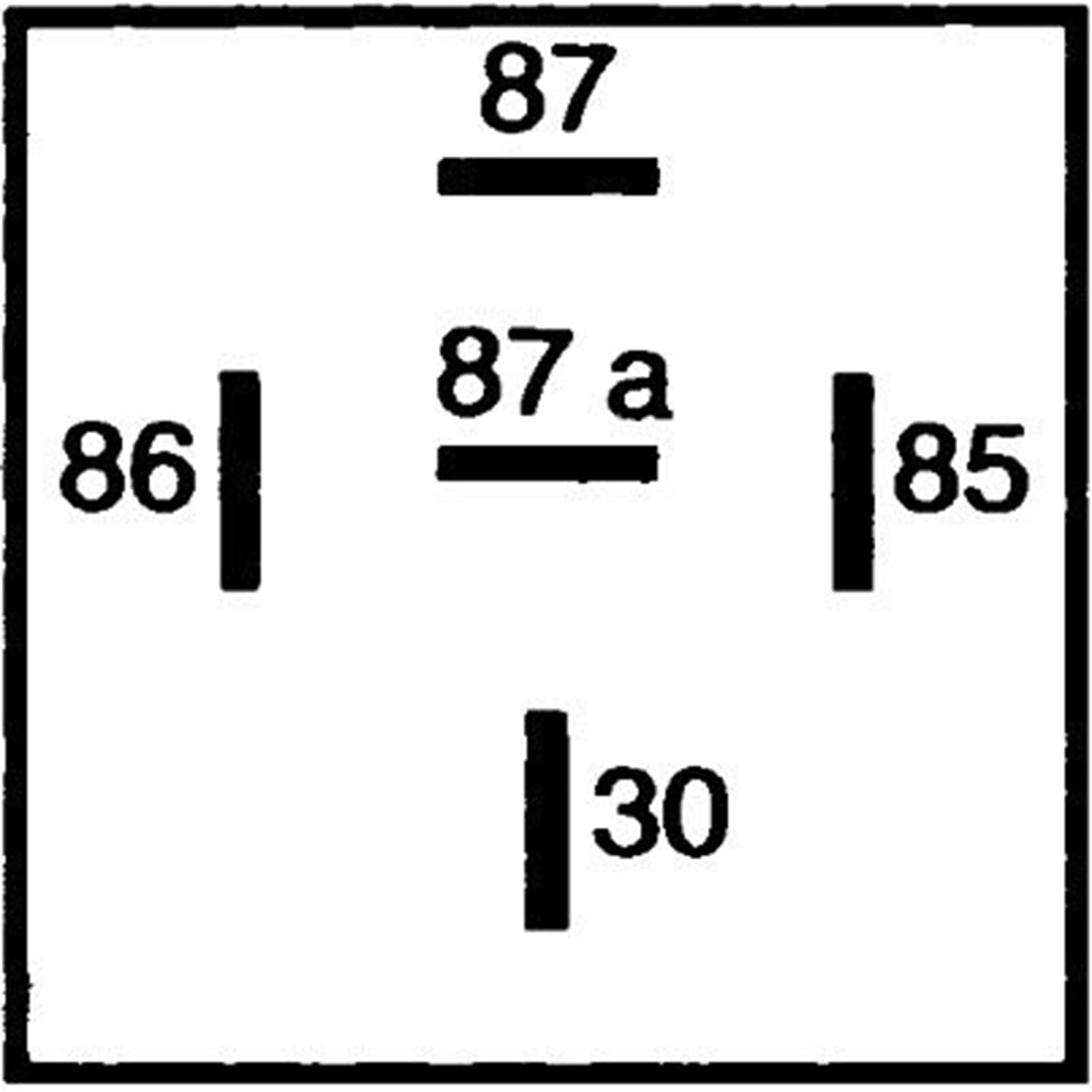

Plug Type ID

B1

Number of Poles

5

Colour

Black

Supplementary Article/Info 2

with diode

Combi Switch Function

Normally Closed Contact

Protection Type (IP Code)

54

Rated Voltage [V]

24

Supplementary Article/Supplementary Info

without holder

Inductive Load [A]

16

Temperature range [°C]

80

Quantity

200

Capacity at 24V

10/20A

Capacitive Load [A]

5

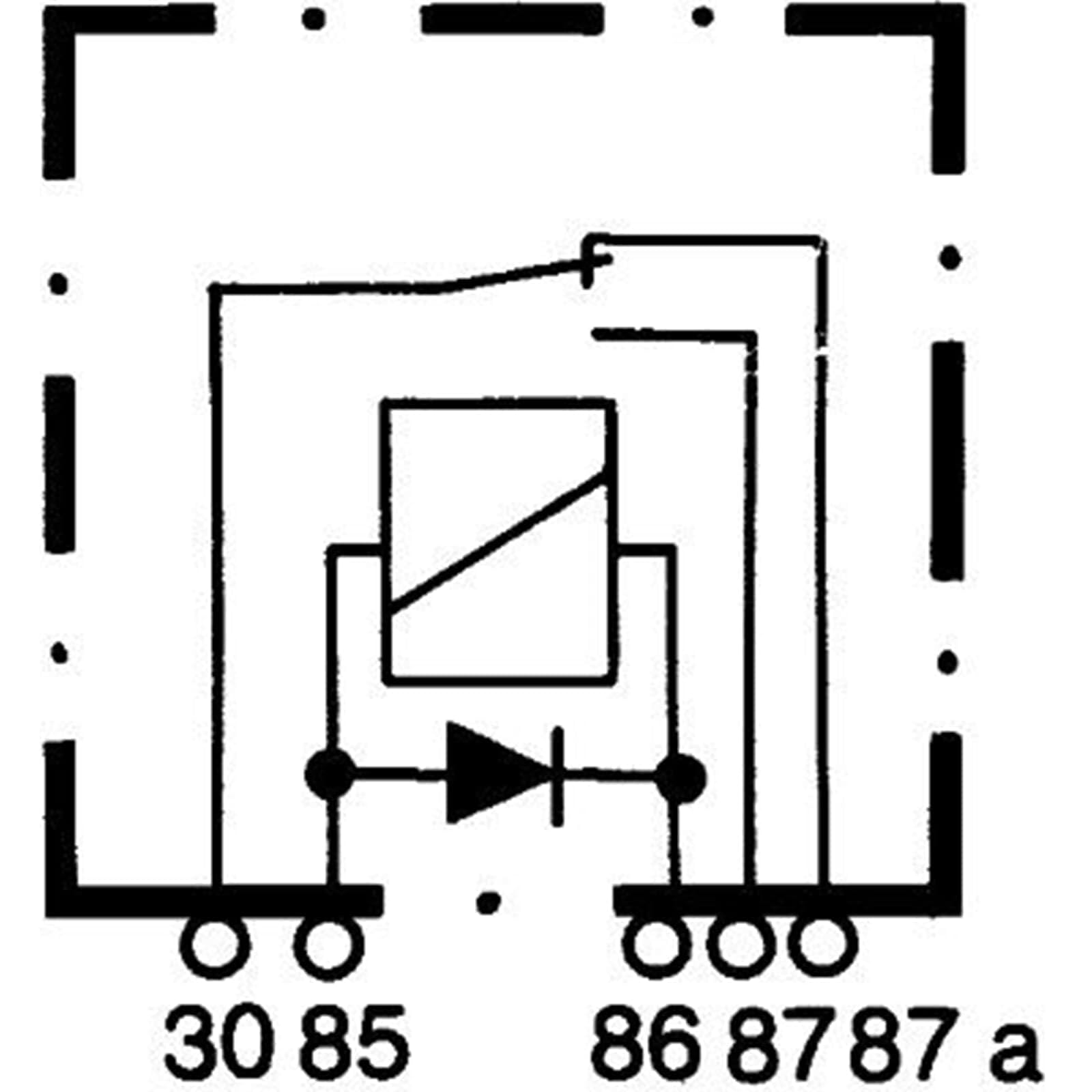

Wiring Diagramme

W3

Ohmic Load [A]

20
