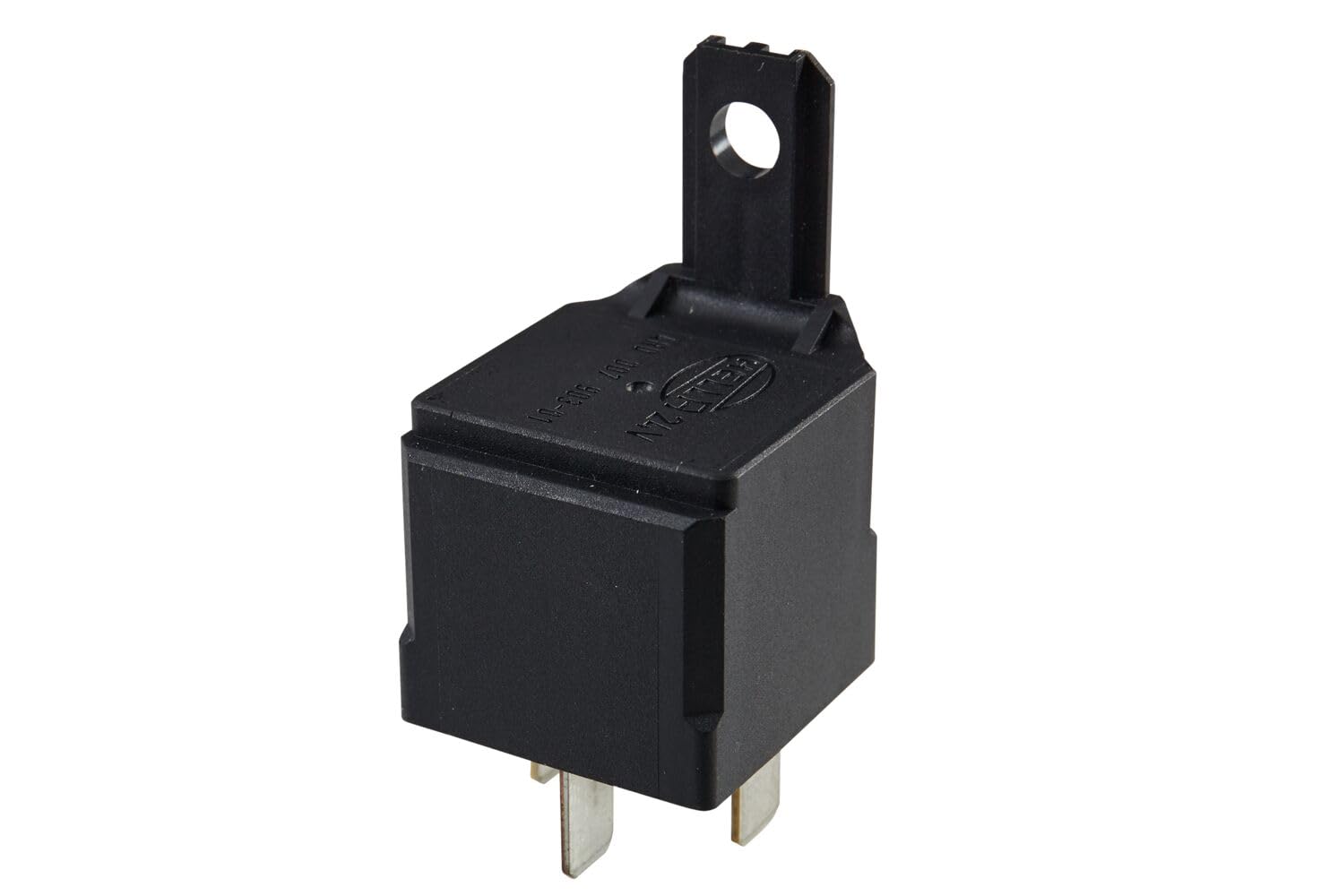

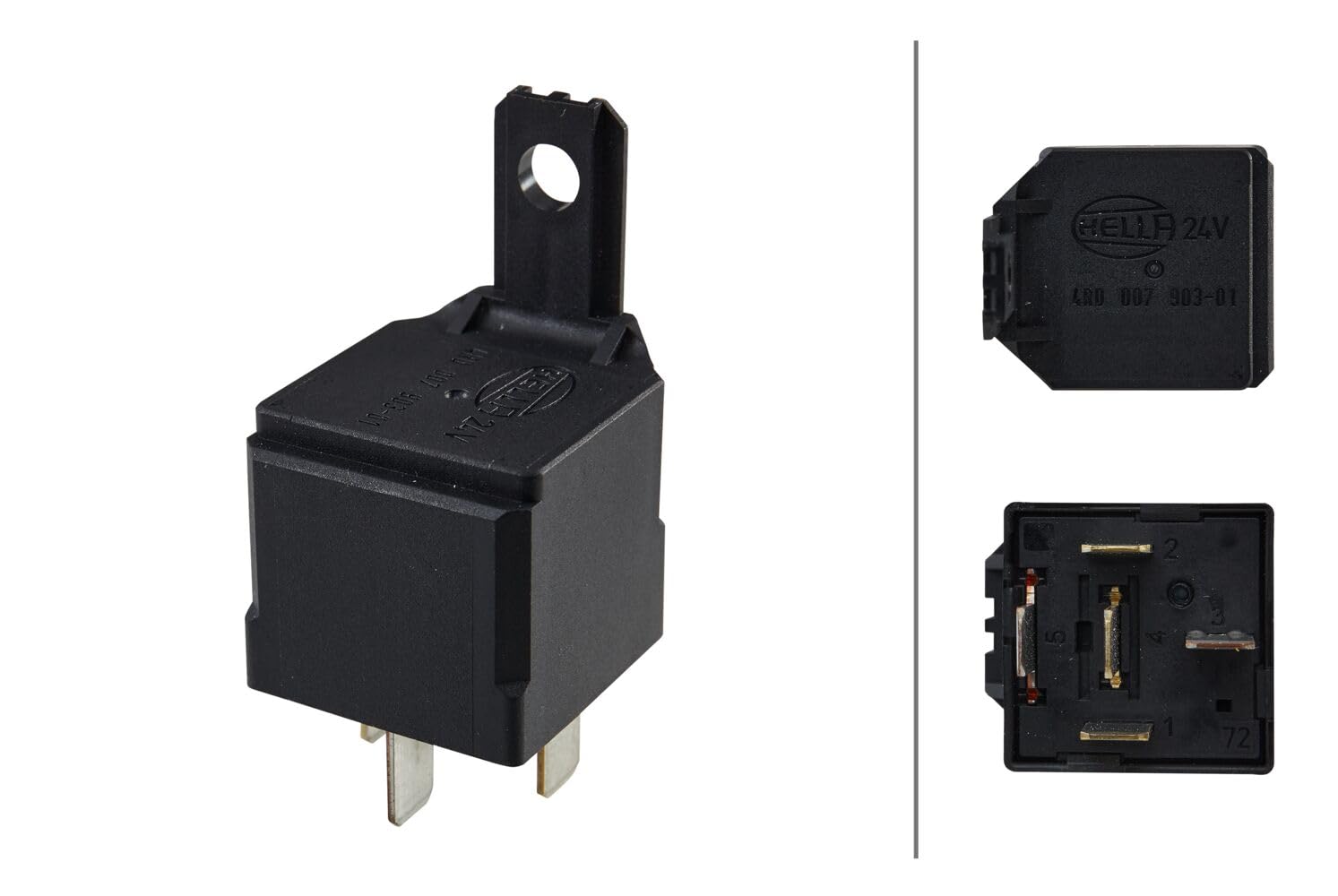

Hella 007903011 24V 10/20A SPDT Relay with Resistor and Mounting Bracket

Manufacturer

Picture for manufacturer Hella

Part Number

007903011
14 reviews
Sale Price

$10.74

Estimated ship date Thursday, November 19

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Hella 007903011 is a 24-volt, single pole double throw (SPDT) relay designed for heavy-duty automotive, commercial vehicle, and industrial applications. With a 10A rating on the normally closed (N/C) contact and a 20A rating on the normally open (N/O) contact, this 5-pin change-over relay provides reliable circuit switching in demanding 24V electrical systems.

Built to the same standards as Hella's original equipment relays, this unit includes an integrated coil protection resistor to suppress voltage spikes and extend the service life of connected control electronics. A mounting bracket is included for secure panel or chassis installation.

Key Features:

  • Voltage: 24V DC
  • Contact rating: 10A (N/C) / 20A (N/O) — SPDT change-over configuration

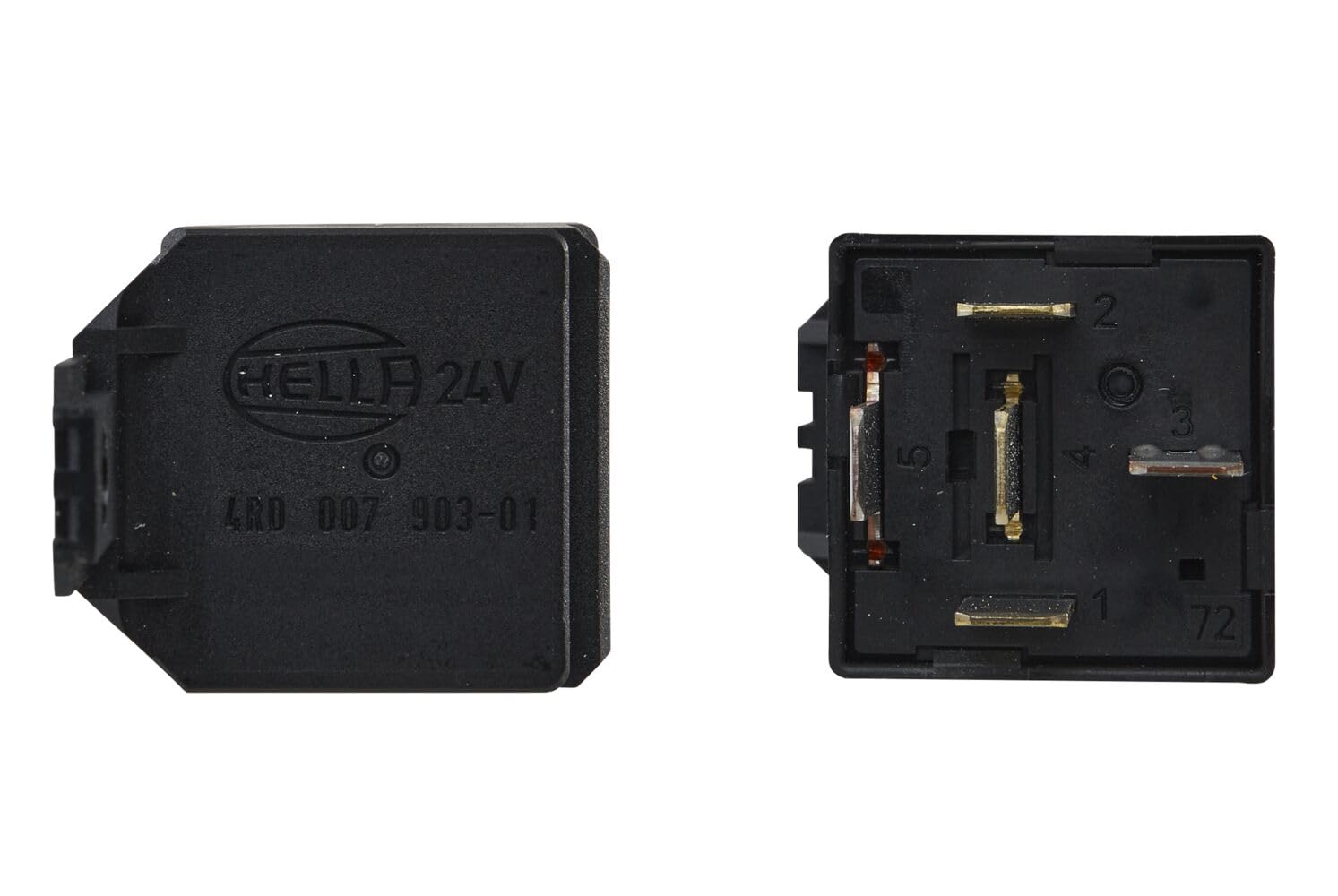

  • 5-pin terminal layout (pins 30, 87, 87a, 85, 86)
  • Integrated resistor for coil transient suppression

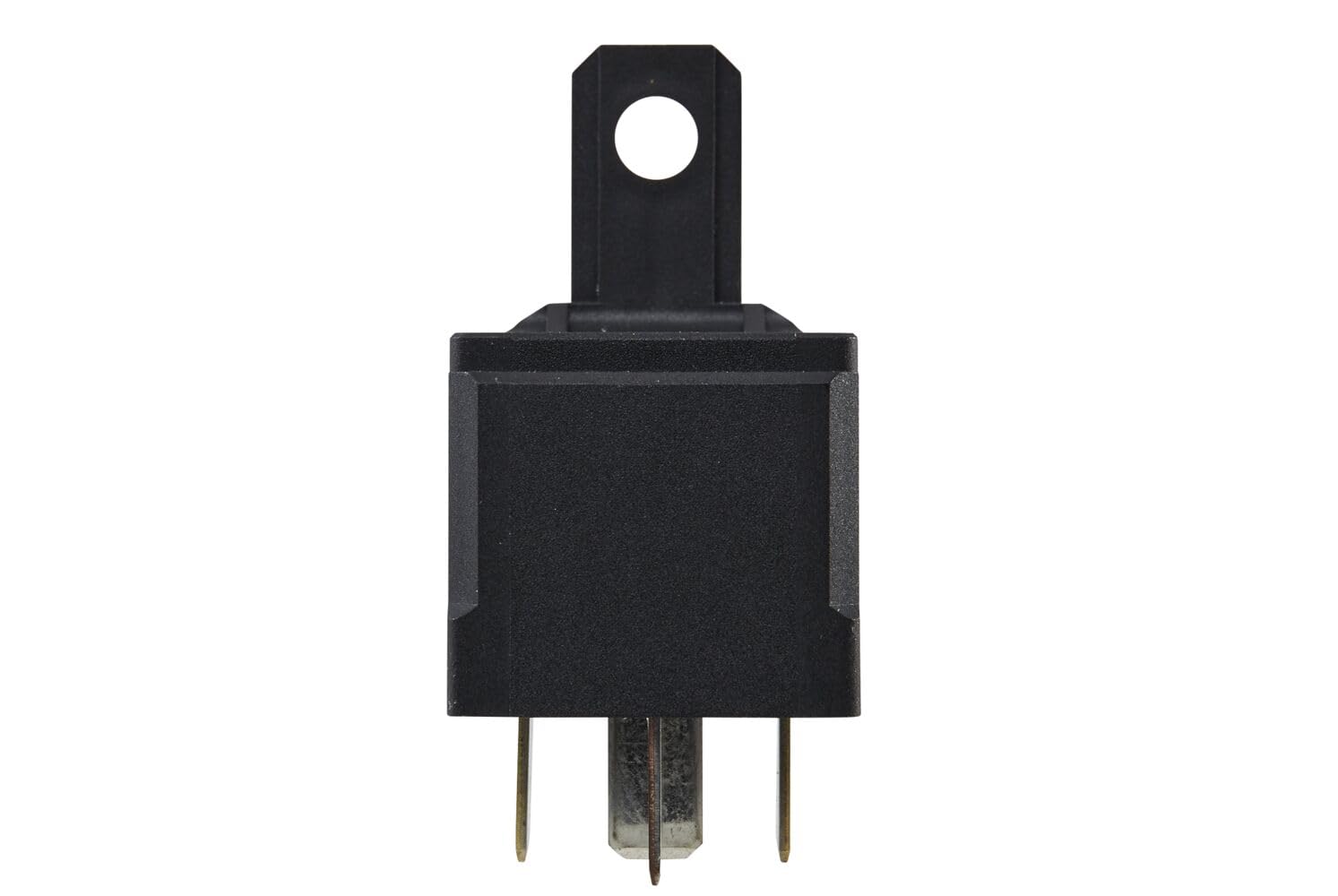

  • Mounting bracket included for easy installation
  • Certified to DIN EN ISO 9001, ISO/TS 16949, and ISO 14001 quality standards
  • Compliant with RoHS and REACh environmental directives

Typical applications include engine control circuits, starter systems, fuel pumps, fan motors, headlight cleaning systems, and other 24V accessories found in trucks, buses, agricultural equipment, and construction machinery. Hella produces over 100 million relays per year and supplies OEM-grade components to major vehicle manufacturers worldwide.

Products specifications

Temperature range [°C]

80

Capacitive Load [A]

15

Wiring Diagramme

W2

Protection Type (IP Code)

54

Rated Voltage [V]

24

Supplementary Article/Supplementary Info

with holder

SVHC

7439-92-1; Lead

Colour

Black

Supplementary Article/Info 2

with resistance

Inductive Load [A]

16

Capacity at 24V

10/20A

Plug Type ID

B1

Number of Poles

5

Combi Switch Function

Changeover Contact

Ohmic Load [A]

20
