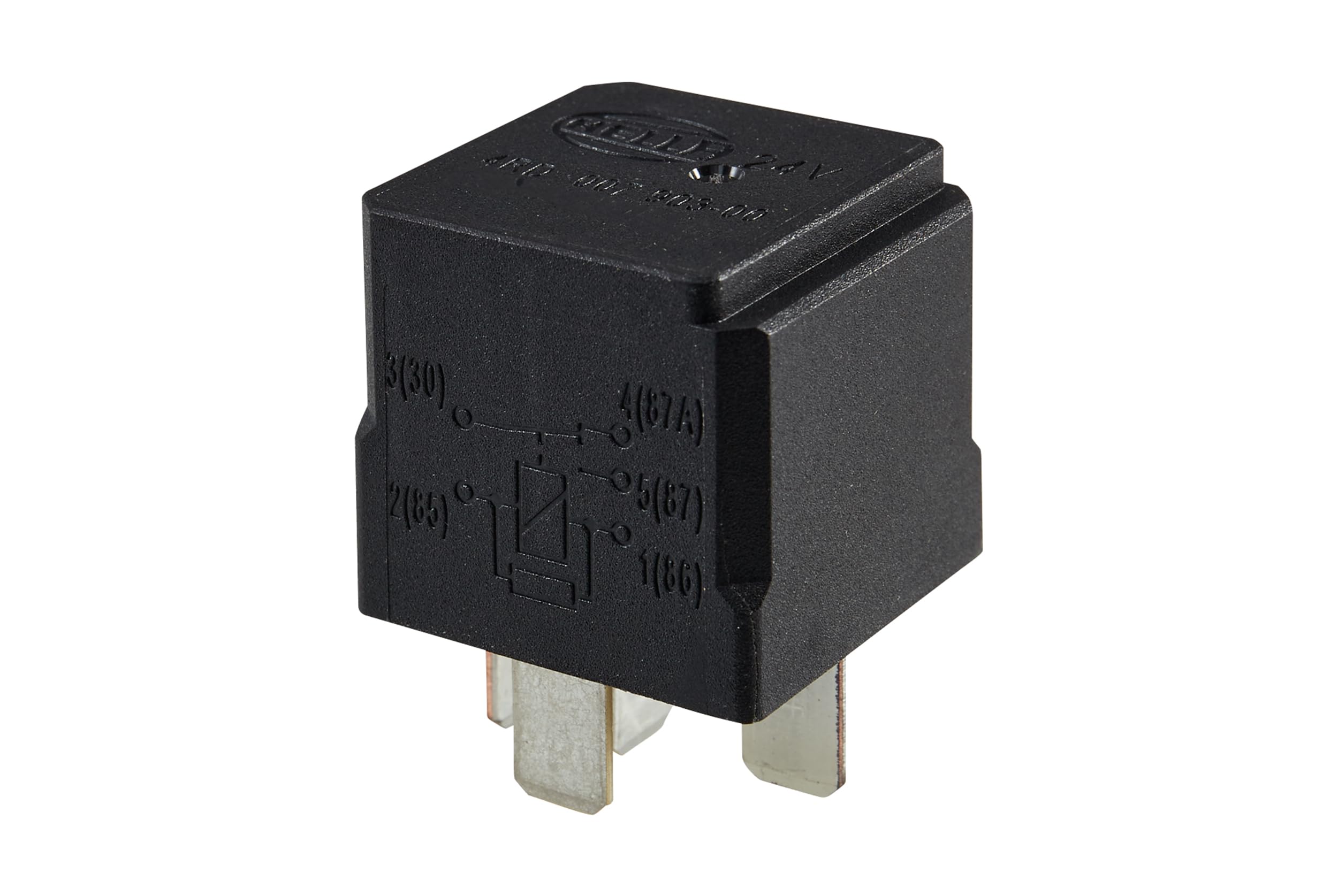

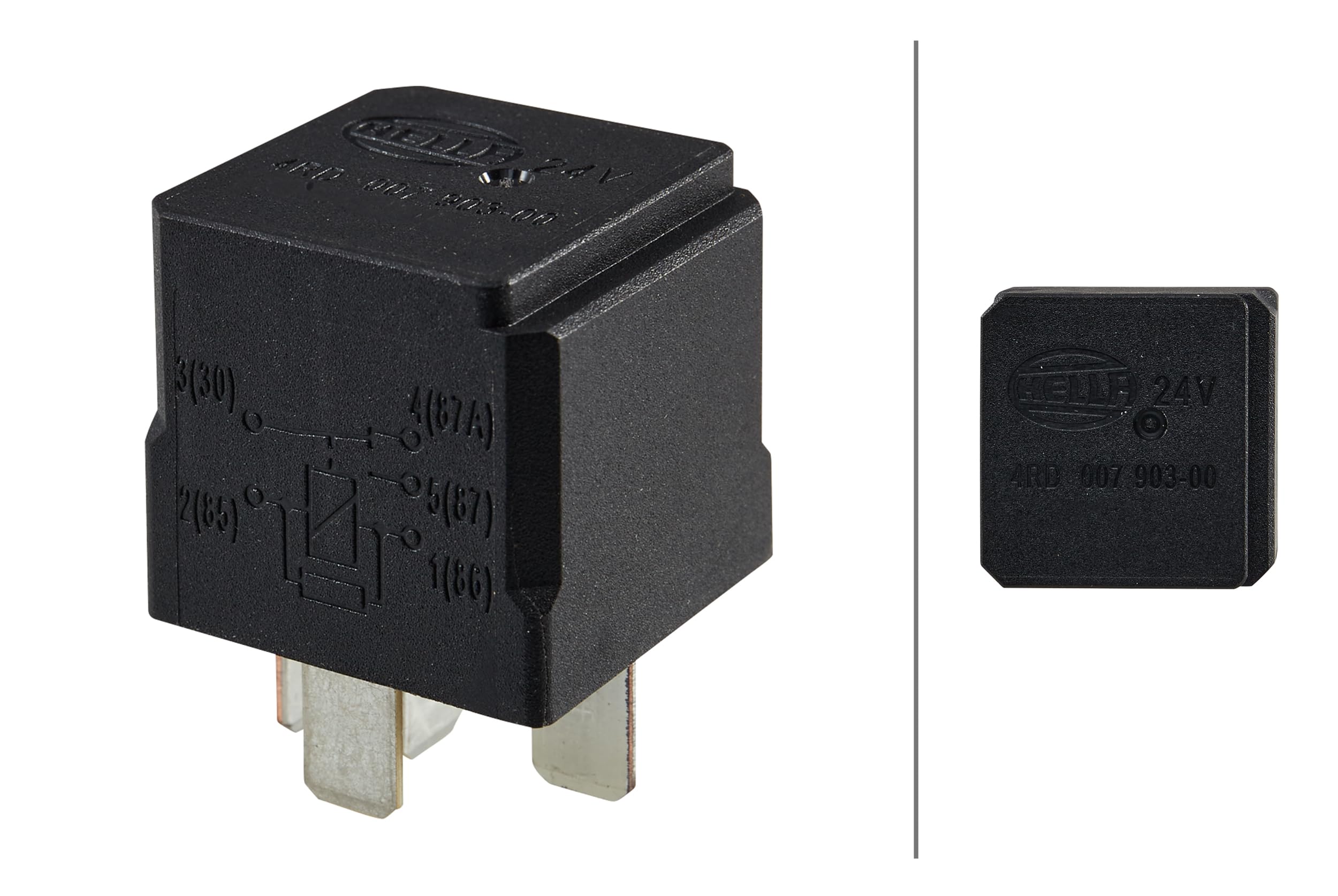

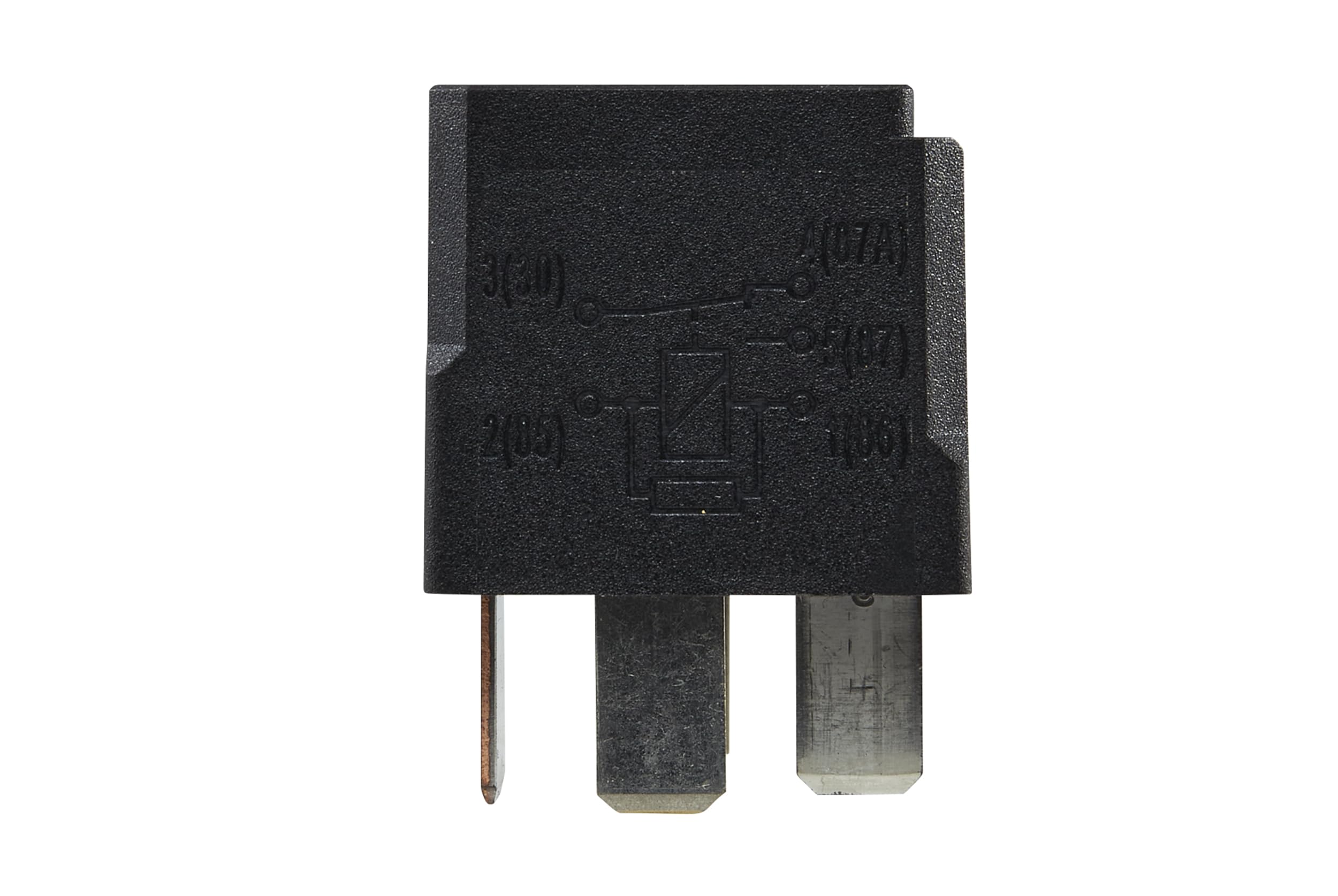

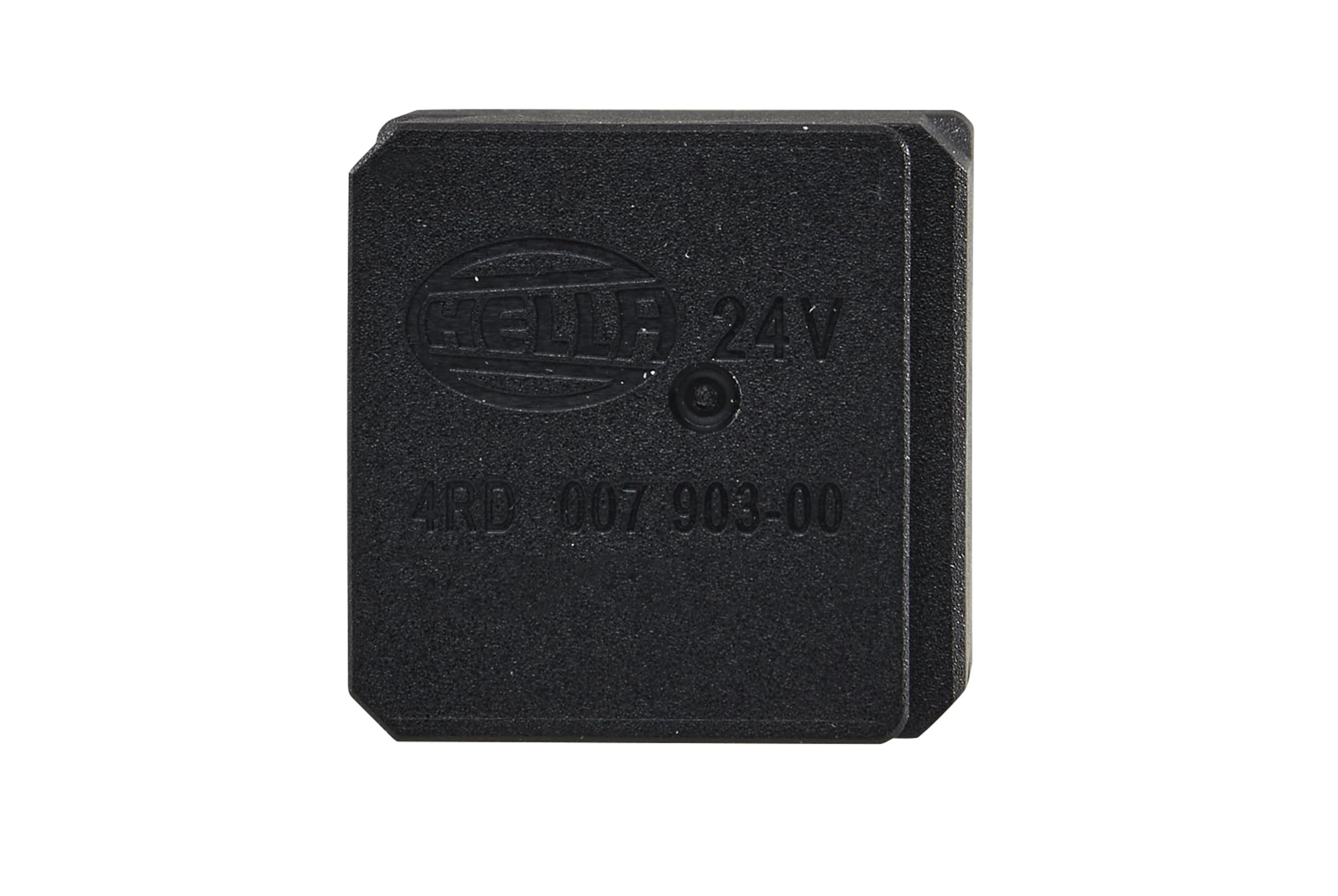

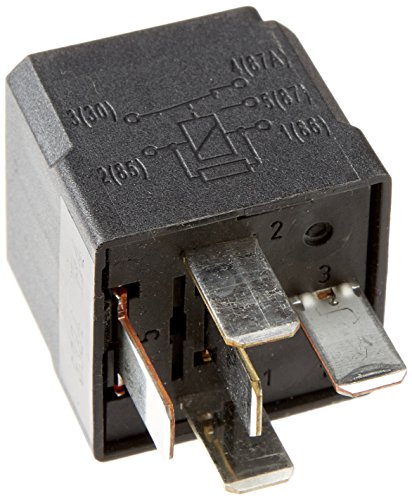

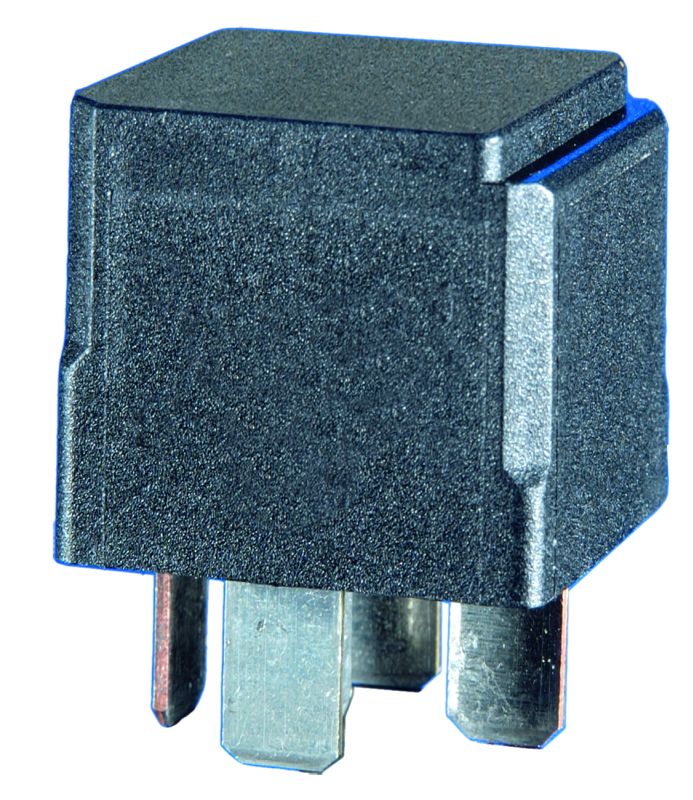

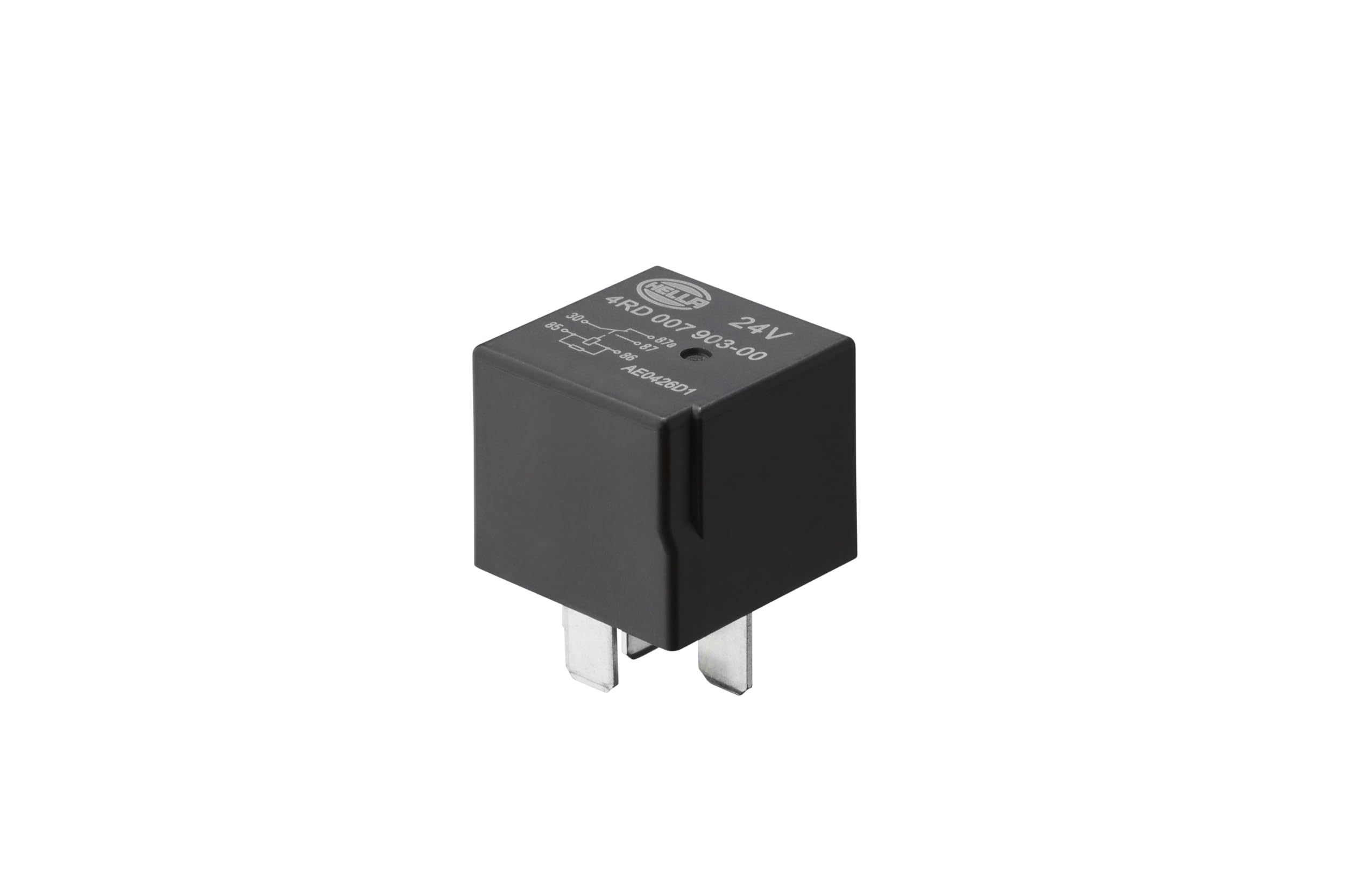

Hella 007903001 Mini Relay 24V 10/20A SPDT with Resistor

Manufacturer

Picture for manufacturer Hella

Part Number

007903001
21 reviews
Sale Price

$12.25

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Hella 007903001 is a compact mini relay designed for 24-volt electrical systems, featuring single pole double throw (SPDT) switching with integrated resistor protection. This heavy-duty relay handles loads from 10 to 20 amps, making it ideal for automotive, marine, commercial vehicle, and industrial applications requiring reliable switching control.

Key Features:

  • 24-volt DC operating voltage for commercial and heavy-duty applications
  • 10/20 amp switching capacity for versatile load management
  • SPDT (Single Pole Double Throw) configuration with built-in resistor
  • Five tin-plated blade terminals for corrosion resistance and reliable connections
  • IP54 rating provides protection against dust and water splash
  • Compact mini relay design saves space in tight installations
  • Boxed packaging for protection during storage and installation

Hella relays are engineered to meet demanding OEM standards, providing dependable performance in harsh environments. The tin-plated terminals ensure long-lasting electrical connections, while the IP54 rating protects internal components from environmental contaminants. The integrated resistor helps suppress electrical interference and protects sensitive components in the circuit.

Products specifications

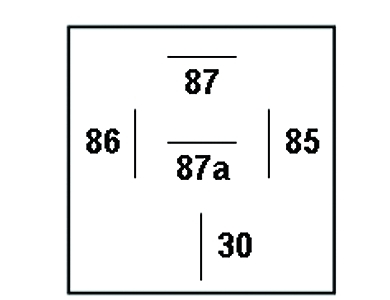

Wiring Diagramme

W2

Capacitive Load [A]

5

Supplementary Article/Info 2

with resistance

Plug Type ID

B1

Capacity at 24V

10/20A

Number of Poles

5

Ohmic Load [A]

20

Rated Voltage [V]

24

SVHC

7439-92-1; Lead

Supplementary Article/Supplementary Info

without holder

Combi Switch Function

Changeover Contact

Inductive Load [A]

16

Colour

Black

Protection Type (IP Code)

54

Temperature range [°C]

80
