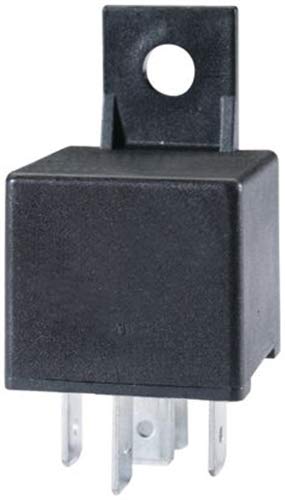

Hella 007794031 12V 20/40A SPDT Relay with Resistor and Bracket

Manufacturer

Part Number

007794031
Sale Price

$12.17

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Hella 007794031 is a heavy-duty 12-volt automotive relay designed for reliable switching of electrical circuits in vehicles and equipment. This versatile relay features a Single Pole Double Throw (SPDT) configuration with dual current ratings of 20A and 40A, making it suitable for a wide range of applications including lighting circuits, auxiliary power systems, and other electrical accessories.

Key Features:

  • 12-volt DC operating voltage for standard automotive electrical systems
  • SPDT (Single Pole Double Throw) configuration for versatile switching options
  • Dual current rating: 20A continuous / 40A peak capacity
  • Integrated resistor for circuit protection and spike suppression
  • Includes mounting bracket for secure installation
  • Micro plug connector design for easy wiring integration
  • Hella OEM quality construction for durability and long service life

This relay is ideal for controlling high-current accessories such as fog lights, driving lights, horns, fans, and other electrical components that require robust switching capabilities. The included mounting bracket simplifies installation in tight engine compartment spaces, while the resistor provides protection against voltage spikes that can damage sensitive electronics.

Products specifications

Supplementary Article/Info 2

with resistance

Combi Switch Function

Normally Closed Contact

Inductive Load [A]

5

Supplementary Article/Supplementary Info

with holder

Number of Poles

5

Protection Type (IP Code)

54

Wiring Diagramme

W2

SVHC

7439-92-1; Lead

Capacitive Load [A]

20

Plug Type ID

B1

Capacity at 12V

20/30A

Temperature range [°C]

80

Ohmic Load [A]

30

Colour

Black

Rated Voltage [V]

12
