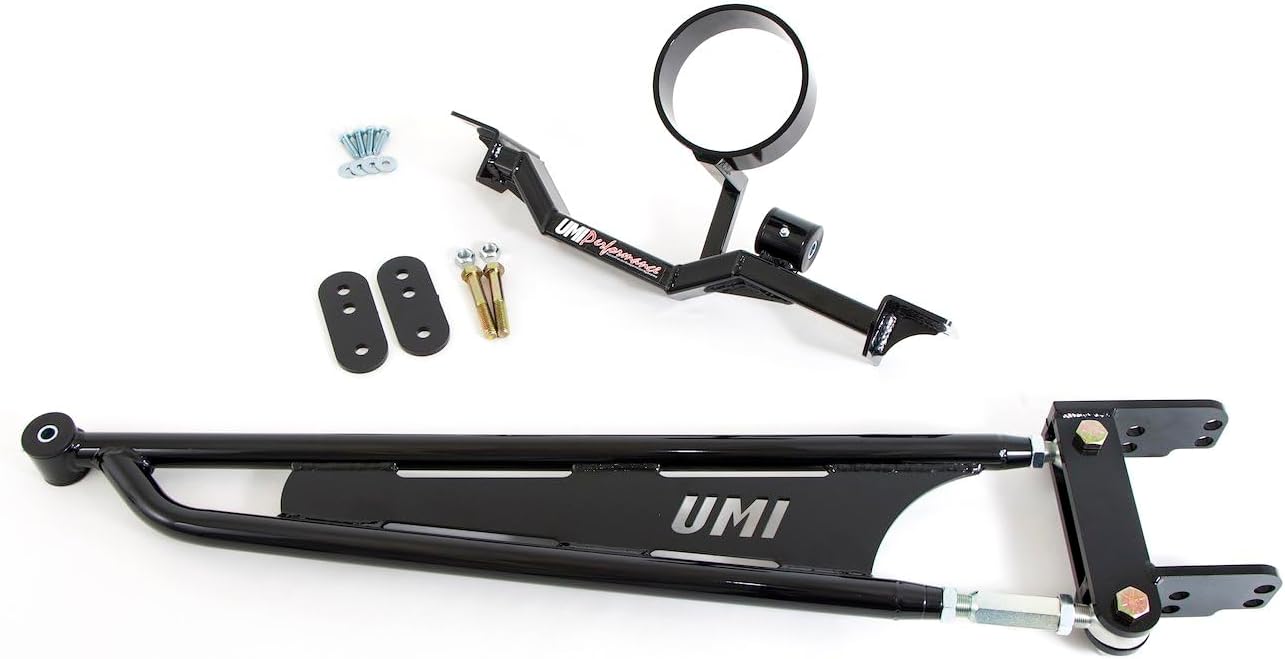

UMI Performance 2203-B Torque Arm with Crossmember Reinforcement - Kit

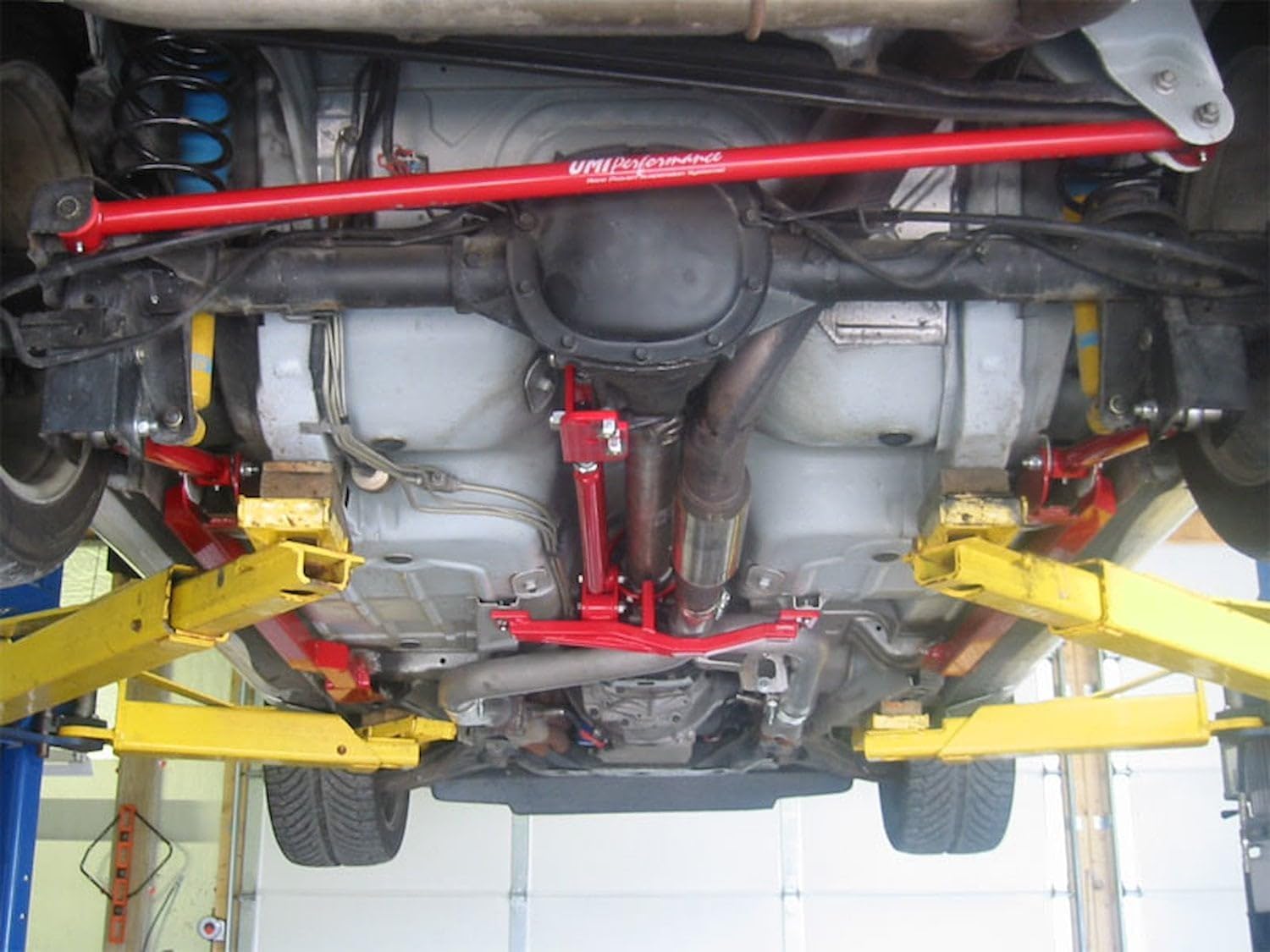

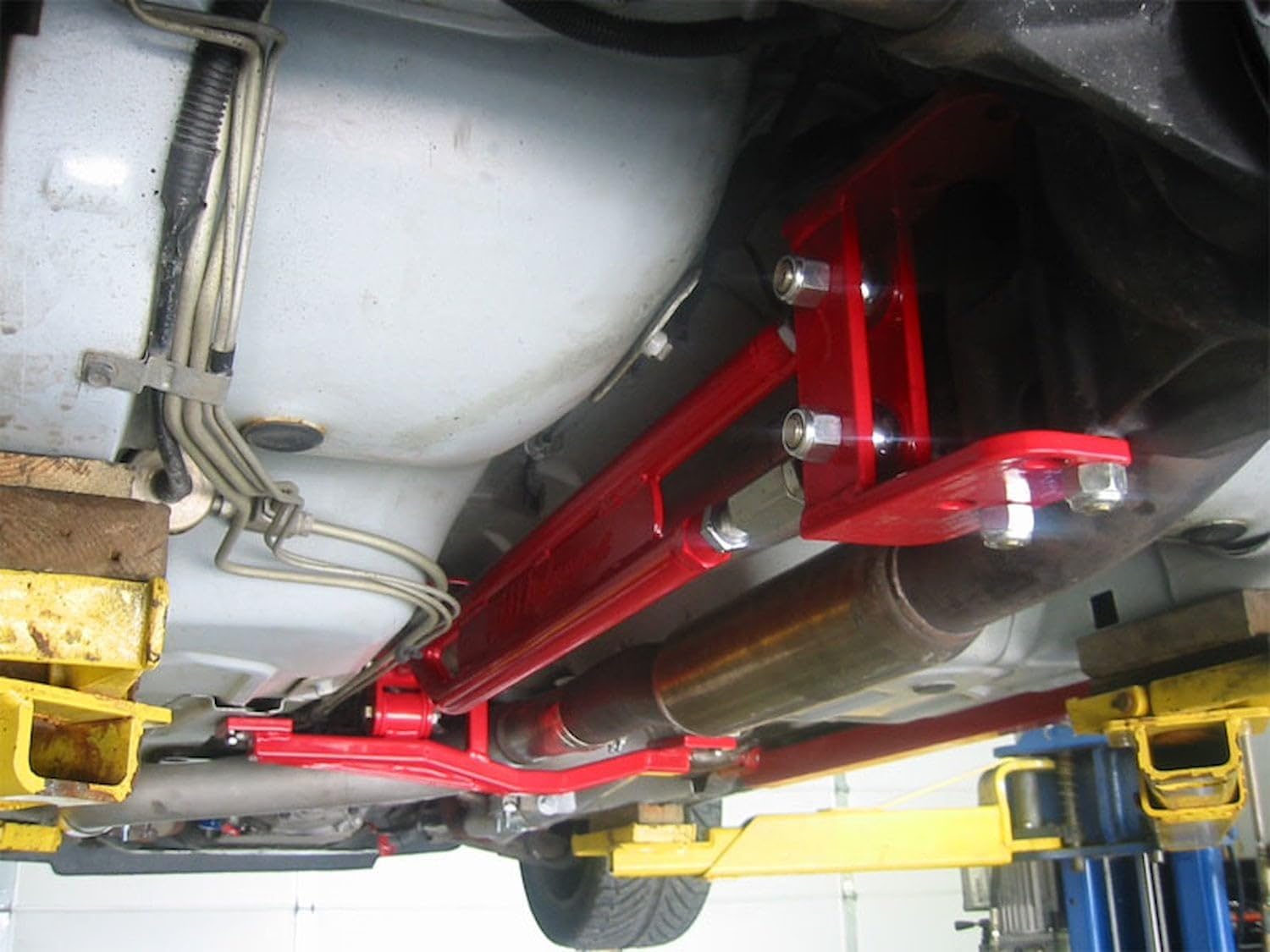

The UMI Performance 2203-B is a complete torque arm and suspension crossmember reinforcement system designed to eliminate wheel hop, improve traction, and protect your transmission. This bolt-on system removes the torque arm from the transmission tail shaft, transferring force to a reinforced crossmember that significantly enhances rear suspension control during acceleration and braking.

Key Features:

• Fabricated from 1.250-inch x 0.120-inch DOM seamless steel tubing for maximum strength
• Reinforced crossmember constructed with 0.120-inch x 2.000-inch rectangular tubing
• TIG welded 4140 chromoly tube adaptors for superior durability
• CNC laser cut mounting plates ensure precise hole-to-hole accuracy
• Rear mounting plates machined from 3/8-inch thick mild steel
• Compatible with stock rear ends as well as 12-bolt, Ford 9-inch, and Strange S60 housings
• Solid 1/2-inch rod ends with grade 8 hardware for secure attachment
• 4140 chromoly heat-treated pinion angle adjuster allows easy on-car adjustments
• Pivot brackets enable instant center adjustment for fine-tuning

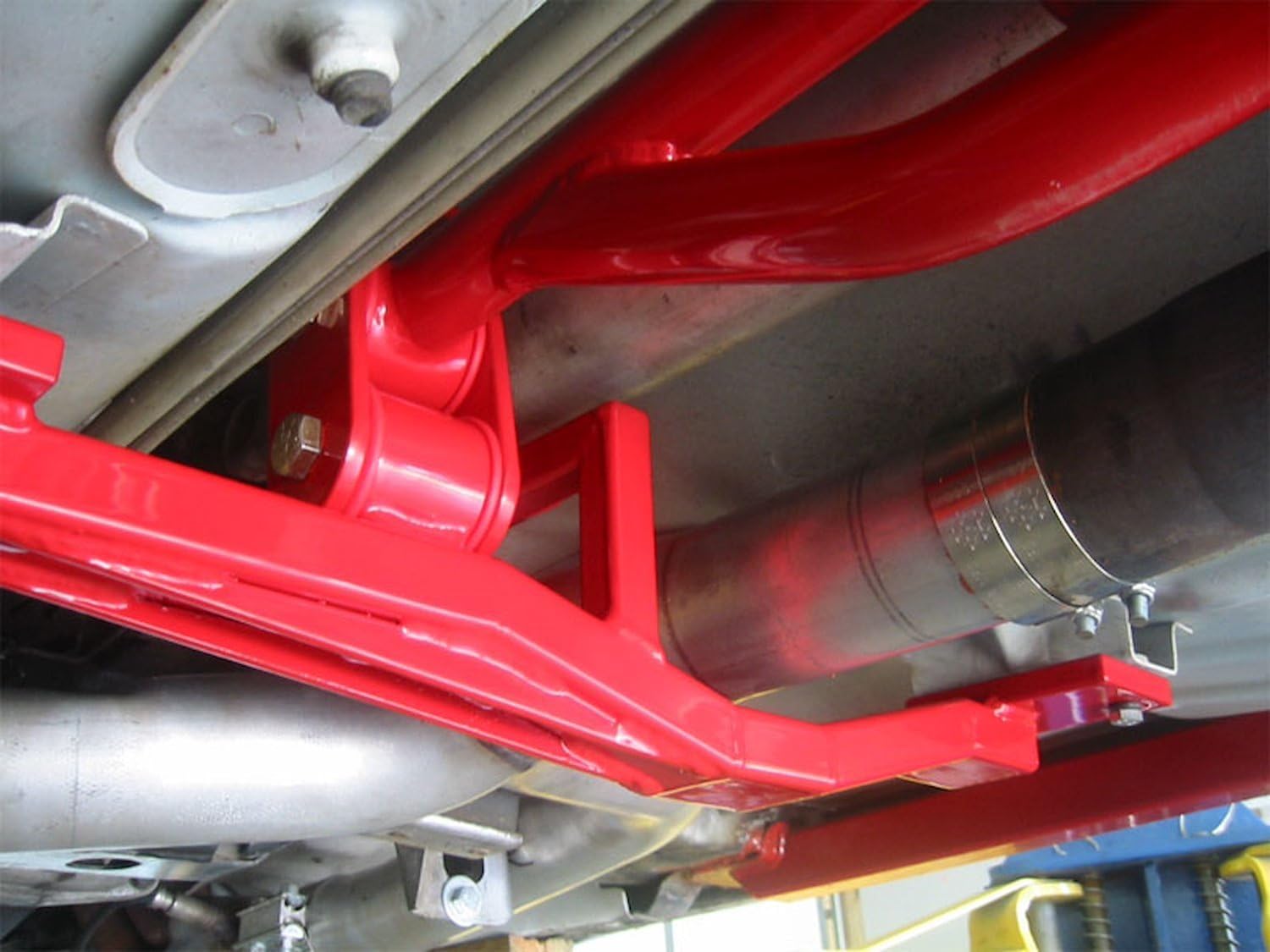

• Built-in driveshaft loop integrated into drop-down front crossmember design
• Durable gloss black powder coat finish
• Bolt-on installation requires no welding or drilling

Performance Benefits:

• Eliminates wheel hop and solves traction problems during hard launches
• Reduces front-end nose dive during braking for improved weight transfer
• Protects transmission from damage by relocating torque arm mounting point
• Allows quick pinion angle changes for optimal suspension geometry

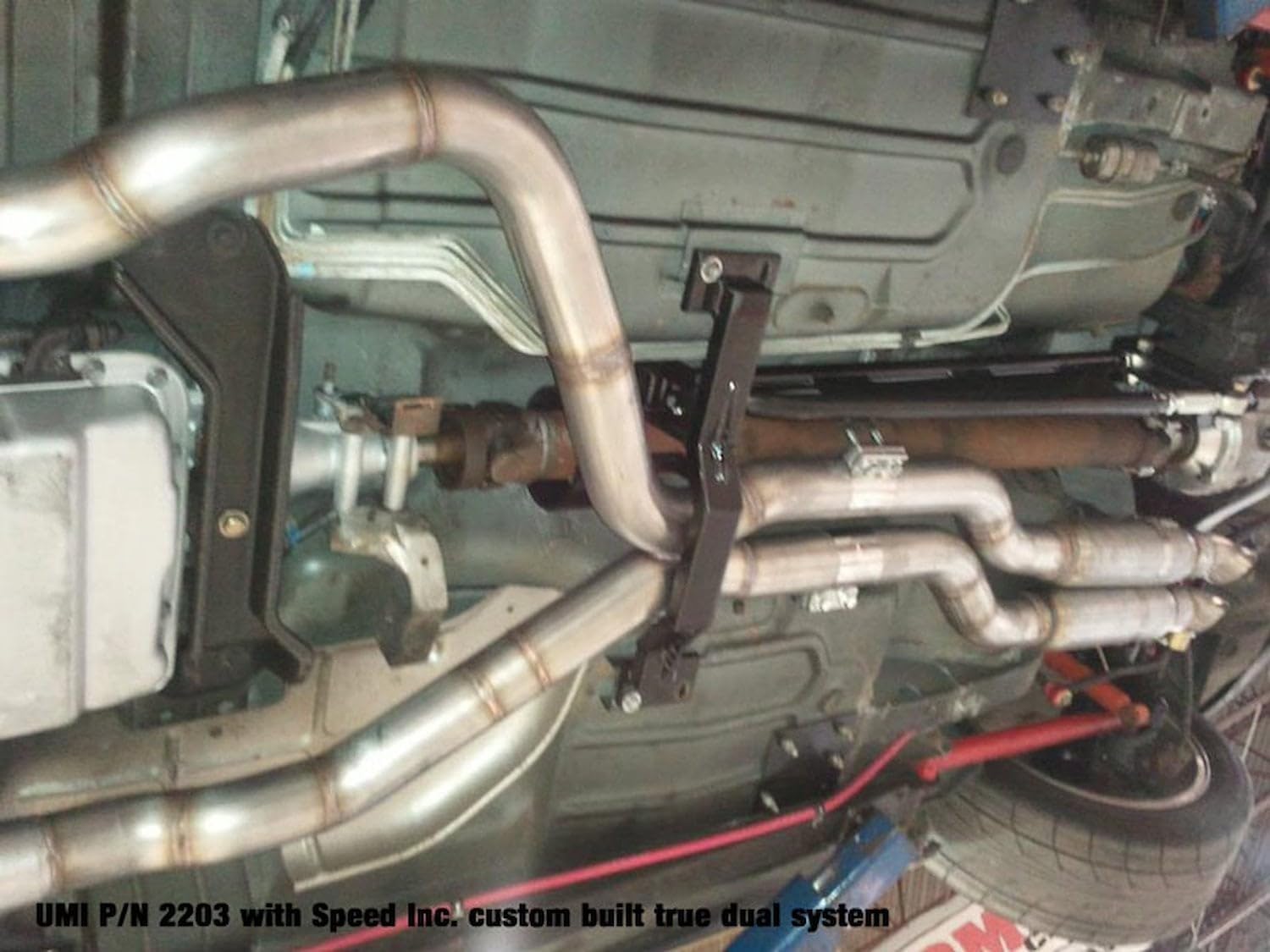

Exhaust Clearance Note: The P/N 2203-B features a drop-down front crossmember design that clears virtually all aftermarket header and Y-pipe setups, including most merge collectors such as QTP and TSP Y-pipes. The integrated driveshaft loop will not clear factory Y-pipes or Y-pipes that bolt to factory manifolds on 1998-2002 models. This design does reduce ground clearance; for vehicles with tighter-fitting exhaust systems, consider the P/N 2201 alternative.
