Walbro 525-1 Electric In-Tank High Performance Fuel Pump

Manufacturer

Part Number

525-1
Sale Price

$100.99

Estimated ship date Friday, December 11

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

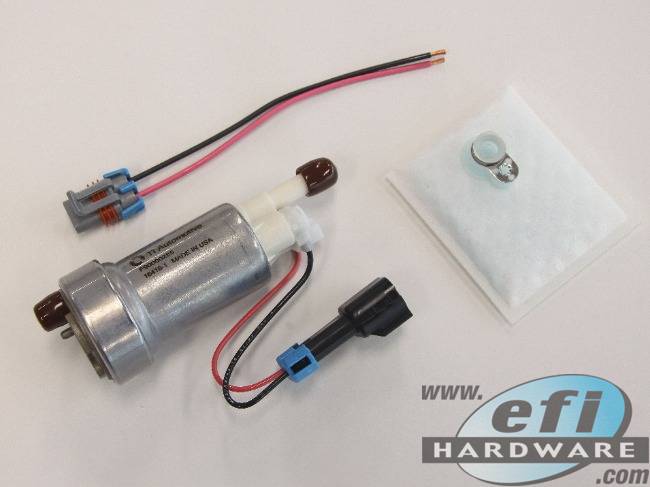

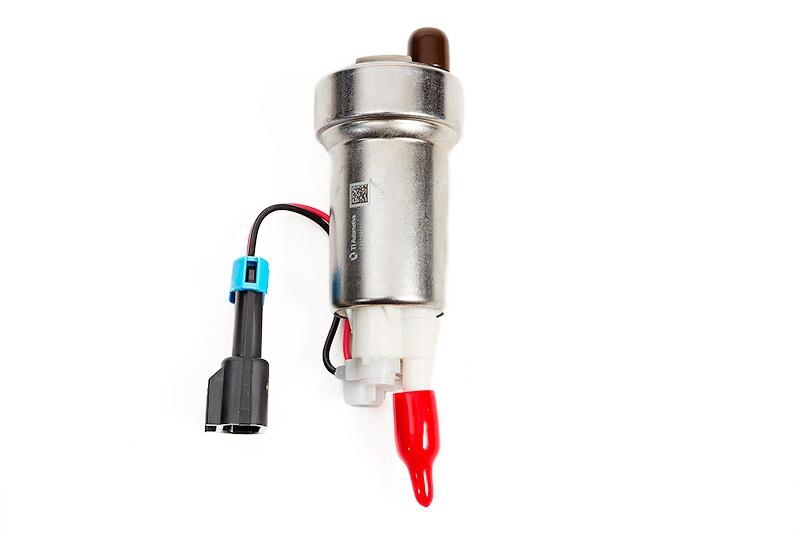

Walbro 525-1 High-Performance In-Tank Fuel Pump

The Walbro 525-1 electric in-tank fuel pump represents the pinnacle of high-flow fuel delivery technology for demanding performance applications. With its exceptional 525 liters per hour flow rate, this pump is engineered to support engines producing 700+ horsepower with forced induction and up to 900+ horsepower in naturally aspirated applications.

Advanced Dual-Channel Turbine Design

Unlike conventional gerotor-style pumps, the 525-1 features Walbro's innovative DCSS (Dual Channel Side Stage) 39/50 turbine pump design. This engineering breakthrough utilizes a single impeller with two parallel rows of turbine blades that pressurize fuel axially without forcing directional changes. The result is exceptional flow rates across various rail pressures with 20% greater efficiency compared to conventional single-stage pumps.

Key Specifications

  • Flow Rate: 525 LPH (138 GPH) at 13.5V / 470 LPH at 40 PSI
  • Operating Voltage: 12V DC
  • Maximum Pressure: 120 PSI
  • Fuel Pressure: 56 PSI operating pressure
  • Current Draw: 19.0 amps at 40 PSI
  • Overall Pump Length: 5.16 inches (131mm)
  • Main Housing Diameter: 1.54 inches (39mm)
  • Lower Housing Diameter: 1.97 inches (50mm)
  • Inlet/Outlet Diameter: 11mm OD (both)

Fuel Compatibility and Applications

All pumping components have been validated to OEM specifications for use with gasoline, E85, ethanol, and other flex fuels. This makes the 525-1 ideal for high-performance turbocharged and supercharged applications requiring reliable fuel delivery under extreme conditions. The pump includes an integrated check valve to prevent system leak-down and reduce extended cranking at start-up.

Performance Benefits

The turbine-style design runs remarkably quiet while generating less heat than traditional pumps. The dual-channel architecture delivers superior hot fuel flow characteristics and maintains consistent pressure even at high temperatures. This pump can support engine builds ranging from 500 to 900+ horsepower depending on boost levels and fuel system configuration.

Installation Notes

This is a universal in-tank fuel pump that typically requires modification to existing fuel hanger assemblies. Professional installation is strongly recommended. Upgraded wiring (14 gauge or larger), a 20-25 amp fuse, an aftermarket fuel pressure regulator, and larger fuel supply and return lines are required for optimal performance and reliability.
