MSD 8253 Blaster HVC-2 High Voltage Ignition Coil Blue U-Core

The MSD 8253 Blaster HVC-2 Ignition Coil is a high-output, square-body coil engineered specifically for use with MSD 6 Series and SCI Series ignition controls. Built entirely in-house by MSD, this coil is purpose-built for high-RPM, long-duration ignition applications where maximum spark energy and reliability are critical.

At the core of the HVC-2 is an iron U-Core design with a segmented bobbin that delivers superior voltage distribution across the entire RPM range. The bobbin is precision-wound from DuPont Rynite FR946 thermoplastic to generate maximum current output alongside an impressive 44,000-volt peak and an industry-leading 450 mA peak current. The lightning-quick rise time and extended 450 microsecond spark duration ensure a complete burn even under the most demanding conditions.

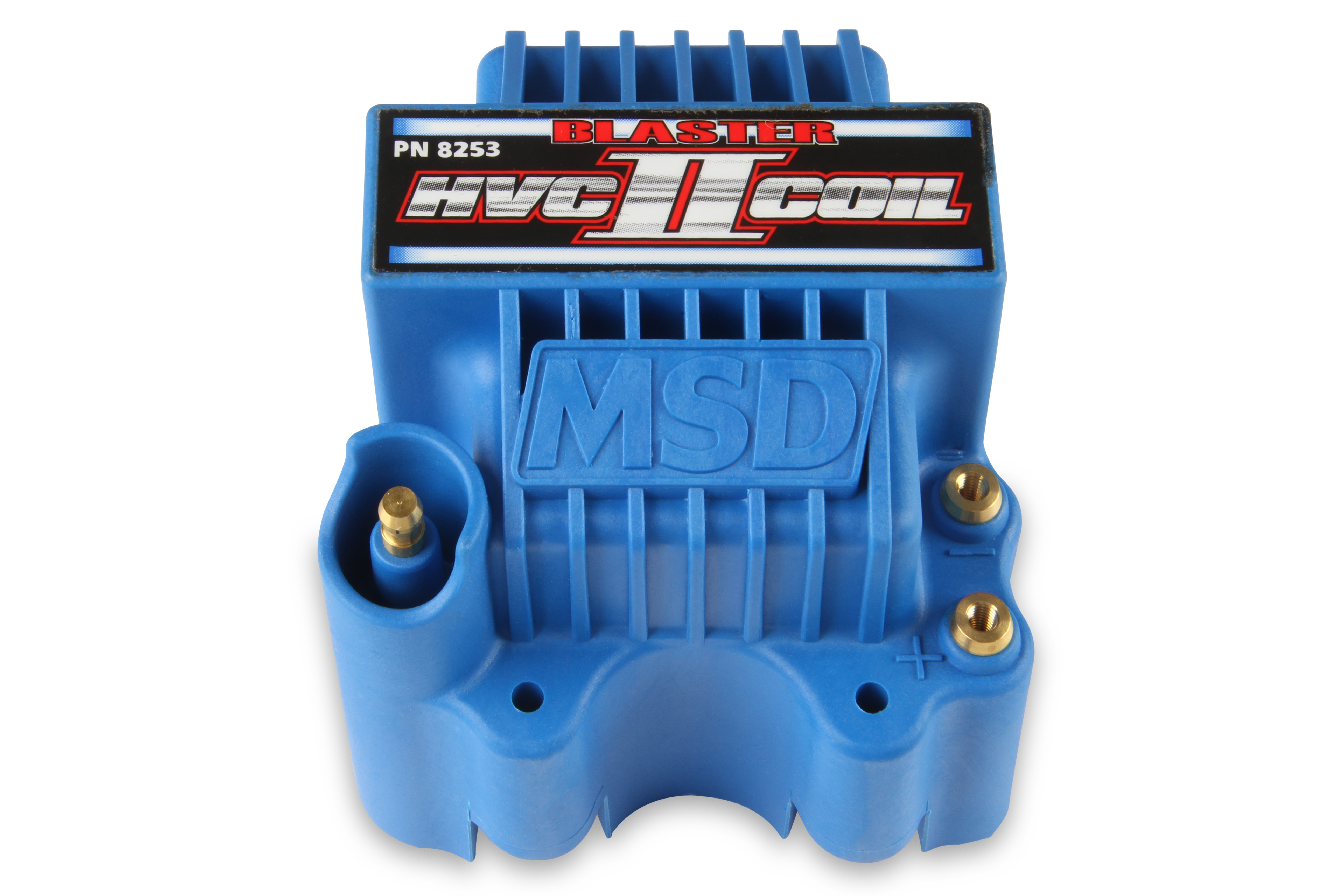

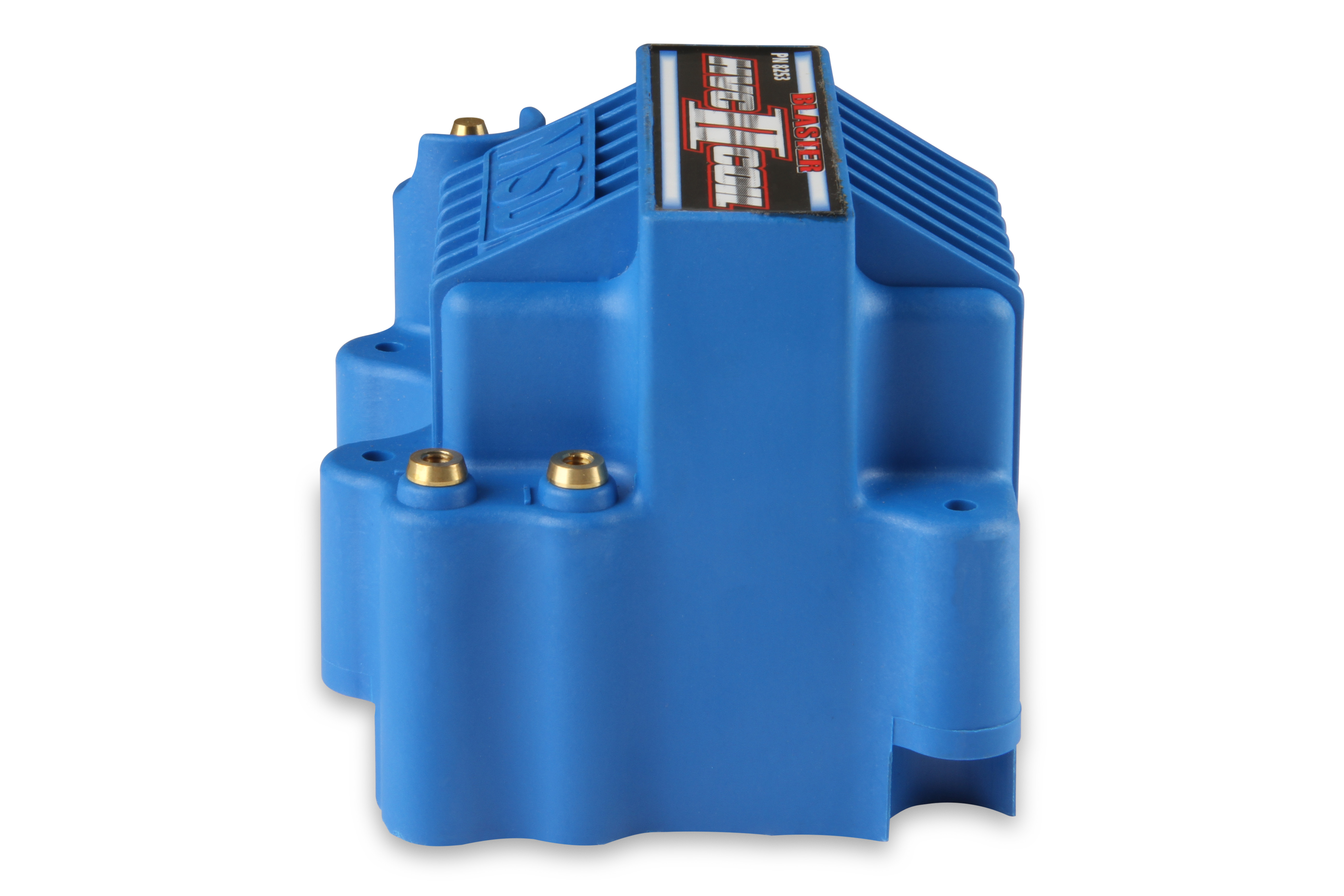

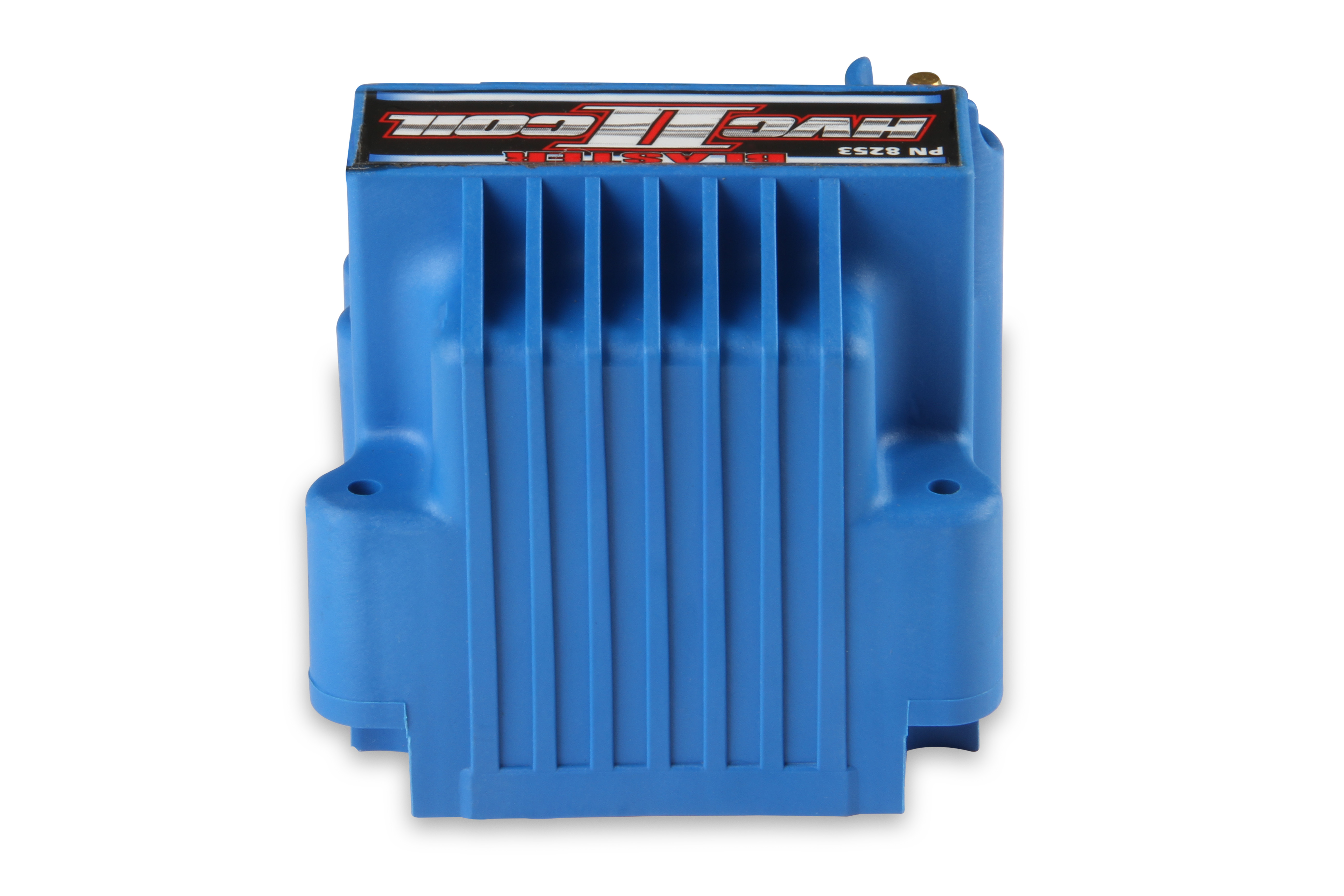

The blue housing is also molded from high-dielectric Rynite material, offering excellent thermal and electrical insulation. Far-spaced brass primary terminals and a well-isolated secondary tower minimize the risk of cross-fire or spark bleed-off. The entire assembly is encased in a fracture-resistant epoxy compound for superior vibration resistance.

Key Features:

• Iron U-Core design with segmented bobbin for improved voltage distribution
• 44,000-volt maximum output — tested with MSD 6AL ignition
• 450 mA peak current with 450 microsecond spark duration
• 100:1 turns ratio with low 0.16-ohm primary resistance for high voltage output
• DuPont Rynite housing — high dielectric strength and heat resistance
• Isolated secondary tower and far-spaced brass primary terminals for increased spark isolation

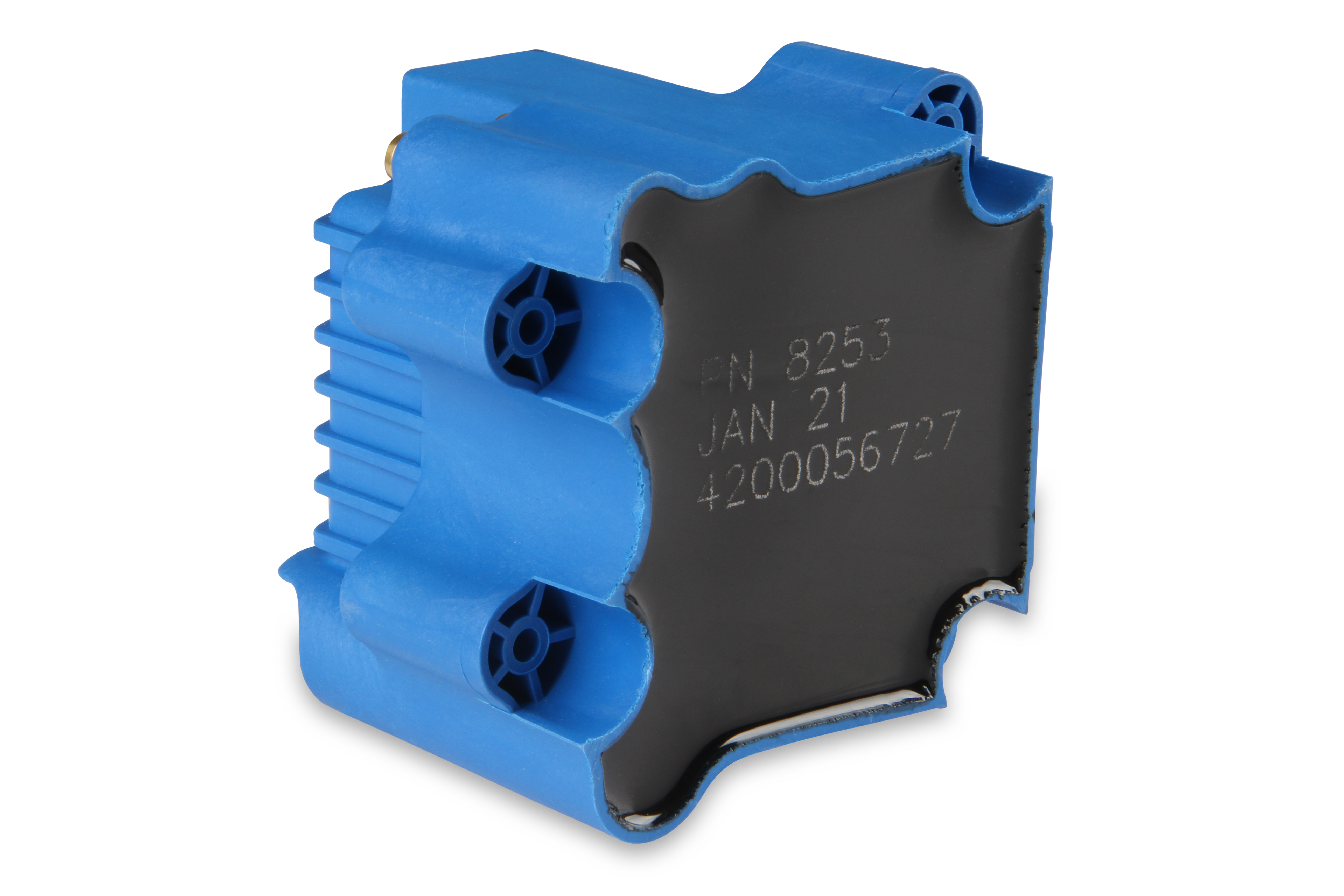

• Windings encased in fracture-resistant epoxy compound for vibration resistance

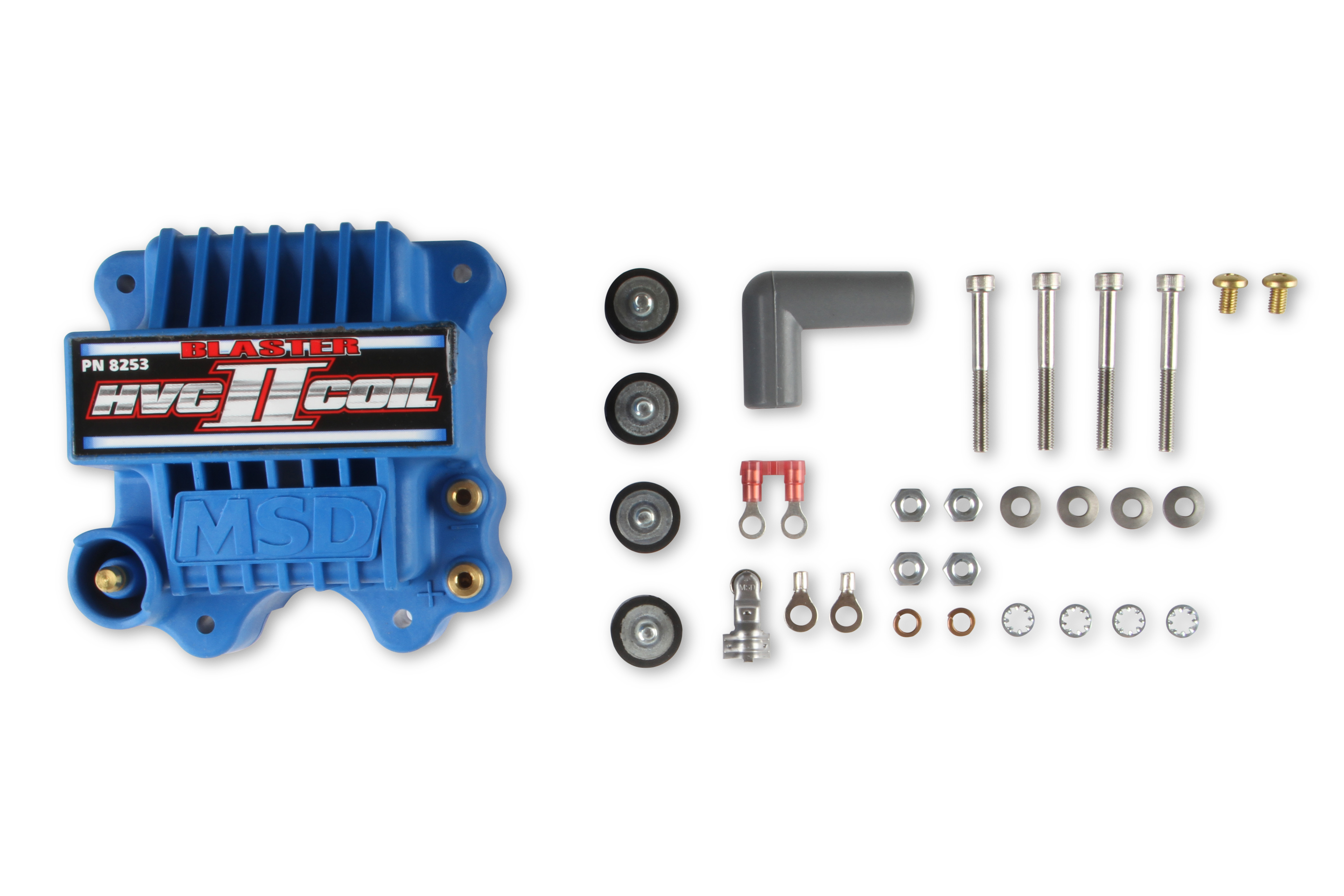

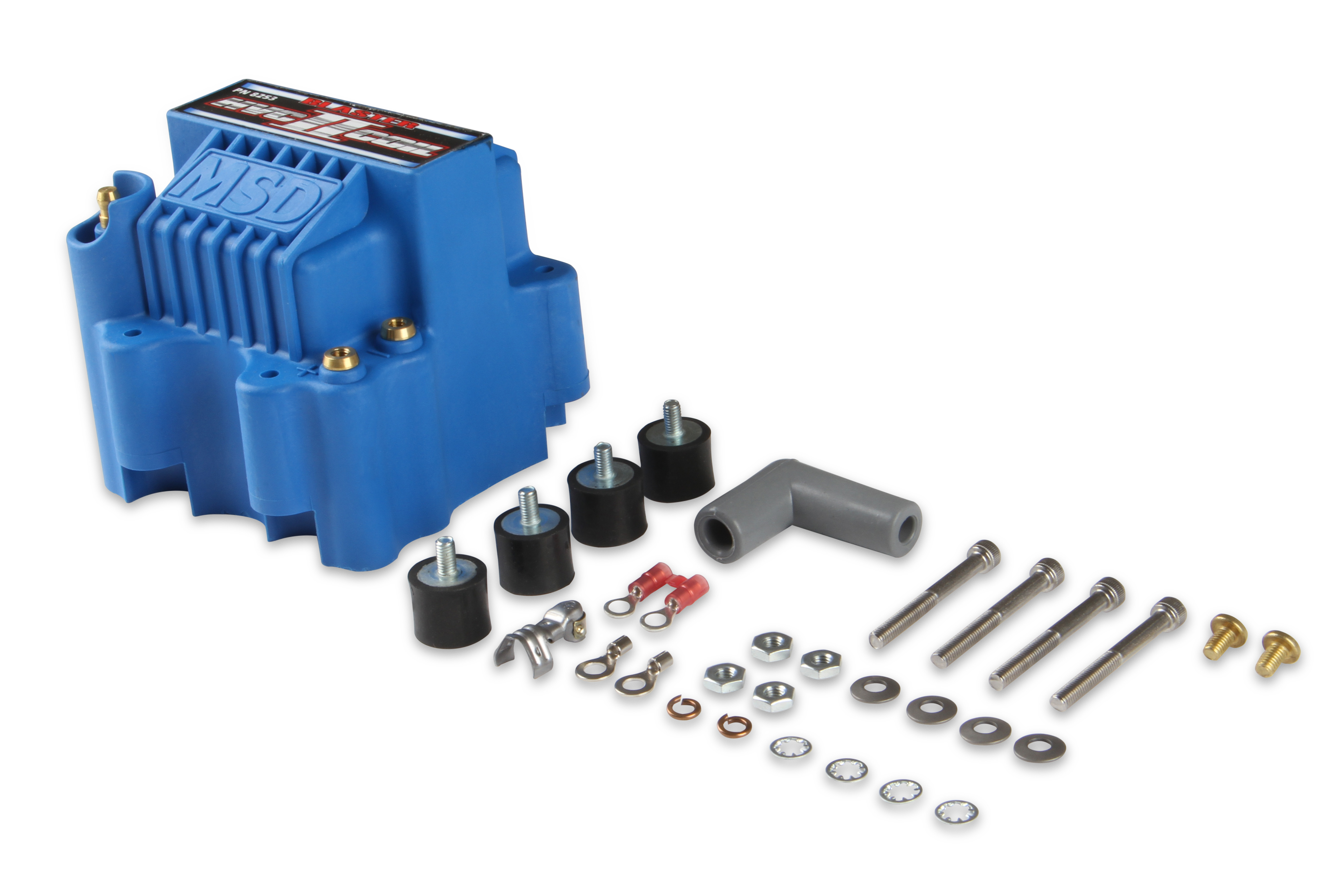

• Includes rubber shock mounts for installation
• Designed for high-RPM, long-duration applications with MSD 6 Series ignitions

Coil Specifications:

• Turns Ratio: 100:1
• Primary Resistance: 0.16 ohms
• Secondary Resistance: 630 ohms
• Inductance: 3.5 mH
• Maximum Voltage: 44,000 V
• Peak Current: 450 mA
• Spark Duration: 450 µS
• Coil Shape: Square
• Color: Blue

Note: This part has no CARB Exemption Order Number and is not legal for sale or use on emissions-controlled vehicles. It is intended for use on uncontrolled (non-emissions-controlled) vehicles or vehicles used exclusively for closed-course competition.
