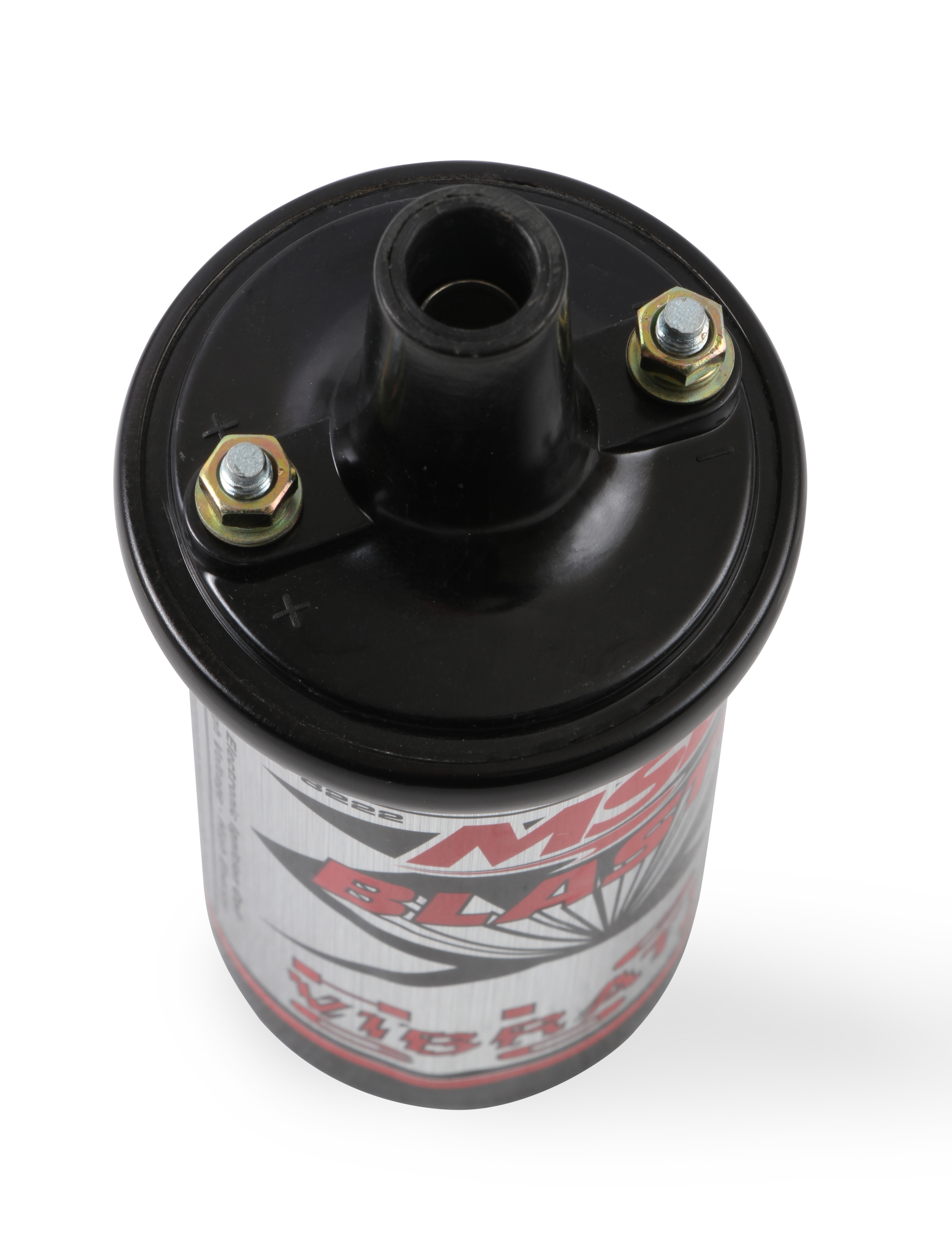

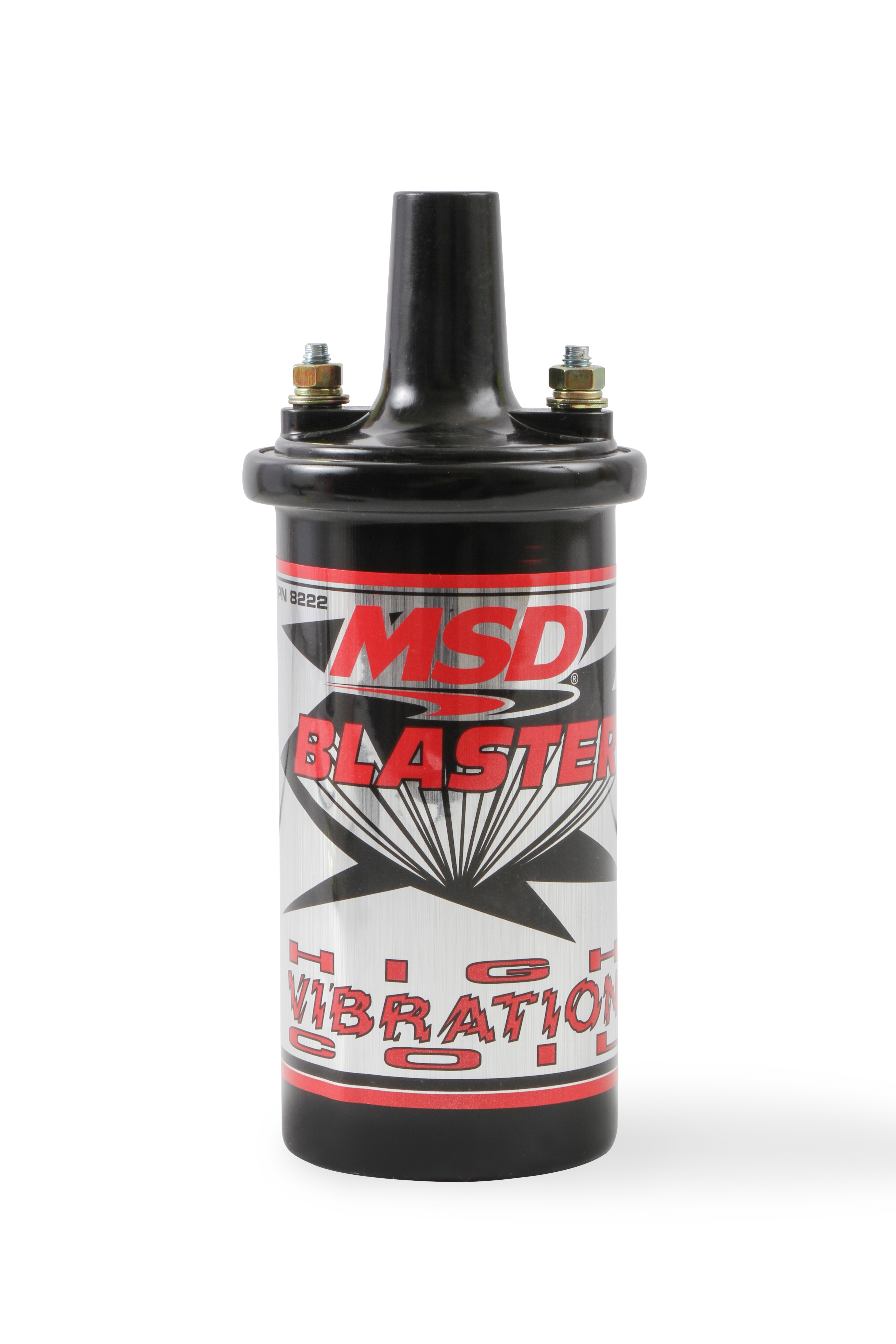

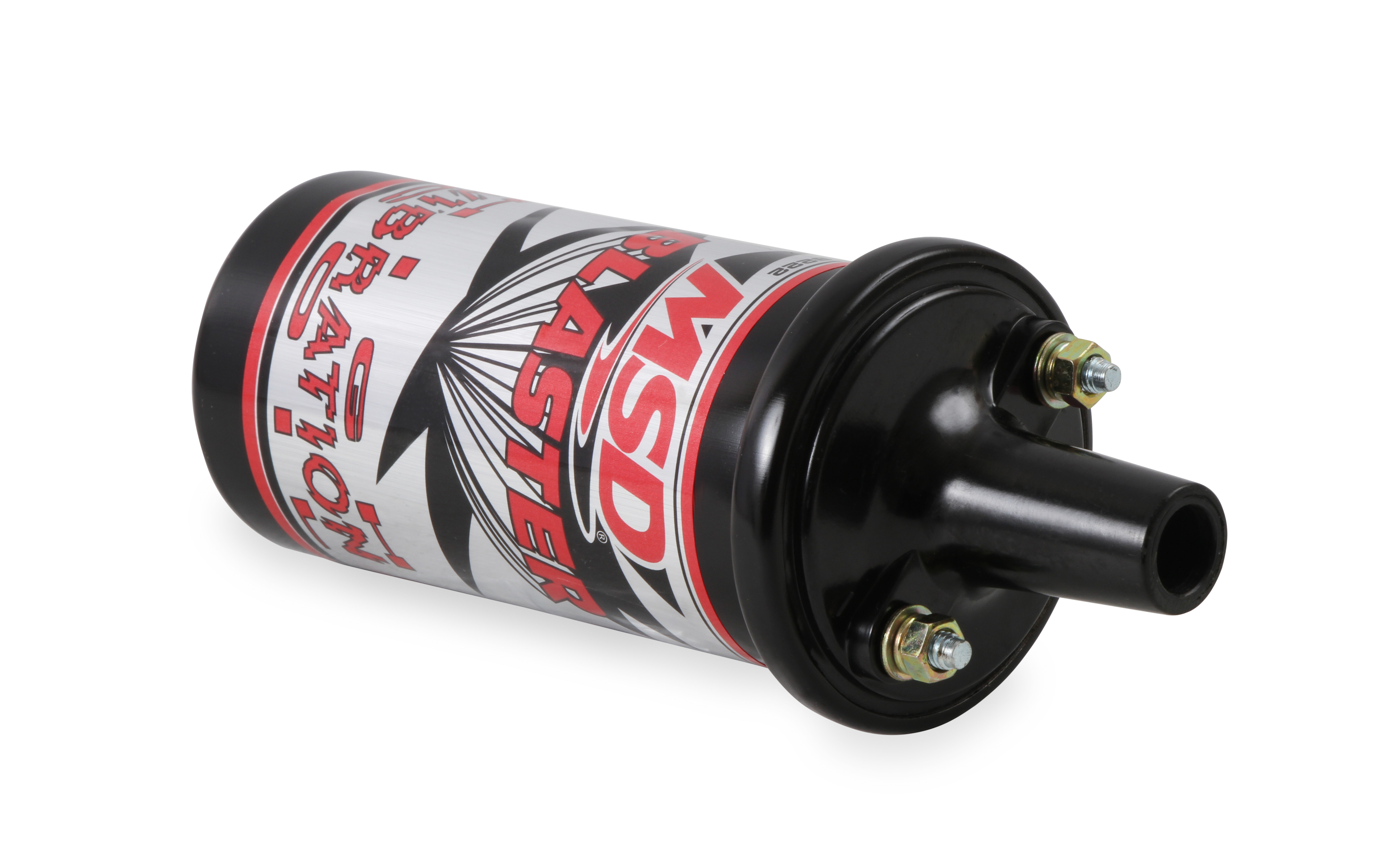

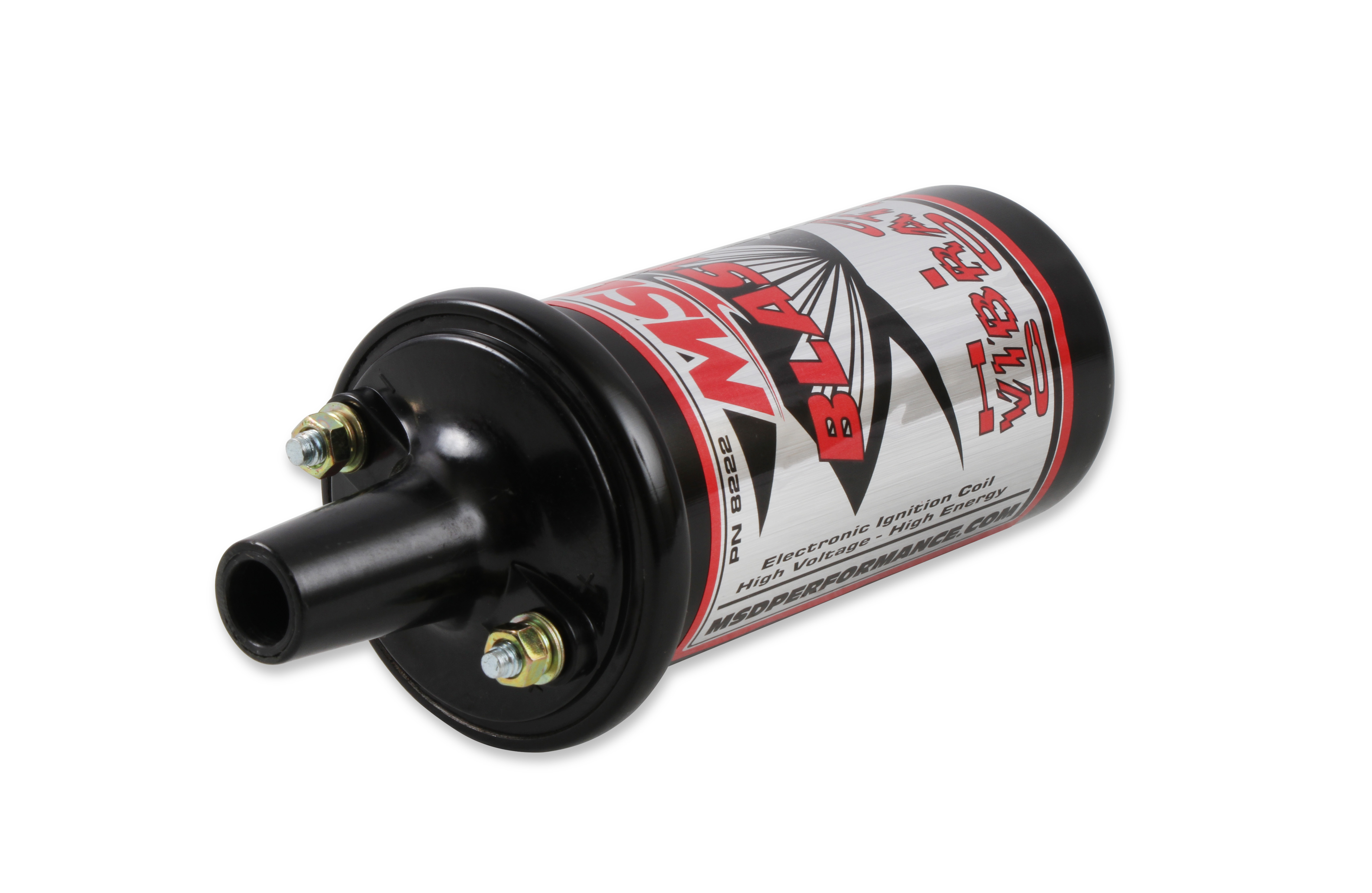

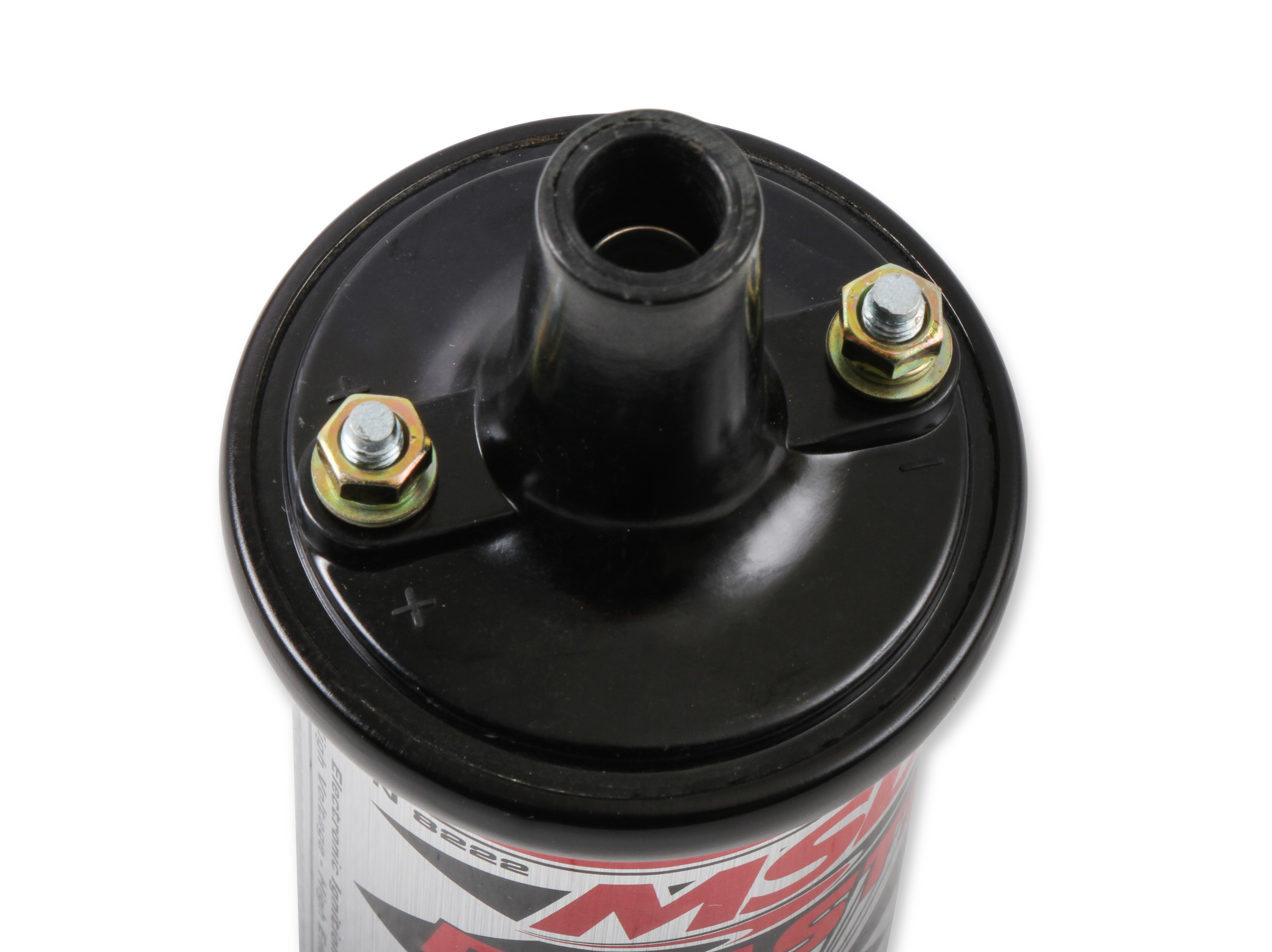

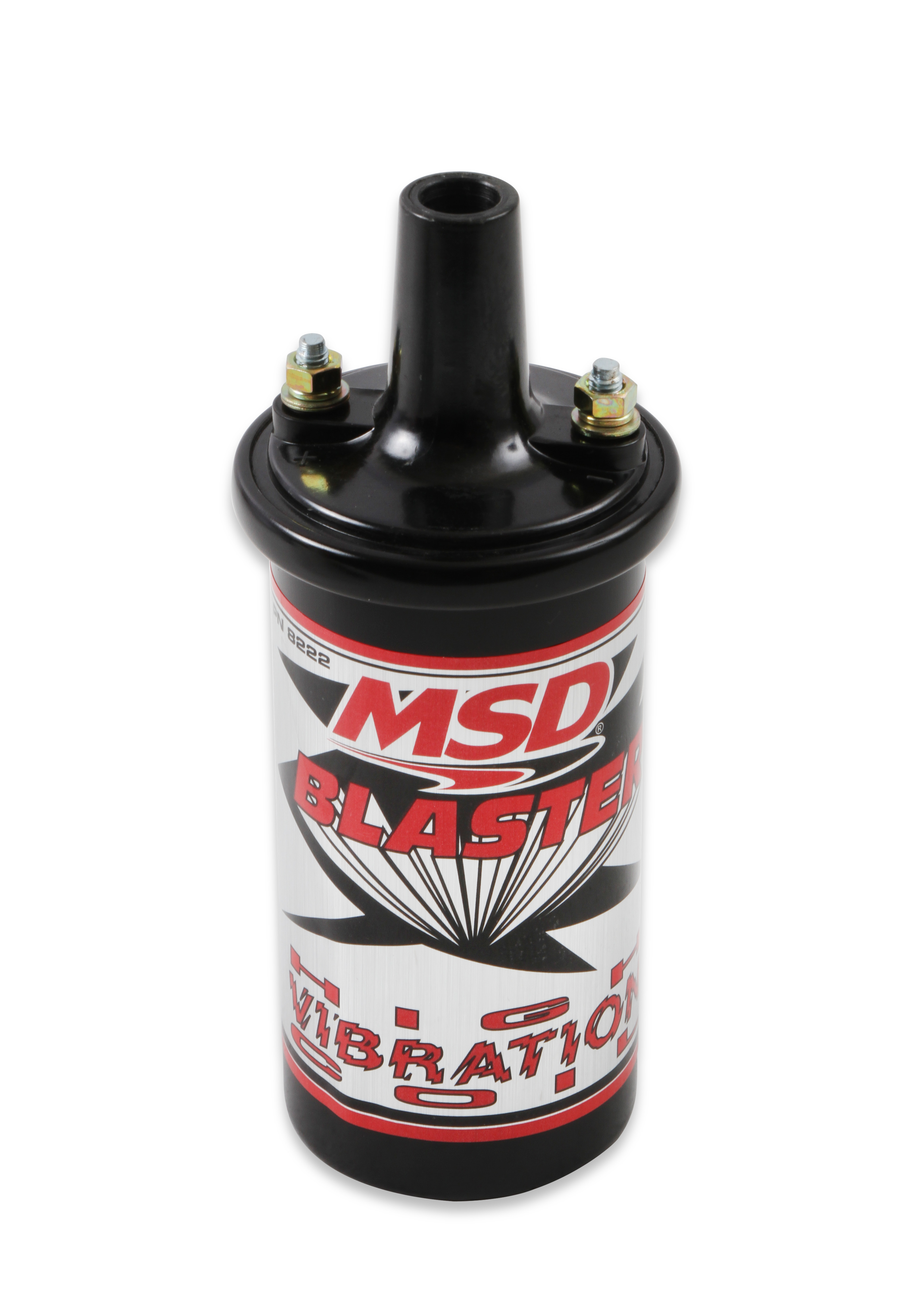

MSD 8222 Blaster High Vibration Ignition Coil - Canister Style, Black, 45,000V

The MSD 8222 Blaster High Vibration Ignition Coil is a premium canister-style coil engineered for demanding performance environments including off-road, marine, and racing applications. Unlike standard oil-filled coils, this unit can be mounted in any position, making it an exceptionally versatile upgrade for a wide range of builds.

Vibration-Proof Construction: The sturdy metal canister housing is completely potted with a premium-grade epoxy compound, fully encasing the primary and secondary windings. This design protects internal components from both high and low-frequency vibrations commonly encountered in racing and off-road use.

High-Output Performance: A 100:1 turns ratio combined with low primary resistance delivers up to 45,000 volts of maximum output voltage, ensuring a strong, reliable spark across a wide range of operating conditions.

Key Specifications:

• Maximum Voltage: 45,000 Volts
• Peak Current: 140 mA
• Inductance: 8 mH
• Primary Resistance: 0.7 Ohms
• Secondary Resistance: 4.5K Ohms
• Spark Duration: 350 µS
• Turns Ratio: 100:1
• Output Terminal: Socket
• Coil Type: Canister
• Color: Black

Key Features:

• Epoxy-potted metal canister encases primary and secondary windings for maximum vibration resistance
• Mounts in any position — no upright orientation required
• Fits most factory canister-style coil mounts
• Alkyd spark tower with high dielectric properties reduces carbon tracking
• Compatible with electronic ignitions, MSD 5, 6, and 7 Series Ignition Controls, and stock point-style distributors (ballast resistor required for points systems)
• CARB Executive Order (E.O.) Approved — legal for sale and use on emissions-controlled vehicles in all 50 states

Installation Notes: When used with a points or stock-style distributor, a 0.8 Ohm ballast resistor must be installed in-line on the positive wire. MSD offers a compatible ballast resistor as PN 8214. For MSD 6 or 7 Series Ignition Controls, no ballast resistor is required. A chrome coil bracket (MSD PN 8213) is also available separately for custom mounting applications.
