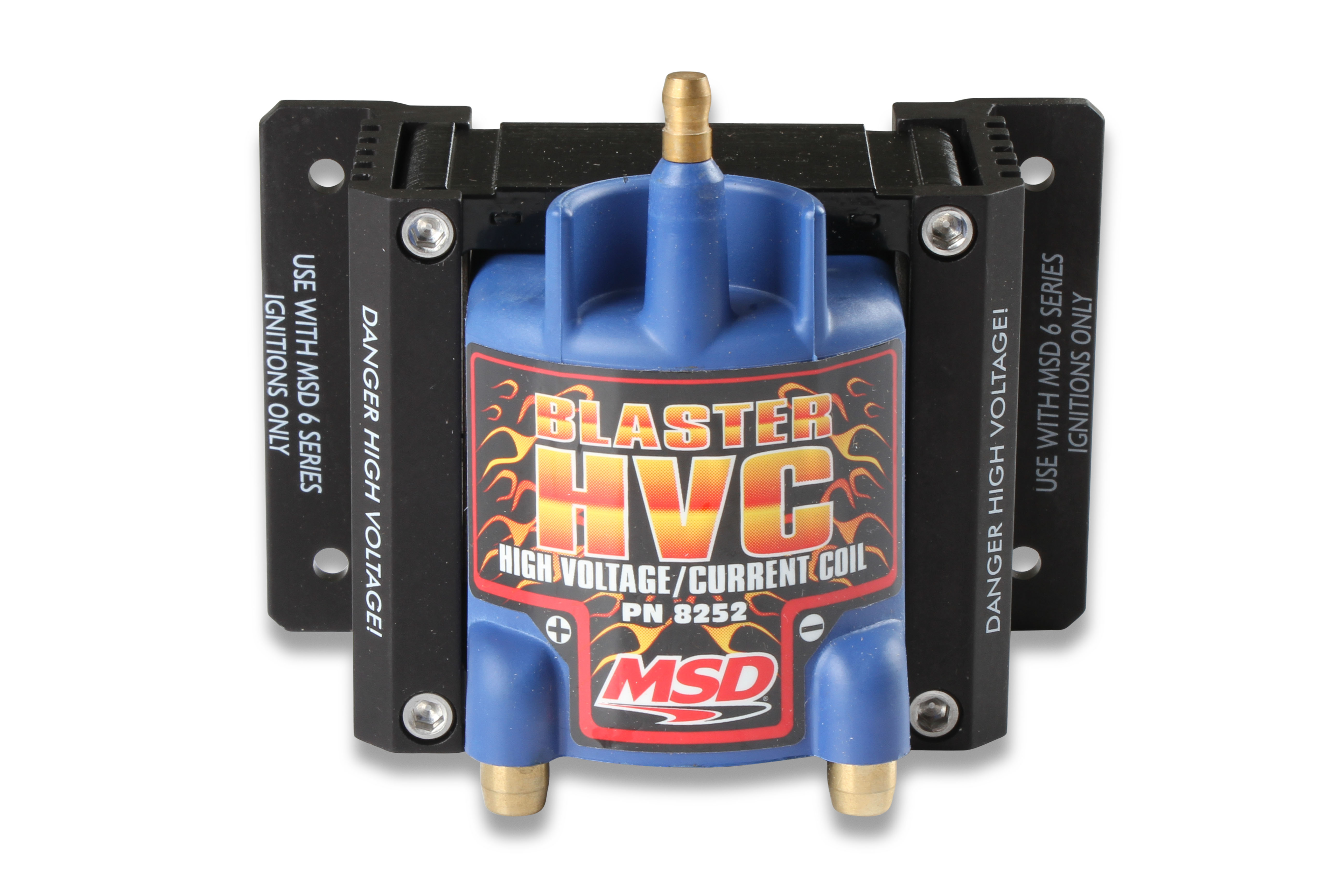

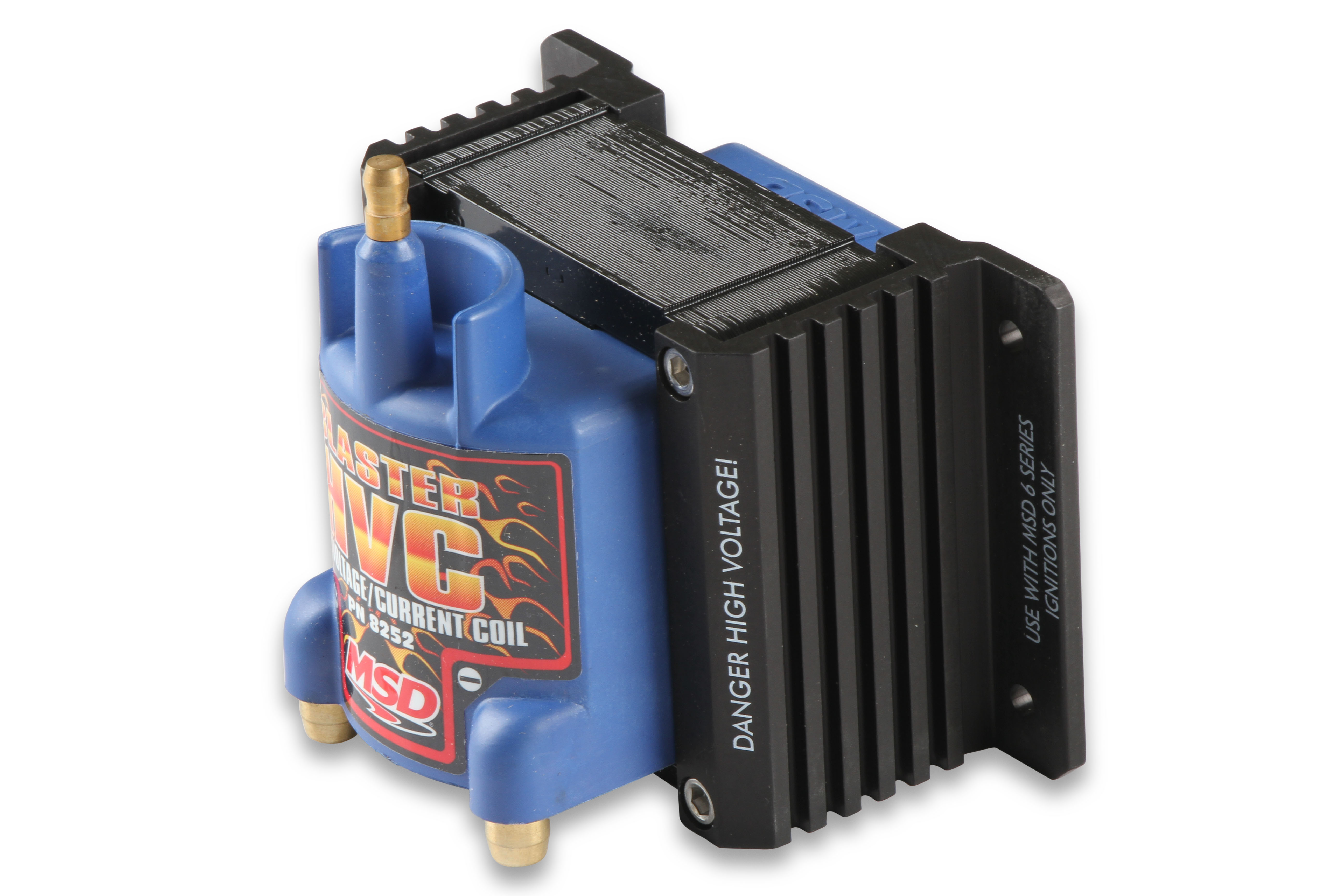

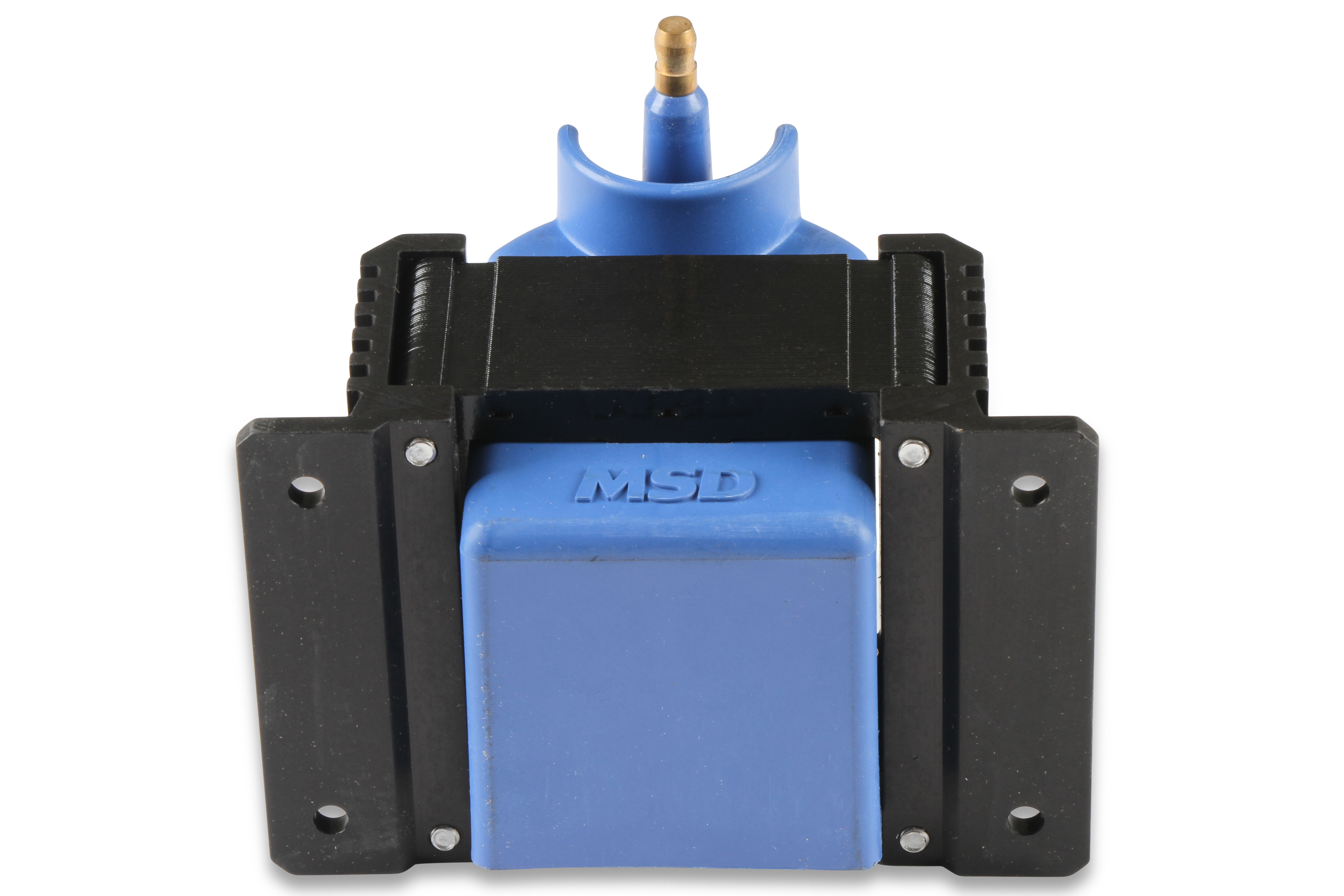

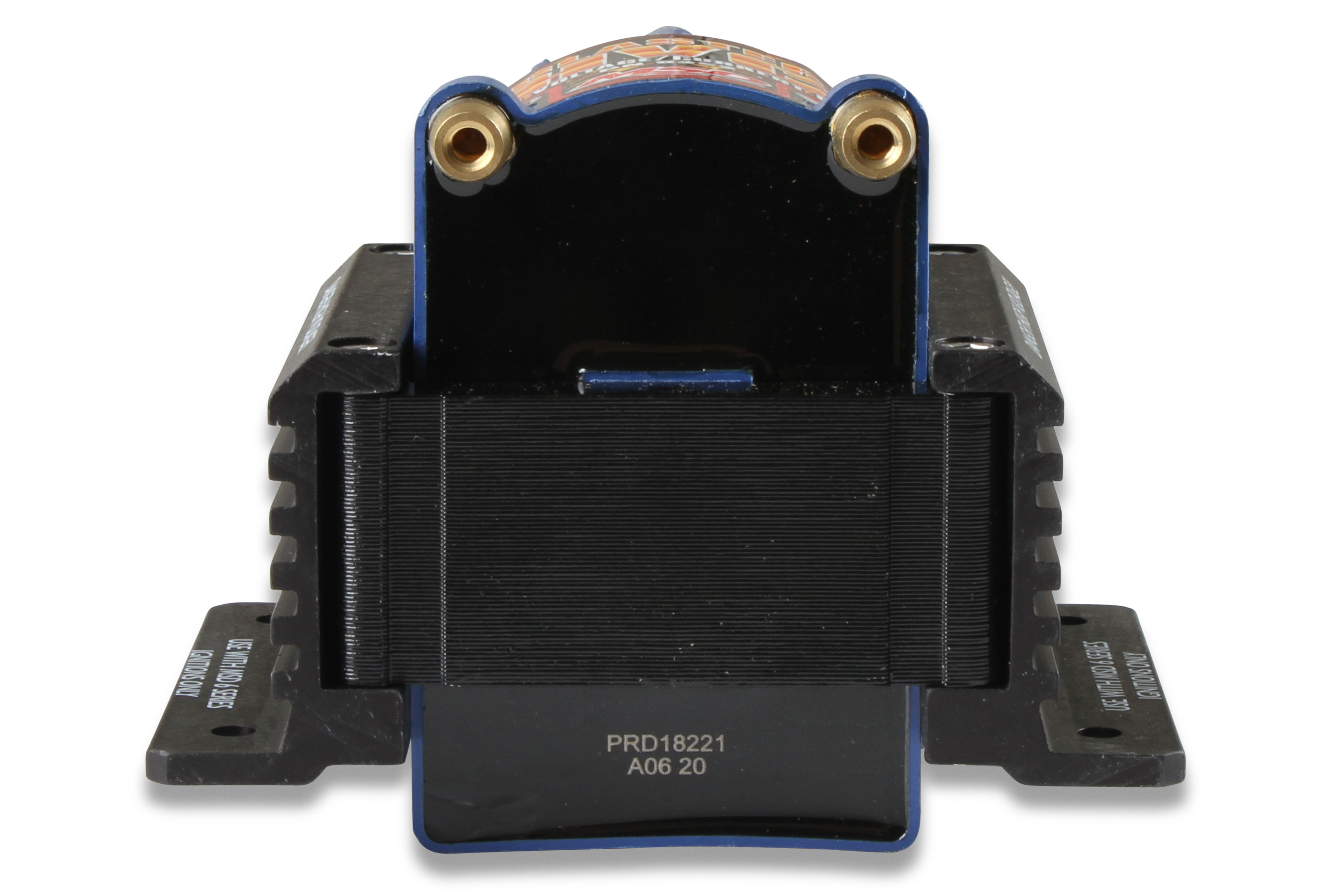

MSD 8252 Blaster HVC High Voltage Ignition Coil Blue E-Core

The MSD 8252 Blaster HVC Ignition Coil is an E-Core, high voltage coil engineered for high-rpm, long-duration performance applications such as road course and circle track racing. Designed to pair with MSD 6-Series ignition controls, it delivers up to 42,000 volts of maximum output with a 300 mA peak current and 200 µS spark duration — providing consistent, reliable ignition under the most demanding conditions.

Unlike conventional coils that sacrifice voltage for current or vice versa, the Blaster HVC is built to maximize both. Its 100:1 turns ratio combined with extremely low primary resistance (.02 ohms) enables exceptional voltage output, while the efficient E-Core design minimizes energy loss and helps the coil run cooler even at sustained high rpm.

Key Features:

• Designed for high-rpm, long-duration applications including road course and circle track racing
• 42,000V maximum voltage output with 300 mA peak current
• 100:1 turns ratio with .02 ohm primary resistance for maximum high-voltage performance
• 7 mH inductance and 1.38K ohm secondary resistance
• 200 µS spark duration for a strong, sustained spark
• Windings encased in durable blue epoxy and secured with extruded brackets
• Spark plug-style HEI output terminal and threaded brass primary studs

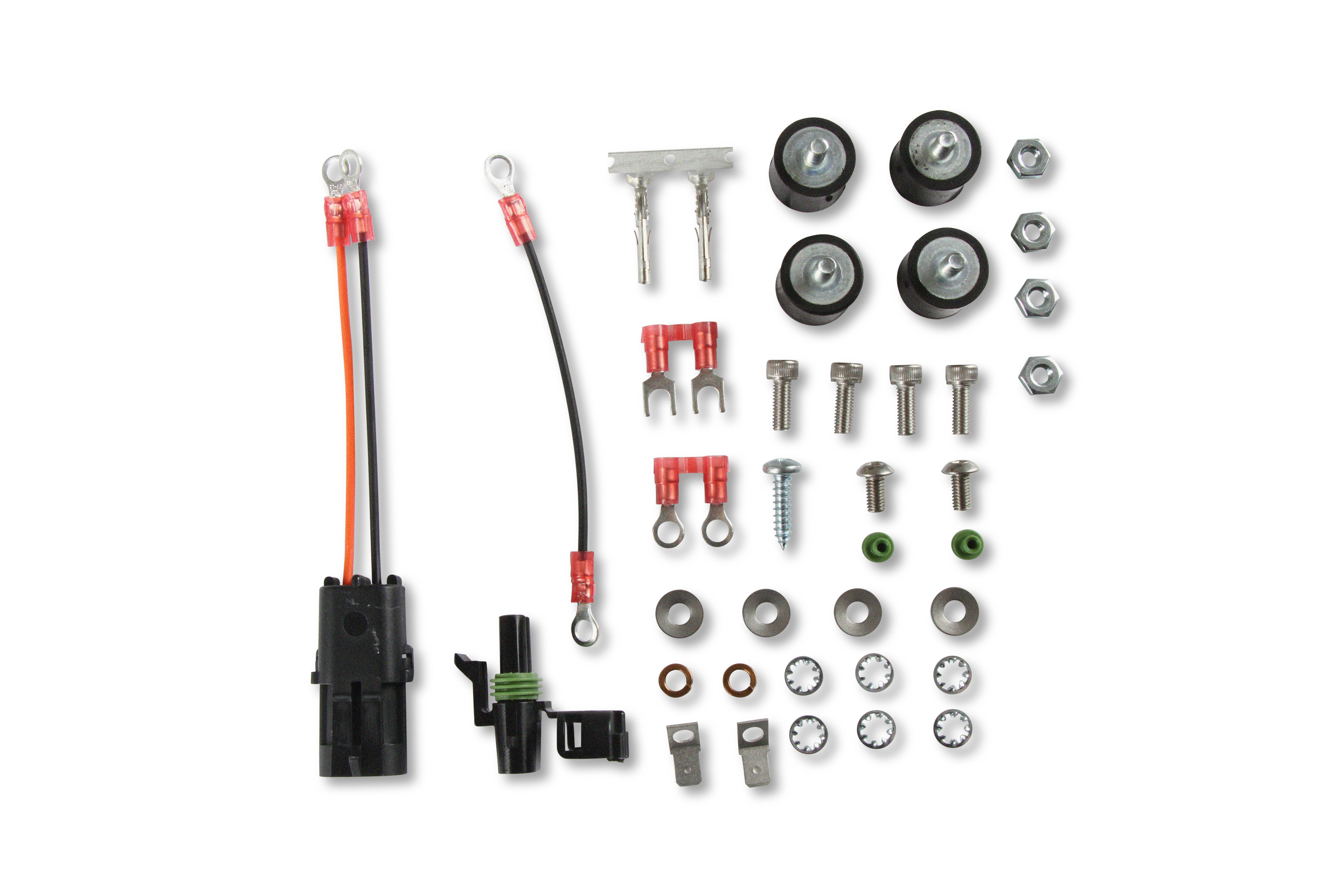

• Supplied with rubber shock mounts for vibration resistance
• Compatible with electronic ignitions and MSD Ignition Controls (ballast resistor required for points-based systems)
• CARB E.O. Approved — street legal in all 50 states when used per manufacturer guidelines

Compatible MSD Ignition Controls:

• MSD 6A, 6AL, 6ALN, 6AL-2, 6BTM
• MSD Digital 6AL-2, Digital 6 Plus, Programmable 6AL-2
• MSD 7AL-2 Plus, 7AL-3
• MSD Digital 7 Series

Sold individually. Backed by MSD's limited manufacturer warranty.
