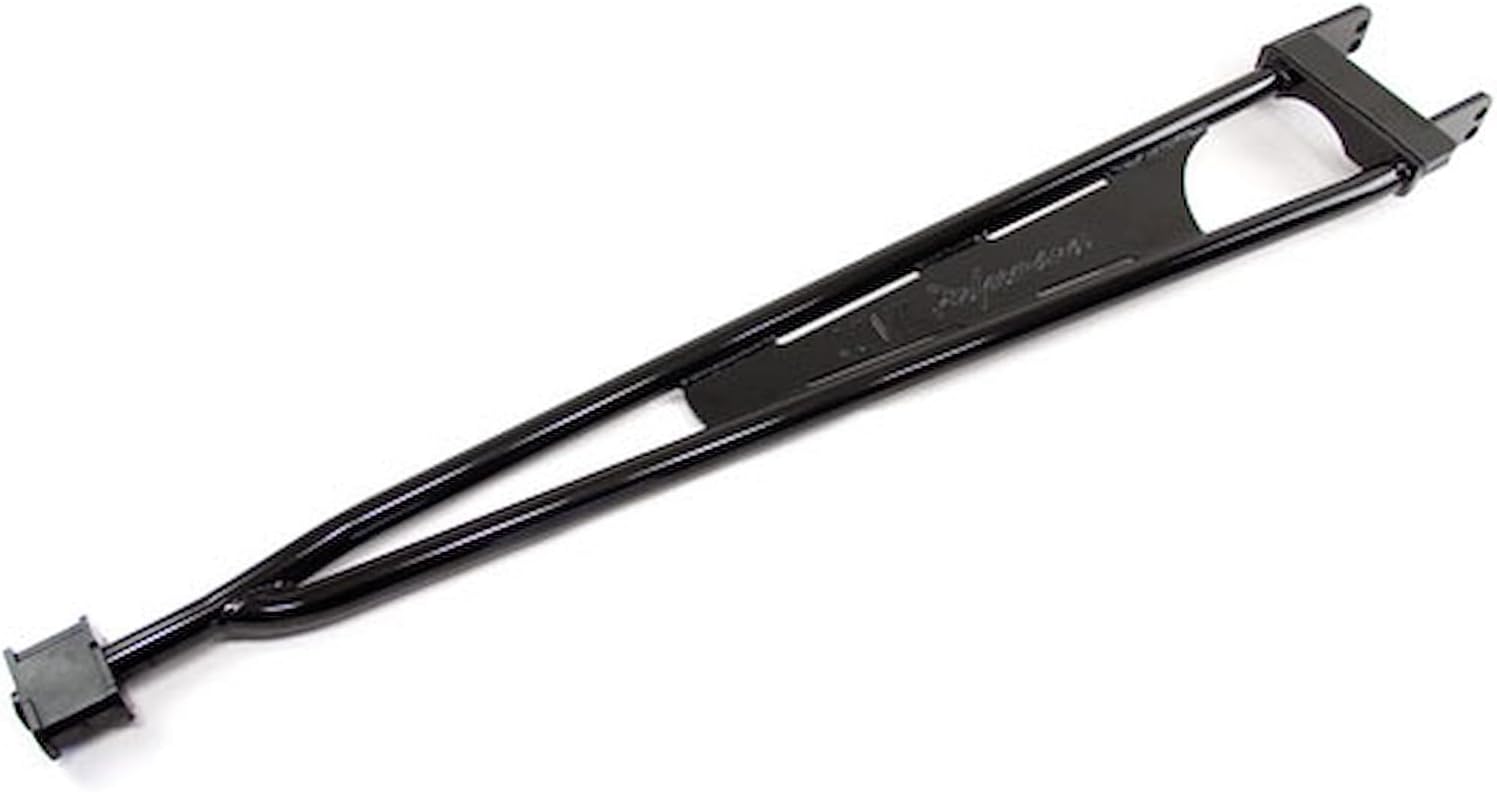

UMI Performance 2206-B Non-Adjustable Torque Arm for GM F-Body - 1982-1992

The UMI Performance 2206-B is a non-adjustable transmission-mounted torque arm designed as a direct bolt-on replacement for 1982-1992 GM F-Body vehicles (Camaro and Firebird). This tubular torque arm eliminates the flex and breakage common with factory units, providing immediate traction improvements and reduced 60-foot times. Preset at -2 degrees of pinion angle for optimal performance on stock ride height vehicles, this unit requires no adjustments—simply bolt on and go.

Performance Benefits:

• Eliminates wheel hop and solves traction problems under hard acceleration
• Reduces front-end nose dive during braking for improved control
• Polyurethane bushing eliminates deflection for consistent power transfer
• Preset -2 degree pinion angle optimized for stock ride height
• Bolt-on design requires no welding or drilling

Construction and Materials:

• Constructed from 1.250" x 0.120" DOM seamless steel tubing for maximum strength
• CNC-machined mounting plates ensure precise hole-to-hole accuracy
• Rear mounting plates use 0.375" thick mild steel
• Complete MIG welding throughout for structural integrity
• Durable powder coat finish for long-lasting protection

What's Included:

• Complete tubular torque arm assembly
• Low-deflection Energy Suspension front bushing (replaces stock rubber bushing, bolts directly into existing clamshell)

Compatibility:

• Fits GM 10-bolt rear-ends
• Compatible with Moser and Strange 12-bolt rear-ends
• Fits most 9" housings (may require grinding on aftermarket 9" housings)

Important Notes:

• 1982-1984 models require purchase of a 1985 or newer clamshell mount (sold separately)
• New rear torque arm hardware kit highly recommended if running on stock rear-ends, Strange, or similar rear-ends with straight-through bolt design (OEM bolts may be slightly too short)
• If using Moser Engineering 12-bolt rear-end, reuse hardware supplied by Moser (aftermarket hardware kit not needed)
• Hardware kit will work with Moser 9" applications

This affordable suspension upgrade delivers the same high-quality construction as UMI's adjustable torque arms at a fraction of the price, making it an excellent choice for street/strip applications and daily drivers seeking improved traction and consistency.
