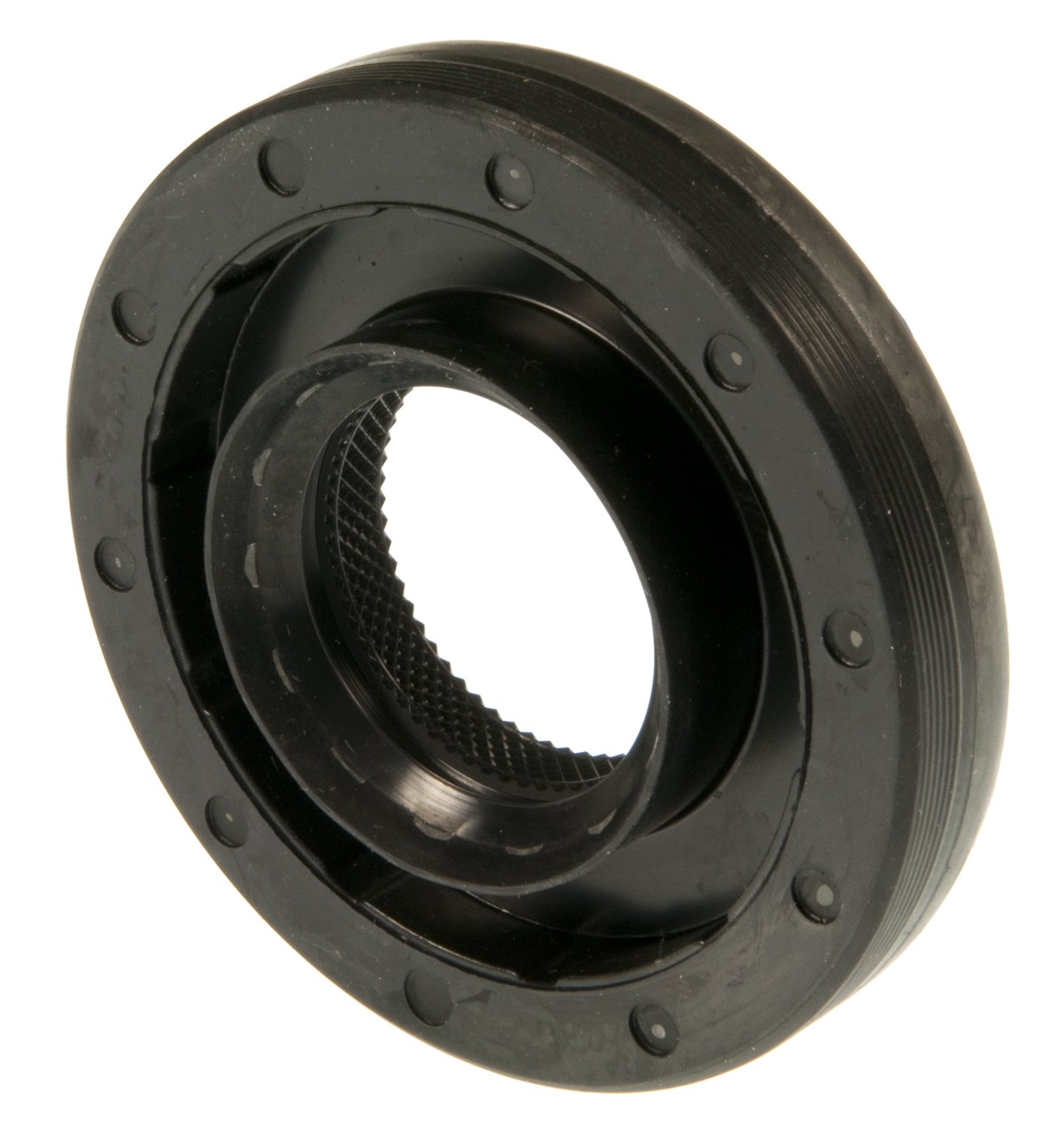

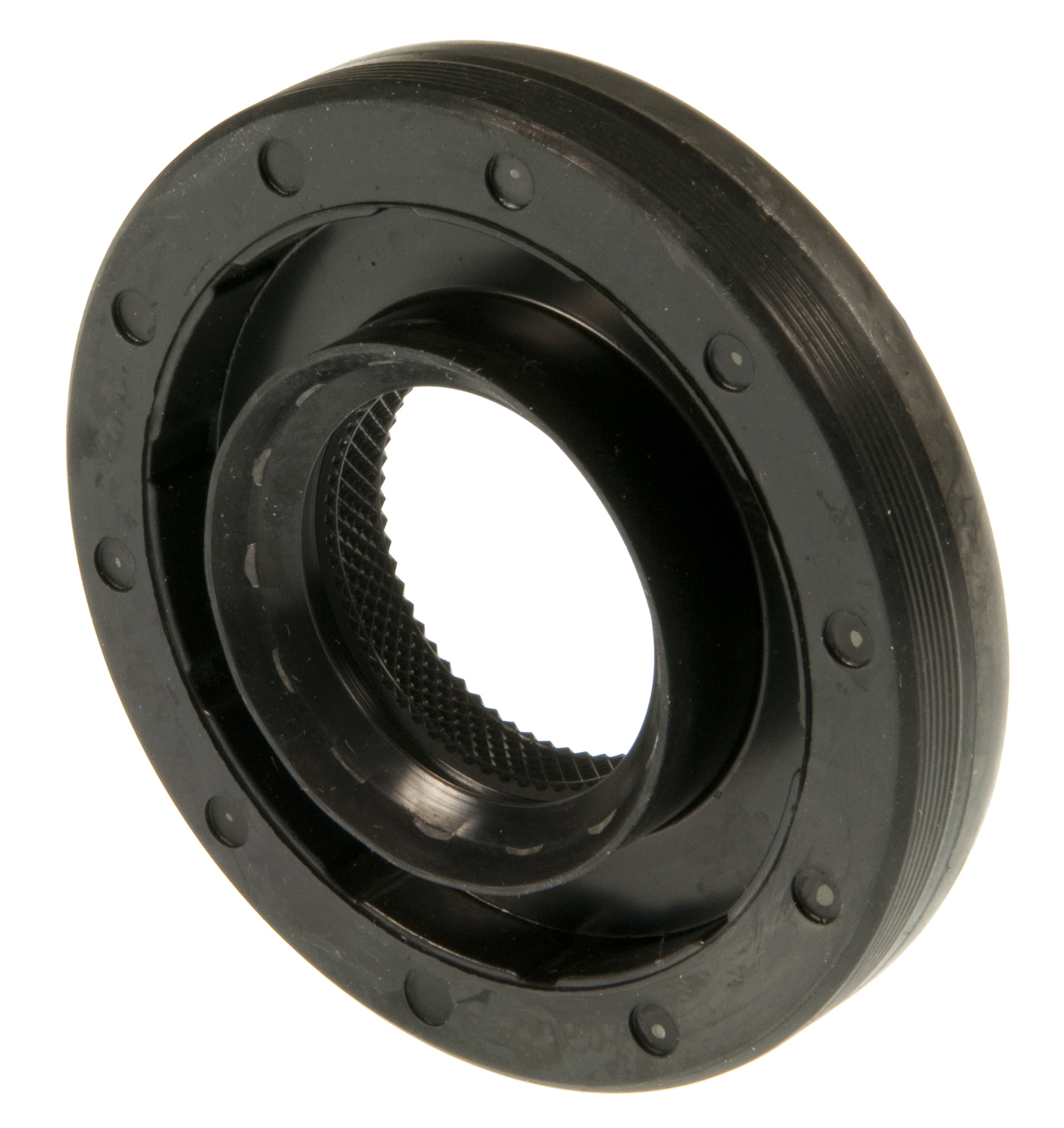

National Oil Seal 710688 Axle Output Shaft Seal

(2002-2009 Chevrolet Trailblazer; 2002-2009 Chevrolet Trailblazer EXT; 2002-2009 GMC Envoy; 2002-2006 GMC Envoy XL; 2004-2005 GMC Envoy XUV + 3 more models)

Part of: National Oil Seal Axle Output Shaft

Other options in this family: National Oil Seal 710687 National Oil Seal 711051 National Oil Seal 710993 National Oil Seal 711049 National Oil Seal 711134

Manufacturer

Picture for manufacturer National Oil Seal

Part Number

710688
7 reviews
Sale Price

$15.64

4 left at this price

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The National 710688 is a premium axle output shaft seal designed for front differential and axle applications on GM mid-size SUVs and crossovers. This high-quality nitrile rubber seal provides reliable protection against fluid leaks in demanding drivetrain environments.

Key Specifications:

  • Inside Diameter (Shaft Size): 1.250 inches (31.75mm)
  • Outside Diameter: 2.961 inches (75.2mm)
  • Width: 0.571 inches (14.5mm)
  • Overall Width with Side Lip: 0.787 inches (20mm)
  • Housing Bore: 2.953 inches (75mm)
  • Material: Nitrile rubber with spring-loaded, multi-lip design
  • Helix Type: Bi-directional
  • Series: 710600

Features and Benefits:

  • Spring-loaded multi-lip design ensures consistent sealing pressure throughout the seal's service life
  • Bi-directional helix pattern effectively manages fluid dynamics in both rotation directions
  • Operating temperature range: -40°F to 225°F (-40°C to 107°C) for reliable performance in extreme conditions
  • Low swell characteristics in hydrocarbon fluids maintain dimensional stability
  • Good low-temperature capability prevents seal hardening and cracking in cold climates

National Oil Seals has built a reputation as one of the most respected names in the sealing industry, offering premium sealing solutions for more than 75 years. This seal is commonly used as a front differential inner seal on 2002-2009 GM truck-based SUVs and provides an OE-quality replacement solution for stopping axle leaks.

Cross-Reference Part Numbers: Timken 710688, GM/Saab 12471617, Isuzu 8-12471-617-0, ACDelco 12479302

Products specifications

Fits

2002-2009 Chevrolet Trailblazer; 2002-2009 Chevrolet Trailblazer EXT; 2002-2009 GMC Envoy; 2002-2006 GMC Envoy XL; 2004-2005 GMC Envoy XUV; 2005-2009 Saab 9-7x; 2004-2007 Buick Rainier; 2003-2008 Isuzu Ascender

Agricultural Equipment

N

Application Specific

Y

Car Light Truck

N

Engine Specific

N

Freight Class

60

Heavy Duty Truck

N

High Performance

N

Industrial Off Highway Equipment

N

Marine

N

Material

Nitrile

Medium Duty Truck

N

Motorcycle ATV

N

Non Vehicle Specific

N

Personal WaterCraft

N

Small Engine

N

SnowMobile

N

Transmission Specific

N

Feature 2

Design Type: Spring Loaded; Multi-Lip

Feature 3

Provides good low temperature capability

Feature 4

Low swell in hydrocarbon fluids

Feature 5

Temperature Range: -40F to 225F; -40C to 107C

Outside Diameter (mm)

75.200

Part Description

Oil Seal

Series

710600

Type

41

WIDTH (MM)

13

Housing Bore (Inch)

2.951

Housing Bore (MM)

75.000

Shaft (Inch)

1.175

Shaft (MM)

30.000

Width (inch)

0.512
