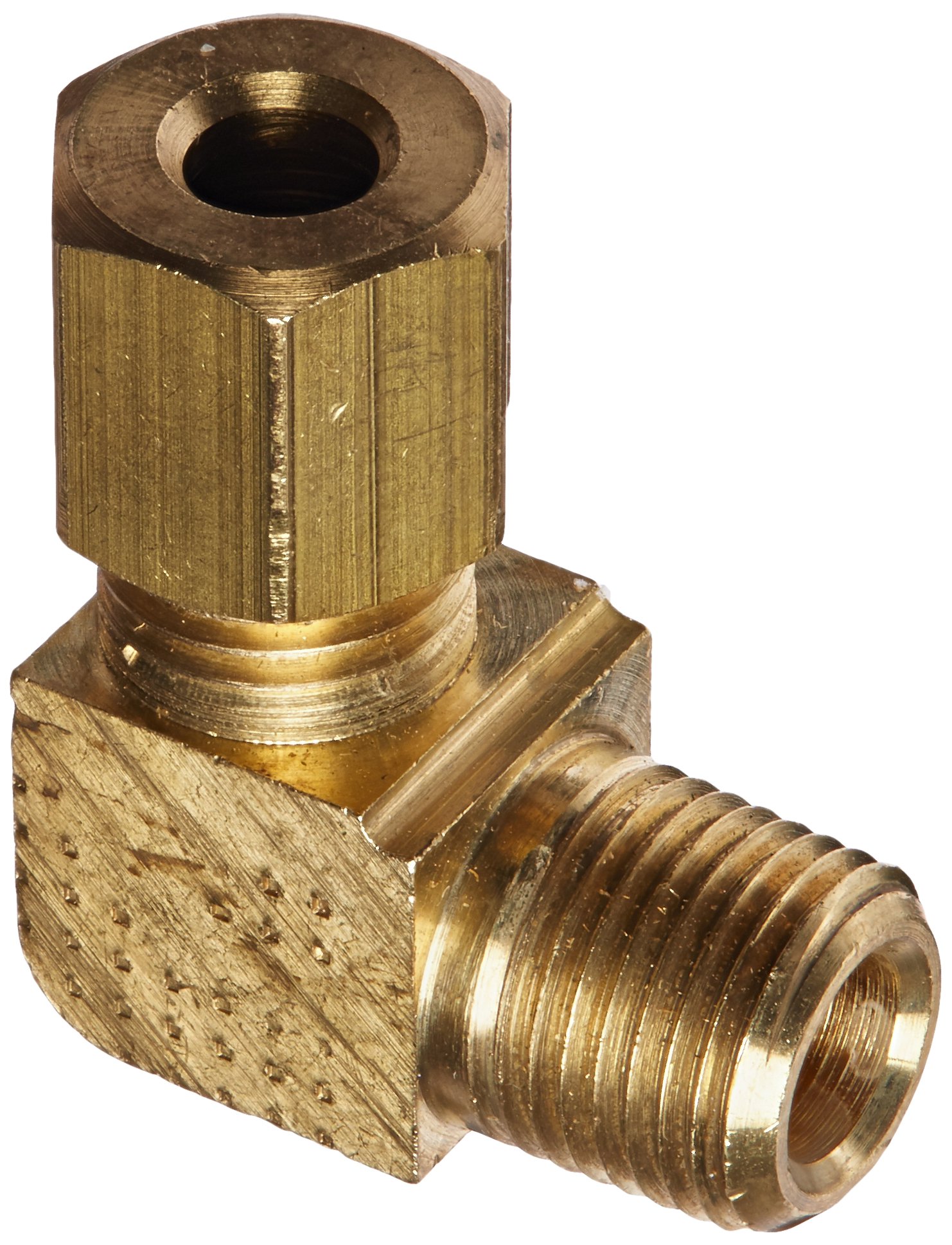

Edelmann 169320 90 Degree Brass Compression Fitting Male Elbow

The Edelmann 169320 is a 90-degree brass compression fitting designed for low to medium-pressure fluid line applications. This male elbow fitting features a 3/16 inch compression connection on one end and 1/8-27 NPT male pipe threads on the other, providing a reliable solution for routing fluid lines at right angles in tight spaces.

Key Features:

• 90-degree male elbow configuration for directional fluid line routing
• 3/16 inch tube size compression connection
• 1/8-27 NPT male pipe threads
• Brass construction with natural finish for corrosion resistance
• Includes ferrule for secure, leak-free connection
• No flaring or soldering required for installation
• Maximum operating pressure of 250 PSI
• Cross-reference to Weatherhead part number 69X3

This compression fitting utilizes a wedging action between the nut, sleeve (ferrule), and fitting body to create a secure, leak-free seal. Simply place the nut and sleeve over the tubing, insert the tube into the fitting body, and tighten the nut to complete the connection. Suitable for power steering systems, fuel lines, carburetor connections, and other low-pressure automotive fluid applications.

Important: This fitting is designed for applications where pressure will not exceed 250 PSI and must never be used in brake systems.
