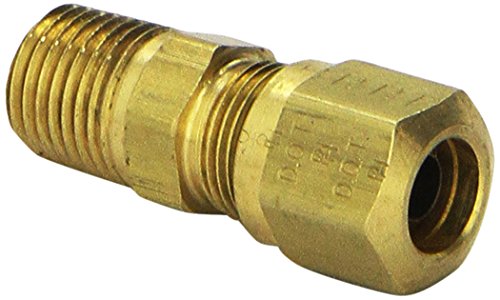

Edelmann 916864 Brass DOT Compression Male Connector 3/8" Tube x 1/4" NPT

The Edelmann 916864 is a brass DOT-approved compression male connector designed for nylon tube air brake systems. This fitting features a 3/8" tube size connection with 1/4" male pipe thread (MPT), conforming to SAE J246 and J1131 standards for reliable air brake system applications.

Key Features:

• Brass construction for corrosion resistance and durability
• DOT FMVSS571.106 compliant for air brake applications
• Compression design requires no flaring or soldering for quick installation
• Designed for use with SAE J844 Type A and B nylon tubing
• Operating temperature range: -40°F to +200°F
• Working pressure up to 150 PSI
• Ideal for air brake and cab air control systems on heavy-duty trucks

This compression fitting provides a secure, leak-free connection through a wedging action that creates a tight seal between the sleeve, body, and nut. Assembly is straightforward—simply insert the tube through the nut and sleeve into the fitting body, hand tighten, then wrench tighten approximately 1-1/2 turns for a complete seal.
