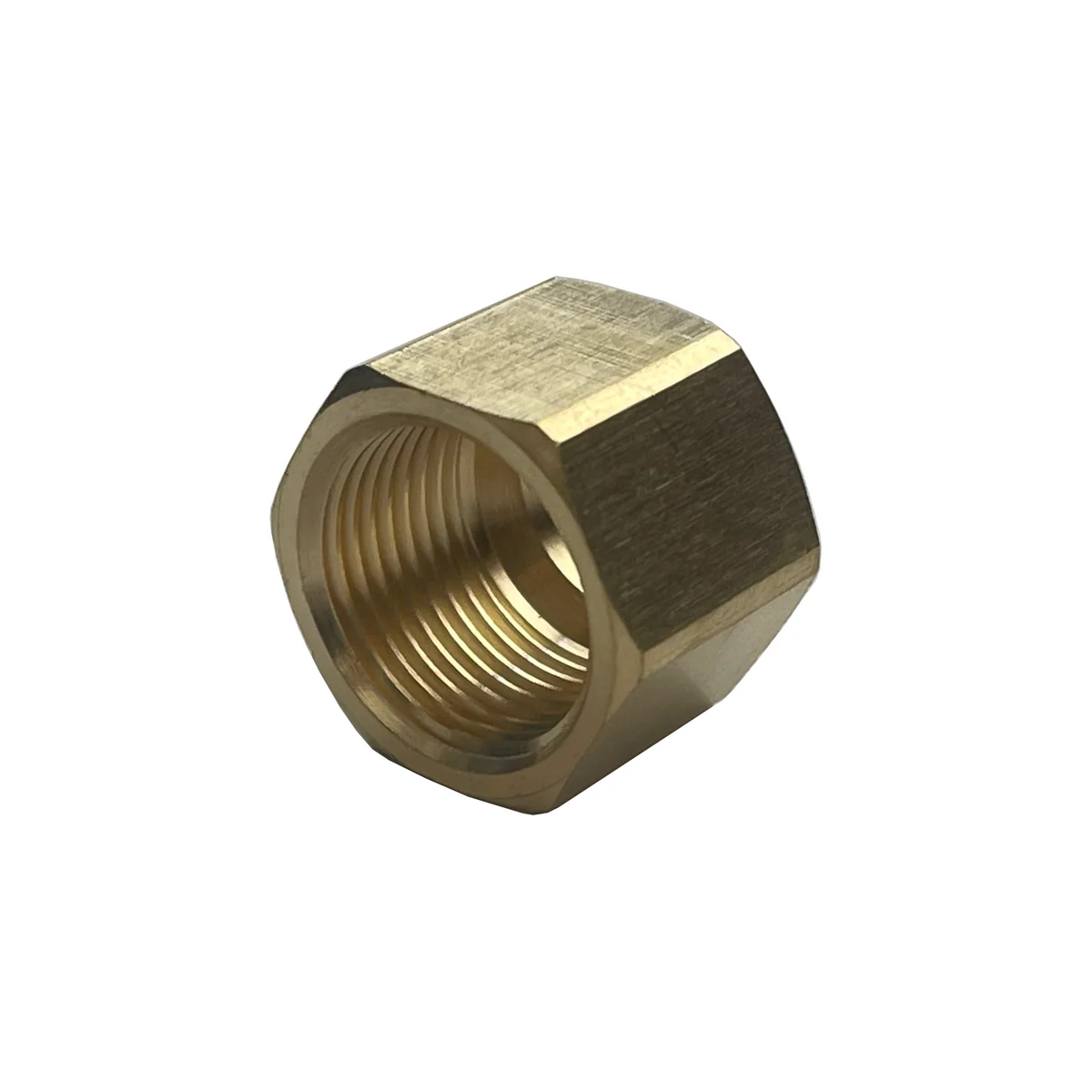

Edelmann 161300 Brass Compression Nut 3/16" Tubing 3/8-24 Thread

The Edelmann 161300 is a brass compression nut designed for use with 3/16" outside diameter tubing. This high-quality compression fitting provides a reliable, leak-free connection for low to moderate pressure fluid and air line applications in automotive, marine, and industrial systems.

Specifications:

• Tube Size: 3/16" O.D.
• Thread Size: 3/8-24
• Material: Brass construction for corrosion resistance and durability
• Weatherhead Cross-Reference: 61X3
• Standard Package Quantity: 10 per bag
• Maximum Pressure Rating: 250 PSI (not for brake system use)

Features and Benefits:

• Compression-style design requires no flaring, allowing for quick installation and removal
• Manufactured for low pressure applications with fair vibration resistance
• Temperature range: -65°F to +250°F (-53°C to +121°C)
• Works with steel, copper, or nylon tubing
• Installation: Insert tubing through nut into body until it reaches the shoulder, hand tighten, then wrench-tighten 1.5 turns for steel/copper tubing or 0.75 turns for nylon tubing

Edelmann compression fittings are manufactured to exacting standards and provide dependable performance for fuel lines, air lines, coolant systems, and other fluid transfer applications. The brass construction ensures excellent corrosion resistance for long service life.
