Strange Engineering S5006 Double Adjustable Aluminum Coilover Shock Kit with Springs

Manufacturer

Part Number

S5006
Black Friday Price

$731.59

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

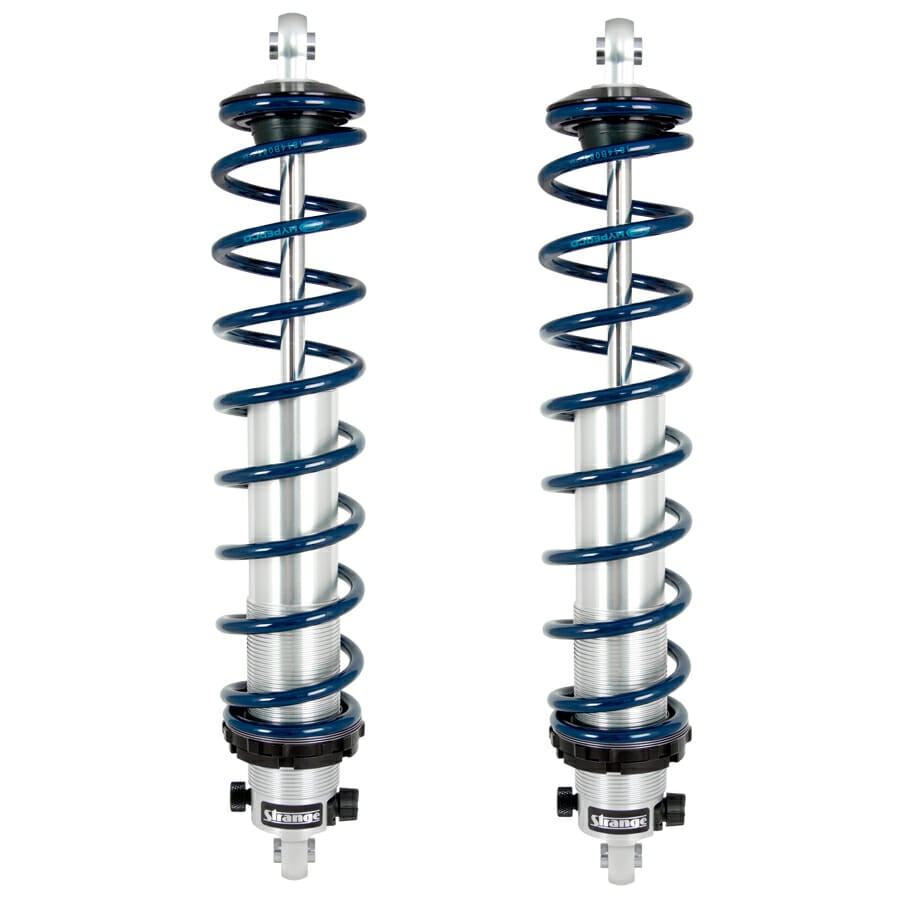

The Strange Engineering S5006 double adjustable coilover shock kit is engineered specifically for drag racing applications where precise suspension control is critical. This complete package includes a pair of fully machined aluminum shocks with Hypercoil springs, delivering professional-grade performance for serious racers.

Independent Compression and Rebound Control:

The S5006 features dual external adjustment knobs that provide independent control over both compression and extension damping. Each shock offers 10 distinct settings for both compression and rebound, allowing quick tuning adjustments between rounds or for varying track conditions. The numerically marked knobs are easily accessible and rotate clockwise to stiffen valving, making trackside adjustments simple and repeatable.

Key Specifications:

  • Extended length: 17.15 inches
  • Collapsed length (without bumper): 11.64 inches
  • Stroke: 5.52 inches
  • Recommended ride height: 13.875 to 14.50 inches
  • Accepts 12-inch x 2.50-inch I.D. coilover springs
  • Twin-tube internal design

Premium Construction Features:

  • Fully machined high-grade aluminum body, eyelets, spring seats, and jam nuts
  • 1-inch wide Teflon-lined high misalignment spherical bearings (upper and lower)
  • Clear anodized silver finish
  • 0.563-inch bumper height
  • Each shock is serialized for tracking service history
  • Rebuildable and revalvable design

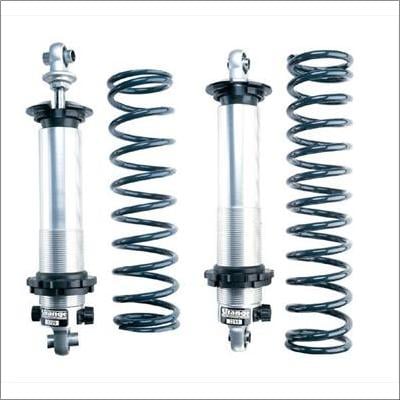

What's Included:

This complete kit is sold as a pair and includes matching Hypercoil coilover springs with blue powder coat finish. The shocks are fully assembled, dyno-tested, and inspected by Strange Engineering to ensure consistent performance. Each shock is tested at multiple shaft speeds to verify proper valve seating and durability before shipping.

Race-Proven Design:

Developed in collaboration with NHRA chassis builders, Pro Mod racers, and World Champion Sportsman class competitors, these shocks deliver highly responsive and consistent performance. The adjustments are particularly sensitive at lower piston speeds (1-5 inches per second), providing the critical control needed for drag racing launches and weight transfer management.

The S5006 can be used independently or paired with Strange Engineering's optional remote air kit, which allows you to program different rebound settings for launch versus mid-track conditions. Custom valving is also available for specific applications beyond the standard valve settings.

Products specifications

Adjustable Mounting Bracket Included

No

Adjustable Valving

Yes

Bushing Color

Natural

Bushing Material

Steel rod end

Coil-Over Kit Position

Rear

Coil-Over Shock Type

Double-adjustable

Coil-Over Springs Included

Yes

Collapsed Length (in)

11.640 in.

Crossmember Included

No

Extended Length (in)

17.150 in.

Gas Charged

No

Internal Design

Twin-tube

Lower Mount

Eyelet

Notes

Specify spring rate before ordering.

Number of Valving Selections

10

Quantity

Sold individually.

Recommended Spring Diameter (in)

2.500 in.

Recommended Spring Length (in)

12 in.

Shock Body Finish

Clear anodized

Shock Body Material

Aluminum

Shocks Included

Yes

Spring Finish

Blue powdercoated

Upper Mount

Eyelet

Welding Required

No
