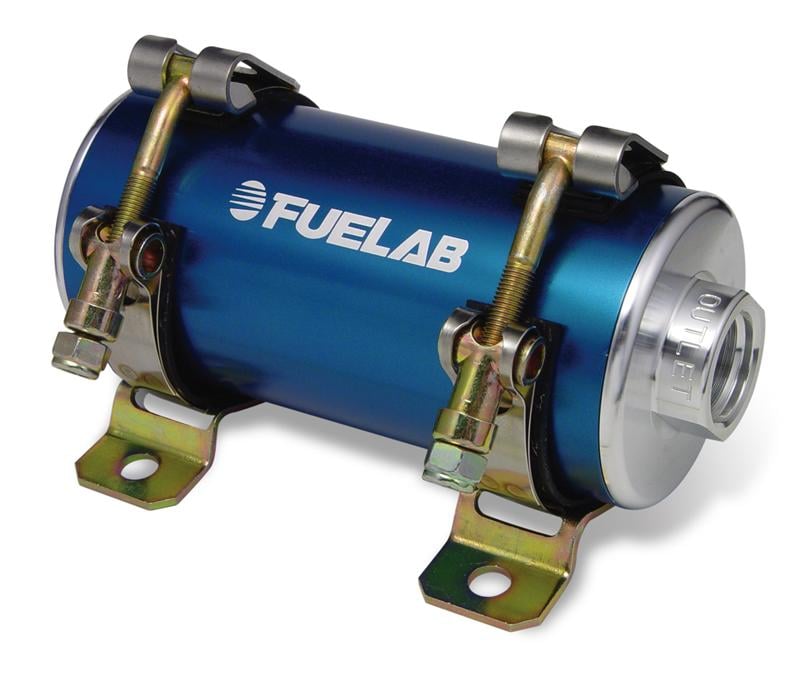

Fuelab 40402-3 Prodigy 800HP Brushless In-Line Fuel Pump Speed Adjustable

The Fuelab Prodigy 40402-3 is an 800 HP-rated inline fuel pump designed for street and strip applications. As the automotive aftermarket's first DC brushless-driven, speed-controllable inline fuel pump, the Prodigy series delivers unmatched electro-mechanical efficiency in a compact package roughly half the size of competing pumps. The 40402-3 accepts a 0–5V control signal, allowing real-time speed adjustment to precisely match fuel demand whether cruising on the street or pushing hard at the strip — all without the need for expensive external pulse-width modulation controllers.

The Prodigy is the only inline pump compatible with gasoline, diesel, methanol, and ethanol, making it a versatile choice across a wide range of fuel systems. Fuelab's patent-pending design is backed by a 2-year limited warranty.

Pump Features:

• Only inline pump compatible with gasoline, diesel, methanol, and ethanol
• High-efficiency sling vane positive displacement pump design
• Special housing geometry for exceptionally quiet operation and steady pressure delivery
• Carbon 9-vane construction with pressure-balanced rotor for long-term reliability
• Backed by a 2-year limited warranty

Motor Features:

• Lightweight, super-efficient DC brushless motor for reduced current draw
• Low-mass rotor for rapid response to changes in speed and flow demand
• High flux-density Neodymium rare earth magnets for powerful, consistent output
• No motor brushes to wear out or corrode — compatible with low-sulfur diesel
• Wet motor design eliminates dynamic shaft seals that can wear over time

Electronic Features:

• Internal speed controller enables variable flow operation
• Accepts 0–5 volt signal for precise speed control
• Compatible with 12 to 16 volt vehicle electrical systems
• No expensive voltage reduction or PWM controllers required
• Continuous-duty motor speed adjustable for street or strip fuel demand

Construction Features:

• Compact and lightweight design — 3 lbs, overall length 6.9", diameter 2.63"
• Billet aluminum construction with anodize per MIL-A-8625, Type II
• High-quality mounting brackets included
• Long-life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port-style -10AN fittings
