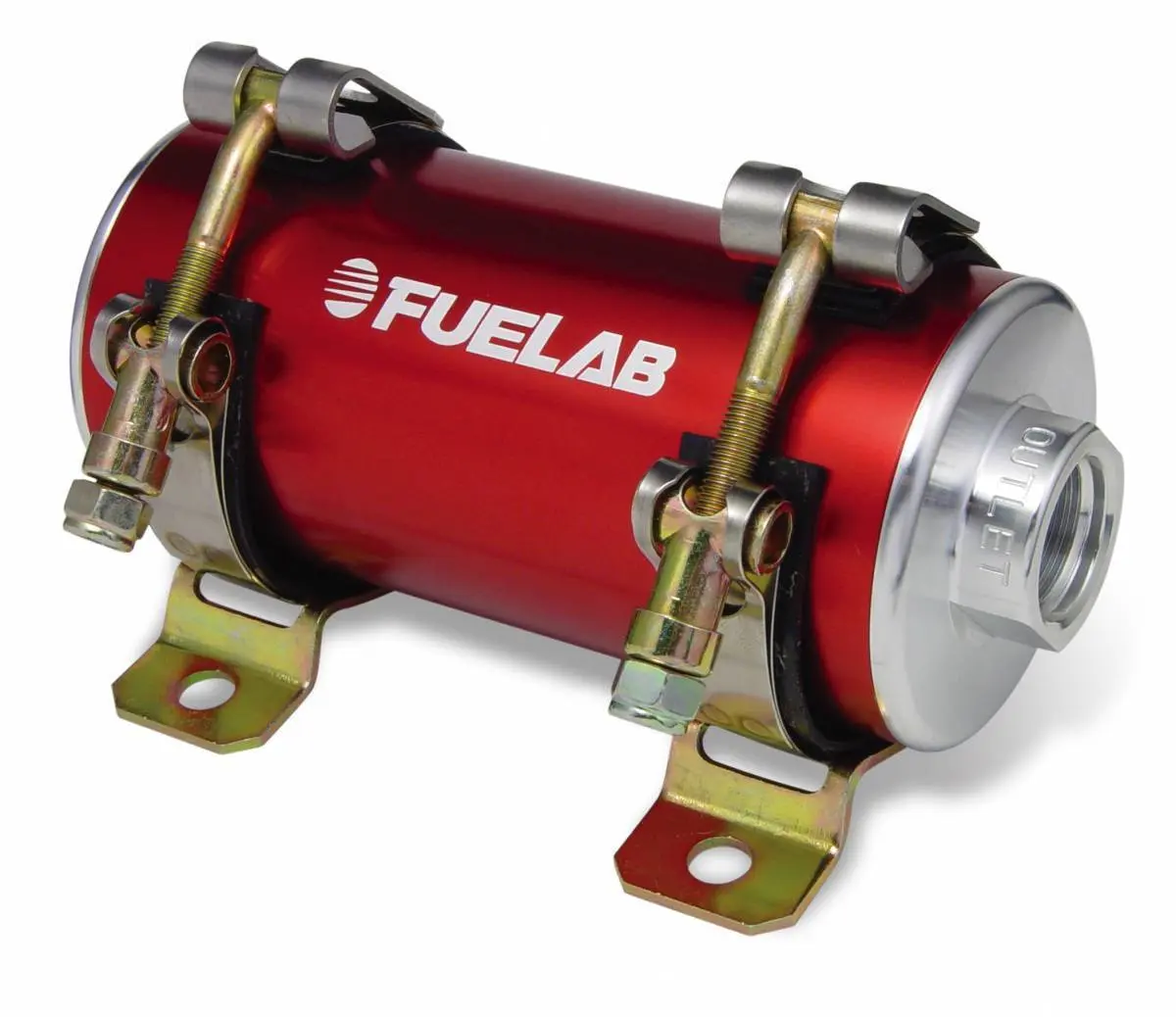

Fuelab 40402-2 Prodigy Variable Speed Brushless In-Line Fuel Pump - 800HP Red

The Fuelab 40402-2 Prodigy is a reduced-size, carbureted in-line fuel pump engineered for street and strip use, rated to support up to 800 horsepower. Delivering 160 GPH at 15 PSI with a 200 GPH free-flow rating, this pump features Fuelab's patented speed-controllable DC brushless motor technology — the automotive aftermarket's first brushless-driven, digitally controlled fuel pump. Finished in a red anodized billet aluminum housing, the 40402-2 offers outstanding electro-mechanical efficiency in a compact, lightweight package roughly half the size of competing pumps.

Pump Features:

• Rated up to 800HP — flows 160 GPH @ 15 PSI, 200 GPH free flow
• Compatible with gasoline, diesel, methanol, and ethanol
• High-efficiency sling-vane positive displacement pump design
• Unique housing geometry for extremely quiet operation and steady pressure delivery
• Carbon 9-vane construction with pressure-balanced rotor for high reliability
• Internal bypass included
• Backed by a 2-year limited warranty

Motor Features:

• Lightweight, super-efficient DC brushless motor for reduced current draw
• Low-mass rotor for rapid response to changes in engine speed and fuel demand
• Powerful, high-flux-density Neodymium rare earth magnets
• No motor brushes to wear out or corrode — compatible with low-sulfur diesel
• Wet motor design eliminates dynamic shaft seals that can wear over time

Electronic Features:

• Internal speed controller for variable flow operation
• Accepts 0–5 volt signal for precise speed control
• Compatible with 12V to 16V vehicle electrical systems
• No external voltage reduction or pulse-width modulation controllers required
• Continuous-duty rated — adjustable for street or strip fuel demand

Construction Features:

• Compact and lightweight — under 3 lbs, 6.9" overall length, 2.63" diameter
• Billet aluminum construction with MIL-A-8625, Type II anodized finish in red
• High-quality mounting brackets included
• Long-life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port-style -10AN fittings
