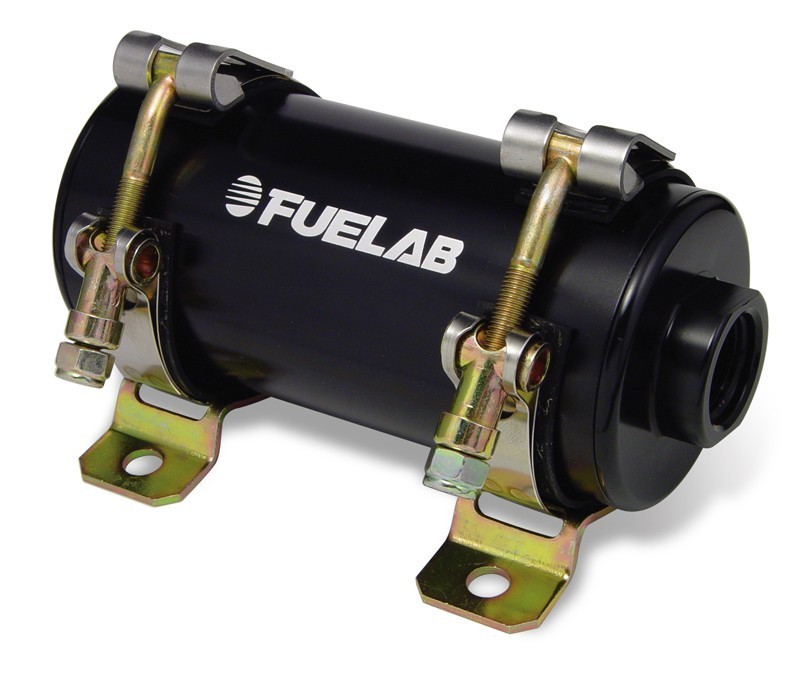

Fuelab 42402-4 Prodigy EFI In-Line Brushless Fuel Pump Speed Adjustable - 1800HP

The Fuelab Prodigy 42402-4 is a high-performance, speed-controllable in-line fuel pump engineered for serious street and strip EFI applications up to 1,800 horsepower. As the automotive aftermarket's first DC brushless-driven fuel pump with an internal speed controller, the Prodigy delivers unmatched electro-mechanical efficiency in a compact package roughly half the size of competing units. With flow rates up to 200 GPH and operating pressures up to 125 PSI, five performance models are available to match your exact fuel delivery needs.

Pump Features:

• Compatible with gasoline, diesel, methanol, and ethanol — the only in-line pump to support all four fuel types
• High-efficiency sling vane positive displacement pump design
• Specially shaped housing for extremely quiet operation and steady fuel pressure
• Carbon 9-vane construction with pressure-balanced rotor for long-term reliability
• Backed by a 2-year limited warranty

Motor Features:

• Lightweight, super-efficient DC brushless motor significantly reduces current draw
• Low-mass rotor enables rapid response to changes in speed and flow demand
• Powerful high-flux-density Neodymium rare earth magnets for robust performance
• Brushless design eliminates motor brush wear and corrosion — low-sulfur diesel compatible
• Wet motor design eliminates dynamic shaft seals and associated wear points

Electronic Features:

• Internal speed controller enables variable flow operation without external PWM modules
• Accepts a 0–5 volt signal for precise speed control
• Compatible with 12 to 16 volt vehicle electrical systems
• No expensive voltage reduction or pulse-width modulation controllers required
• Continuous-duty motor speed adjustable for both street cruise and full-strip demand

Construction Features:

• Compact and lightweight at 3 lbs, with an overall length of 6.9 inches and diameter of 2.63 inches
• Billet aluminum construction with military-spec anodizing per MIL-A-8625, Type II
• High-quality mounting brackets included
• Long-life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port-style -10AN fittings

The Fuelab Prodigy 42402-4 represents a true leap forward in fuel pump technology — combining award-winning patent-pending engineering with real-world durability for demanding EFI builds.
