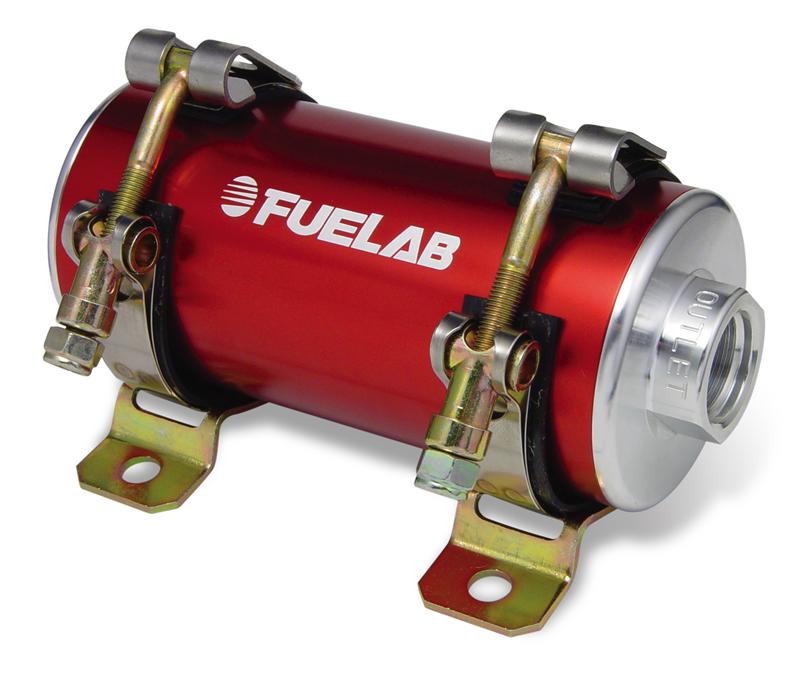

Fuelab 41402-2 Prodigy Variable Speed Brushless EFI In-Line Fuel Pump - 140GPH Red

The Fuelab 41402-2 Prodigy is a variable-speed DC brushless in-line fuel pump rated at 140 GPH @ 45 PSI with a 100 PSI maximum, supporting up to 1300 horsepower. Finished in a red anodized billet aluminum housing, this pump represents Fuelab's digital approach to fuel delivery — using an internal electronic speed controller to match pump output precisely to engine demand, reducing heat, minimizing fuel vaporization, and enabling true continuous-duty street or strip operation. Each pump is hand-built, tested, and certified at Fuelab's facility in Collinsville, Illinois.

Pump Features:

• Compatible with gasoline, diesel, methanol, and ethanol — the only in-line pump to support all four fuel types
• High-efficiency sling vane positive displacement pump design
• Unique housing geometry for extremely quiet operation and steady fuel pressure
• Carbon 9-vane construction with pressure-balanced rotor for exceptional reliability
• Backed by a 2-year limited warranty

Motor Features:

• Lightweight, super-efficient DC brushless motor for reduced current draw
• Low-mass rotor enables rapid response to changes in speed and fuel flow demand
• Powerful high-flux density Neodymium rare earth magnets
• No brushes to wear out or corrode — compatible with low-sulfur diesel
• Wet motor design eliminates dynamic shaft seals that can wear over time

Electronic Features:

• Internal variable-speed controller for precise, demand-based flow operation
• Accepts 0–5V or PWM input signal for speed control
• Compatible with 12V to 16V vehicle electrical systems
• No external voltage reduction or pulse-width modulation controllers required
• Continuous-duty rated — motor speed adjusts automatically for street or strip fuel demand

Construction Features:

• Compact, lightweight design — under 3 lbs, overall length 6.9", diameter 2.63"
• Billet aluminum construction with military-spec anodize per MIL-A-8625, Type II in red
• High-quality mounting brackets included
• Long-life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port-style –10AN fittings
