Moroso 63821 Alternator Vacuum Pump Mounting Bracket Kit Small Block Ford - 289/302/351W

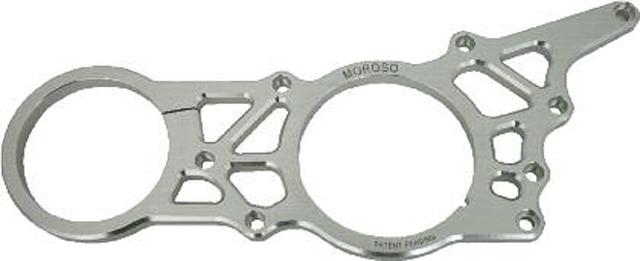

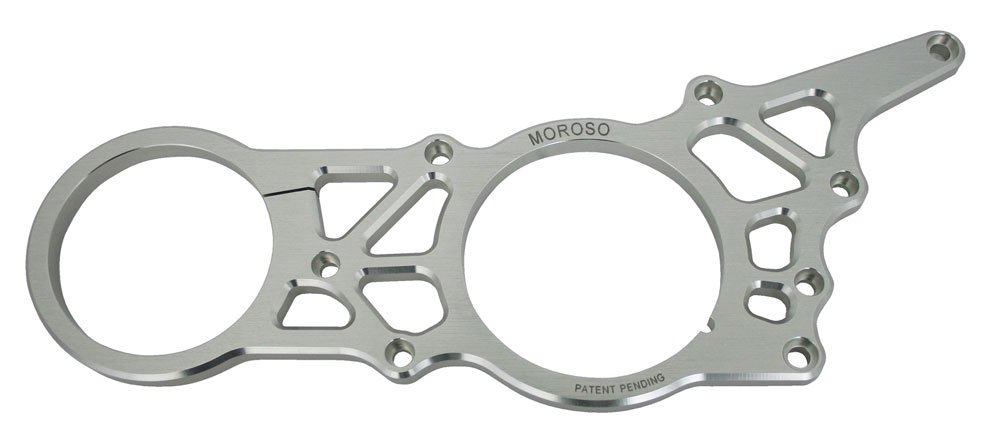

The Moroso 63821 is a billet aluminum combination mounting bracket kit designed to mount a mini ND-style 93mm alternator and a Moroso Enhanced Design vacuum pump on a Small Block Ford 289, 302, or 351W engine equipped with a Meziere electric water pump (WP111 series). Patent No. D600,720, this kit consolidates two separate mounts into a single, compact billet aluminum frame, eliminating the need for additional bracketry.

Key Features:

• Two mounts in one frame — integrates both the alternator and vacuum pump into a single billet aluminum bracket assembly
• Independent belt adjustment — separate belt tension adjustment for both the alternator and the vacuum pump
• Designed specifically for use with the Meziere WP111 series electric water pump
• Mounts the alternator on the driver side and the vacuum pump on the passenger side, while fully clearing the electric water pump
• Compatible with Moroso Enhanced Design Vacuum Pumps Nos. 22642, 22644, 22840, and 22842
• Works with most old and new-style drive mandrel kits
• All spacers and mounting hardware included
• Constructed from billet aluminum for lightweight, race-proven durability

Note: Yates / Jesel / Danny B and similar belt drives require the late-model '94–'95 spacers. A mandrel drive kit is required for complete installation.

The Moroso 63821 is ideal for circle track, drag race, and high-performance street applications where a clean, compact accessory drive solution is needed on a Small Block Ford with an electric water pump setup.
