Viair 30018 200 PSI High Pressure Dual 380C Onboard Air System with 2 Gallon Tank

The Viair 30018 High Pressure 2-on-2 Onboard Air System is a complete dual compressor solution designed for trucks, SUVs, RVs, and off-road vehicles requiring high-pressure air on demand. This system uses two high output 380C compressors mounted to a 2.0 gallon, 5-port air tank with all required components included for installation of a high pressure onboard air system that provides 200 PSI maximum pressure.

Key Features:

• 100% duty cycle at 100 PSI with 55% duty cycle at 200 PSI
• Maximum working pressure of 200 PSI with 44 amp maximum draw
• Easy-to-install wiring harness and manifold to make wiring and plumbing straightforward
• Compact dimensions: 18.5"L x 5.9"W x 13.5"H
• Sealed pressure switch set for 165 PSI on, 200 PSI off with automatic thermal overload protector
• IP67-rated compressors for weather and dust resistance
• Fast fill rate: 0 to 200 PSI in approximately 2 minutes 35 seconds

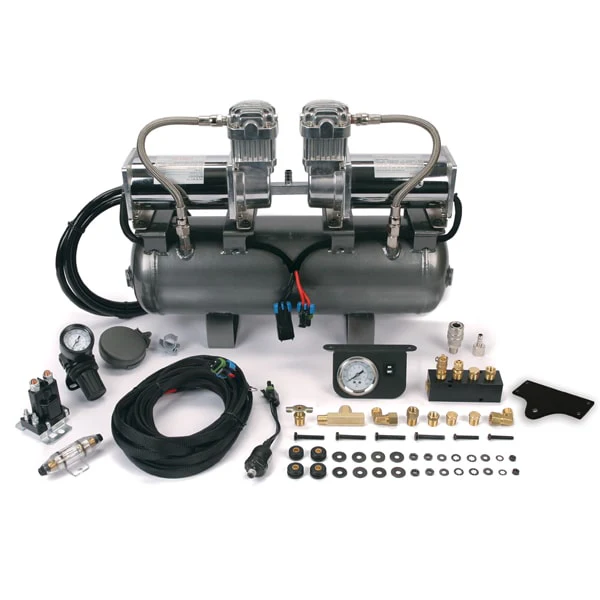

Complete System Includes:

• 2.0 gallon 5-port air tank with dual 380C air compressors pre-installed
• Stainless steel braided leader hoses with JIC fittings
• 60-amp fuse and holder, 80-amp relay, and complete wiring harness with Delphi connectors
• Billet 6-port manifold with mounting bracket
• Illuminated dash panel air pressure gauge (0-160 PSI)
• Air pressure regulator (0-200 PSI)
• Air filter housing with element and two replacement filters
• 15 ft. DOT-approved air line
• Safety valve, drain cock, and all necessary fittings
• BSP adapters for air lockers

This high-pressure system is ideal for air horns, suspension air bags, air lockers, and filling car, truck, and RV tires. The 12-volt permanent magnetic motor design ensures reliable performance in ambient temperatures from -40°F to 158°F. Note: This universal bolt-on platform system is not equipped with a crossmember mounting bracket.
