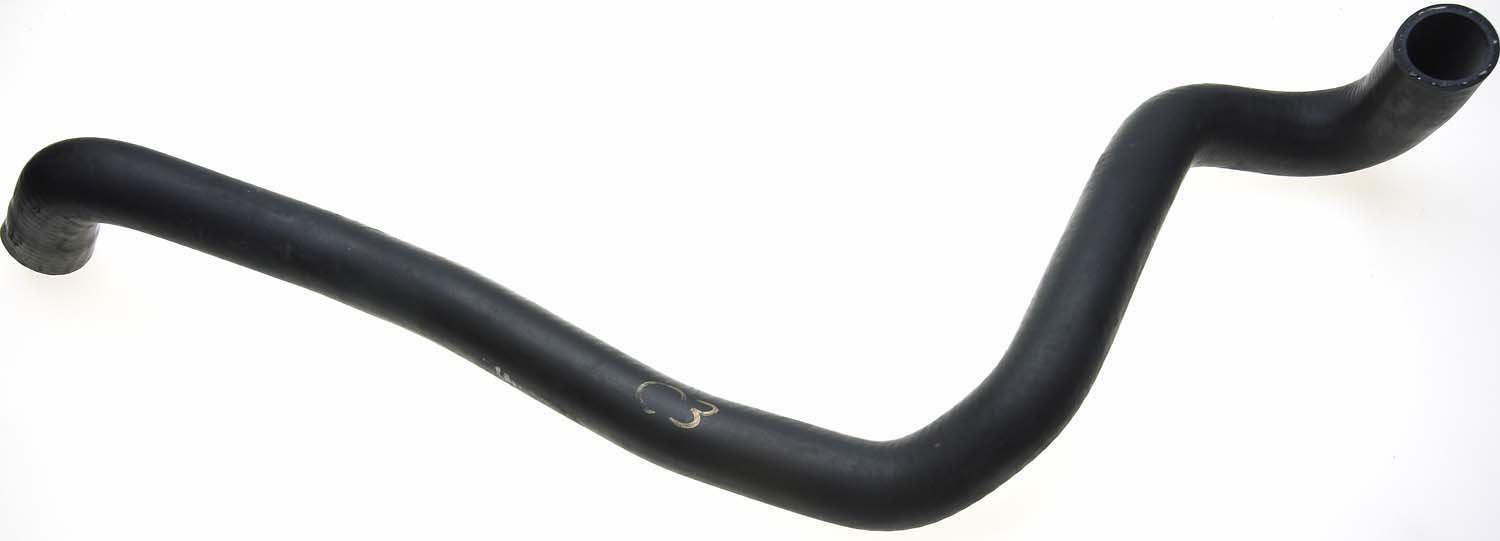

Gates 22408 Lower Radiator Coolant Hose Molded EPDM OE Replacement

The Gates 22408 is a premium molded lower radiator coolant hose engineered as a direct OE replacement for the vehicle's cooling system. Pre-shaped for a precise, leak-free fit, this curved hose eliminates the guesswork of cutting straight hose to length and ensures perfectly sealed conditions right out of the box.

Constructed with an EPDM tube and synthetic fiber knit reinforcement, this hose is built to resist heat, ozone, chemical coolants, and electrochemical degradation — the leading cause of coolant hose failure. Specially engineered materials also resist collapse under vacuum, reducing the need for internal support springs in many applications.

Key Features:

• EPDM inner tube with synthetic fiber knit reinforcement and chemical coolant-resistant EPDM cover
• Temperature range: -40°F to +257°F (-40°C to +125°C)
• Centerline length: 34.9 in. (886 mm)
• End 1 inside diameter: 1.13 in. (29 mm)
• End 2 inside diameter: 1.23 in. (31 mm)
• Molded construction — no spring insert required
• Lower hose position; black finish
• Meets SAE 20R4, Class D2 and DIN 73411, Class A requirements
• Approved for marine applications
• Sold individually
• Lifetime Gates limited warranty

Cross-reference part numbers: CHR0118R, E92532, 62801, 9041, E72009, 22350M. Note: Gates recommends replacing hose clamps each time a new coolant hose is installed. Not intended for fuel or oil transfer applications.
