Crown Automotive 4506116 Front Axle Disconnect Vacuum Motor Kit for Dana 30

The Crown Automotive 4506116 is a complete front axle disconnect vacuum motor assembly designed for Dana 30 front axles equipped with the vacuum-operated Central Axle Disconnect (CAD) system. This essential driveline component enables proper engagement and disengagement of four-wheel drive by connecting or disconnecting the front axle shaft through vacuum pressure.

How It Works:

The vacuum motor operates a shift fork that slides a collar to connect the outer axle shaft to the inner shaft when shifting into 4WD. When you shift your transfer case into four-wheel drive mode, vacuum is supplied to one side of the motor, causing the fork to move the collar and engage the axle. Shifting back to 2WD reverses the vacuum flow, moving the collar back to the disconnected position.

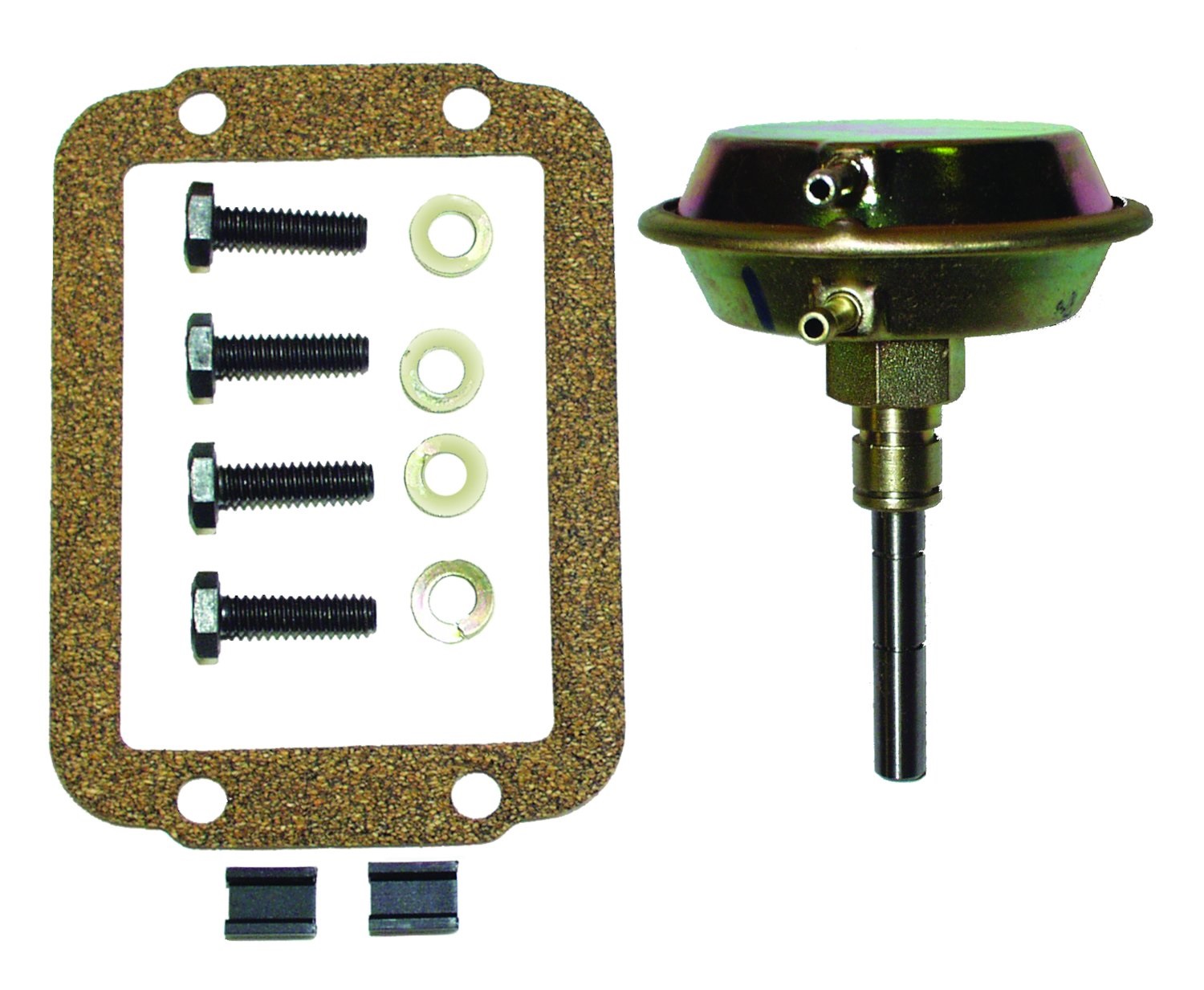

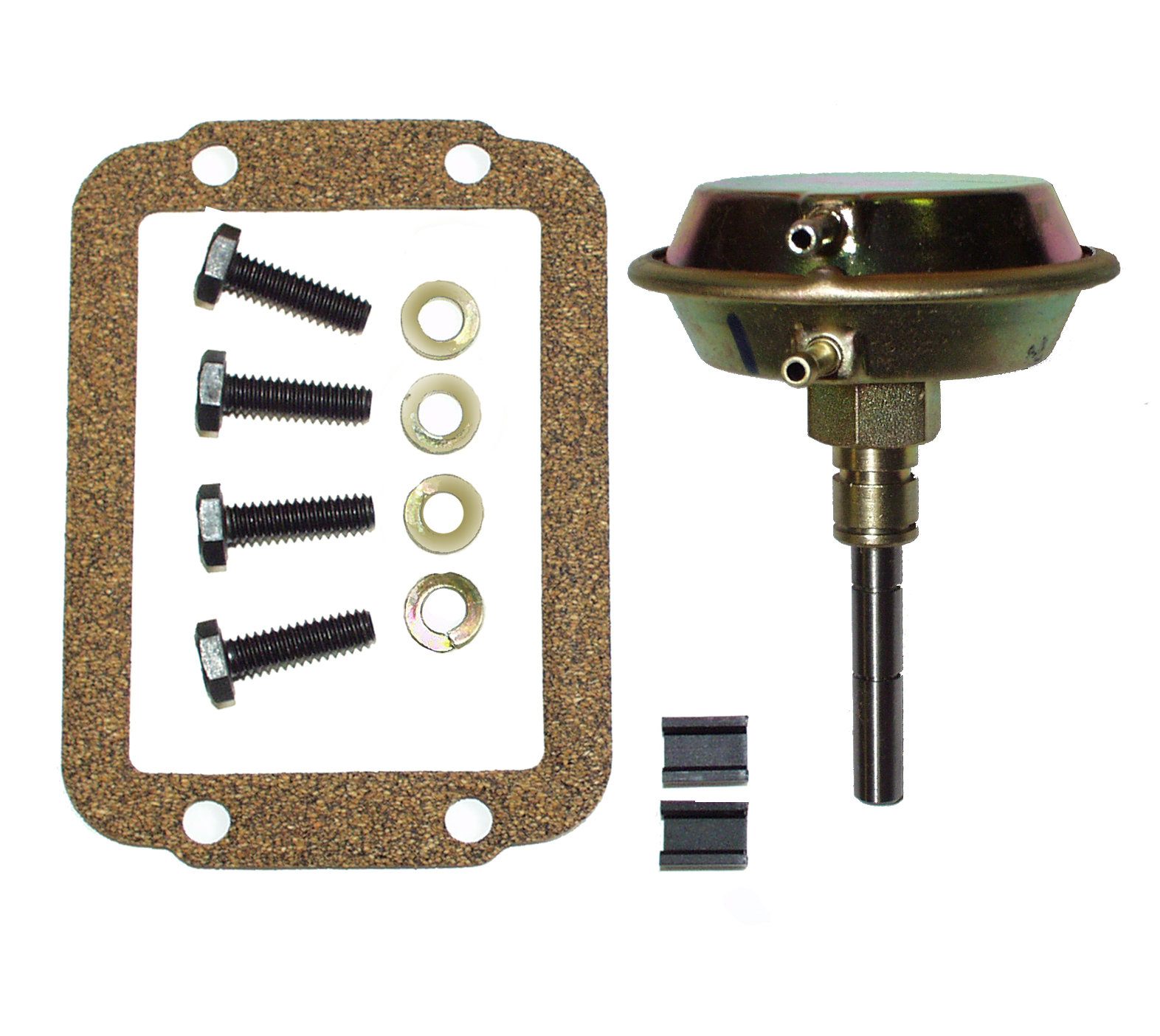

Complete Kit Includes:

• Vacuum motor assembly with zinc finish
• Motor gasket for proper sealing
• Fork inserts (replacement tips)
• Mounting hardware

Common Failure Points Addressed:

This kit replaces the most common failure points in the vacuum disconnect system, including worn fork tips, failed vacuum motor diaphragms, and deteriorated gaskets. The fork inserts are critical components that frequently wear out and cause the disconnect system to malfunction, leaving you without proper 4WD engagement.

OEM Replacement:

Replaces OEM part number 4882682. This is a direct-fit replacement requiring no modifications for proper installation on vehicles originally equipped with the vacuum disconnect system.
