Mishimoto MMINT-UMG Universal M-Line Intercooler Eat Sleep Race Edition All Gold

The Mishimoto MMINT-UMG is a limited-edition Eat Sleep Race version of the M-Line aluminum intercooler featuring a gold core with gold end tanks. This universal front-mount intercooler provides the perfect cooling capacity needed for smaller turbo applications, delivering enhanced performance for turbocharged and supercharged engines.

Key Features:

• Constructed of 6061 aluminum and TIG welded to perfection
• Tube-and-fin core construction with 3-inch thickness and 15 fins per inch
• Robust, one-piece cast aluminum end tanks withstand high boost pressures
• Four M8 x 1.25 threaded universal mounting bungs for secure custom mounting
• 5mm tank wall thickness with maximum recommended pressure of 32 PSI
• 3-inch inlet and outlet for optimal airflow
• Intercooler design optimized for maximum flow with minimal pressure drop

Specifications:

• Overall dimensions: 31.0" L x 11.75" H x 3.0" W
• Core dimensions: 23.5" L x 11.75" H x 3.0" W
• Airflow capacity: 1250 CFM
• Limited-edition all-gold finish for distinctive styling

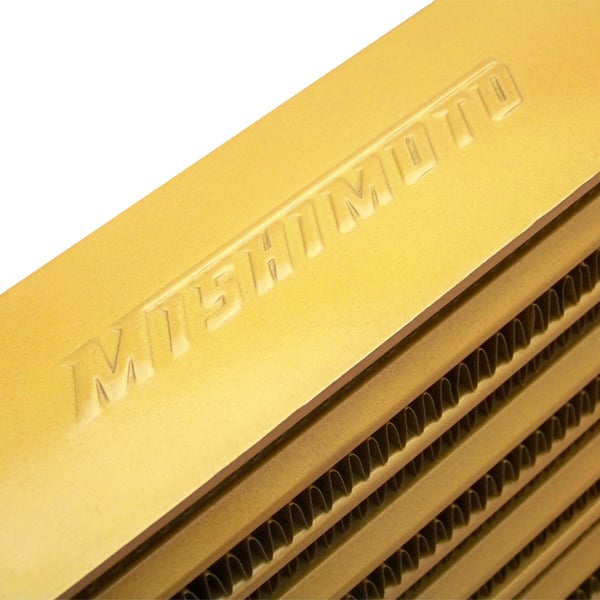

Mishimoto's intercoolers are engineered to have a very low pressure drop to keep your setup as efficient as possible, significantly lowering intake air temperatures to maximize performance from your vehicle. This limited-edition intercooler is backed by Mishimoto's lifetime warranty. Note: Only one side features the Mishimoto logo.
