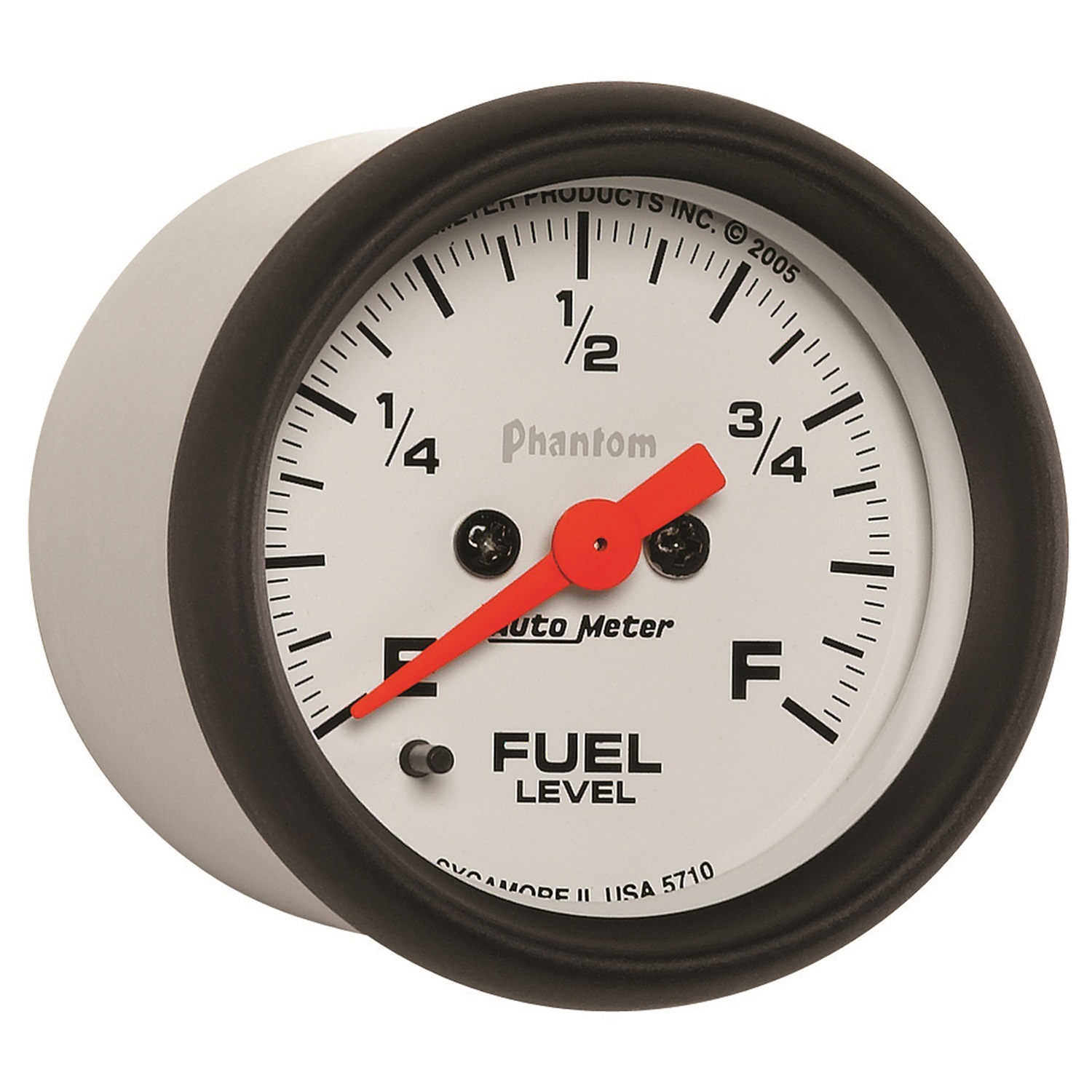

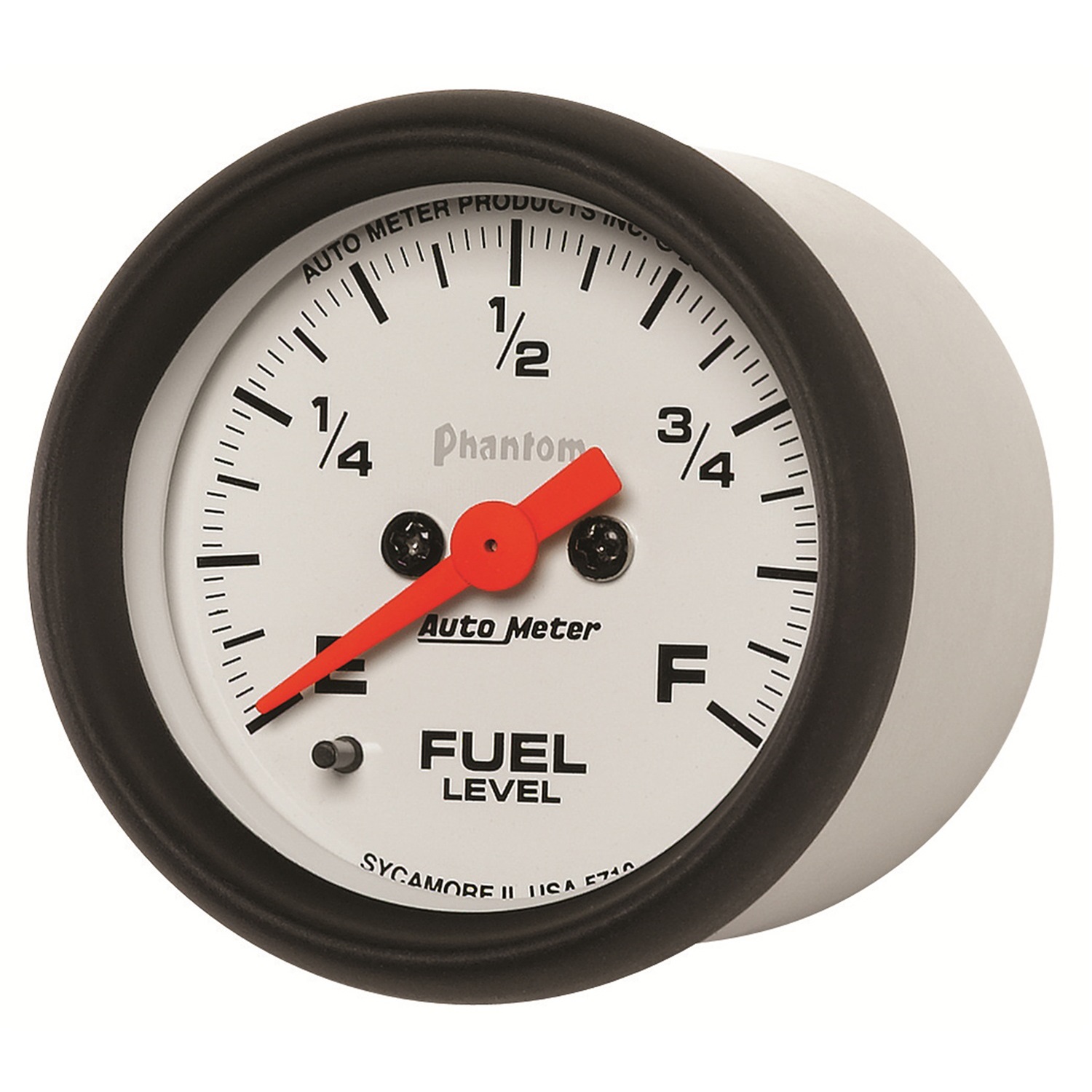

AutoMeter 5710 Phantom Programmable Fuel Level Gauge 2-1/16 Inch 0-280 Ohm

Manufacturer

Picture for manufacturer AutoMeter

Part Number

5710
16 reviews
Sale Price

$171.42

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The AutoMeter Phantom Series Fuel Level Gauge simplifies fuel monitoring with its programmable digital stepper motor technology. Designed to work with virtually any fuel sender, this 2-1/16 inch gauge eliminates the guesswork of matching gauges to sending units through its innovative calibration system.

Programmable Resistance Range:

The gauge features 7 factory-preset configurations covering the most common applications (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F). For custom applications, the user-definable mode allows calibration anywhere between 0-280 ohms using AutoMeter's snapshot programming method—simply capture the empty and full readings and the gauge automatically calculates the range.

Key Features:

  • Digital stepper motor electric movement for race-proven accuracy
  • Self-calibration sequence during power-up ensures precise readings
  • Compatible with both 12V and 16V electrical systems
  • White dial with fluorescent red pointer for excellent visibility
  • Black super bezel with flat, clear lens
  • Traditional incandescent lighting illuminates dial perimeter
  • 2-1/16 inch standard cup/hole mounting size

Complete Installation Kit Includes:

  • 20-foot wiring harness with direct plug-in connections
  • Bulb and socket assembly
  • Red and green bulb covers
  • Mounting hardware
  • Detailed installation instructions

The Phantom series combines classic styling with modern digital precision, making it ideal for both street and race applications where accurate fuel level monitoring is critical.

Products specifications

Bezel Color

Black

Illuminated

Yes

Number Color

Black

Size

2.3125 in.

Hole size

0.0625 in.

Bezel Style

Super Bezel

Lighting Color

White Incandescent

Lighting Type

Incandescent

Gauge Size

2.0625 in.

Bulb and Socket Number

3220

Hole size

52.4mm

Gauge Size

52.4mm

Voltage

8-18 V

Analog Or Digital

Analog

Pointer Color

Fluorescent Red

Bulb Technology

Incandescent

Face Color

White

Gauge Type

Fuel Level

Liquid Filled

No

Outer Bezel Diameter

2.250 in.

Movement Type

Electric Digital Stepper Motor

Lens

Flat Clear

Wire Harness Number

5233

Mounting Bracket Number

2230

Electric Or Mechanical

Electric

Fuel Line Adapter Included

No

Gauge Adapter Included

No

Sweep

Full

Light Covers Number

3244/3215

Block Adapter Included

No

Prop 65

Warning: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.

.
