The TEIN DSS28-W1LS2 Type HG is a competition-grade coilover kit engineered specifically for rally and dirt trail racing. Born from TEIN's decades of hands-on experience in rally competition, the Type HG is built to endure the harshest road surfaces while giving drivers precise control over their suspension setup.

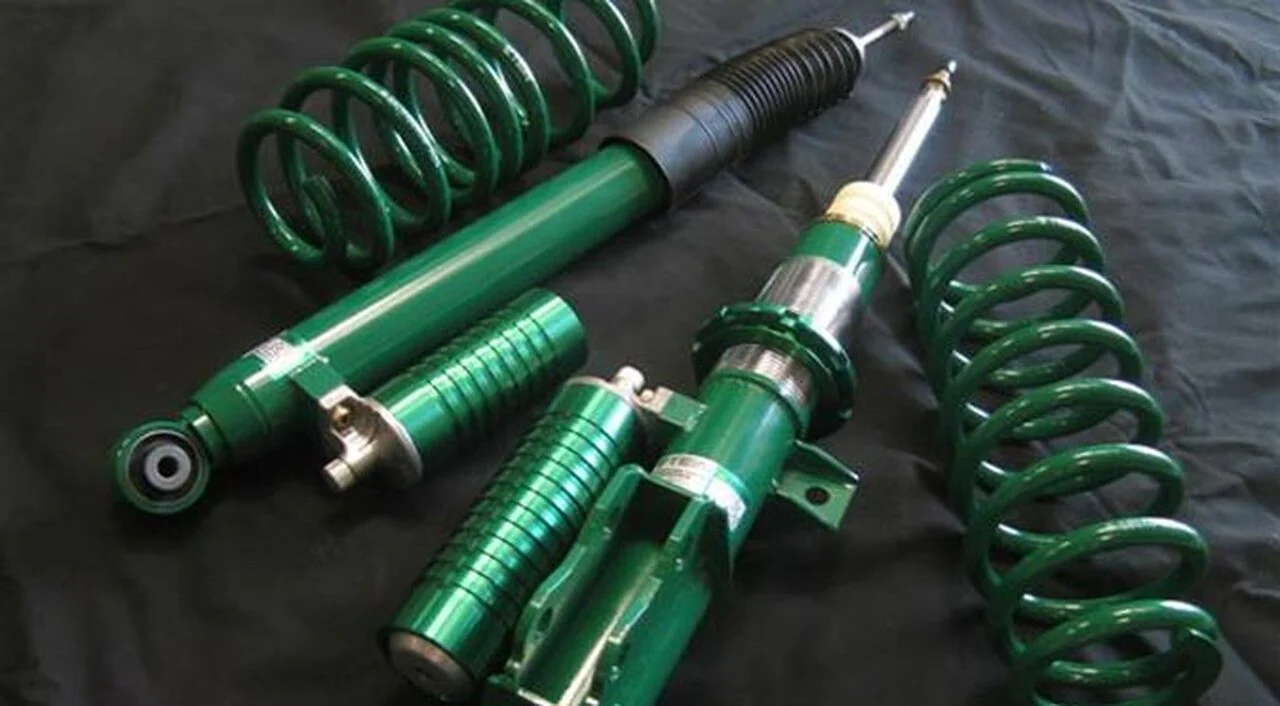

At the heart of the Type HG is a twin-tube damper design with a steel-constructed body, providing the additional structural durability needed for punishing off-road and loose gravel conditions. To combat aeration — a common performance-robbing issue in high-demand dampers — TEIN integrated a unique free piston design that keeps oil and gas separated throughout operation.
Each damper features 16-way independent compression and rebound adjustment, allowing drivers to fine-tune their suspension response for a wide range of surfaces and driving styles. External oil reservoirs expand oil capacity and increase suspension stroke, further supporting performance in demanding race environments. The full-length ride height adjustable system and large-diameter spring seats allow compatibility with both OEM and select aftermarket springs.
Spring Rates: Front: 4.5 kgf/mm (~252 lbf/in) | Rear: 3.5 kgf/mm (~196 lbf/in)
Key Features:
- Twin-tube damper construction with steel body for enhanced durability on rough courses
- 16 x 16-way adjustable damping — compression and rebound independently adjustable
- Free piston design to prevent aeration and maintain consistent damping performance
- External oil reservoirs for increased oil capacity and extended suspension stroke
- Full-length ride height adjustable via threaded spring seats
- Large diameter spring seats on select applications for OEM and aftermarket spring compatibility
- 3-stage powder coat finish for corrosion resistance
- Made in Japan and test-fitted by TEIN's suspension engineers
- 1-year manufacturer's defect warranty; available for factory overhaul service

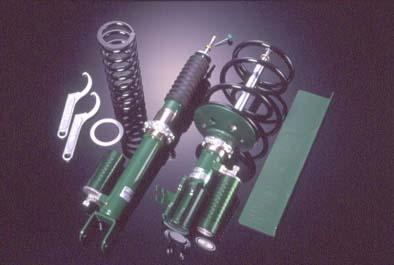

Kit Includes: 4 x Dampers, 4 x Springs, 4 x Lower Spring Seats, 4 x Bump Rubbers, 6 x Seat Locks, 2 x Hook Spanners
Note: This application is not compatible with EDFC electronic damping control due to rally competition regulations. OEM dust boots from a non-inverted GC8 or GDB model are recommended for front/rear use.
