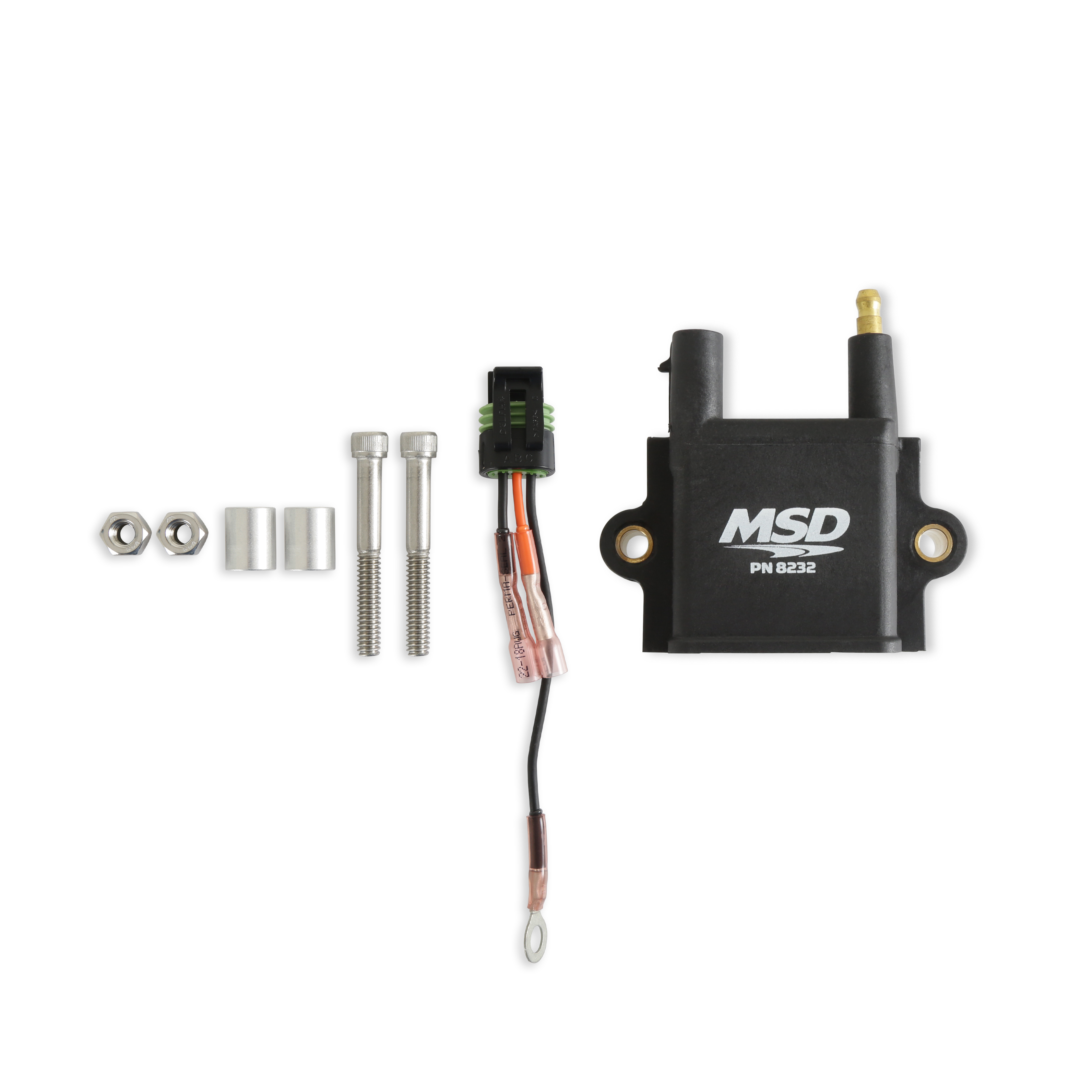

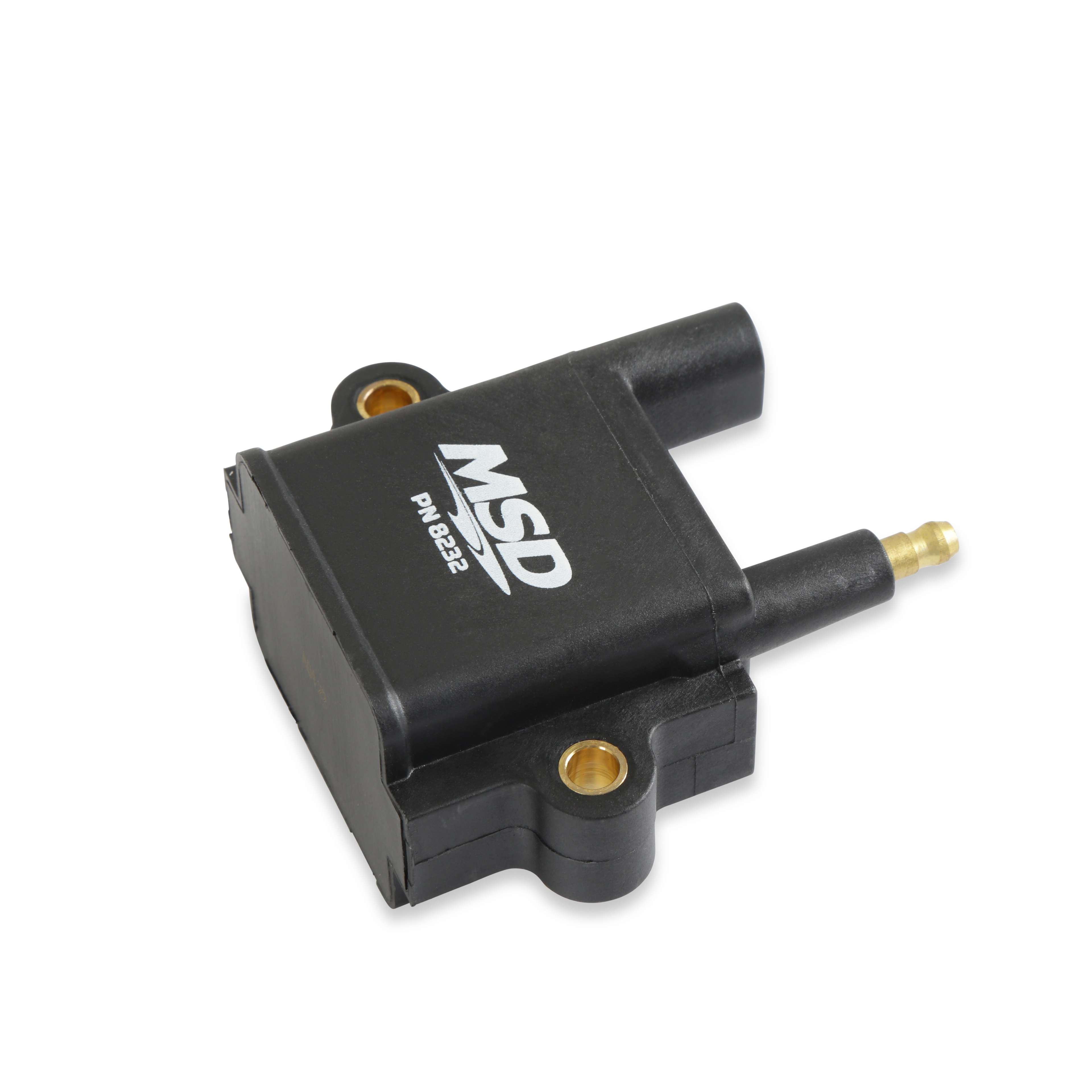

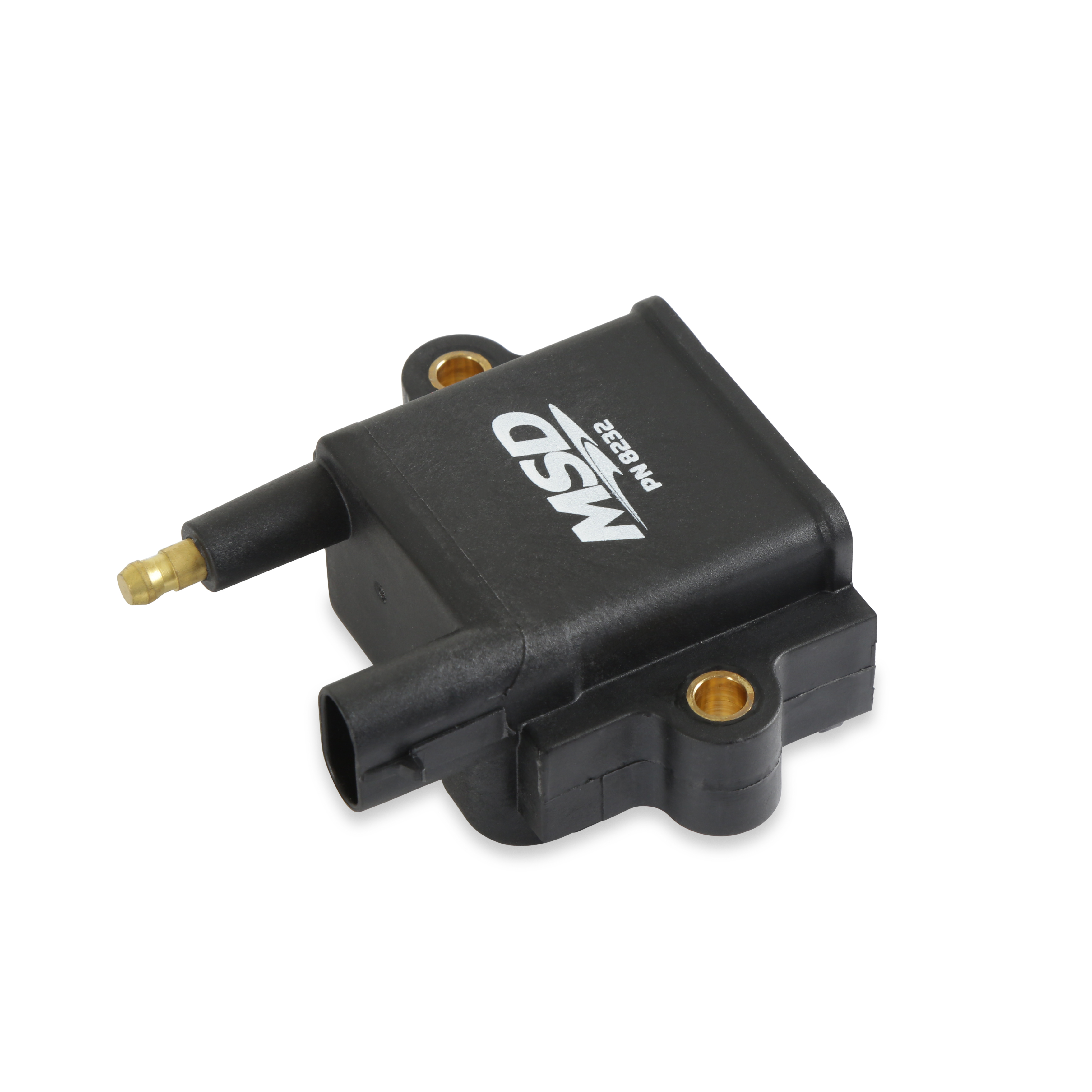

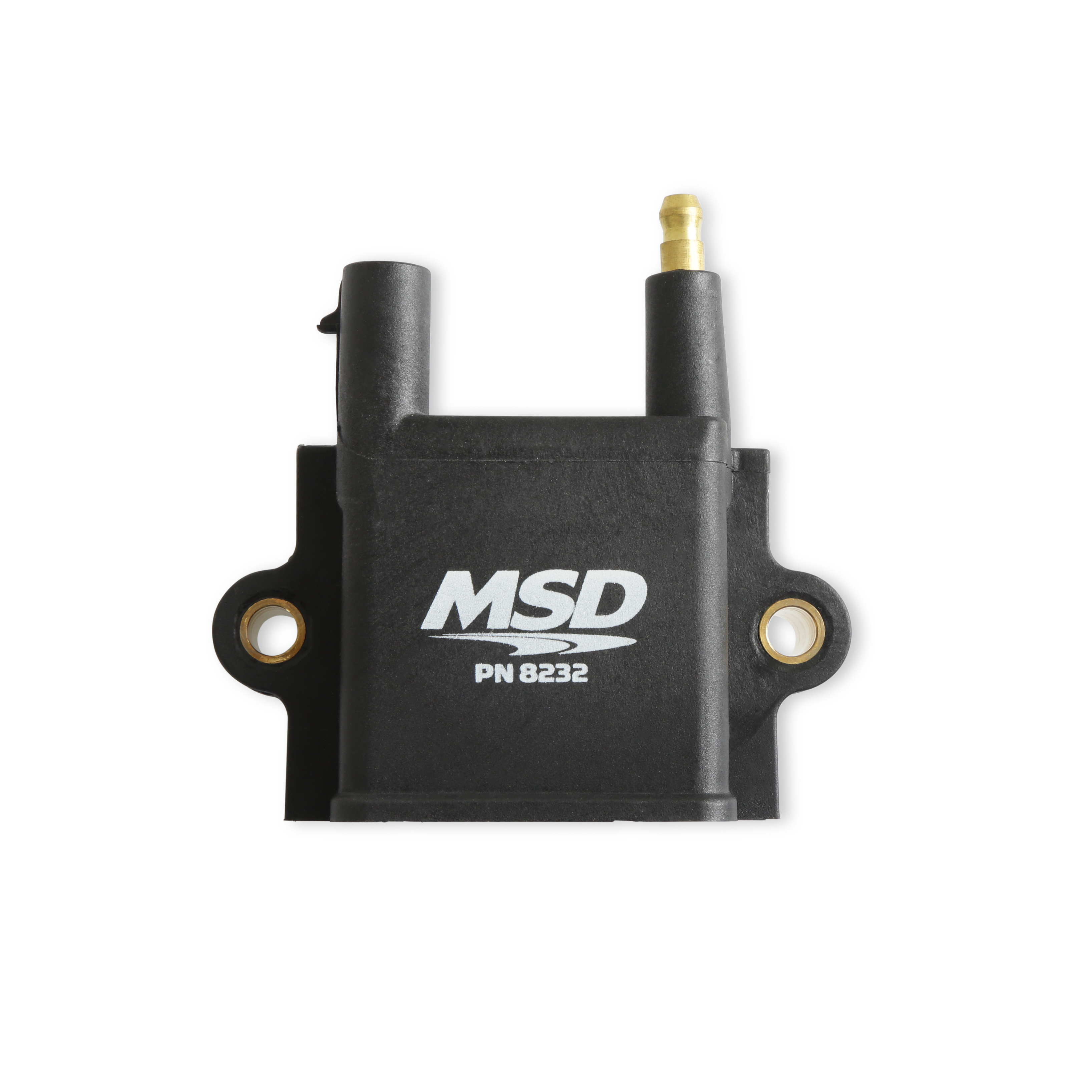

MSD 8232 Single Tower Blaster Ignition Coil for CPC Ignition Control Black

The MSD 8232 Single Tower Blaster Ignition Coil is engineered exclusively for use with the MSD CPC (Coil-Per-Cylinder) Ignition Control system. Purpose-built for high-performance racing applications, this coil delivers exceptional voltage output and rapid spark rise times that demanding engines require.

Featuring an 85:1 turns ratio combined with low primary resistance, the MSD 8232 produces up to 43,000 volts of peak output. Its low inductance (36.7 mH) and quick rise time make it especially well-suited for high-revving, multi-coil performance setups. The coil also supports MSD DIS-HO ignition systems configured for coil-per-cylinder operation.

Key Features:

• Designed exclusively for the MSD CPC Ignition Control system
• 85:1 turns ratio with low primary resistance for maximum high-voltage output
• 43,000V maximum output voltage
• 36.7 mH inductance with 800 mA peak current and 125 µS spark duration
• DuPont Rynite housing with tall tower design and isolated primary terminals for durability and reliability
• Single tower configuration with male wire attachment
• Compatible with MSD DIS-HO systems in coil-per-cylinder configuration
• Black finish
• Sold individually

Emissions Notice: This part does not carry a CARB Exemption Order Number. It is intended for racing use only and is not legal for sale or use on emissions-controlled street vehicles.
