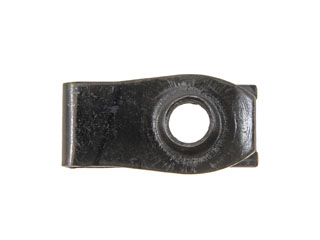

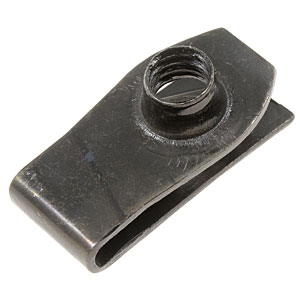

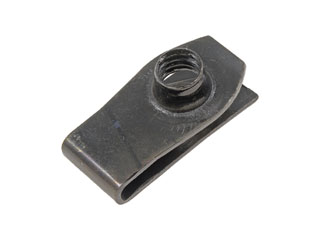

Dorman 45413 U-Type Clip Nut 5/16-18 In. x 13/16 In. Speed Nut Fastener

Manufacturer

Part Number

45413
Black Friday Price

$4.85

$5.30 Save 8%

In Stock (5)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Dorman 45413 is a U-Type clip nut — also commonly known as a speed nut or spring nut — designed for fast, tool-free installation onto sheet metal panels and flanges. With a 5/16-18 thread size and 13/16 in. panel width, this fastener clips securely onto an edge or slot and accepts a mating screw from the opposite side, eliminating the need for a separate nut and wrench during assembly or repair.

Key Features:

  • Thread Size: 5/16-18 in. (coarse thread, right-hand)
  • Panel/Clip Width: 13/16 in.
  • Material: Steel construction for long-lasting durability
  • Finish: Black
  • No integral washer
  • U-type design clips onto panel edges, slots, or flanges for one-handed installation
  • Suitable for automotive, industrial, and commercial fastening applications
  • Sold as a card of 2

Dorman's clip and spring nut line covers a wide range of screw sizes, throat depths, and panel ranges, making it easy to find the right fastener for body panel repairs, trim reinstallation, underhood components, and more. This universal fastener is not vehicle-specific and is backed by Dorman's limited lifetime warranty.

Products specifications

Feature - Benefit 1

Available in standard and metric sizes

Feature - Benefit 2

Different sizes available to fit a range of panel thicknesses

Feature - Benefit 3

Conveniently packaged in a variety of piece counts to assist with both small and large projects

Feature - Benefit 4

Also suitable for a broad variety of industrial and commercial uses

Finish

Black Maxx

FLANGE Thickness

3/8"

Header Style

Conventional

Kit Contents

One pair of headers, mounting hardware, O2 Bungs, gaskets, Instructions

Tube Diameter

2"

Tube Material Thickness

18g

Tube Size

2"

Package Contents

2 CLIP NUTs

Color

Black

Callout Size

5/16-18 in

Integral Washer

No

Material

Steel

ACQ Rated

No

Thread Direction

Clockwise

Open End Design

Yes

Thread Pitch

18

Attached Washer

No

Threads per Inch

18

Metric Or SAE

SAE

SAE Size

5/16 in

Washer Attached

Yes
