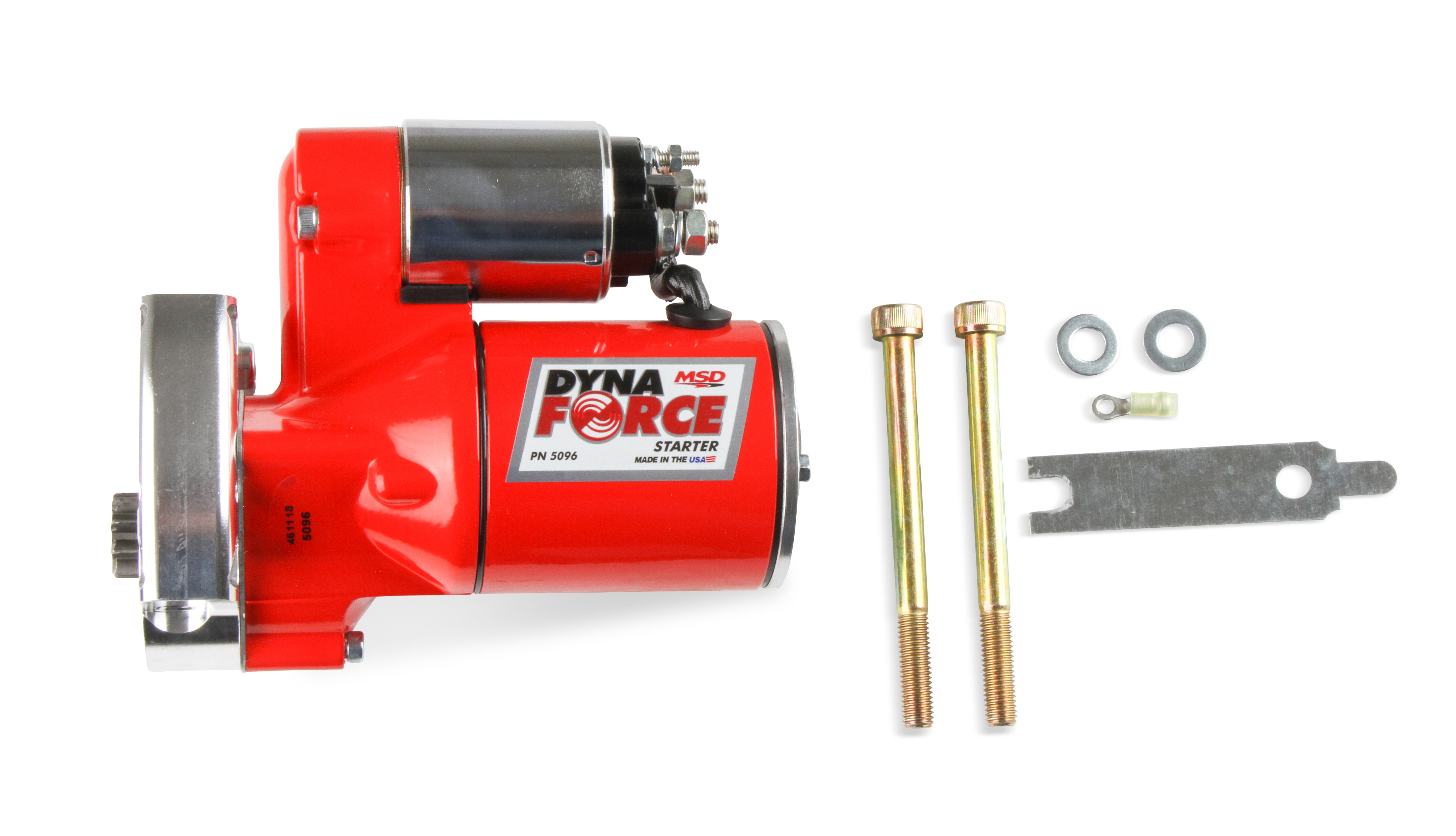

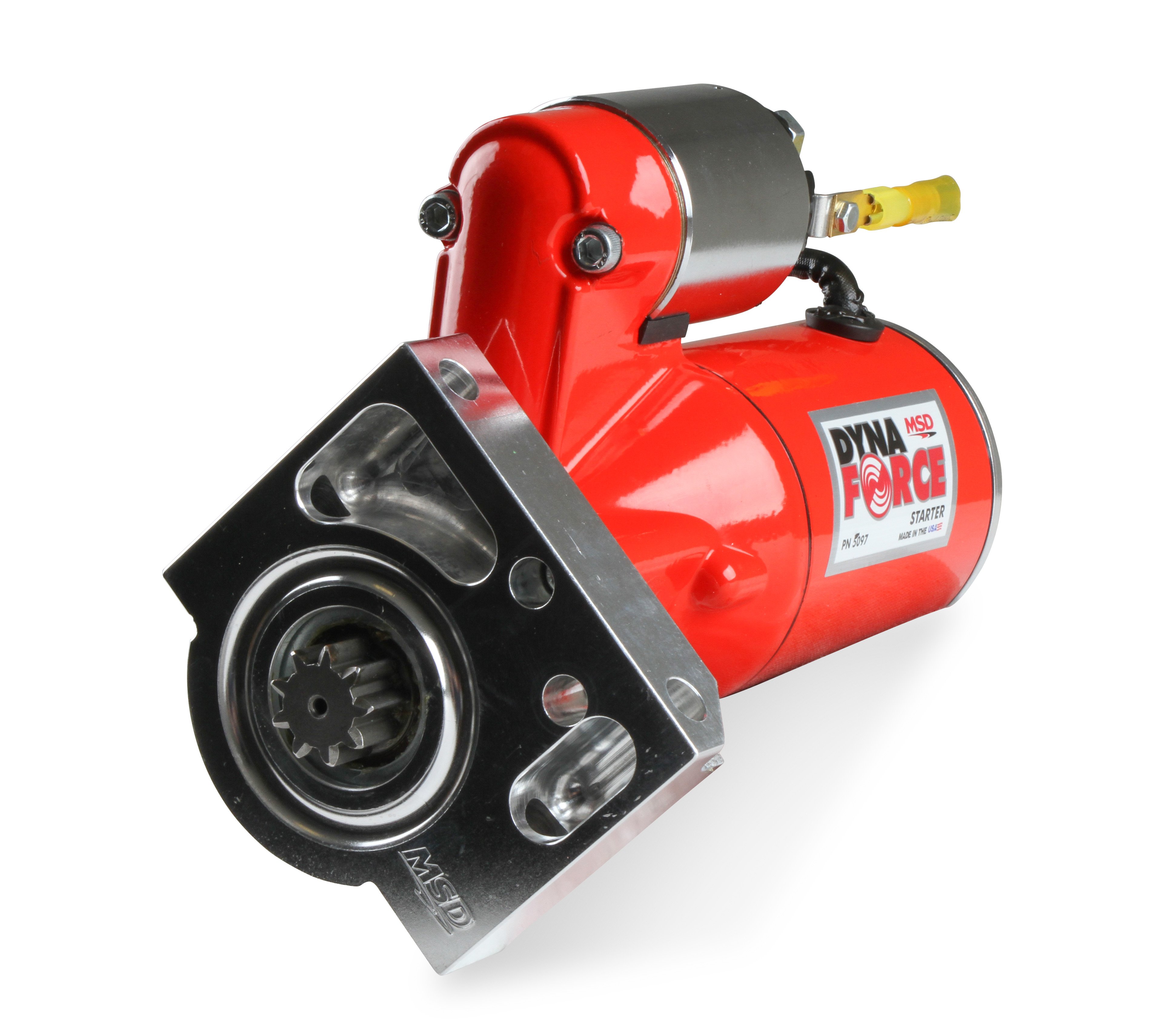

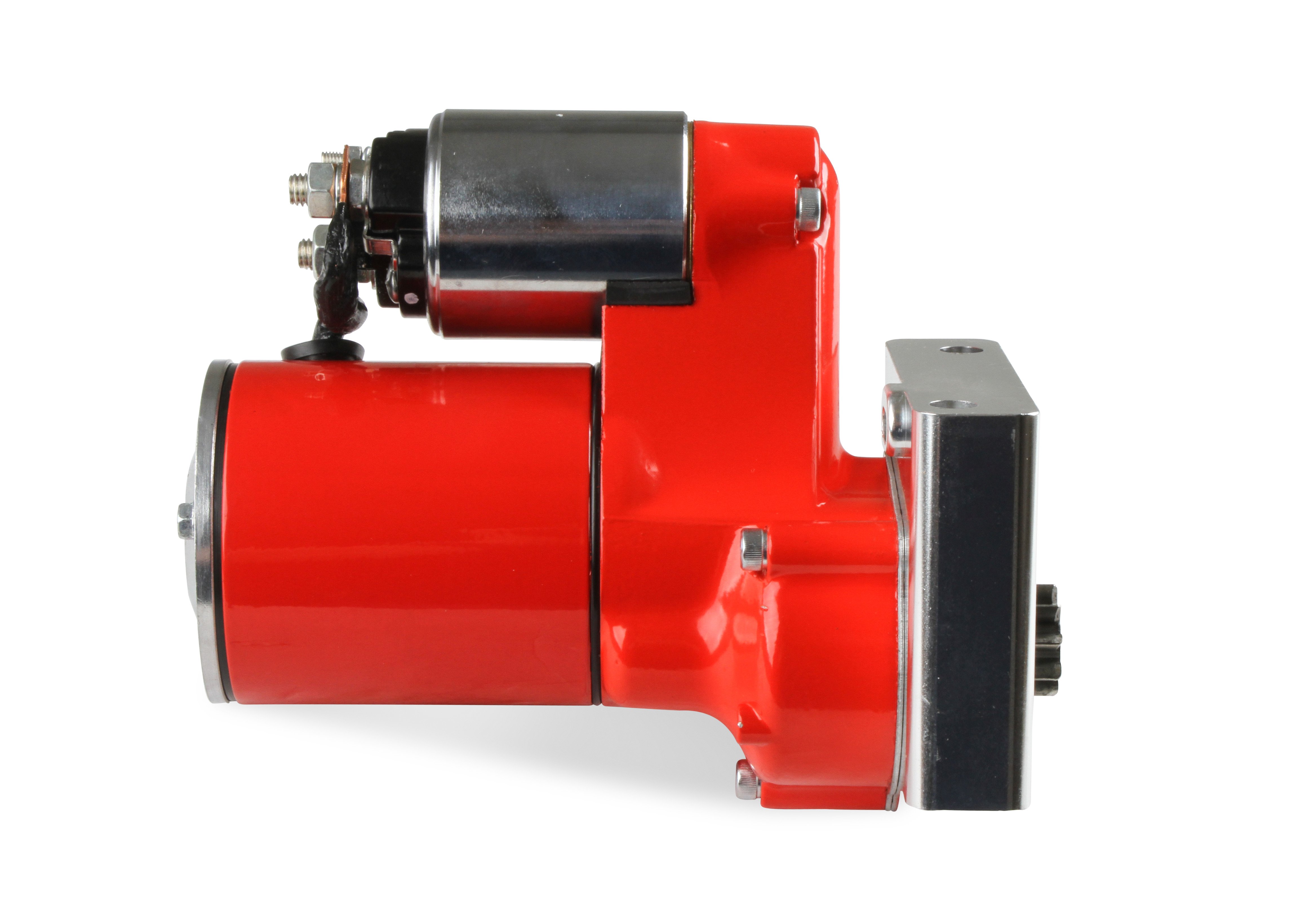

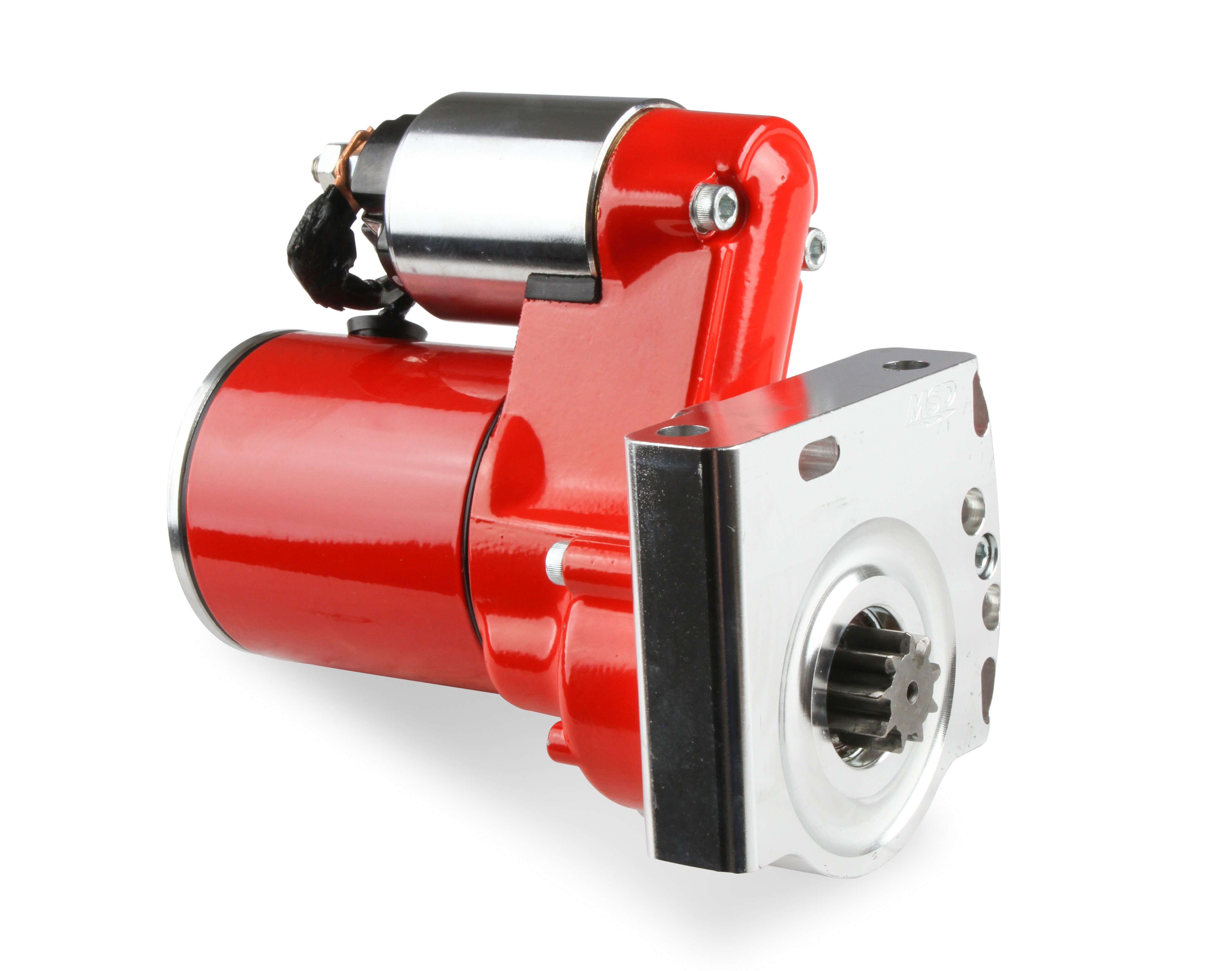

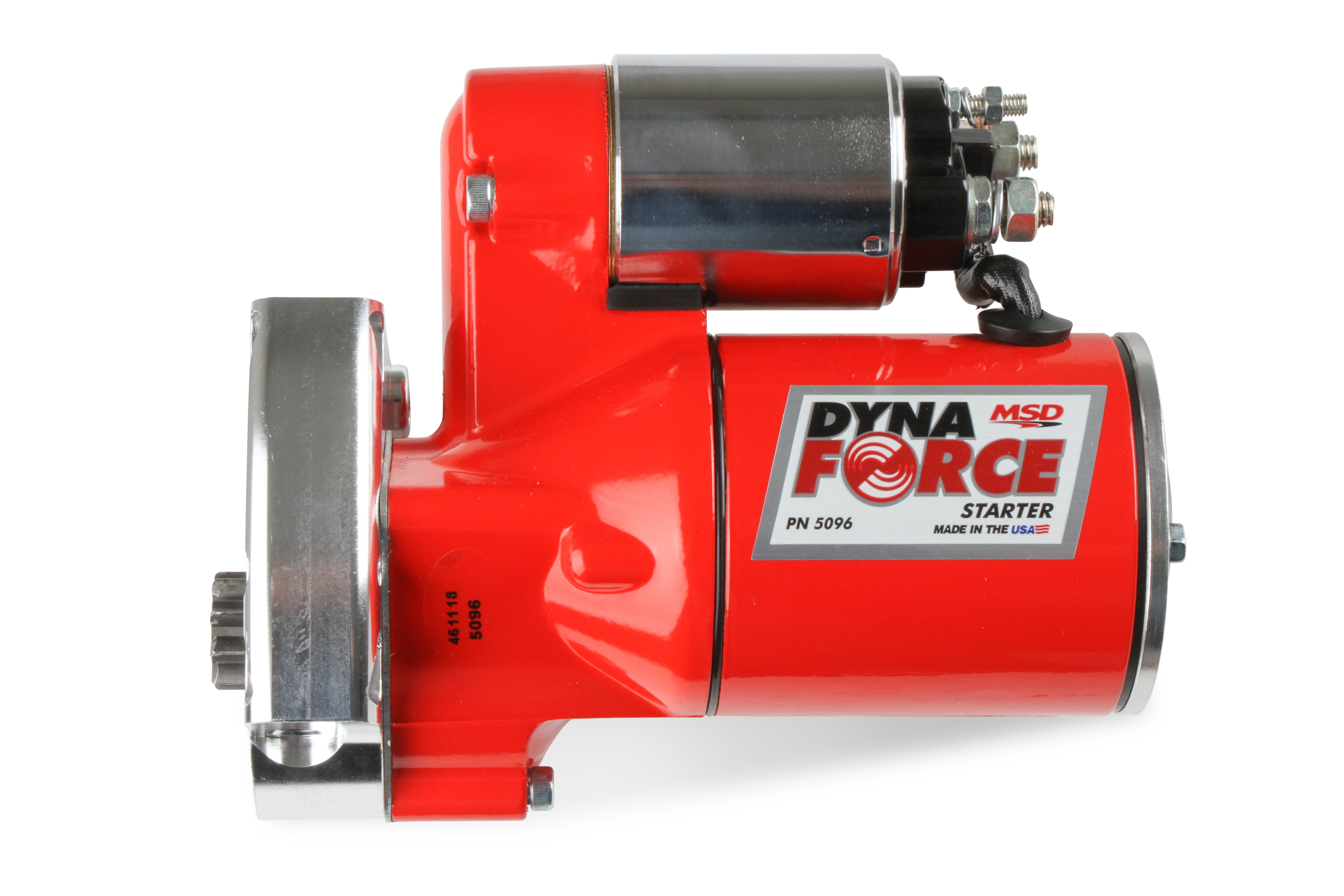

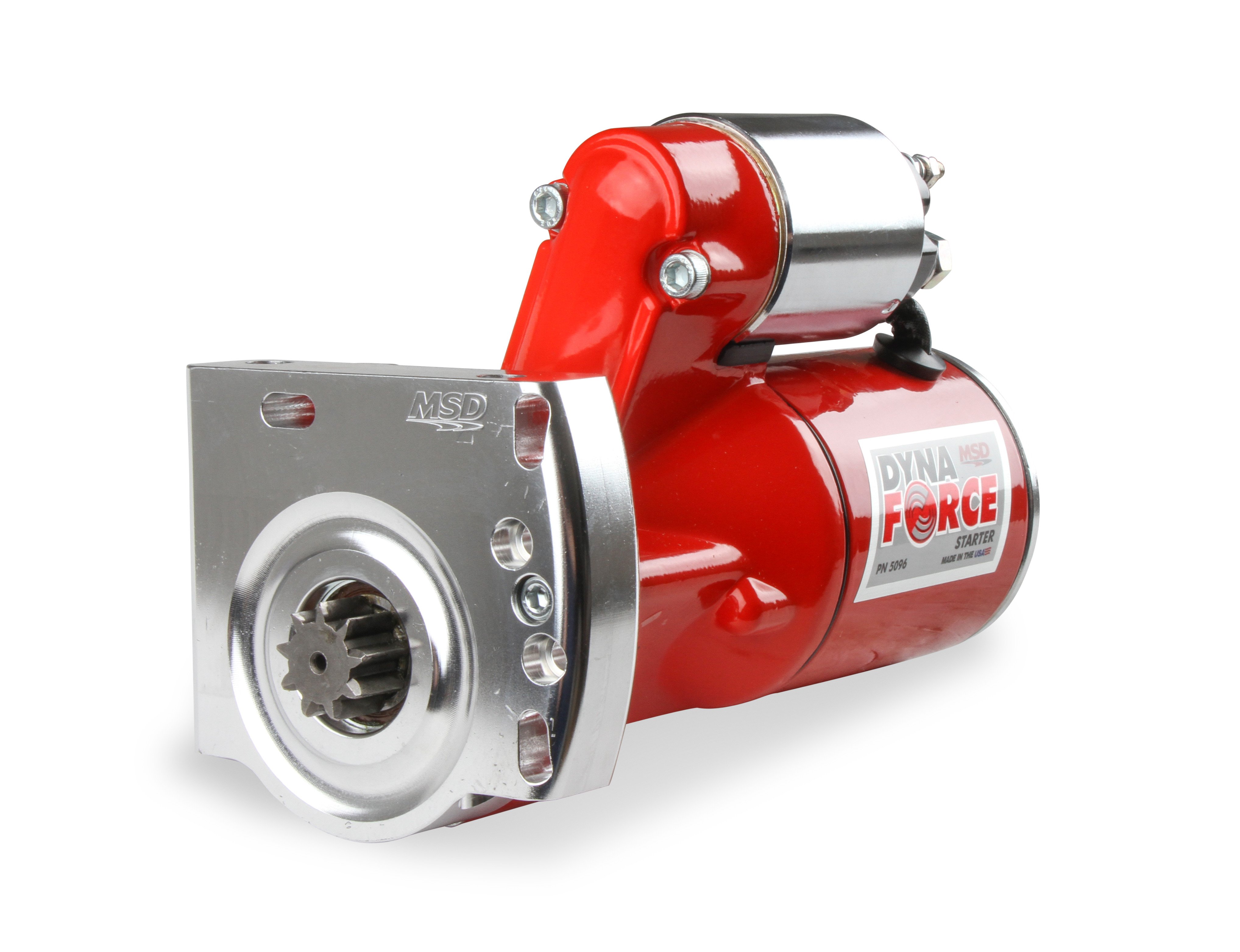

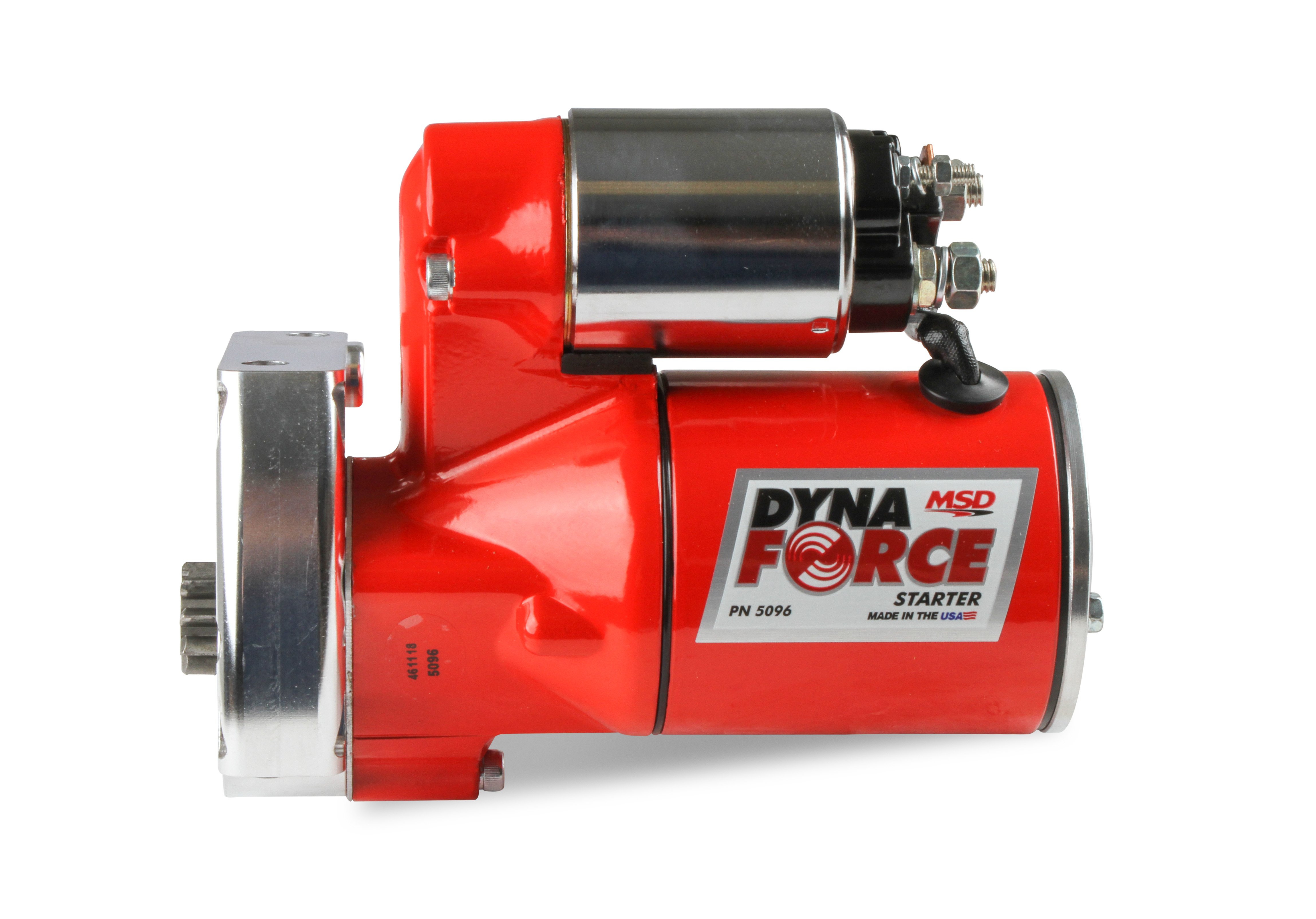

MSD 5096 DynaForce High-Torque Gear Reduction Starter - Red

The MSD 5096 DynaForce High-Torque Starter is a premium gear reduction starter engineered for GM LS1–LS7 Gen III/IV small block engines running 168-tooth flywheels. Built from all-new components and hand-assembled in the USA, every unit is dyno-tested and blueprinted before leaving the factory to ensure maximum reliability and consistent performance.

At the heart of the DynaForce is a 3.4 horsepower motor paired with a 4.4:1 gear reduction set, delivering the cranking torque needed to turn over high-compression engines up to 18:1 compression ratio. The balanced armature rides on two precision ball bearings for smooth, reliable engagement across thousands of starts. Internal contacts and the solenoid disc are nickel-plated to minimize arcing and maintain strong electrical continuity.

Key Features:

• 3.4 HP motor with 4.4:1 gear reduction for superior cranking torque
• Supports high-compression engines up to 18:1 compression ratio
• Compatible with 168-tooth flywheels
• Balanced armature guided by dual ball bearings for long service life
• Nickel-plated internal contacts and disc reduce arcing and improve continuity
• Compact, downsized housing designed to clear most headers and oil pans
• Billet aluminum mounting block can be clocked to multiple positions for tight clearance applications
• Durable red powdercoat finish for corrosion resistance
• Hand-assembled in the USA with all-new components
• Dyno-tested and blueprinted at the factory

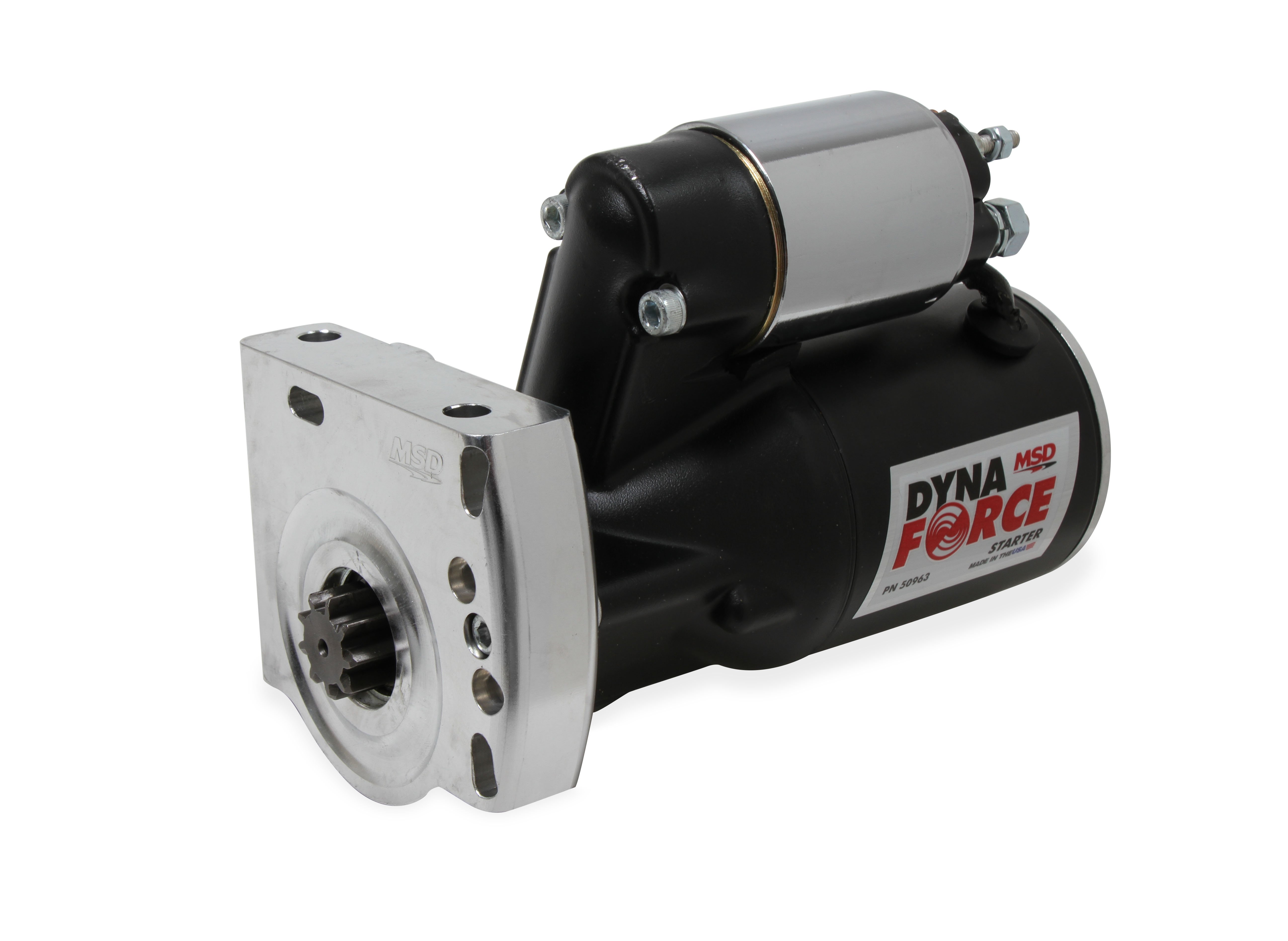

• Also available in black (PN 50963)

The MSD 5096 is legal for sale and use on emissions-controlled vehicles, non-emissions-controlled vehicles, and racing applications, as it does not affect vehicle emissions.
