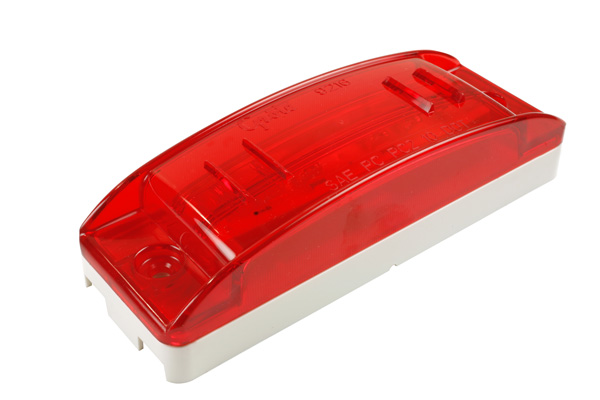

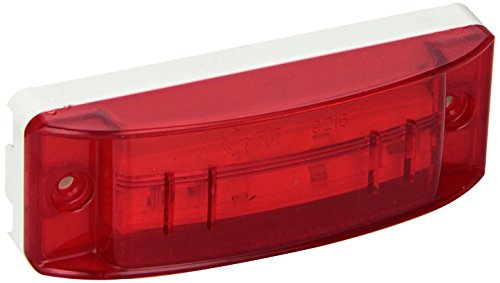

Grote 47162 SuperNova Sealed Turtleback II LED Clearance Marker Light Red PC-Rated

The Grote 47162 SuperNova Sealed Turtleback II is a professional-grade LED clearance and marker lamp designed for trucks, trailers, buses, and commercial vehicles. This PC-rated light features an advanced optic lens design that provides superior visibility and meets FMVSS 108 requirements when mounted at a 45-degree angle on the side or back of vehicles.

Key Features:

• SuperNova LED technology with red polycarbonate lens for maximum brightness and longevity
• Hermetic lens-to-housing seal protects against moisture, corrosion, and environmental damage
• Encapsulated potting provides total circuit board protection for reliable performance
• Tin-plated solid brass terminals sealed to housing resist corrosion and eliminate failure-causing leak paths
• PC-rated function meets requirements when mounted at 45-degree angle

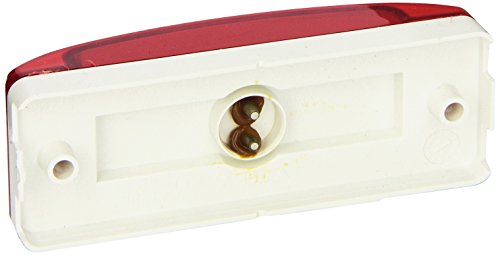

• Male pin connector for secure electrical connection
• Screw mount installation for permanent, secure attachment
• 12-volt operation with low 0.05-0.12 amp current draw
• Polycarbonate construction in white housing with red lens

Technical Specifications: Rectangular turtleback design measuring 5.875 inches long by 2 inches wide by 1.5 inches deep. Operates on 12-volt DC systems. Meets FMVSS 108 regulations for P2 and PC functions. VMRS code 034-004-253. Not designed for vertical mounting—must be installed in horizontal position or at 45-degree angle for PC compliance.

This sealed lamp is ideal for replacement or new installations on commercial trucks, semi-trailers, school buses, and other heavy-duty vehicles requiring reliable clearance and marker lighting. The durable construction and advanced sealing technology ensure long service life even in harsh operating conditions.
